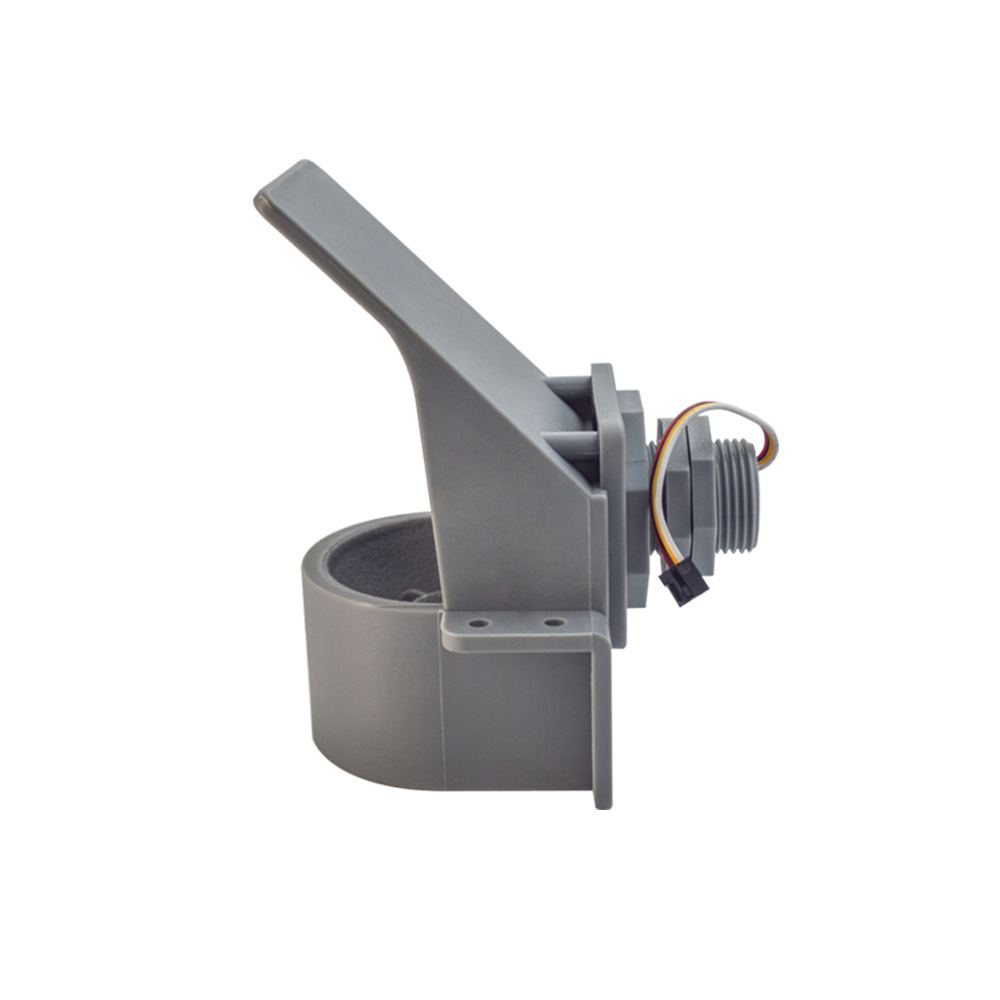

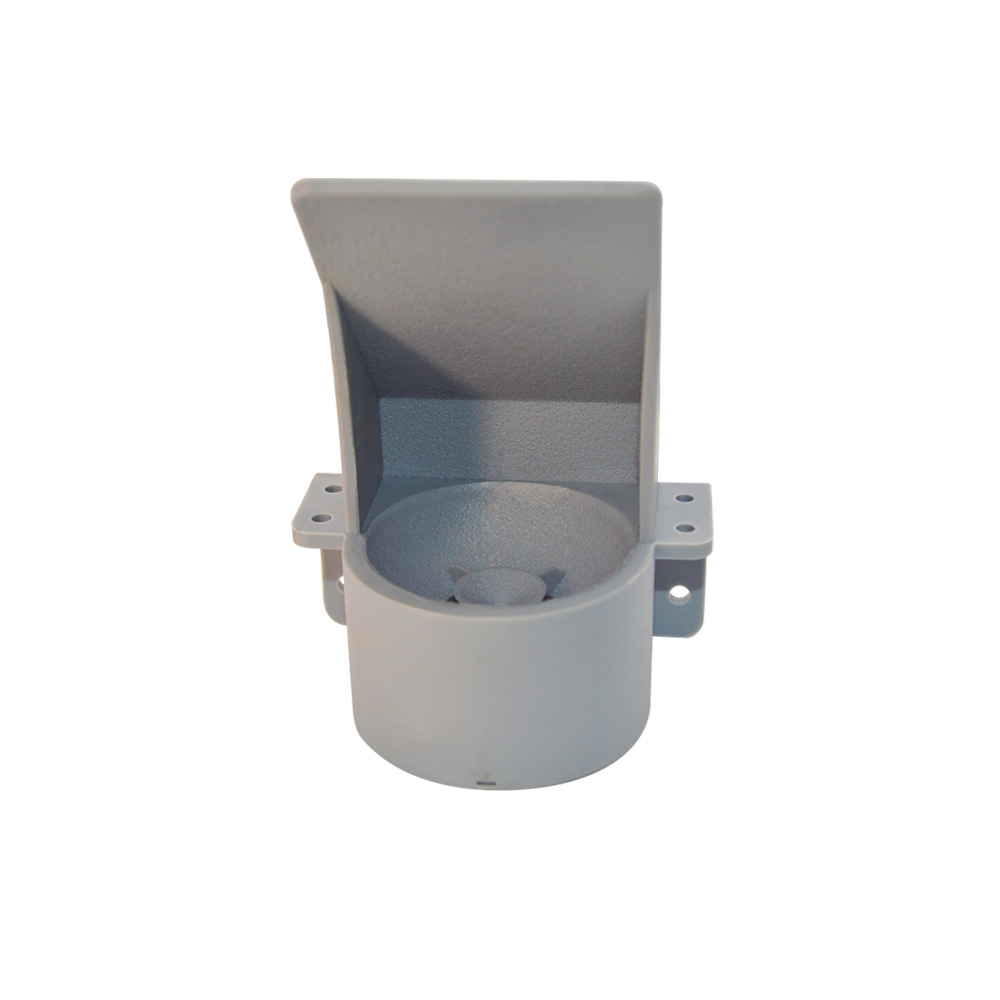

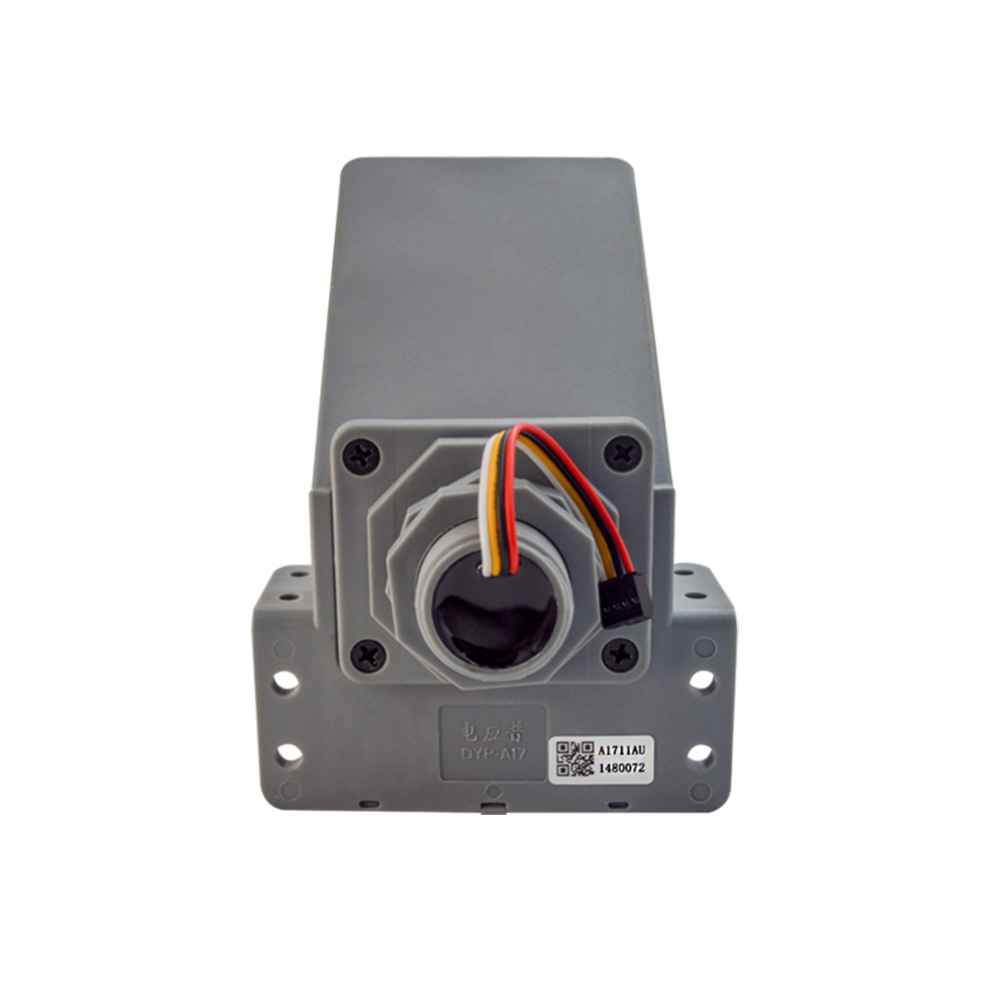

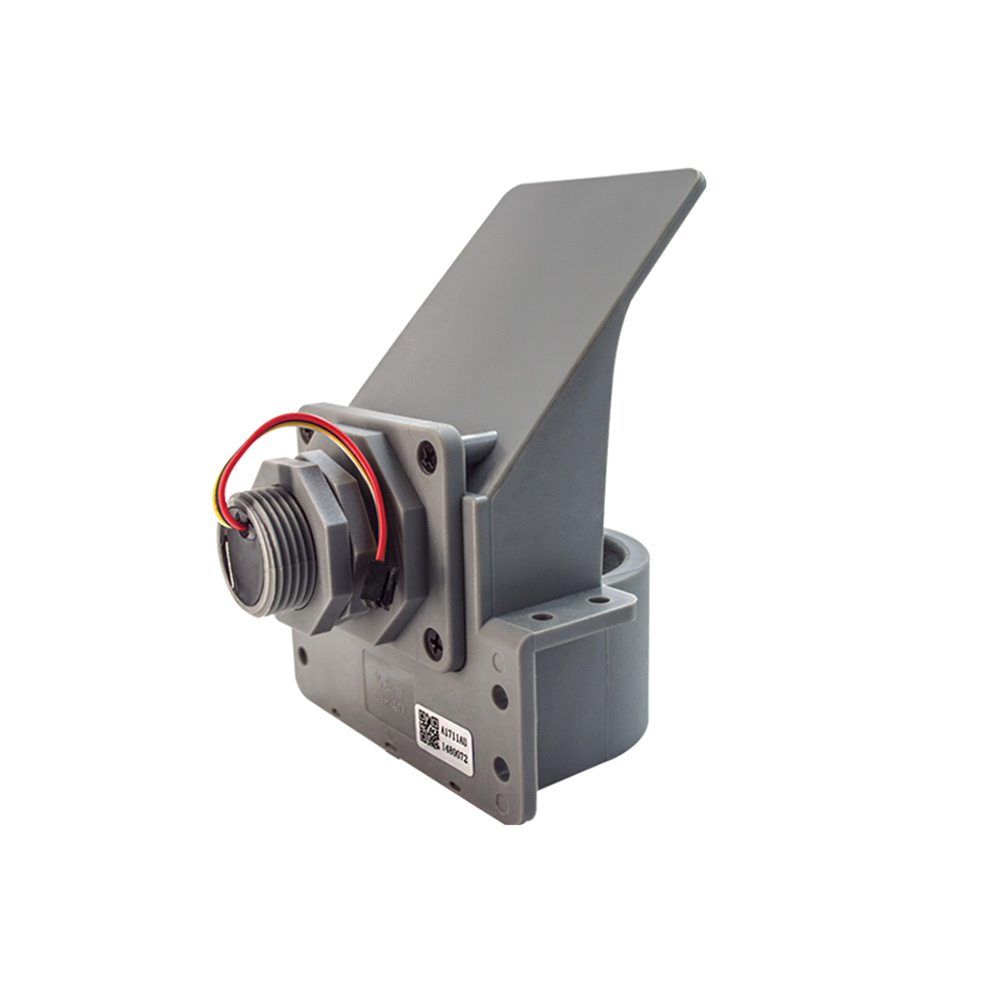

DYP-A17NY4W-V1.0 RS485 Ultrasonic Well Level Sensor (25~1000cm Range)
The DYP-A17NY4W-V1.0 is an RS485 interface ultrasonic level sensor designed for reliable, long-range distance measurement from 25 to 1000 cm. Featuring an IP67 waterproof rating and anti-condensation probe design, it is engineered for integration into industrial PLCs, SCADA systems, and remote well or tank monitoring applications.
Features
- Extended ultrasonic measuring range from 25 cm to 1000 cm with a narrow 15° beam angle.
- RS485 Modbus communication protocol for robust industrial network integration and long-distance data transmission.
- IP67-rated waterproof housing with anti-condensation probe technology for harsh, humid, or outdoor environments.
- High-precision distance sensing algorithm delivers accuracy of ±(1 + S×0.3%) cm.
- Low power consumption design with operating current under 15 mA and static current below 10 µA.
Out of stock
The DYP-A17NY4W-V1.0 ultrasonic sensor utilizes a reflective structure with a high-performance processor to deliver stable and accurate non-contact liquid level or distance measurement. Its intelligent signal processing minimizes the blind zone and extends the reliable detection range, making it suitable for monitoring wells, tanks, and silos.
Engineered for durability, the module features an IP67-sealed enclosure and a specialized ultrasonic probe designed to resist condensation, ensuring consistent performance in challenging environmental conditions. The integrated low-power procedure allows for deployment in battery-powered or energy-conscious remote monitoring stations.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 11 × 9 cm |
