DYP-A16NY4W-V1.0 Large-Range High-Precision Ultrasonic Water Level Sensor 50-1500cm - RS485

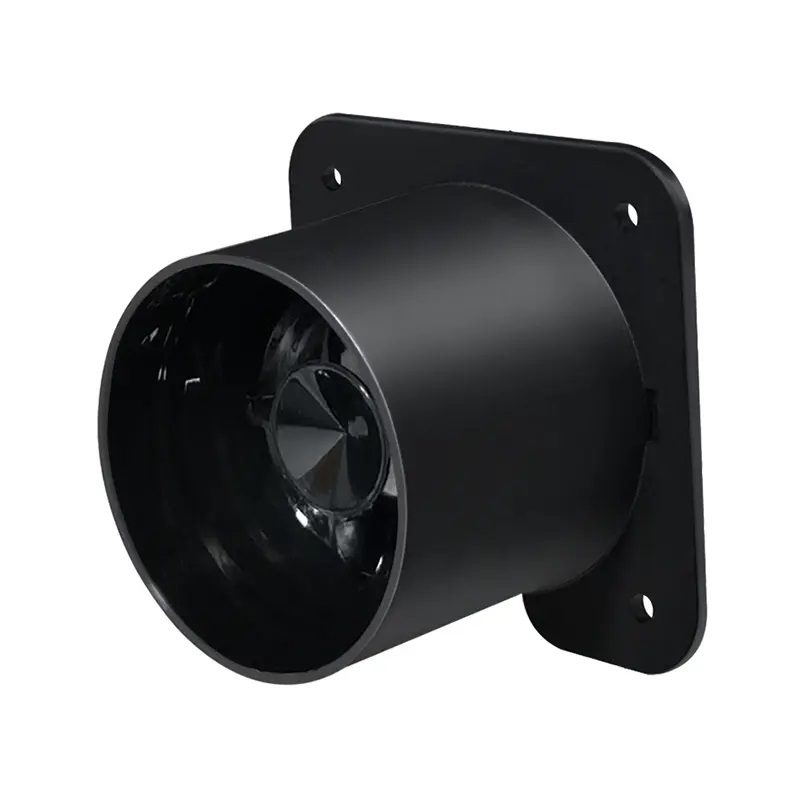

DYP-A16NY4W-V1.0 Large-Range High-Precision Ultrasonic Water Level Sensor 50-1500cm - RS485 - Image 2
SKU: SENS-4024
📋 GST Invoice Available

DYP-A16NY4W-V1.0 Large-Range High-Precision Ultrasonic Water Level Sensor 50-1500cm - RS485

₹8,189.00 (Inclusive of all taxes)
Out of Stock

The DYP-A16NY4W-V1.0 is a high-precision ultrasonic water level sensor with a 50-1500cm measurement range, offering millimeter-level accuracy via RS485 communication. It is designed for seamless integration into industrial PLCs, SCADA systems, and remote monitoring stations, operating from a wide 3.3V to 24V DC supply.

Features

  • Wide ultrasonic measurement range from 50 cm to 1500 cm.
  • High-precision millimeter-level resolution for accurate water level monitoring.
  • Industrial RS485 communication interface for long-distance, noise-immune data transmission.
  • Rugged IP67 waterproof nylon housing with corrosion-resistant transducer.
  • Wide operating voltage range from 3.3V to 24V DC with low power consumption.

Out of stock

Description

The DYP-A16NY4W-V1.0 utilizes ultrasonic time-of-flight (ToF) technology to provide non-contact water level measurement. Its narrow beam angle and integrated temperature compensation ensure stable and accurate readings even in challenging environmental conditions with varying temperatures and humidity.

Engineered for industrial durability, the sensor features a corrosion-resistant transducer sealed within a rugged, waterproof nylon housing rated IP67. This construction guarantees reliable long-term performance in outdoor and harsh environments, from flood monitoring to reservoir management.

Key Features

  • High-Accuracy Ultrasonic Ranging: Delivers millimeter-level resolution across the entire 50-1500cm range for precise water level tracking.
  • Industrial-Grade RS485 Interface: Enables robust, multi-drop communication over long distances, ideal for integration with PLCs and data loggers.
  • Robust Environmental Protection: IP67-rated waterproof and dustproof nylon housing protects the internal electronics from moisture and corrosion.
  • Wide Voltage Compatibility: Operates from 3.3V to 24V DC, making it compatible with a vast array of industrial power supplies and battery systems.
  • Optimized Low-Power Design: Consumes minimal energy, suitable for solar-powered or battery-operated remote monitoring stations.
  • Integrated Temperature Compensation: Automatically adjusts readings to maintain accuracy across the sensor's operating temperature range.
  • Fast Response Time: Provides real-time data updates for critical monitoring and control applications.

Applications

  • Reservoir, dam, and tank level monitoring in water management systems.
  • River, stream, and flood stage measurement for hydrological studies.
  • Liquid level sensing in industrial process tanks and silos.
  • Groundwater well monitoring and irrigation system control.
  • Wastewater treatment plant level measurement and control.

Technical Specifications

Model NumberDYP-A16NY4W-V1.0
Measurement Range50 cm to 1500 cm
Communication InterfaceRS485
Operating Voltage3.3V DC to 24V DC
Ingress Protection (IP)IP67
Housing MaterialWaterproof Nylon
Transducer TypeCorrosion-Resistant Ultrasonic
Beam AngleNarrow
Key FeatureTemperature Compensation
Shipping Weight0.108 kg
Shipping Dimensions (L x W x H)8 cm x 7 cm x 6 cm

Frequently Asked Questions

What is the communication protocol for this ultrasonic water level sensor?

The sensor uses a standard RS485 serial communication interface. This allows for reliable, noise-immune data transmission over long distances (typically up to 1200 meters) and supports multi-drop network configurations, making it ideal for integration with industrial PLCs, SCADA systems, or data loggers that support Modbus RTU or other RS485-based protocols.

What power supply voltage does the DYP-A16NY4W-V1.0 require?

The sensor operates over a wide DC voltage range from 3.3V to 24V. This flexibility allows it to be powered by common sources such as 5V USB power banks, 12V automotive or solar systems, or standard 24V industrial power supplies, simplifying integration into various field deployment scenarios.

Is this sensor suitable for outdoor and harsh environments?

Yes, the sensor is specifically designed for harsh conditions. It features an IP67-rated waterproof nylon housing, which protects it from dust ingress and temporary immersion in water. The corrosion-resistant ultrasonic transducer further ensures long-term reliability when exposed to moisture, making it ideal for outdoor water level monitoring applications.

How do I interface this RS485 sensor with an Arduino or Raspberry Pi?

To connect this sensor to a microcontroller like an Arduino or Raspberry Pi, you will need an RS485 to TTL/UART converter module (e.g., MAX485). Connect the sensor's RS485 lines (A/B) to the converter, and the converter's TTL RX/TX lines to your board's serial pins. You will then need to write or use a library to handle the serial communication and parse the sensor's data packet format.

Package Includes

  • 1 x DYP-A16NY4W-V1.0 Ultrasonic Water Level Sensor

Additional Information

Weight 0.108 kg
Dimensions 8 × 7 × 6 cm
