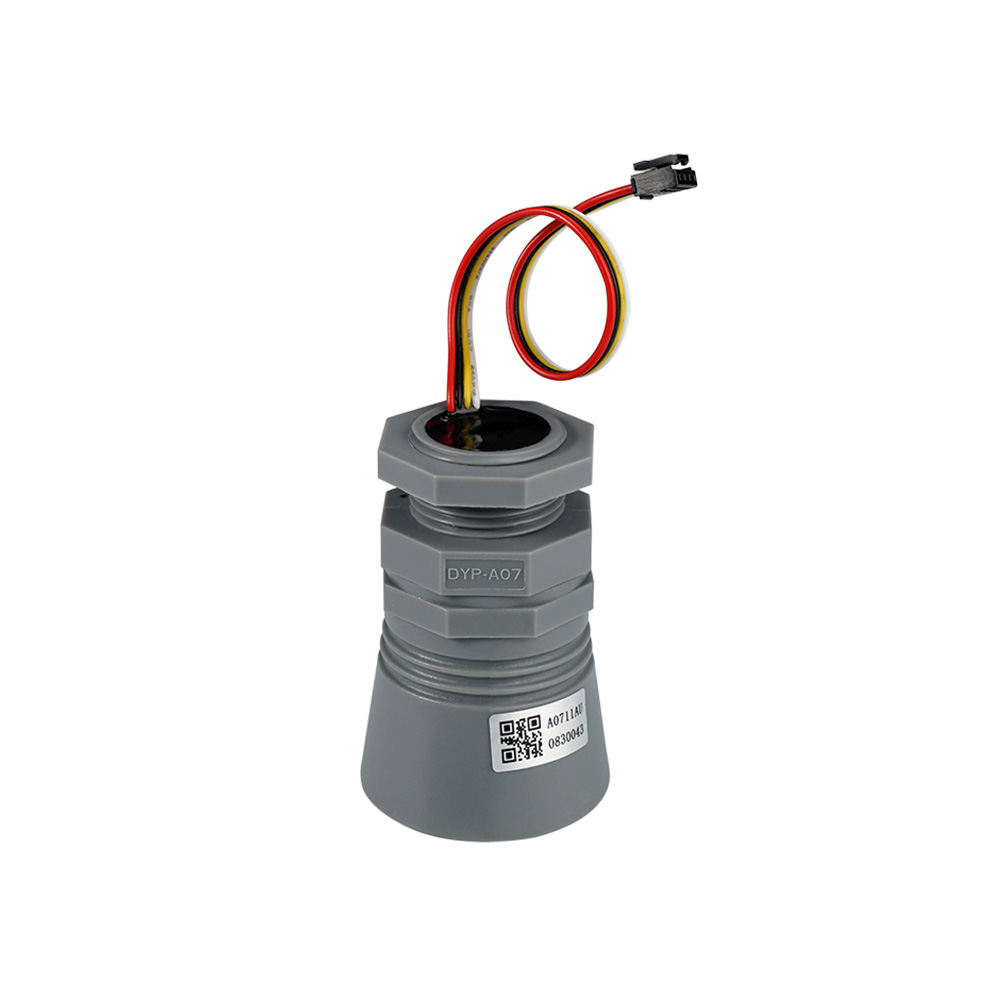

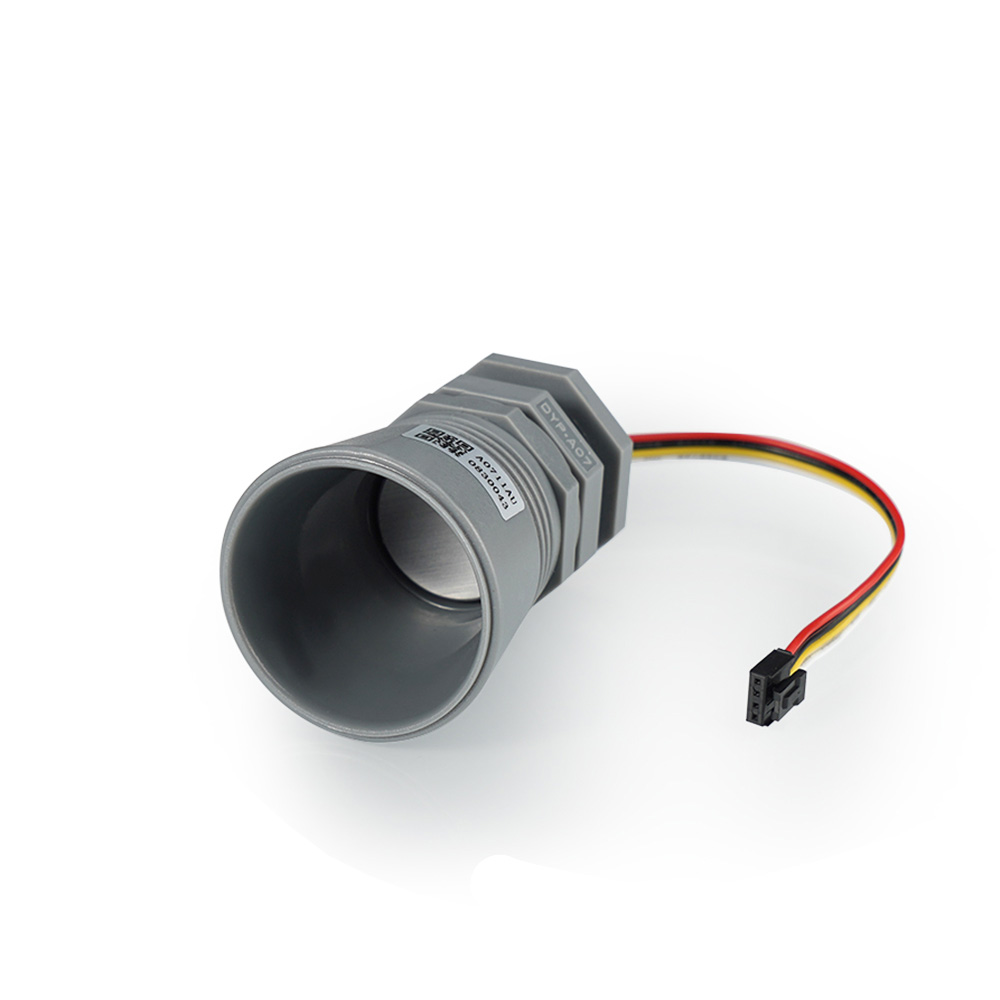

DYP-A07NYTB-V1.0 UART Controlled Waterproof Ultrasonic Level Sensor (Measuring Range 25~800cm)
The DYP-A07NYTB-V1.0 is a UART-interface ultrasonic distance sensor module designed for reliable, long-range liquid level and object detection. Operating from 3.3V to 5V DC, it integrates a waterproof transducer and high-precision algorithm for stable performance in industrial and environmental monitoring systems, including Arduino and Raspberry Pi platforms.
Features
- UART serial interface for direct communication with microcontrollers and PLCs.
- Waterproof ultrasonic transducer for reliable operation in wet or outdoor environments.
- Extended measurement range from 25 cm to 800 cm with a narrow 15° beam angle.
- High accuracy of ±(1 + 0.3% of distance) cm and low power consumption (<15 mA operating current).
- Integrated high-precision ranging algorithm ensures stable and repeatable readings.
Out of stock
The DYP-A07NYTB-V1.0 ultrasonic sensor employs time-of-flight (ToF) measurement principles, emitting ultrasonic pulses and calculating distance based on the echo return time. Its built-in signal processing circuit and proprietary algorithm minimize environmental noise interference, providing consistent and accurate readings even at long ranges.

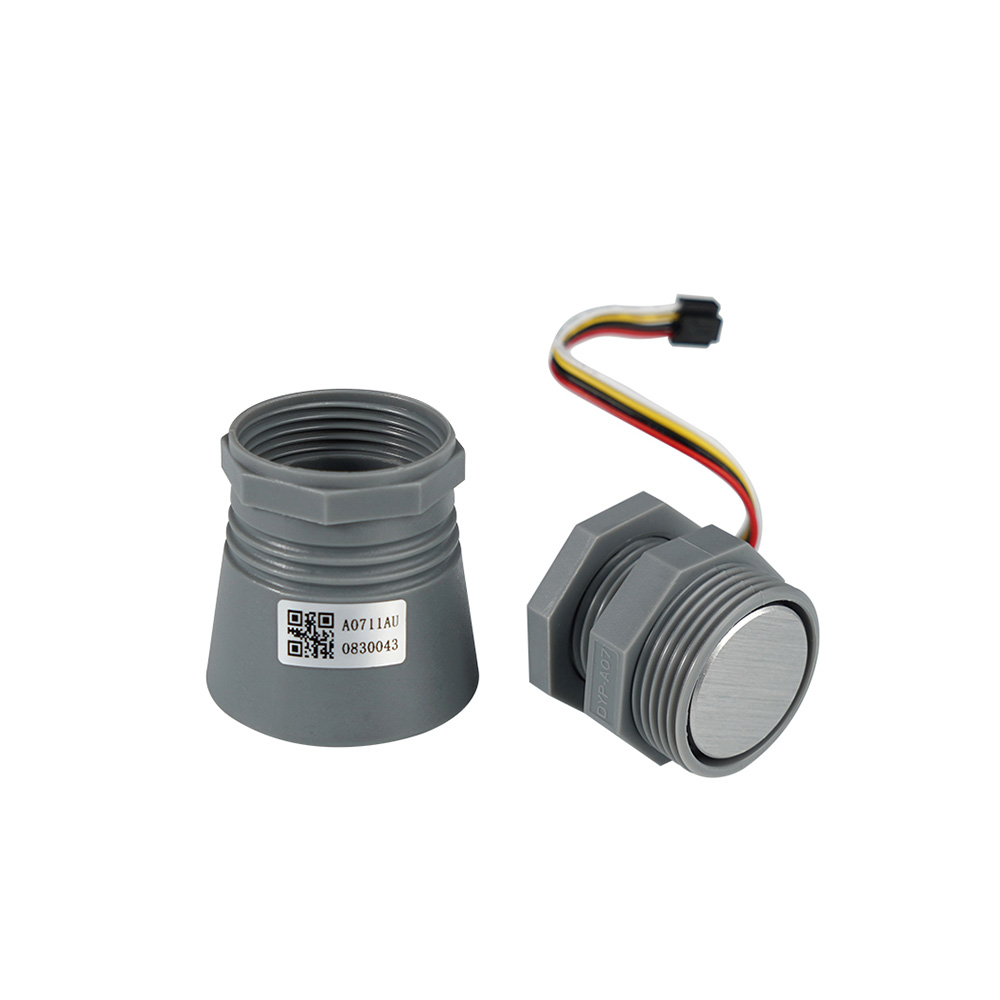

Designed for durability, the module features a sealed, waterproof transducer housing suitable for applications involving moisture, condensation, or direct exposure. The integrated power management ensures efficient operation with a static current below 10 µA, making it suitable for battery-powered or energy-conscious systems requiring periodic measurements.
Additional Information
| Weight | 0.054 kg |
|---|---|
| Dimensions | 11 × 7 × 6 cm |
