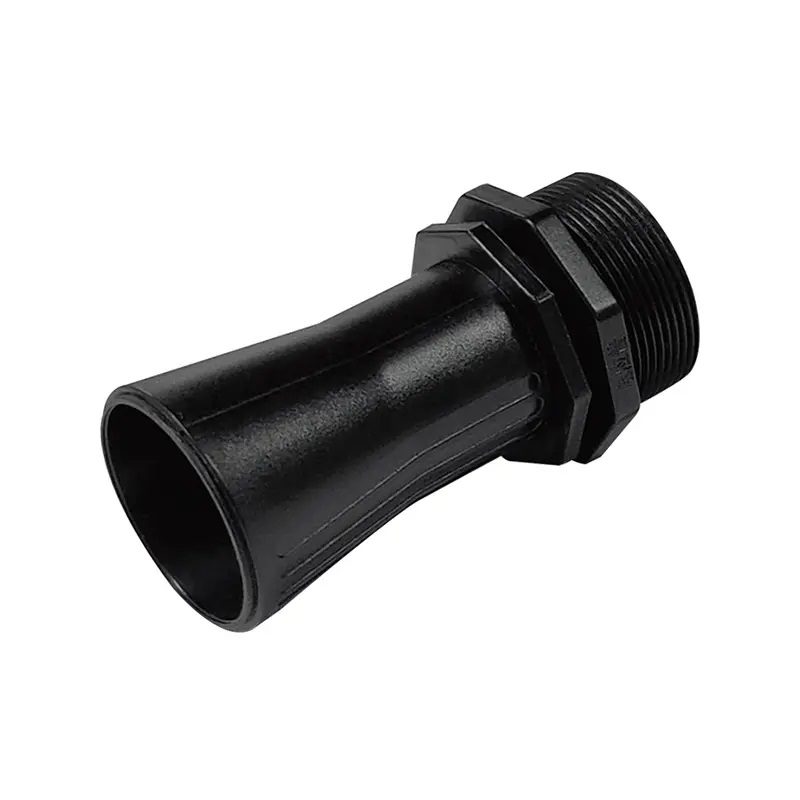

DYP-A01BNYTW-V2.0 Ultrasonic Proximity Sensor 28-450cm Range - UART, PWM, RS485, IP67
DYP-A01BNYTW-V2.0 Ultrasonic Proximity Sensor 28-450cm Range - UART, PWM, RS485, IP67 - Image 2
SKU: SENS-4018
📋 GST Invoice Available

DYP-A01BNYTW-V2.0 Ultrasonic Proximity Sensor 28-450cm Range - UART, PWM, RS485, IP67

₹1,359.00 (Inclusive of all taxes)
Out of Stock

The DYP-A01BNYTW-V2.0 is a high-precision ultrasonic proximity sensor module offering a 28-450cm measurement range with a 75° beam angle. It features a versatile multi-interface design with UART, PWM, switch, and RS485 outputs for easy integration with Arduino, Raspberry Pi, ESP32, STM32, and industrial PLCs.

Features

  • High-precision ultrasonic ranging from 28 cm to 450 cm with a wide 75° detection angle.
  • Multi-interface output support: UART (TTL), PWM, switch (digital), and RS485 for maximum system compatibility.
  • Robust IP67-rated waterproof enclosure for reliable operation in demanding indoor and outdoor environments.
  • Low power consumption design suitable for battery-powered and portable sensing applications.
  • Compact form factor with 3.3V to 5V DC operating voltage for easy integration into embedded systems.

Out of stock

Description

The DYP-A01BNYTW-V2.0 utilizes ultrasonic time-of-flight (ToF) principles to deliver stable and accurate distance measurements. Its integrated signal processing provides reliable readings for object detection and proximity sensing across a broad 28-450cm range.

Engineered for versatility, the module outputs data via configurable interfaces including UART for direct serial communication, PWM for analog-style distance representation, a simple switch output for threshold detection, and RS485 for robust long-distance industrial networks. The IP67-rated housing protects the internal transducers from dust and water ingress, ensuring durability in challenging conditions.

Key Features

  • High-precision ultrasonic measurement with reliable 28-450cm detection capability.
  • Four configurable output modes: UART (TTL), PWM, digital switch, and RS485 Modbus protocol.
  • IP67 waterproof and dustproof rating for industrial and outdoor deployment.
  • Wide 75° beam angle for comprehensive area coverage and object detection.
  • Optimized 3.3V to 5V DC operating range compatible with most microcontrollers and logic systems.
  • Low quiescent current draw, making it suitable for energy-conscious battery-powered designs.
  • Compact and lightweight form factor for straightforward mounting and integration.
  • Stable performance across a standard operating temperature range for consistent sensing.

Applications

  • Human presence detection and counting for smart retail, security, and building automation.
  • Obstacle avoidance and environment mapping for mobile robotics and AGVs.
  • Smart waste bin or liquid tank level monitoring and management systems.
  • Industrial automation for object detection on conveyor belts and material handling.
  • Parking space occupancy sensing and vehicle detection in smart parking solutions.

Technical Specifications

Model NumberDYP-A01BNYTW-V2.0
Measurement Range28 - 450 cm
Detection AngleApprox. 75°
Output InterfacesUART (TTL), PWM, Switch (Digital), RS485
Operating Voltage3.3V to 5V DC
Protection RatingIP67 (Waterproof & Dustproof)
Shipping Weight0.037 kg
Shipping Dimensions11 × 8 × 4 cm

Frequently Asked Questions

What is the operating voltage range for the DYP-A01BNYTW-V2.0 sensor?

The sensor operates from 3.3V to 5V DC. It is compatible with common microcontroller logic levels, making it suitable for direct connection to Arduino, ESP32, Raspberry Pi GPIO, and other 3.3V or 5V embedded systems without requiring a level shifter.

How do I communicate with this sensor using the UART interface?

The UART interface uses TTL-level serial communication (3.3V/5V logic). Connect the sensor's TX and RX pins to your microcontroller's corresponding UART pins. Data is transmitted in a predefined packet format containing the measured distance. Baud rate and packet structure details are provided in the product datasheet.

Can this sensor be used outdoors or in wet environments?

Yes, the IP67 waterproof and dustproof rating makes the DYP-A01BNYTW-V2.0 suitable for outdoor and damp indoor applications. It can withstand temporary immersion and exposure to rain or dust, making it ideal for outdoor level monitoring, agricultural robotics, and industrial washdown areas.

What is the difference between the PWM, switch, and RS485 output modes?

PWM output provides a duty cycle proportional to distance. Switch mode outputs a simple digital high/low signal when an object enters or leaves a preset threshold range. RS485 mode enables robust, long-distance communication (up to 1200 meters) over a twisted-pair bus, ideal for industrial networks and multi-drop sensor setups.

Package Includes

  • 1 x DYP-A01BNYTW-V2.0 Ultrasonic Proximity Sensor Module

Additional Information

Weight 0.037 kg
Dimensions 11 × 8 × 4 cm
