DFRobot Gravity Multifunctional Environmental Sensor Module - SHTC3, BMP280, VEML7700, ML8511, I2C/UART
DFRobot Gravity Multifunctional Environmental Sensor Module - SHTC3, BMP280, VEML7700, ML8511, I2C/UART - Image 2
DFRobot Gravity Multifunctional Environmental Sensor Module - SHTC3, BMP280, VEML7700, ML8511, I2C/UART - Image 3
DFRobot Gravity Multifunctional Environmental Sensor Module - SHTC3, BMP280, VEML7700, ML8511, I2C/UART - Image 4
SKU: SENS-3052
📋 GST Invoice Available

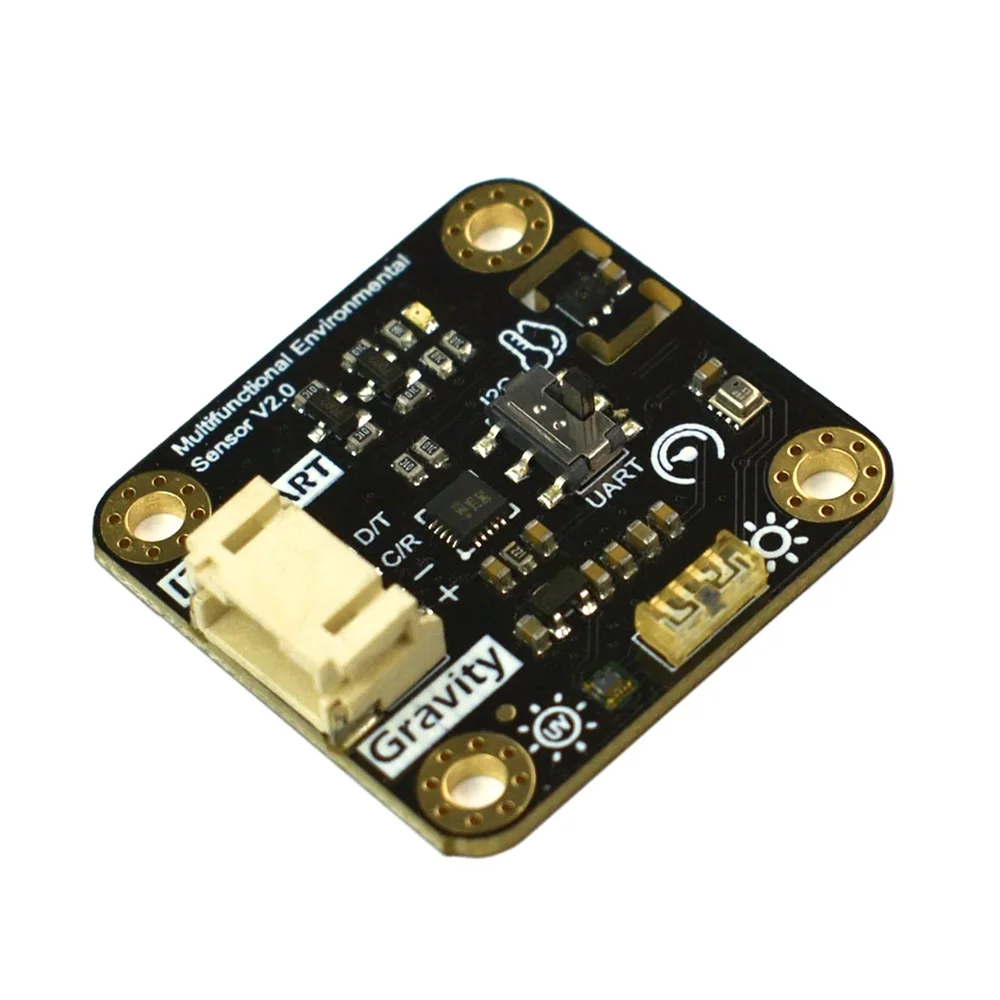

DFRobot Gravity Multifunctional Environmental Sensor Module - SHTC3, BMP280, VEML7700, ML8511, I2C/UART

₹3,539.00 (Inclusive of all taxes)
Out of Stock

The DFRobot Gravity Multifunctional Environmental Sensor integrates SHTC3 temperature/humidity, BMP280 barometric pressure, VEML7700 ambient light, and ML8511 UV sensors into a single module, providing five key environmental parameters via I2C or UART for Arduino, Raspberry Pi, and other 3.3V/5V microcontroller systems.

Features

  • Integrated SHTC3, BMP280, VEML7700, and ML8511 professional-grade sensor chips for simultaneous multi-parameter measurement.
  • Switchable I2C and UART communication interfaces for flexible system integration.
  • Gravity 4-pin connector enables solderless, plug-and-play connectivity for rapid prototyping.
  • Onboard MCU processes raw data into standard units (°C, %, kPa, lx, mW/m²) for immediate use.
  • Optimized PCB layout and thermal design ensure high measurement accuracy and stability.

Out of stock

Description

This compact environmental sensor module consolidates four distinct sensing elements onto a single PCB, delivering calibrated readings for temperature, relative humidity, barometric pressure, ambient light illuminance, and ultraviolet intensity. The onboard microcontroller handles signal conditioning and unit conversion, outputting ready-to-use data via a user-selectable I2C or UART interface.

Designed with careful thermal management and component placement, the module minimizes cross-sensor interference, ensuring reliable performance across its -20°C to 70°C operating range. Its 3.3V to 5V power compatibility and Gravity connector system make it an ideal building block for environmental monitoring stations, smart home systems, and educational projects requiring robust, multi-parameter sensing.

Key Features

  • Multi-sensor integration: Combines SHTC3 (temp/humidity), BMP280 (pressure/altitude), VEML7700 (ambient light), and ML8511 (UV) in one module.
  • Dual-interface flexibility: User-configurable for I2C or UART serial communication.
  • Gravity plug-and-play system: 4-pin connector eliminates soldering for quick integration.
  • Onboard data processing: MCU converts sensor outputs to standard engineering units.
  • High-precision design: Optimized PCB layout and thermal conduction ensure measurement accuracy.
  • Wide operating voltage: Compatible with 3.3V and 5V logic microcontroller platforms.
  • Compact form factor: 32mm x 32mm board with M3 mounting holes for secure installation.
  • Comprehensive software support: Includes complete Arduino and Python libraries for rapid development.

Applications

  • Indoor/outdoor environmental monitoring stations for smart home and building automation.
  • Portable weather data loggers and agricultural microclimate sensing systems.
  • UV index monitoring for health and safety applications in outdoor equipment.
  • Educational platforms for multi-sensor data acquisition and IoT prototyping.
  • Lighting control systems utilizing ambient light and UV intensity feedback.

Technical Specifications

ParameterSpecification
Supply Voltage3.3V to 5V DC
Operating Current45 mA (typical)
Communication InterfaceSwitchable I2C / UART
Operating Temperature-20°C to +70°C
Temperature/Humidity SensorSHTC3
Barometric Pressure SensorBMP280
Ambient Light SensorVEML7700
UV SensorML8511 (UV-A: 320-400nm, UV-B: 280-320nm)
UV Output UnitmW/m²

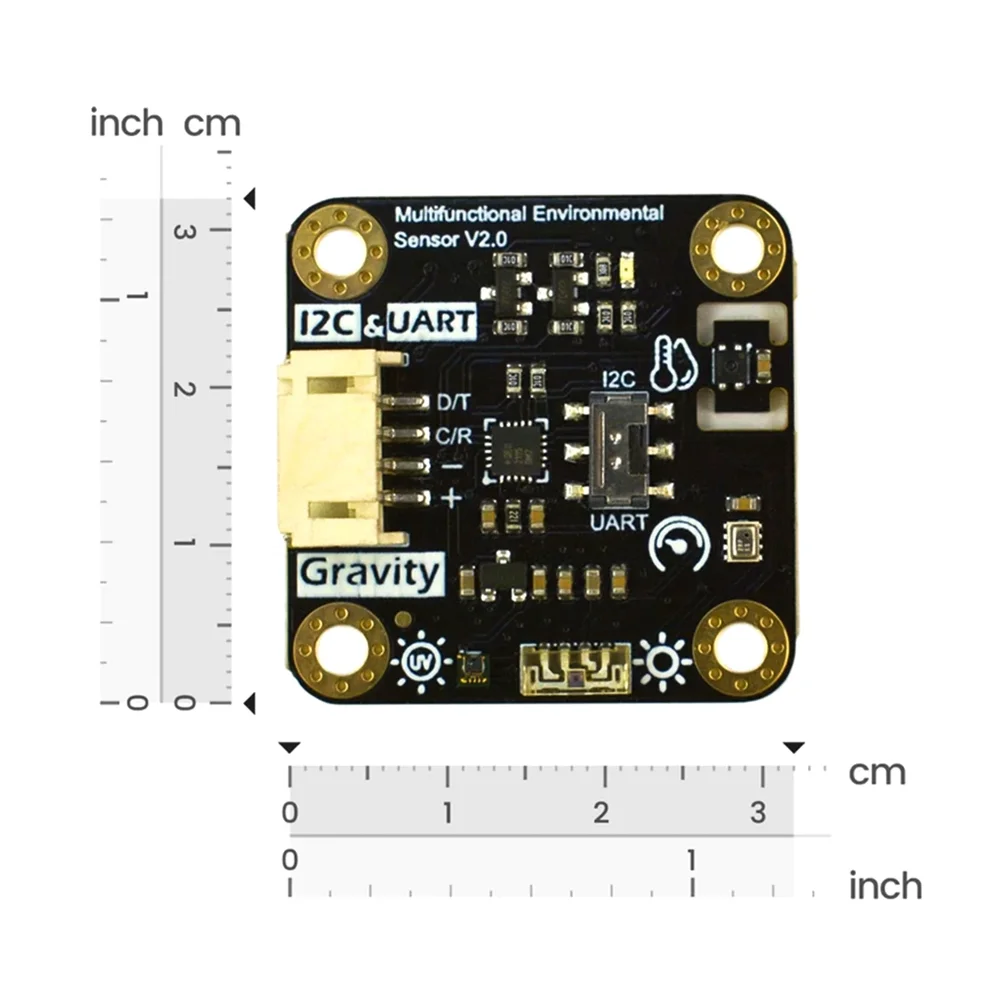

Board Dimensions32 mm x 32 mm
Mounting Hole DiameterM3 (3 mm)
Package Weight0.02 kg

Frequently Asked Questions

What is the operating voltage range for this sensor module?

The module is designed to operate from 3.3V to 5V DC, making it directly compatible with most common microcontroller platforms like Arduino (5V) and Raspberry Pi/ESP32 (3.3V). Ensure your power supply can provide the typical 45mA operating current.

How do I switch between I2C and UART communication modes?

The module features a hardware switch or Jumper selection (consult the product diagram) to configure the output interface. For I2C mode, connect the SDA and SCL pins. For UART mode, connect the TX and RX pins, ensuring proper logic level matching (3.3V or 5V) with your host controller.

Does the module require calibration, or does it output processed data?

The onboard MCU handles all sensor calibration and data processing, outputting fully converted values in standard units: temperature in °C/°F, humidity in %, pressure in kPa, ambient light in lux (lx), and UV intensity in mW/m². You can use the provided Arduino or Python libraries to read these values directly.

What is the measurement range and accuracy for the UV sensor?

The integrated ML8511 sensor is sensitive to UV-A (320-400nm) and UV-B (280-320nm) wavelengths. Its output in mW/m² corresponds to the ultraviolet light intensity. For specific accuracy and linearity specifications, refer to the ML8511 datasheet, as the module's onboard processing provides a digital representation of the analog sensor output.

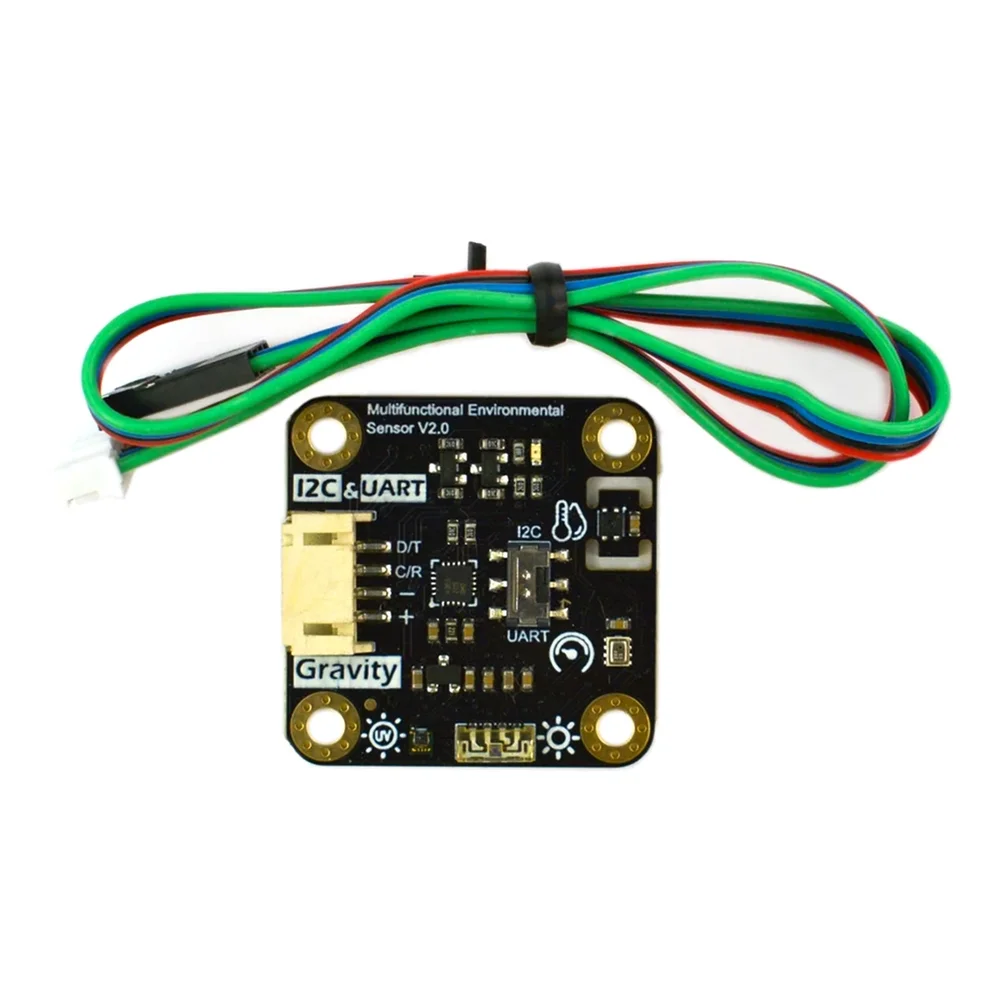

Package Includes

  • 1 x Gravity Multifunctional Environmental Sensor Module
  • 1 x Gravity 4-Pin Connector Cable

Additional Information

Weight 0.02 kg
Dimensions 6 × 6 × 2 cm
