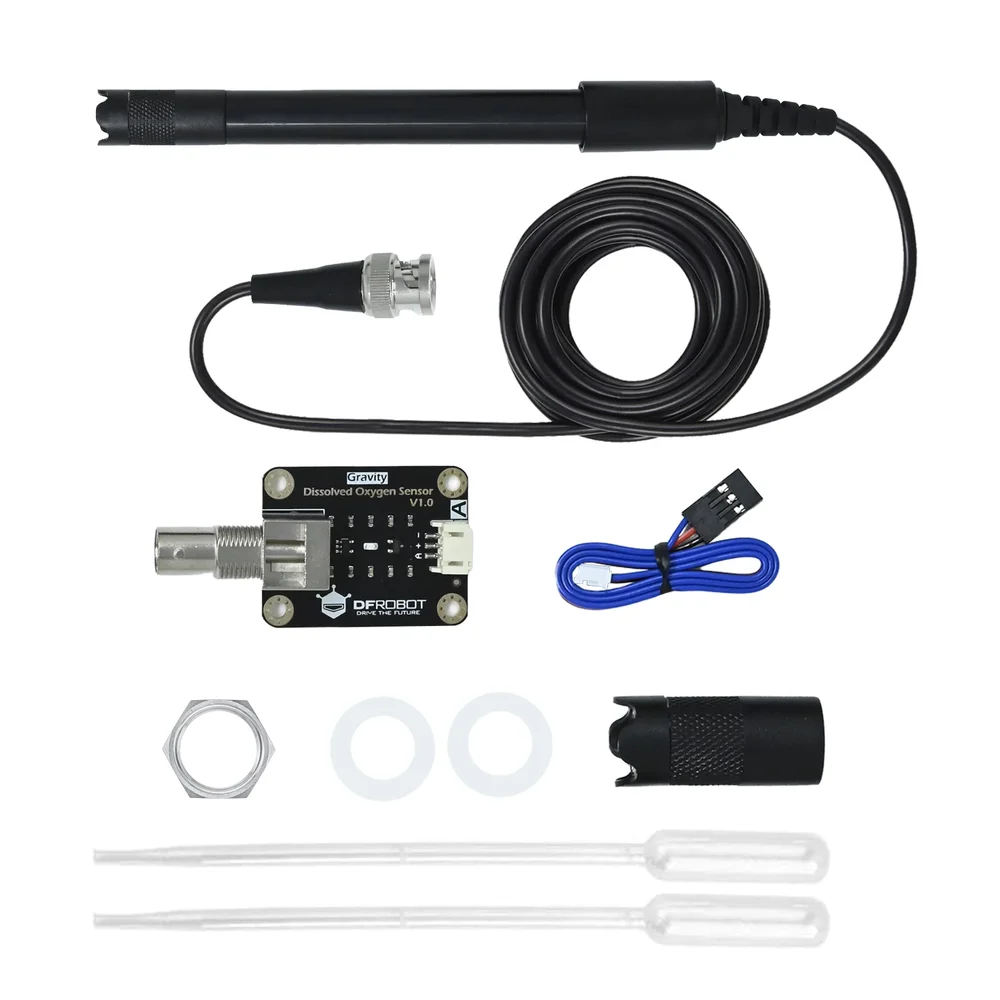

DFRobot Gravity Lab Grade Analog Dissolved Oxygen Sensor / Meter Kit For Arduino - Galvanic Probe, BNC Connector
The DFRobot Gravity Lab Grade Analog Dissolved Oxygen Sensor Kit is a galvanic probe-based meter designed for precise measurement of dissolved oxygen (DO) in water, featuring a 0-20 mg/L range and 0-3.0V analog output for seamless integration with Arduino, Raspberry Pi, and other 3.3V/5V microcontrollers.
Features
- Galvanic probe design eliminates polarization wait time for immediate measurement.
- 0-20 mg/L detection range with up to 98% full response within 90 seconds at 25°C.
- 0-3.0V analog output compatible with any microcontroller ADC input.
- Wide 3.3-5.5V power supply range for use with Arduino and industrial DAQ systems.

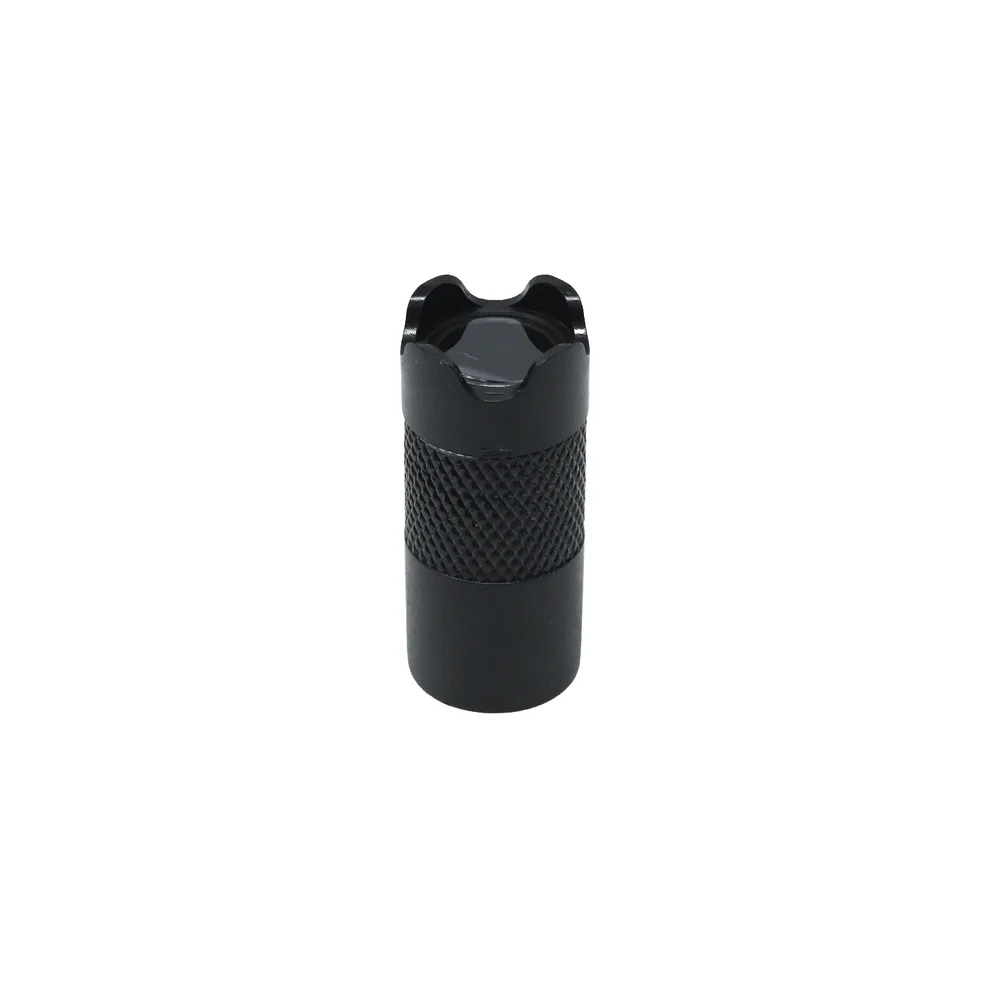

- Replaceable membrane cap and filling solution for low long-term maintenance costs.
Out of stock

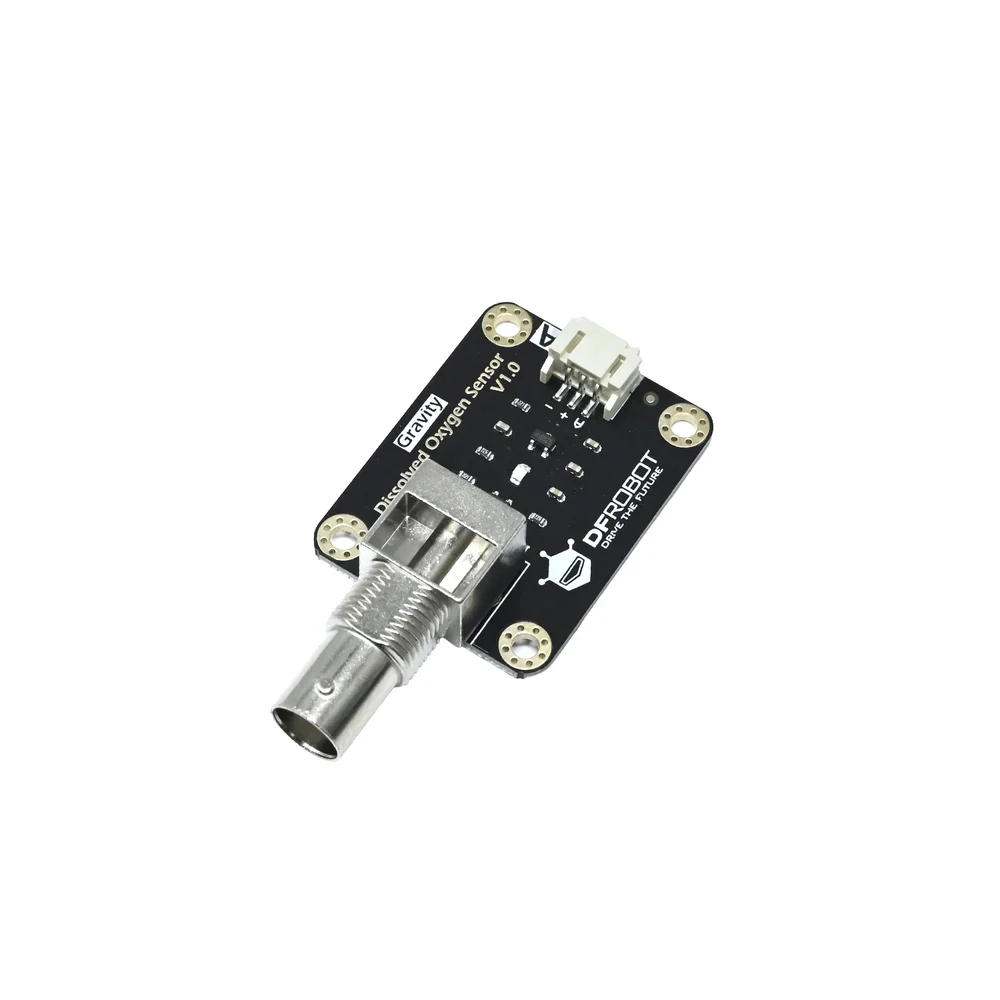

This lab-grade dissolved oxygen sensor employs a galvanic cell principle, where an oxygen-permeable membrane allows dissolved oxygen to diffuse into an electrolyte, generating a current proportional to the oxygen concentration. This signal is conditioned into a stable 0-3.0V analog output, providing a linear representation of DO levels from 0 to 20 mg/L. The sensor is designed for continuous monitoring in aqueous environments.

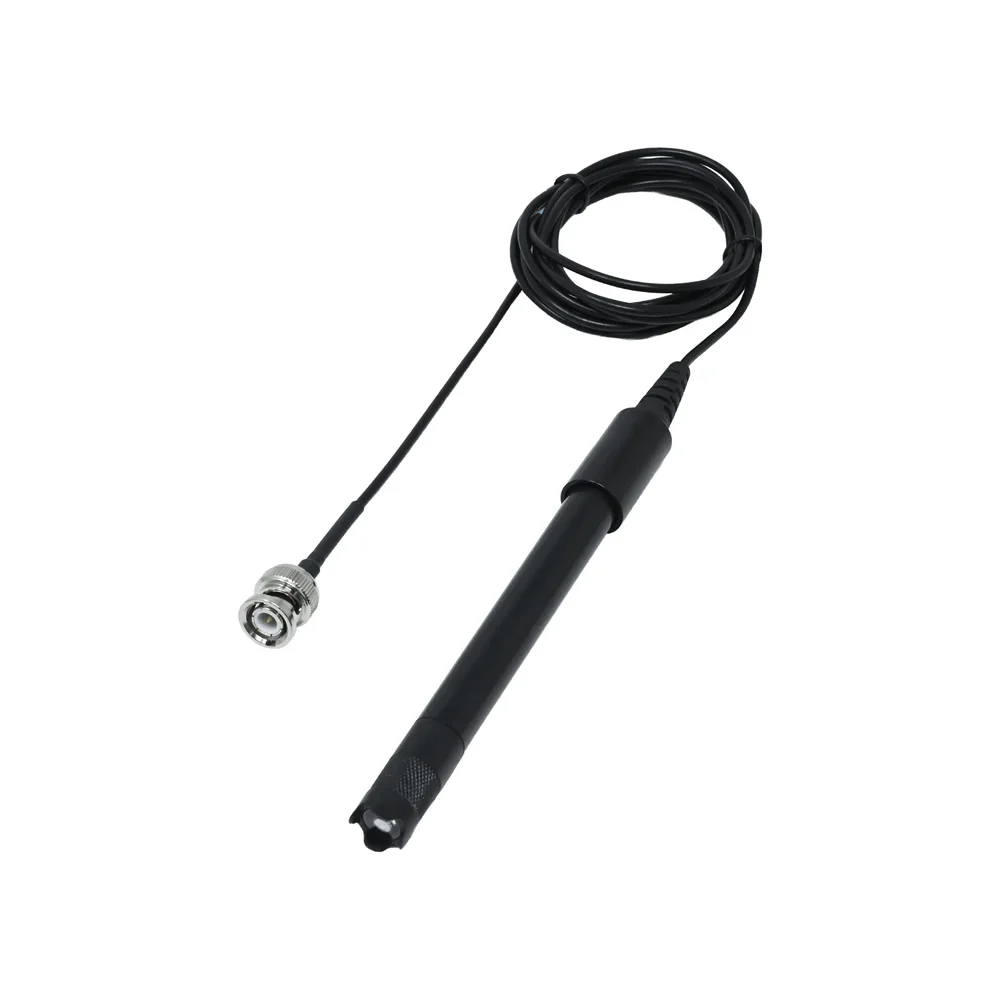

The probe features a robust BNC connector interface and a 2-meter cable, facilitating integration into both portable and fixed monitoring stations. With an operational pressure rating of 0-50 PSI and a typical electrode service life of one year under normal use, it is engineered for reliability in demanding field and laboratory applications, from aquaculture to environmental science.
Additional Information
| Weight | 0.267 kg |
|---|---|
| Dimensions | 33 × 12 × 8 cm |
