DFRobot Gravity IP68 I2C Waterproof Ambient Light Sensor (1–65535 lx)
The DFRobot Gravity IP68 Waterproof Ambient Light Sensor is a digital I2C module designed for precise light intensity measurement from 1 to 65535 lux. Featuring a built-in 50Hz/60Hz light noise rejection circuit, it provides stable readings for integration with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V microcontroller platforms.
Features
- High-precision digital ambient light sensing from 1 to 65535 lux with ±1.2 lx accuracy.
- IP68 waterproof and dustproof housing, suitable for full immersion in water up to 1 meter depth.
- Standard Gravity I2C interface for plug-and-play compatibility with Arduino and other MCU ecosystems.
- Ultra-low operating current of 1µA for battery-powered and energy-sensitive applications.
- Wide operating temperature range from -40°C to +85°C for harsh outdoor and industrial environments.
Out of stock
This sensor utilizes a high-sensitivity photodiode and a 16-bit analog-to-digital converter to deliver precise ambient light measurements. The integrated signal conditioning includes automatic 50Hz/60Hz flicker noise rejection, ensuring stable and accurate readings under artificial lighting conditions common in indoor and greenhouse environments.

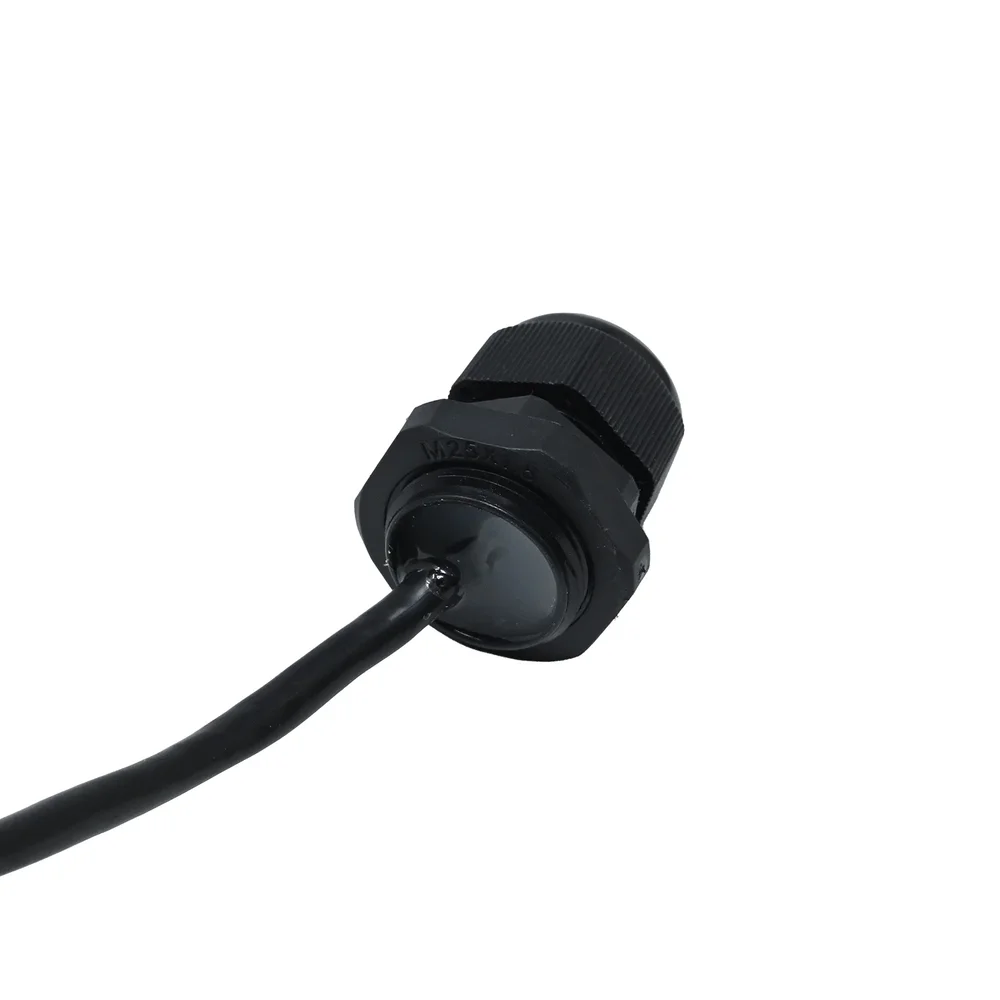

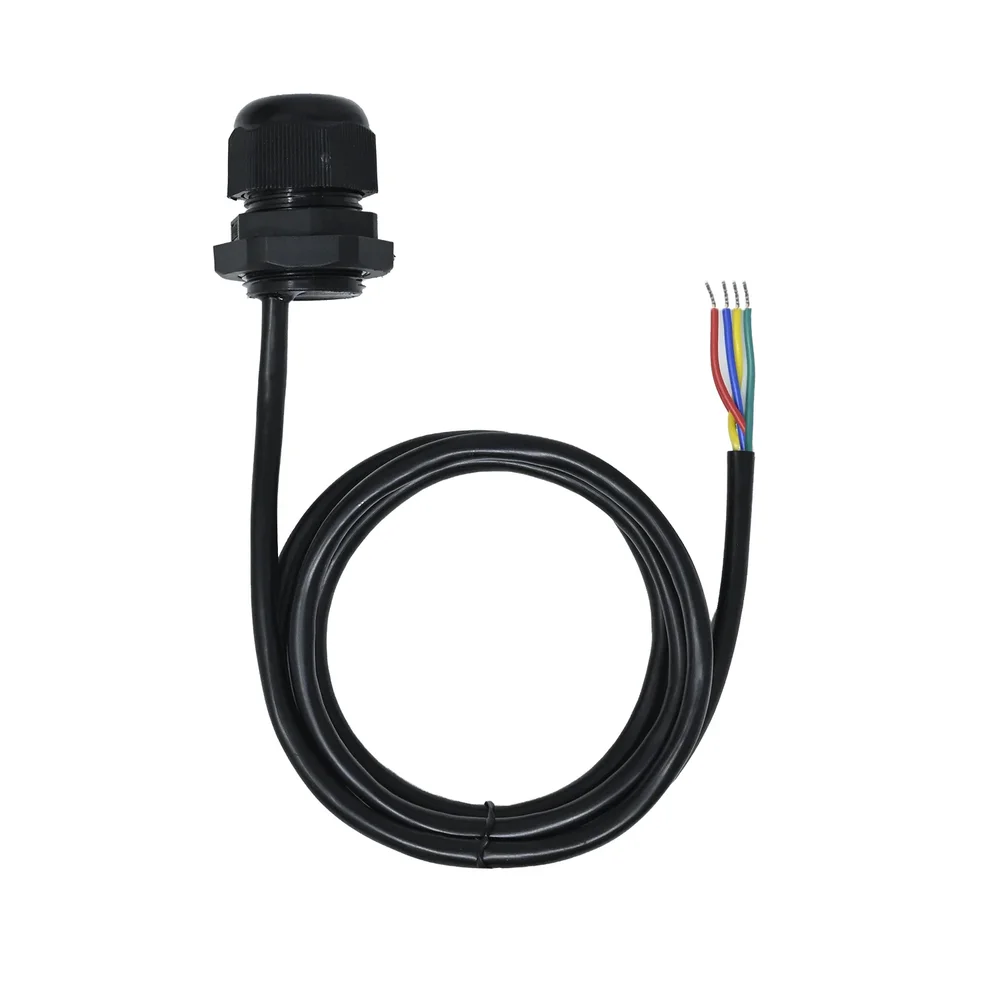

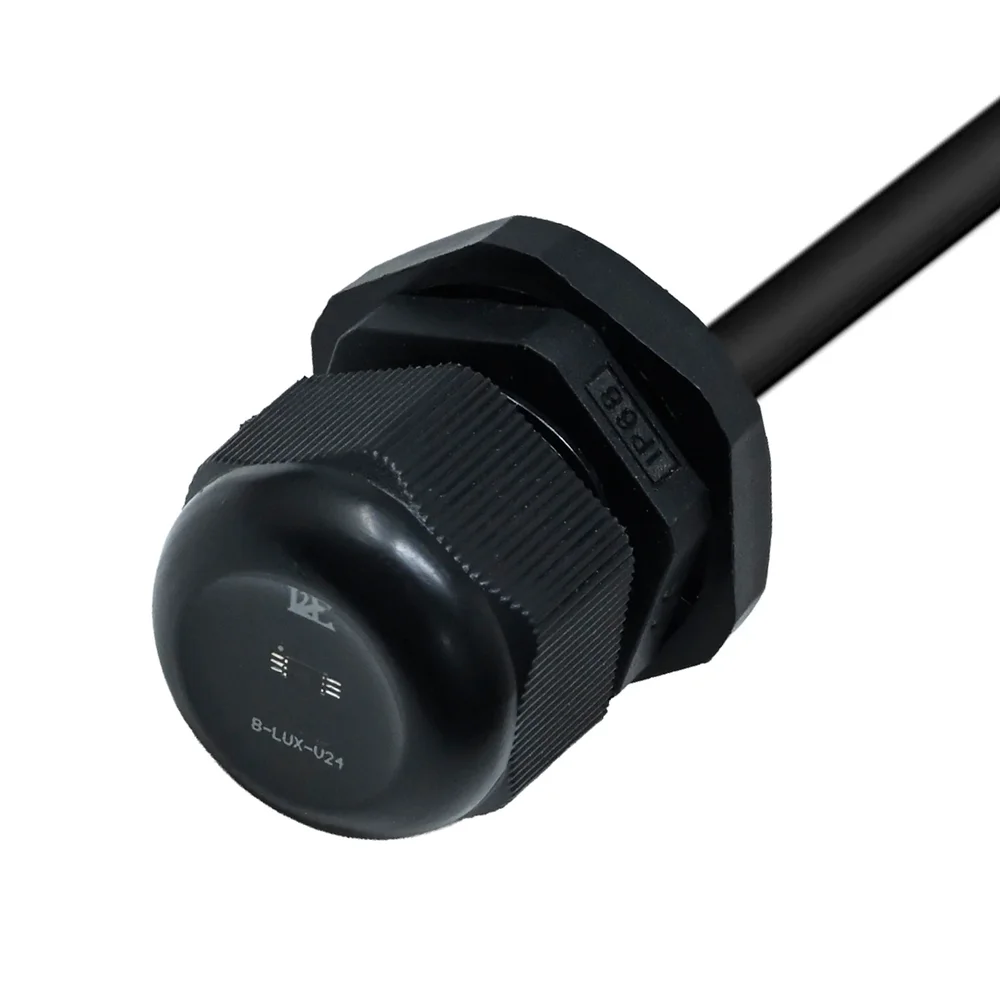

Encased in an IP68-rated, sealed housing with a 1-meter integrated cable, the module is protected against dust, moisture, and temporary immersion. Its robust construction and wide temperature tolerance make it ideal for long-term deployment in weather stations, smart agriculture systems, and outdoor lighting control where reliable environmental data is critical.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 10 × 17 × 3 cm |
