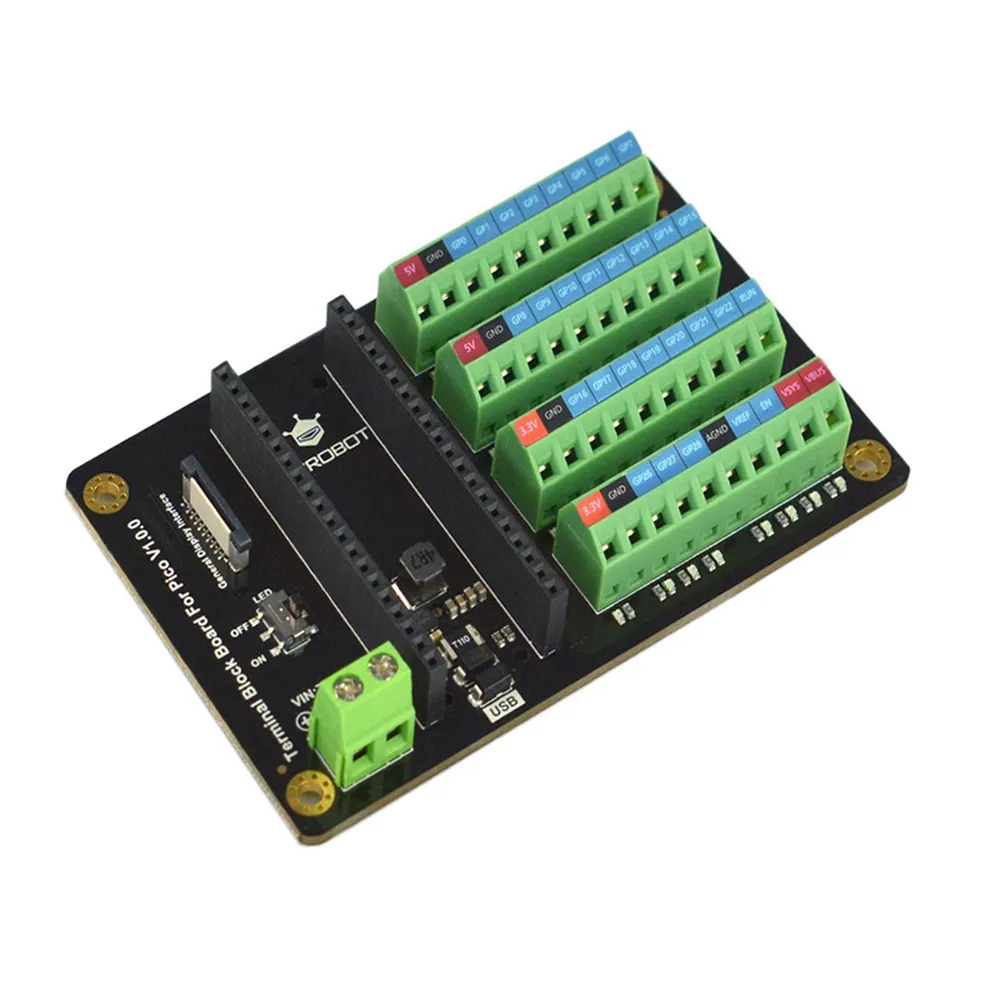

DFRobot Terminal Block Board for Raspberry Pi Pico
The DFRobot Terminal Block Board simplifies wiring for Raspberry Pi Pico projects by breaking out all Pico pins to secure terminal blocks. It features external 7-24V power input, GDI screen interface, and individual LED indicators for enhanced debugging.
Features
- Converts all Raspberry Pi Pico GPIOs to robust terminal blocks for secure connections.

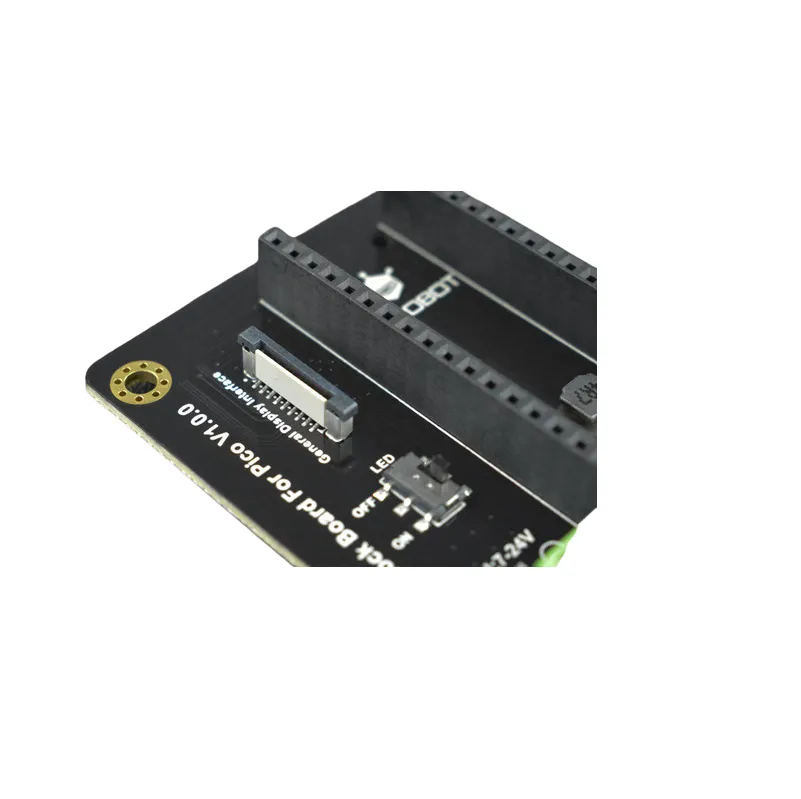

- Integrated GDI interface for direct display connectivity.
- Supports a wide external voltage input range from 7V to 24V.

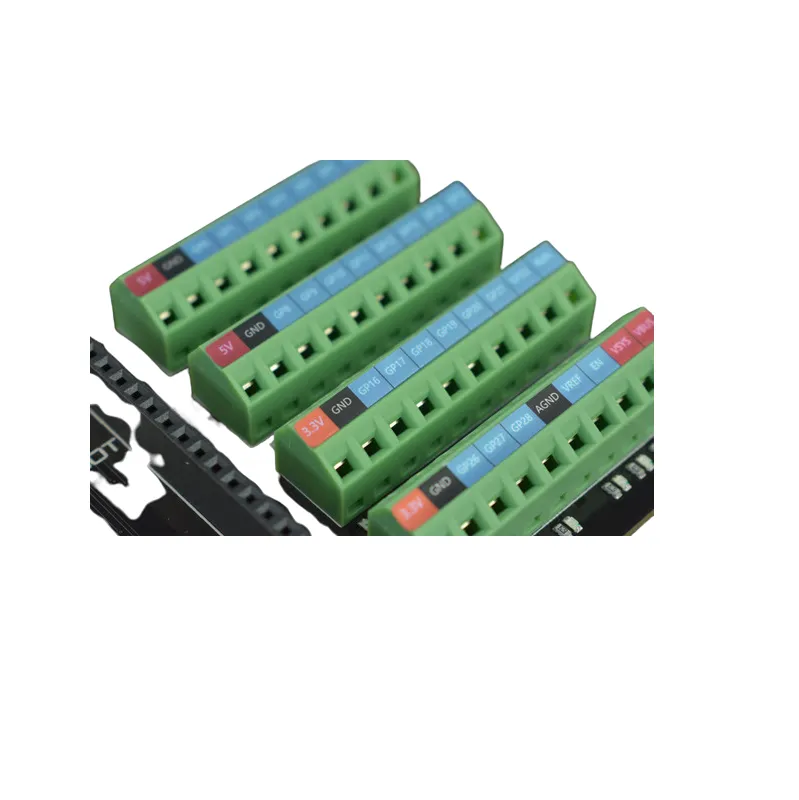

- Each terminal block includes an LED status indicator with an onboard disable switch.
- Clearly labeled silkscreens ensure straightforward wiring and setup.
Out of stock

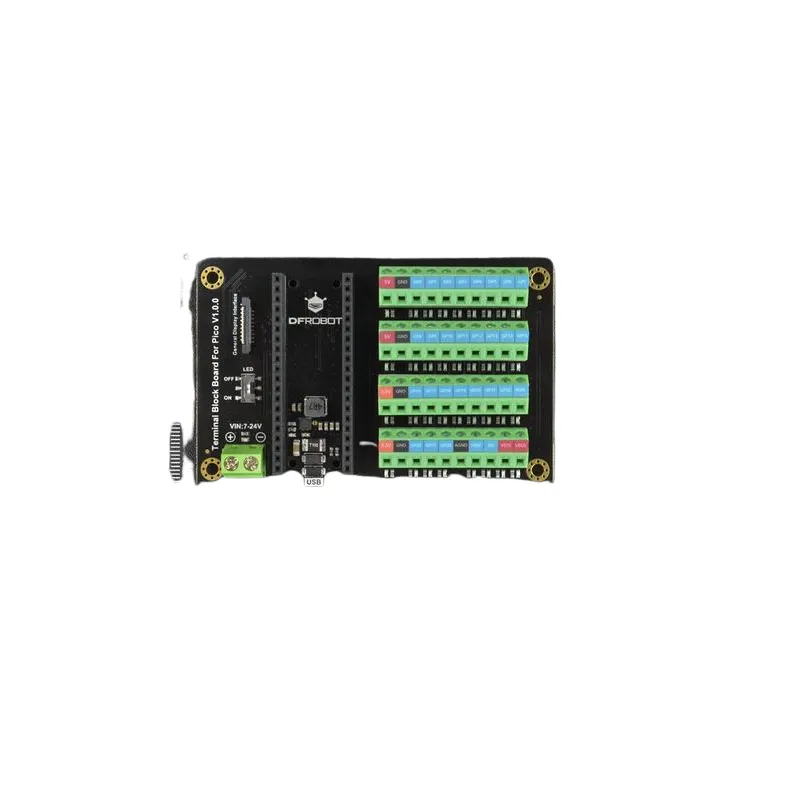

This DFRobot Terminal Block Expansion Board is engineered to streamline prototyping with the Raspberry Pi Pico, catering specifically to makers and engineers who prefer reliable terminal block connections. It meticulously breaks out every pin of the Pico, making all GPIOs, power rails, and special function pins easily accessible and clearly labeled for stable wiring.
Beyond robust terminal access, the board integrates a GDI interface for displays and accepts external power input ranging from 7V to 24V, significantly expanding the Pico’s application scope. Each terminal block, excluding GND, is equipped with an LED indicator to visually confirm signal status, which can be conveniently turned off via a dedicated switch when not needed. This design enhances debugging and system integration, making complex projects more manageable.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 8 × 8 × 1 cm |
