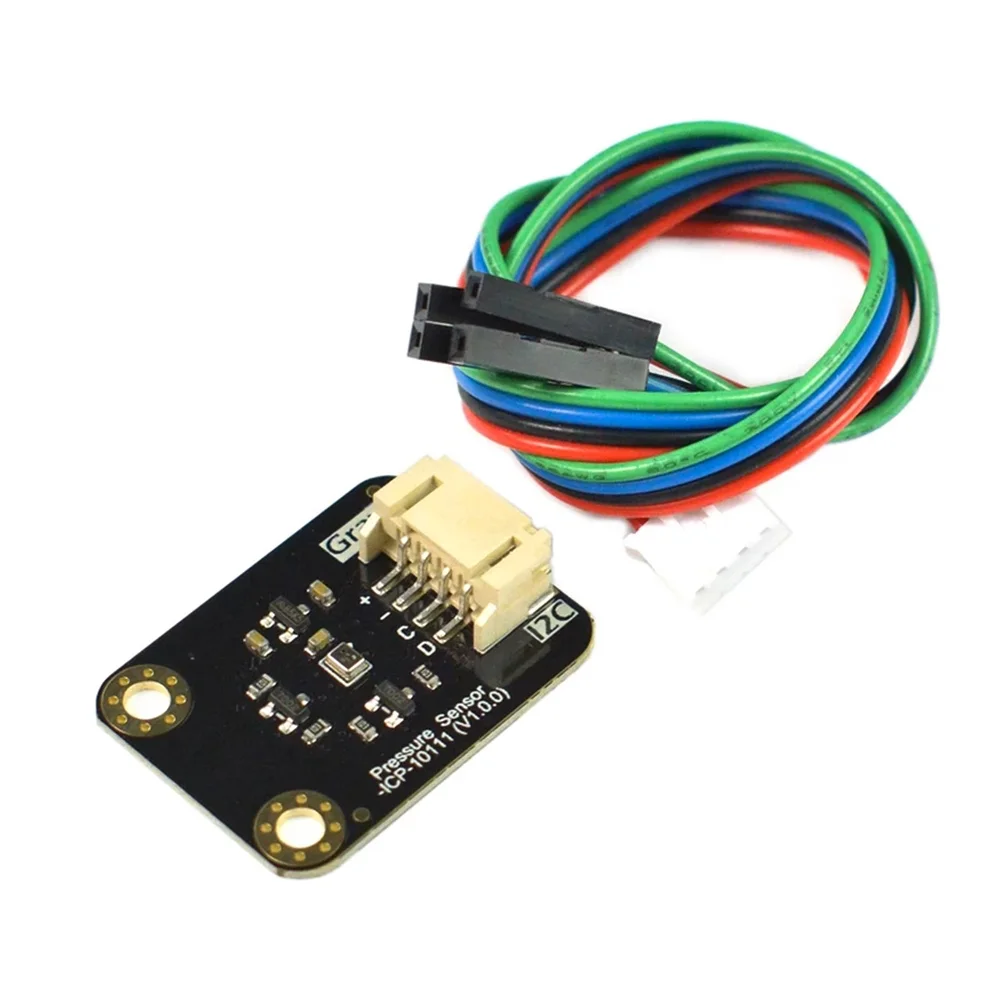

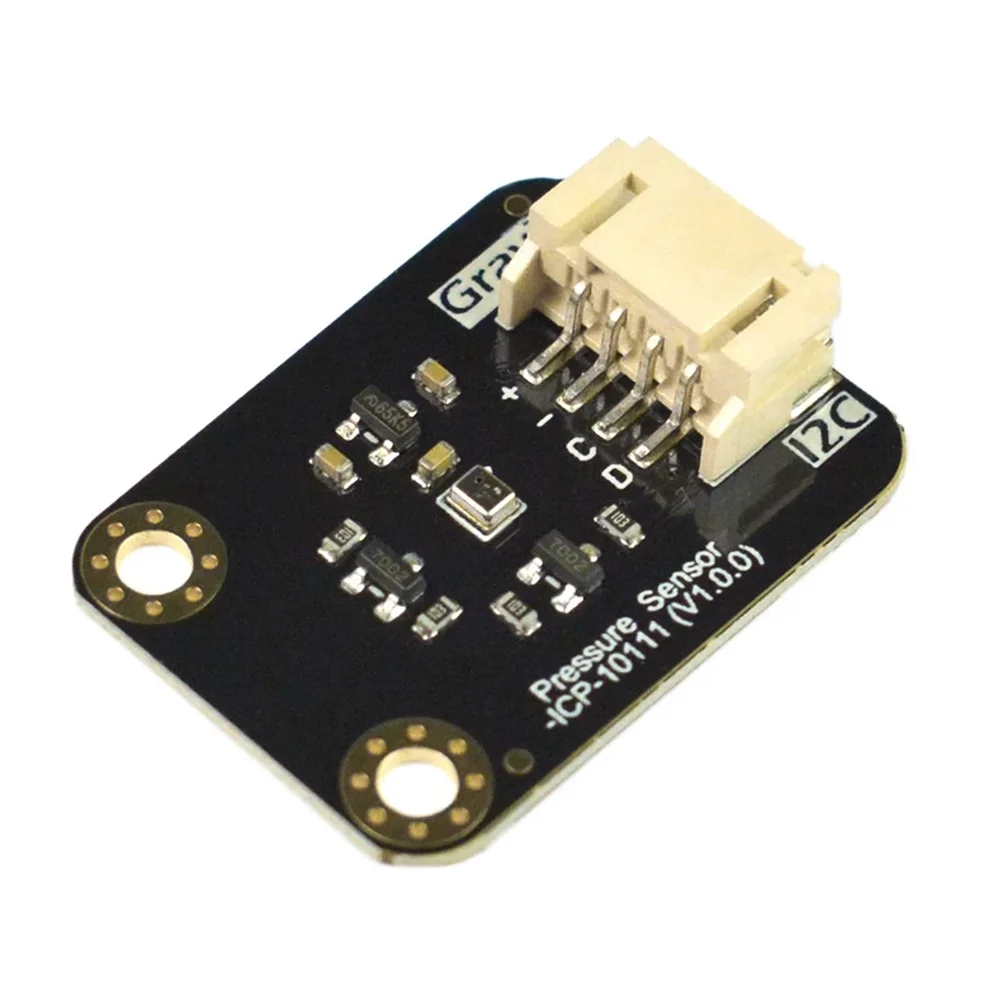

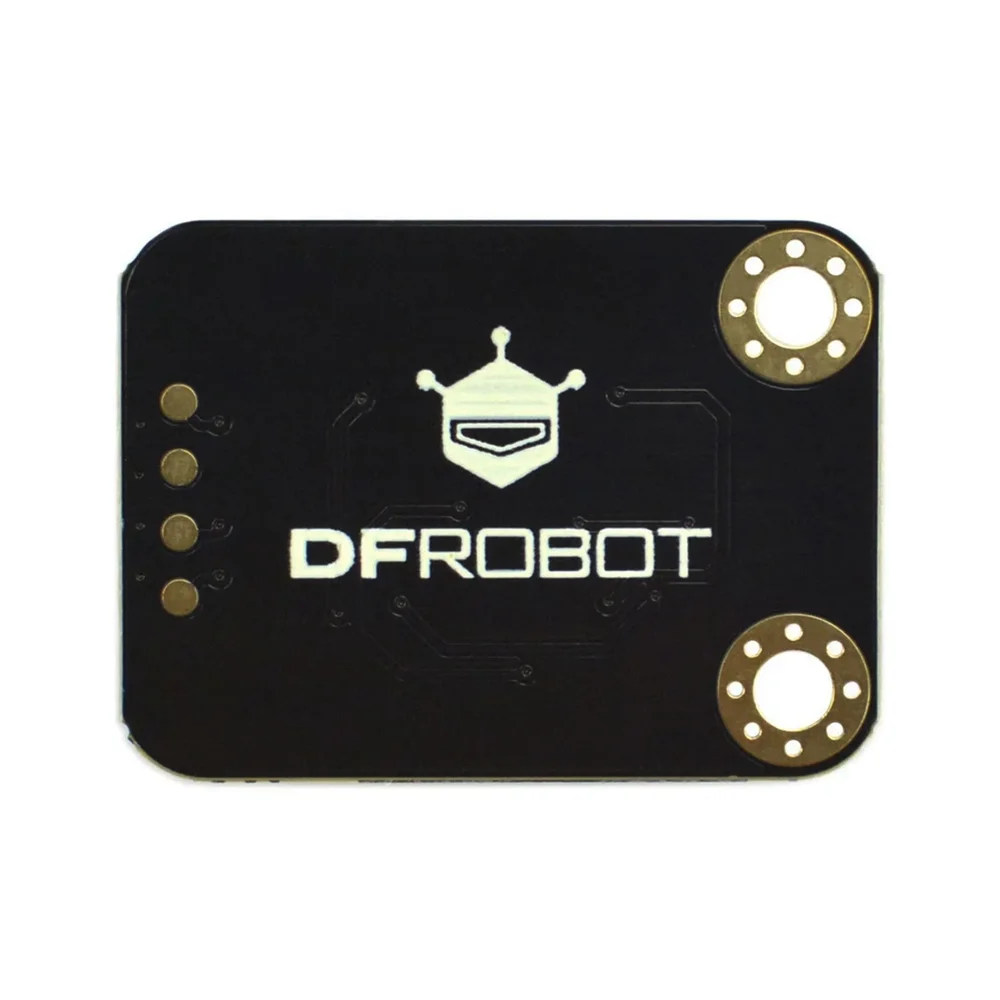

DFRobot Gravity ICP-10111 Barometric Pressure & Temperature Sensor Module - I2C Interface
The DFRobot Gravity ICP-10111 is a high-precision barometric pressure and temperature sensor module based on TDK’s MEMS capacitive sensor. Operating from 3.3V to 5.5V with ultra-low power consumption, it communicates via I2C and is designed for integration with Arduino, Raspberry Pi, ESP32, and other microcontrollers for altitude tracking, vertical speed measurement, and environmental monitoring.
Features
- TDK ICP-10111 MEMS capacitive sensor with ±1Pa relative pressure accuracy.
- Ultra-low power operation (<2mA) from a 3.3V to 5.5V supply.
- I2C communication interface with a fixed address of 0x63.
- Integrated temperature sensor for accurate pressure compensation.
- Excellent long-term stability with a temperature coefficient offset of ±0.5 Pa/°C.
Out of stock
This sensor module integrates TDK’s advanced ICP-10111 MEMS capacitive pressure sensor, engineered for exceptional accuracy and stability. The capacitive sensing principle enables high-resolution pressure differentials as fine as ±1Pa, translating to altitude resolution under 8.5 cm. An embedded temperature sensor provides real-time compensation, minimizing drift across the operating range of -40°C to +85°C.
Designed for low-power embedded systems, the module consumes less than 2mA and supports a wide logic voltage range, making it compatible with 3.3V and 5V development platforms. The stable I2C digital output simplifies integration, delivering calibrated pressure and temperature data directly to the host controller for precise environmental and motion-sensing applications.
Additional Information

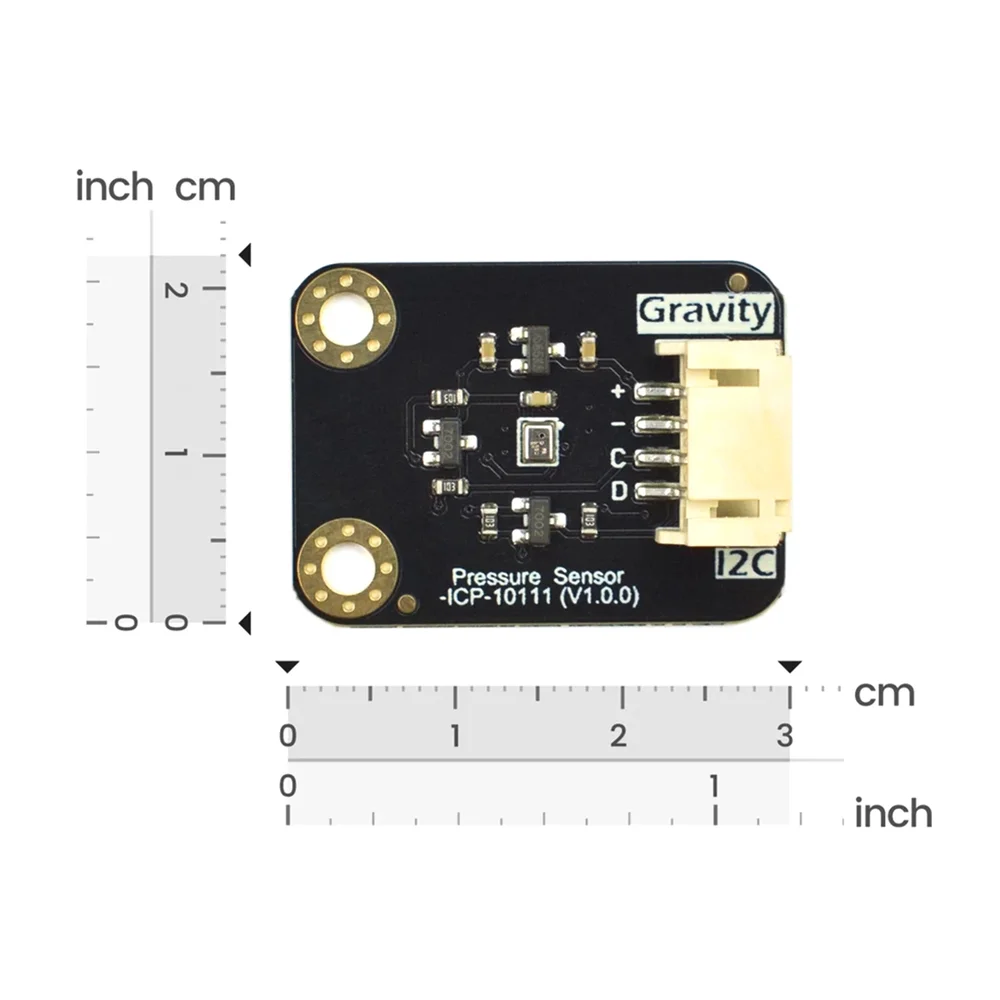

| Dimensions | 3 × 2.2 cm |
|---|
