DFRobot Gravity I2C Oxygen Sensor Module - 0-25%Vol, 3.3-5.5V
The DFRobot Gravity I2C Oxygen Sensor is an electrochemical gas sensor module designed for accurate ambient O2 concentration measurement from 0 to 25% by volume. It features a standard I2C digital interface and operates from 3.3V to 5.5V DC, making it directly compatible with Arduino, ESP32, Raspberry Pi, and other 3.3V/5V logic microcontrollers.
Features
- Electrochemical sensing principle for accurate oxygen concentration measurement (0-25%Vol).

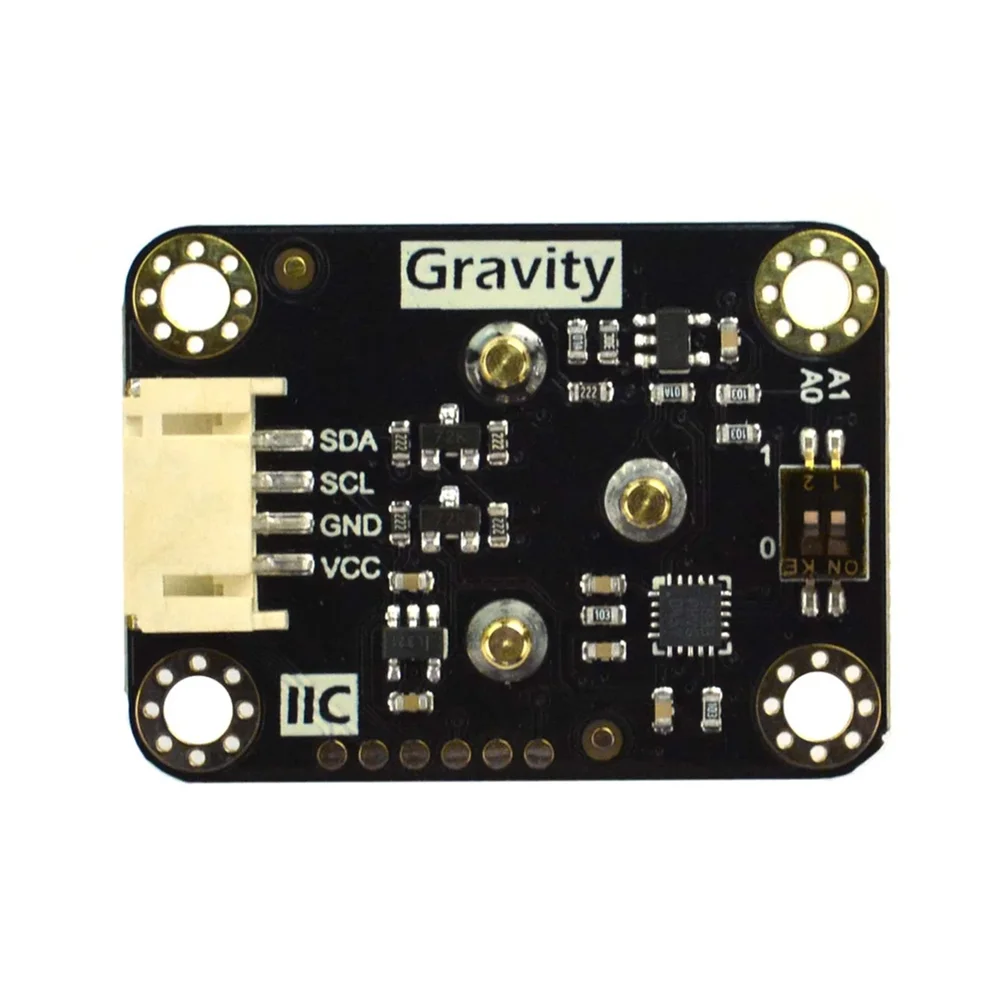

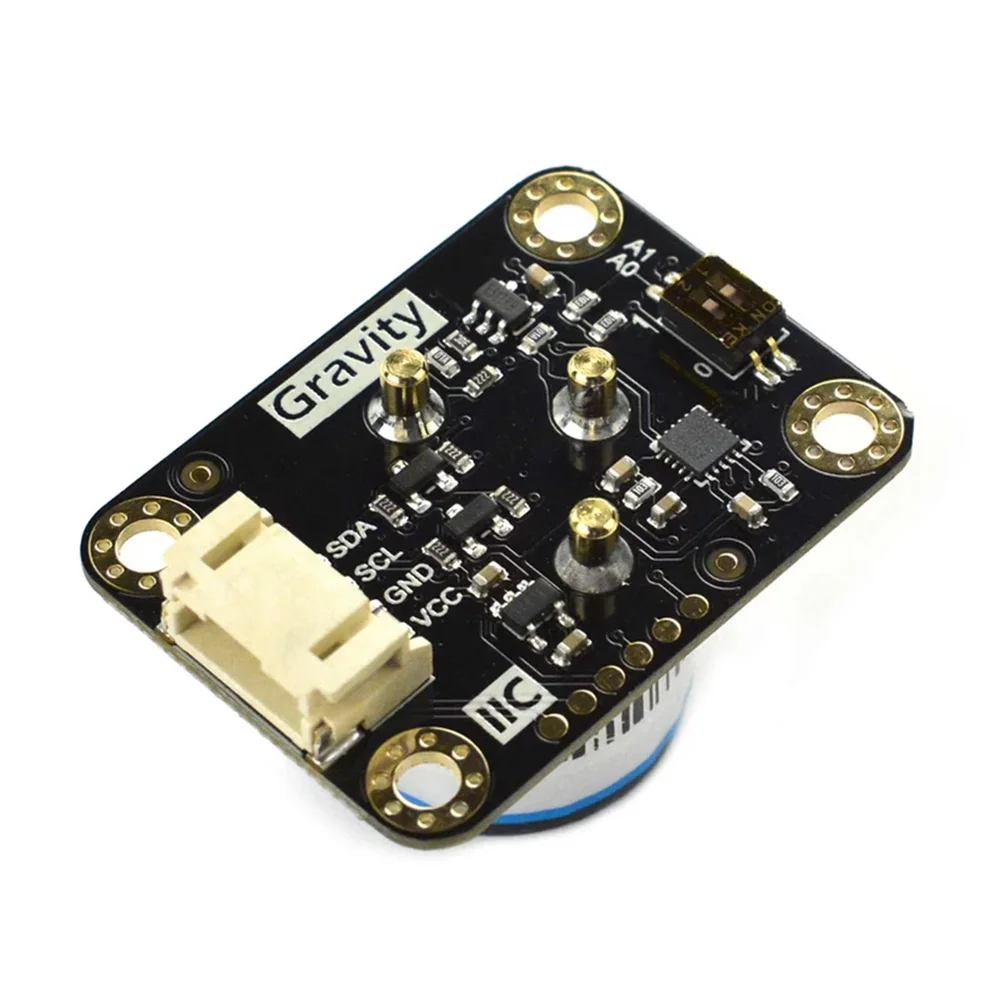

- Standard I2C digital output for easy integration with Arduino, Raspberry Pi, and ESP32.
- Wide operating voltage range from 3.3V to 5.5V DC for flexible power supply compatibility.
- High stability and sensitivity with a resolution of 0.15%Vol and a fast response time (≤15s).

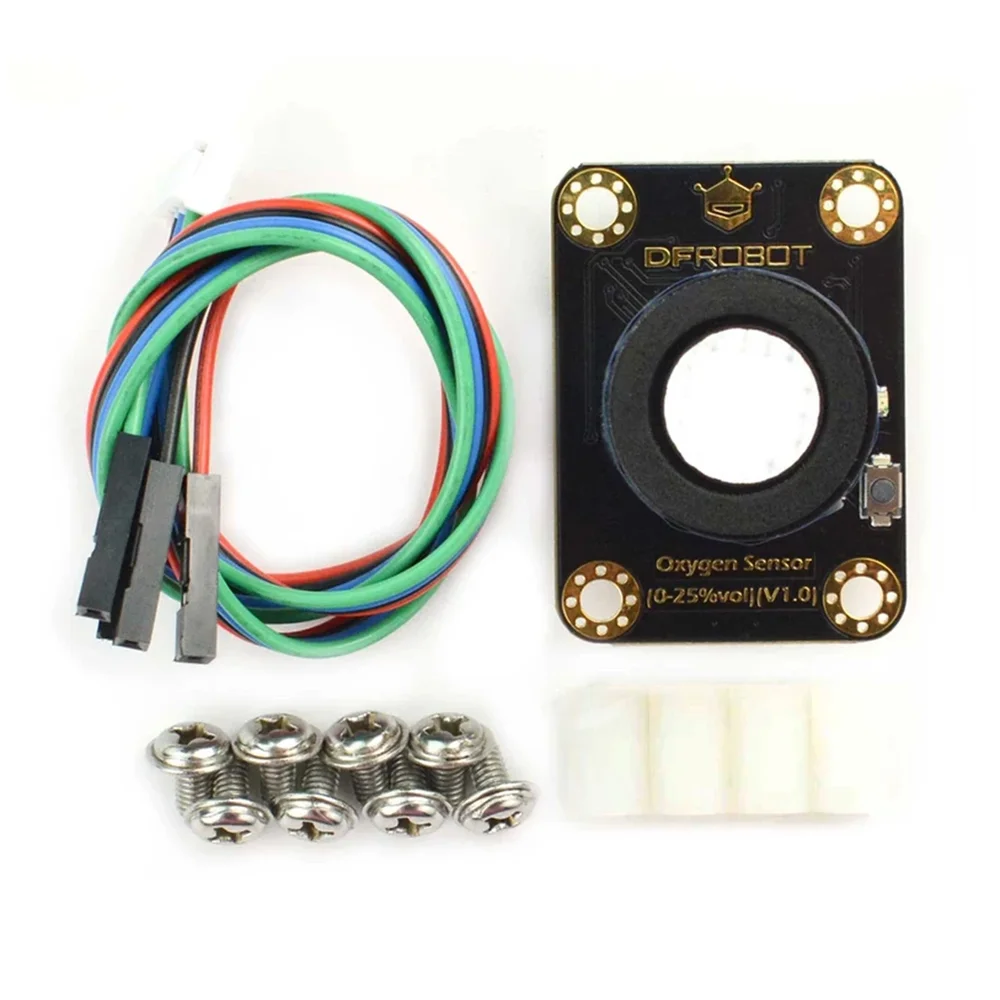

- Includes Gravity 4-pin interface cable and mounting hardware for quick prototyping.
Out of stock

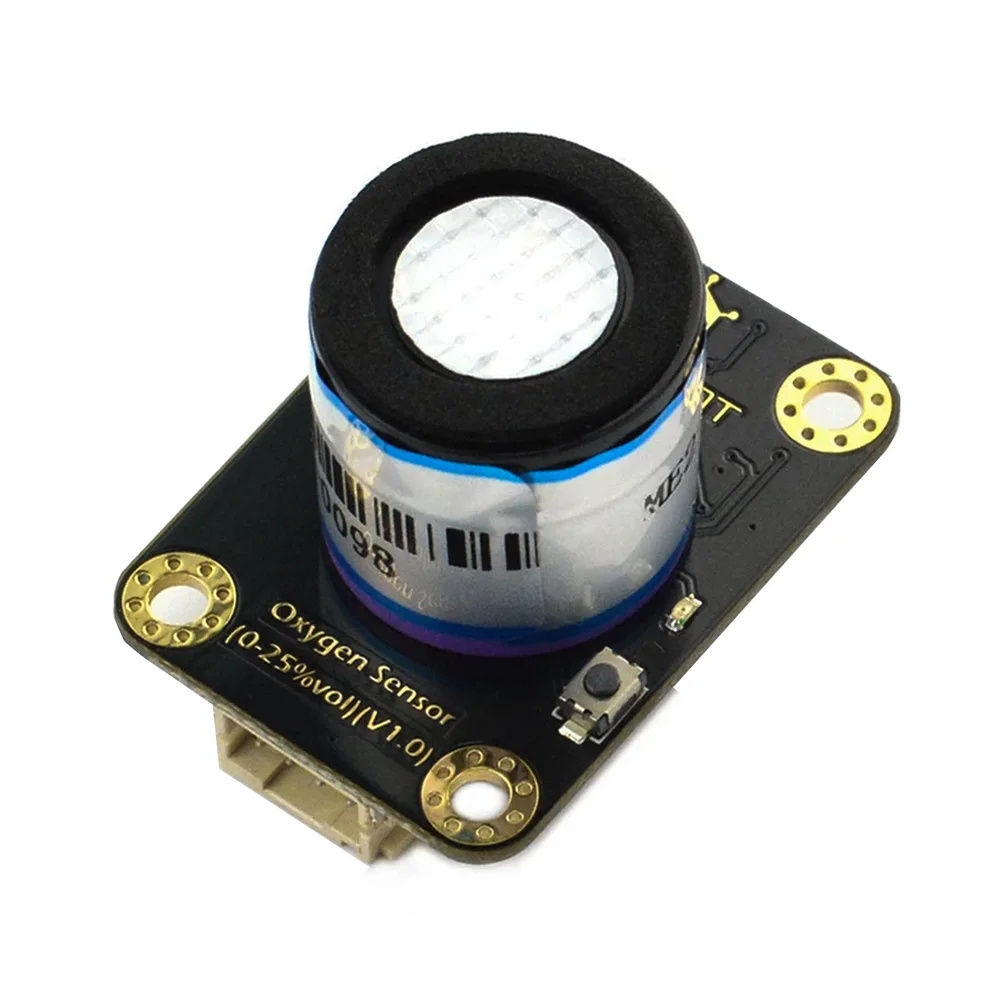

The DFRobot Gravity Oxygen Sensor employs an electrochemical cell to measure ambient oxygen levels. This sensing principle provides high selectivity for O2 molecules, resulting in stable readings with minimal cross-sensitivity to other common gases. The onboard signal conditioning circuitry delivers a clean, digital I2C signal, simplifying integration compared to analog sensors that require additional ADC channels.
The module is designed for durability in various environments, operating across a full 0-100% relative humidity range. Its compact form factor and included Gravity connector system allow for rapid deployment in portable air quality monitors, environmental data loggers, and fixed installation scenarios. The sensor is pre-calibrated in air, and its typical operational lifespan is two years under normal atmospheric conditions.
Additional Information
| Weight | 0.037 kg |
|---|---|

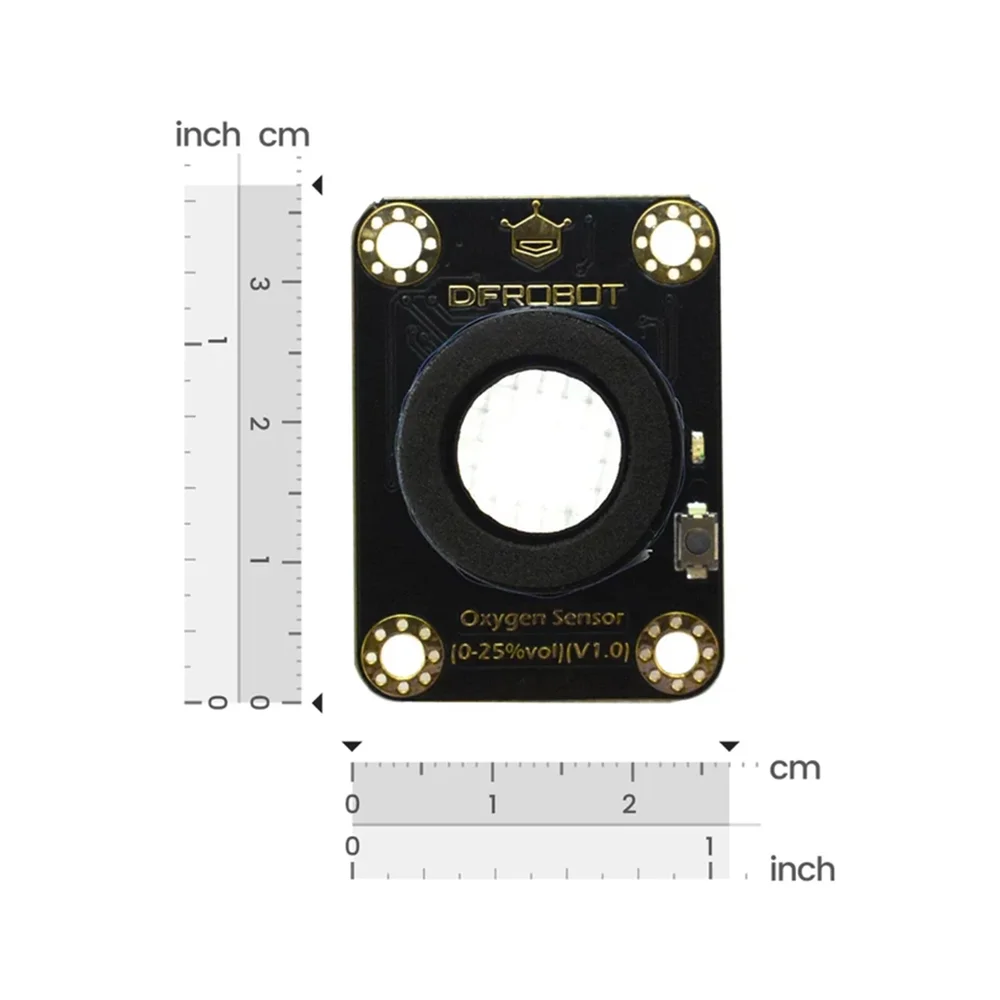

| Dimensions | 3.7 × 2.7 cm |
