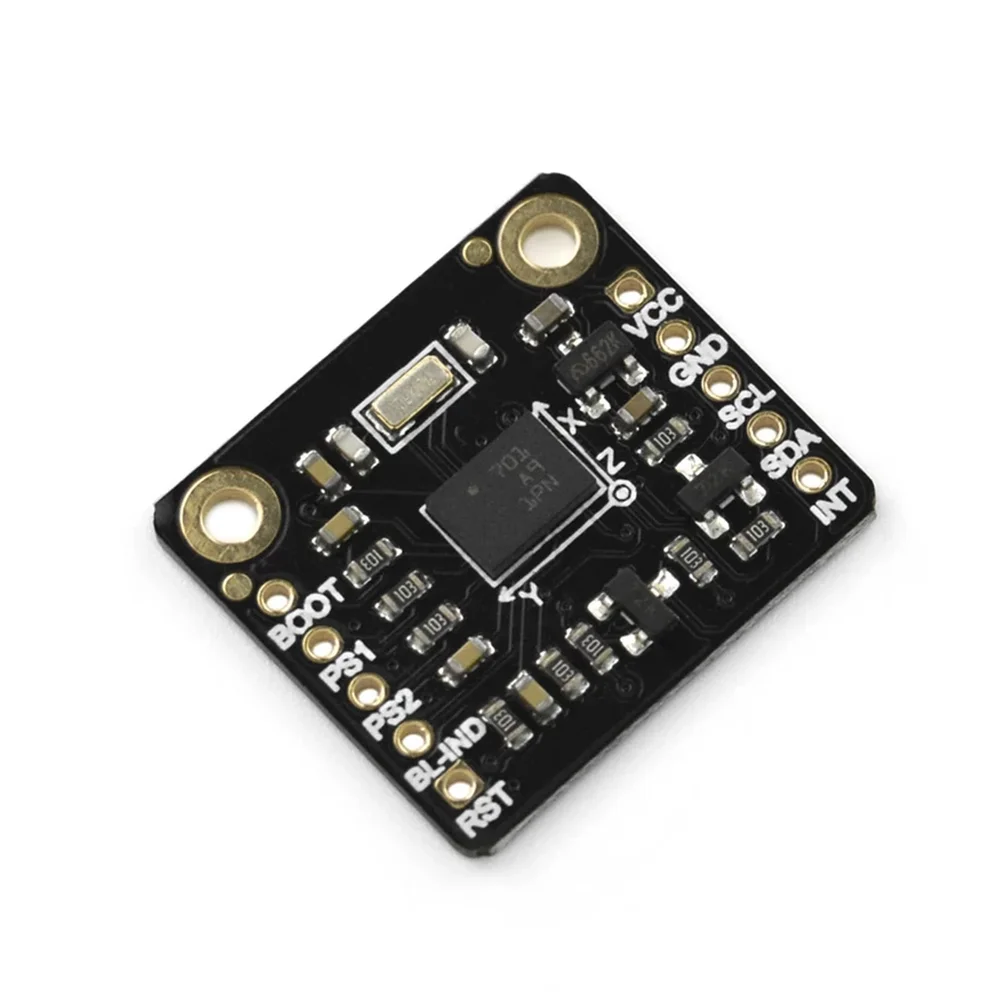

DFRobot Fermion BNO055 Intelligent 9-Axis Sensor Breakout - I2C IMU
The DFRobot Fermion BNO055 is an intelligent 9-axis absolute orientation sensor breakout module, integrating a triaxial accelerometer, gyroscope, and geomagnetic sensor with a 32-bit fusion processor. It provides direct quaternion, Euler angle, and Vector Technics outputs via I2C, making it ideal for robotics, drones, and wearable devices compatible with 3.3V/5V systems like Arduino, Raspberry Pi, and ESP32.
Features
- All-in-one 9-axis sensor fusion (accelerometer, gyroscope, magnetometer)
- Integrated 32-bit microcontroller provides direct quaternion, Euler angle, and Vector Technics outputs
- Wide operating voltage range from 3.3V to 5.5V with I2C communication
- Configurable accelerometer (±2g to ±16g) and gyroscope (±125°/s to ±2000°/s) ranges

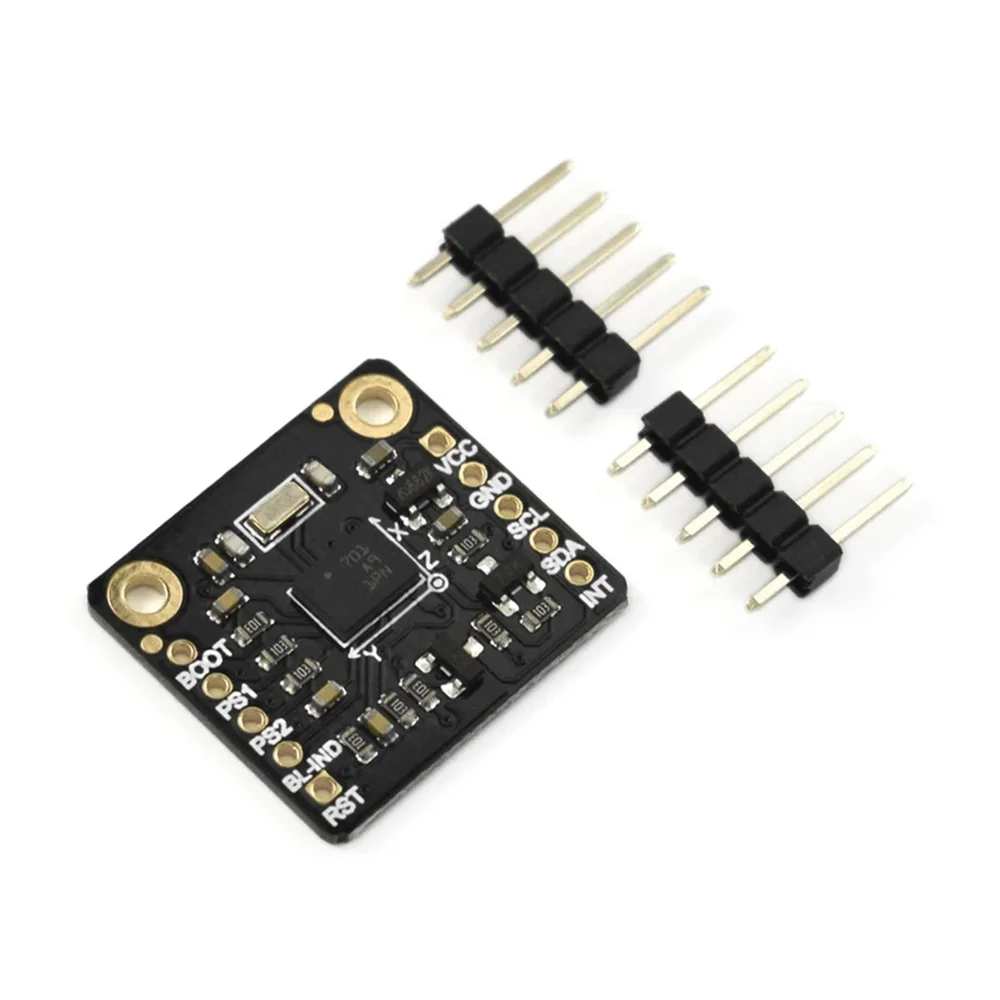

- Compact breakout board format for easy prototyping and integration
Out of stock
The BNO055 is a System-in-Package (SiP) sensor hub that combines a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope, and a triaxial geomagnetic sensor with a dedicated 32-bit microcontroller for sensor fusion. This integration offloads complex motion processing algorithms from the host controller, providing stable and accurate absolute orientation data directly.
Designed for high-precision motion tracking, the module outputs fused data such as quaternions and Euler angles, eliminating the need for developers to implement Kalman filters or other sensor fusion algorithms. Its low-power operation and small form factor make it suitable for battery-powered applications including smartphones, wearable devices, drones, and robotic navigation systems.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6 × 7 × 3 cm |
