DFRobot 8.8" 480×1920 IPS Bar Touch Display - Raspberry Pi DSI Interface, USB-C Power
DFRobot 8.8" 480×1920 IPS Bar Touch Display - Raspberry Pi DSI Interface, USB-C Power - Image 2
DFRobot 8.8" 480×1920 IPS Bar Touch Display - Raspberry Pi DSI Interface, USB-C Power - Image 3
SKU: SENS-2980
📋 GST Invoice Available

DFRobot 8.8" 480×1920 IPS Bar Touch Display - Raspberry Pi DSI Interface, USB-C Power

₹9,729.00 (Inclusive of all taxes)
Out of Stock

The DFRobot 8.8-inch bar-type IPS touch display features a 480×1920 resolution and 5-point capacitive touch, designed for direct DSI interface connection to Raspberry Pi 4B/3B+/3B. It provides a high-brightness, wide-viewing-angle visual interface for specialized embedded applications.

Features

  • 8.8-inch IPS panel with 480×1920 HD resolution and 4:1 aspect ratio.
  • 5-point capacitive touchscreen with optical bonding for clarity and durability.
  • Direct Raspberry Pi DSI interface compatibility for plug-and-play integration.
  • High 600 cd/m² brightness ensures visibility in various lighting conditions.
  • Powered via USB-C port with a typical operating current of ~700mA.

Out of stock

Description

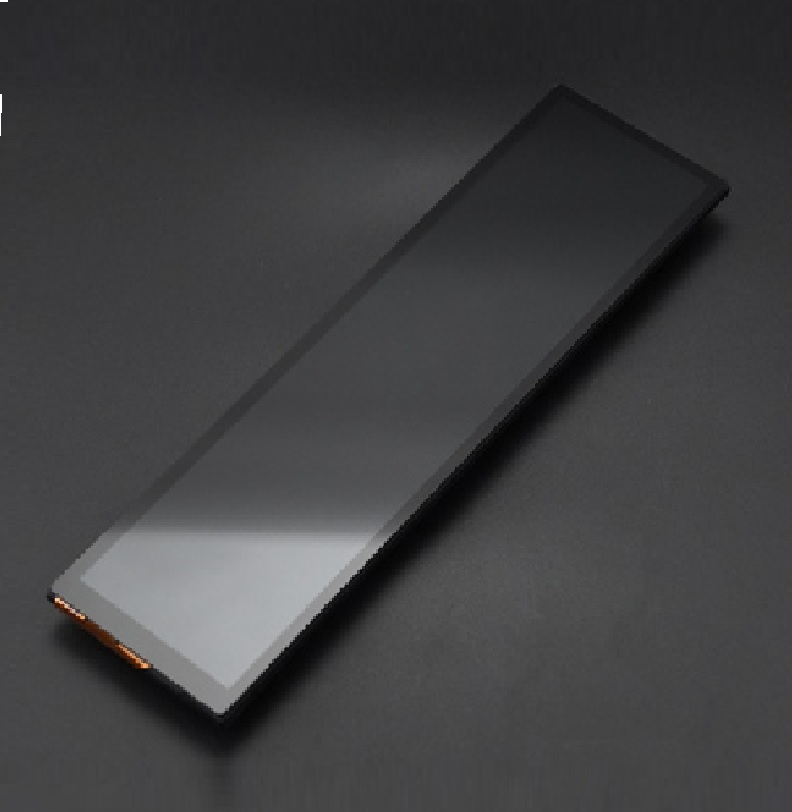

This bar-type display utilizes an IPS panel with optical bonding technology to deliver wide 170° viewing angles, fast 30ms response times, and high color fidelity. The 600 cd/m² brightness rating makes it suitable for environments with ambient light. The integrated 5-point capacitive touch layer provides intuitive, multi-touch interaction for control panels and user interfaces.

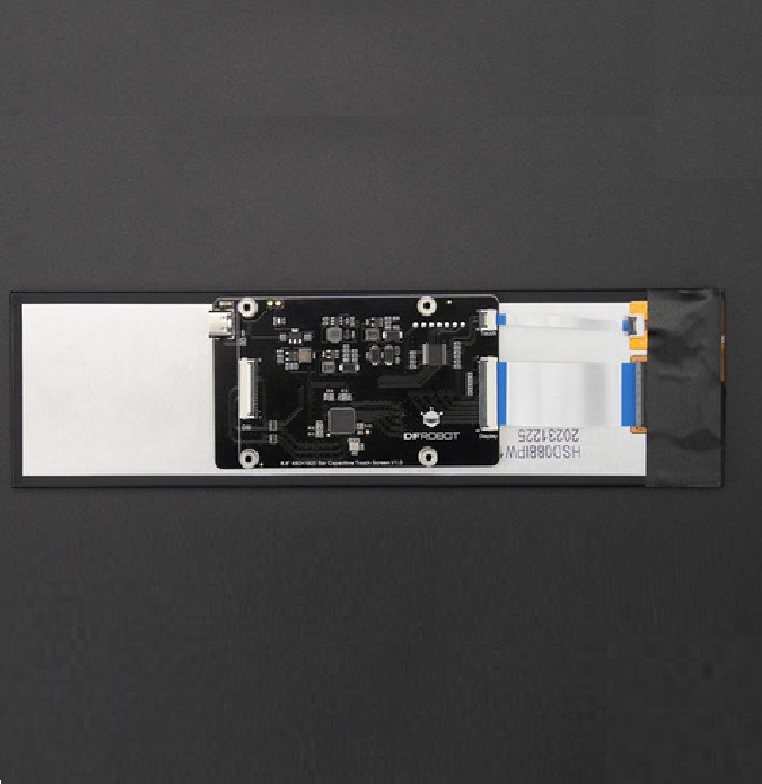

The module connects directly to the Raspberry Pi’s Display Serial Interface (DSI), simplifying hardware integration. Power is supplied through a USB-C connector, with an auxiliary 2-pin spring plunger connector available for a dedicated 5V 1.5A input. The driver board is designed with standard Raspberry Pi mounting holes for secure installation in enclosures or custom frames.

Key Features

  • High-definition 480×1920 resolution bar display with 4:1 unique aspect ratio.
  • IPS panel with optical bonding for superior viewing angles and image clarity.
  • High 600 cd/m² brightness output for outdoor or brightly lit indoor use.
  • 5-point projective capacitive touch for robust multi-touch interaction.
  • Native Raspberry Pi DSI interface support for direct connection to Pi 4B, 3B+, and 3B.
  • Dual power input options: primary USB-C and auxiliary 2-pin 5V connector.
  • Compact driver board with pre-drilled mounting holes for secure mechanical integration.
  • Optimized performance-to-cost ratio for professional and maker projects.

Applications

  • IoT terminal data panels and industrial control dashboards.
  • In-vehicle infotainment displays and car modification dashboards.
  • Public information kiosks, digital signage, and advertising displays.
  • Measurement instrument panels and data visualization consoles.
  • Robotics and automation system status and control interfaces.

Technical Specifications

Display TypeIPS LCD
Display Size8.8 inch
Resolution480 × 1920 pixels
Aspect Ratio4:1
Brightness600 cd/m²
Viewing Angle170°
Response Time30 ms
Refresh Rate60 Hz
Touch Technology5-point Capacitive
Bonding MethodOptical Bonding
Host InterfaceRaspberry Pi DSI
Compatible BoardsRaspberry Pi 4B, 3B+, 3B
Power InterfaceUSB-C
Auxiliary Power2-pin Spring Plunger (5V, 1.5A)
Typical Operating Current~700 mA
Driver Board PCB Size93 mm × 51 mm × 1.6 mm
Mounting Hole PatternRaspberry Pi Standard (58 mm × 49 mm)
Module Length231.3 mm
Module Width64.3 mm

Frequently Asked Questions

Which Raspberry Pi models is this display compatible with?

This display is directly compatible with Raspberry Pi models featuring a Display Serial Interface (DSI) connector, specifically the Raspberry Pi 4B, 3B+, and 3B. It connects via the supplied FPC cable and uses the native DSI driver, requiring minimal configuration.

How do I power the display module?

The display can be powered primarily through the onboard USB-C port. An auxiliary 2-pin spring plunger connector is also provided for a dedicated 5V DC input, capable of supplying up to 1.5A. The typical operating current is approximately 700mA.

What is the benefit of the optical bonding process?

Optical bonding laminates the touch layer directly to the LCD panel, reducing internal reflection and improving contrast, especially in bright environments. It also enhances durability by eliminating air gaps, which can reduce condensation and dust ingress.

Can this display be used outdoors or in bright light?

Yes, the high 600 cd/m² brightness rating and optical bonding make it suitable for use in brightly lit indoor spaces or semi-outdoor environments. However, for direct sunlight applications, additional sunlight-readable enhancements or shading may be required.

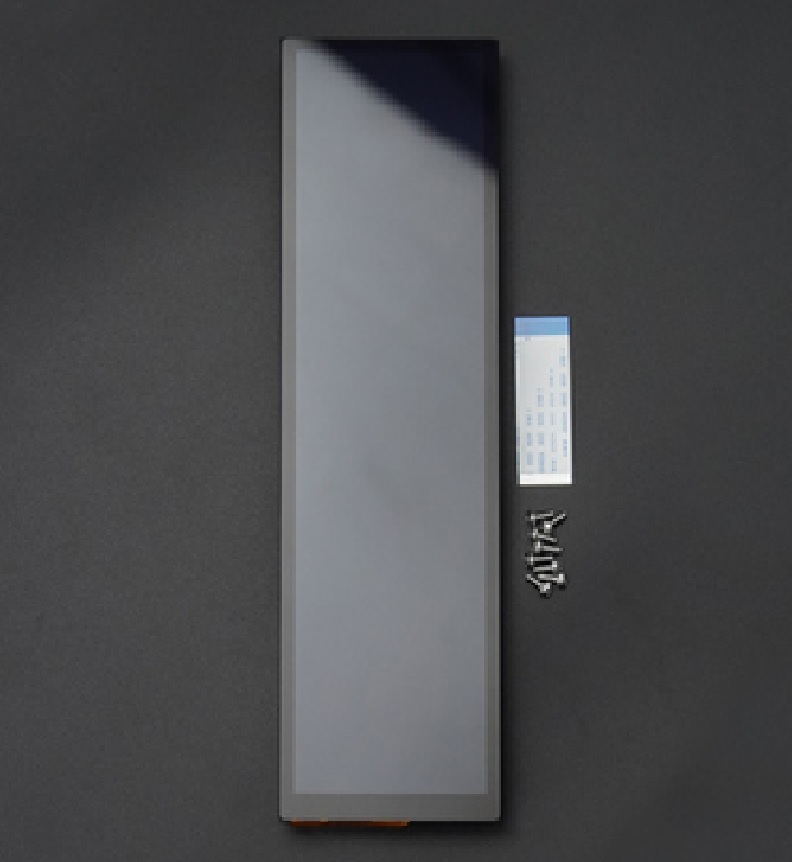

Package Includes

  • 1 x 8.8" 480×1920 DSI Bar Touch Display Module
  • 1 x 50mm FPC DSI Cable
  • 8 x M2.5*6 Mounting Screws

Additional Information

Weight 0.3 kg
Dimensions 23.13 × 6.43 cm
