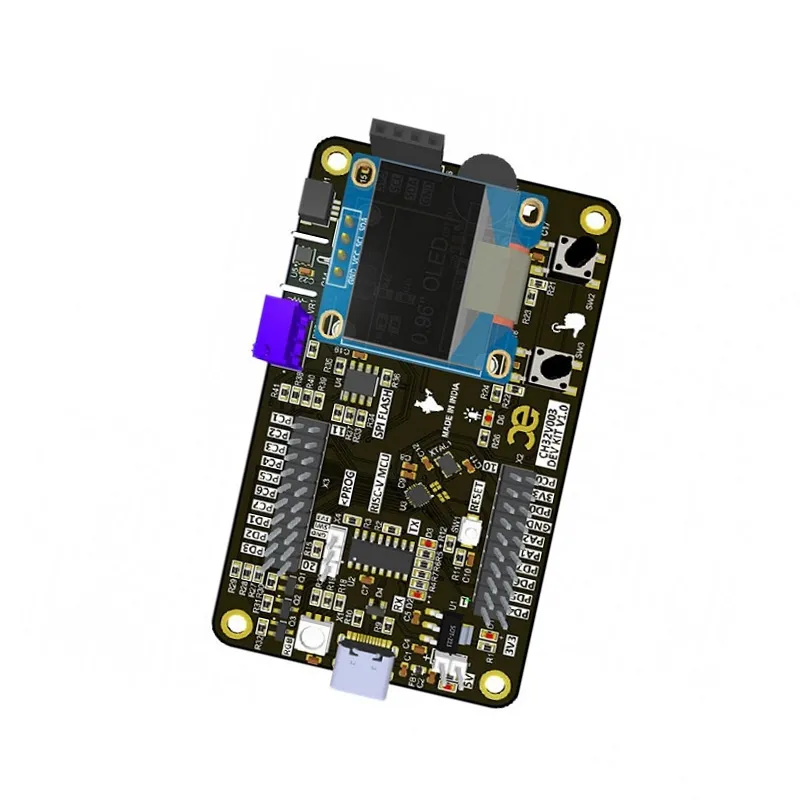

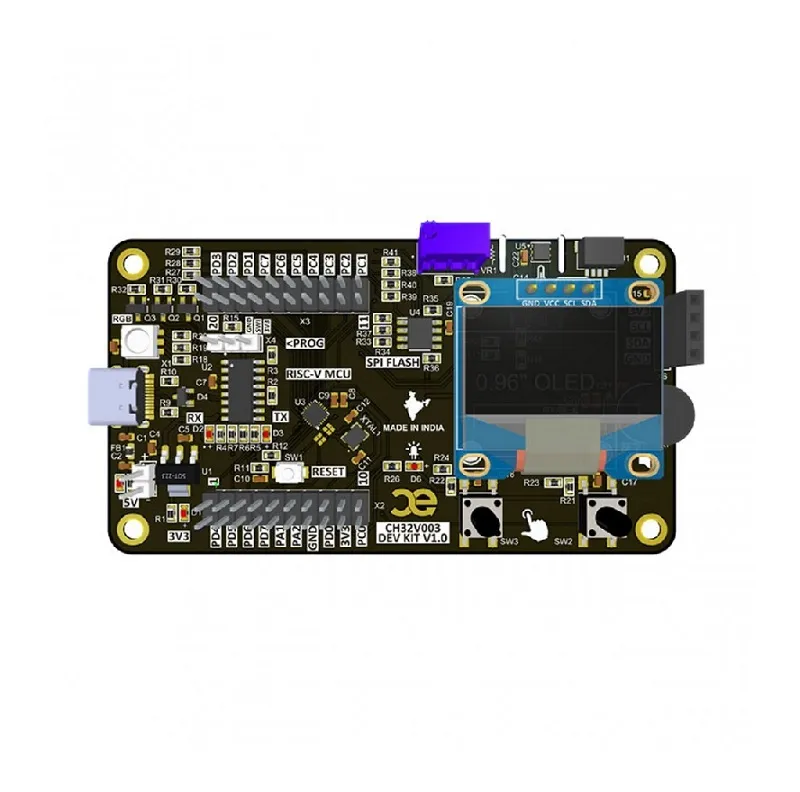

CAPUF CH32V003 Board with 0.96″ OLED
The CAPUF CH32V003 Development Kit provides an accessible platform for exploring the CH32V003 32-bit RISC-V microcontroller, featuring a 0.96-inch OLED display for direct output. It includes a USB-C port for power and serial communication, along with common interfaces like UART, SPI, I2C, GPIO, and ADC for versatile embedded development.
Features
- Leverages the ultra-low-cost CH32V003 32-bit RISC-V microcontroller with a 48MHz core.
- Features an integrated 0.96-inch OLED display for direct visual output in embedded applications.
- Provides USB-C for power input and a reliable serial interface for debugging and communication.
- Includes onboard 3.3V LDO, an SPI NOR flash, and dedicated headers for the WCH-LinkE programmer.
- Breaks out 20 MCU I/Os and offers peripherals like UART, SPI, I2C, GPIO, and ADC for comprehensive development.
Out of stock
The CAPUF CH32V003 Development Kit serves as a robust and comprehensive platform for engineers and developers to fully explore and leverage the CH32V003 microcontroller’s extensive capabilities. This kit comes equipped with a crisp 0.96-inch OLED display, establishing an ideal environment for rapid prototyping, thorough testing, and efficient development of diverse embedded applications.
At its core, the CH32V003 is an ultra-low-cost 32-bit microcontroller built around the RISC-V 2A core. It operates at a maximum system main frequency of 48MHz and is configured with 2KB of SRAM alongside 16KB of Flash memory, making it suitable for a wide array of constrained embedded projects. The microcontroller also integrates a rich set of peripheral interfaces, including a DMA controller, a 10-bit ADC for analog sensing, an op-amp comparator, and multiple flexible timers for precise control. Standard communication interfaces such as USART, I2C, and SPI are readily available, enabling seamless integration with external sensors, actuators, and other modules for a broad spectrum of applications.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 15 × 15 × 3 cm |
