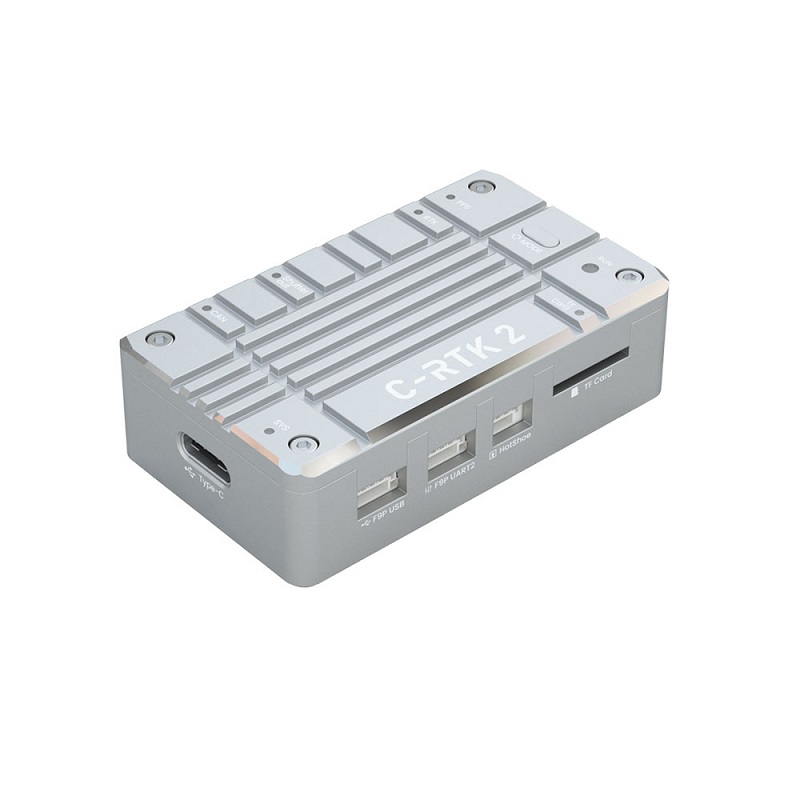

CUAV C-RTK 2 High Precision RTK PPK GNSS Module
The CUAV C-RTK 2 is a high-performance PPK/RTK GNSS module featuring a ZED-F9P receiver and industrial-grade IMU, designed for professional aerial survey and mapping drones. It provides centimeter-level positioning accuracy and is fully compatible with ArduPilot and PX4 flight control ecosystems.
Features
- High-precision ZED-F9P multi-frequency GNSS receiver with 184 channels.
- Industrial-grade IMU suite including ICM20689 gyro/accelerometer, RM3100 magnetometer, and ICP10111 barometer.
- Simultaneous support for real-time RTK positioning and post-processed kinematic (PPK) raw data logging.
- UAVCAN/DroneCAN protocol support for seamless integration with modern flight controllers like the CUAV X7 series.
- Includes comprehensive accessory kit with trigger cables for camera synchronization.
Out of stock
The C-RTK 2 module integrates u-blox’s flagship ZED-F9P GNSS module with a powerful STM32H743VIH6 processor and a suite of high-fidelity sensors. This combination delivers robust, centimeter-accurate positioning essential for demanding applications like photogrammetry, topographic mapping, and precision agriculture. The module supports both real-time RTK corrections and PPK workflows, offering flexibility in post-processing for maximum accuracy.

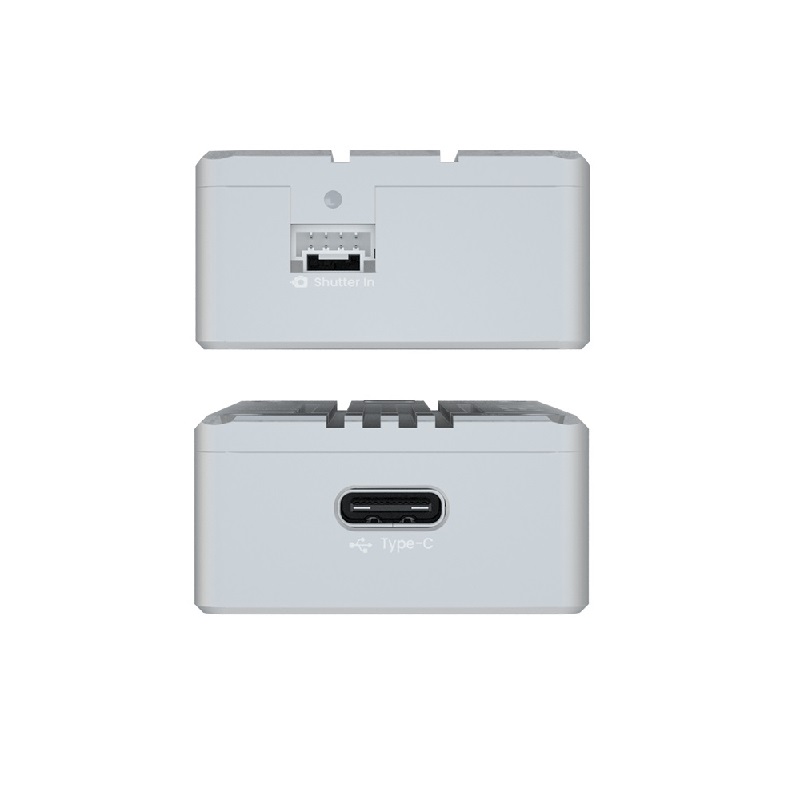

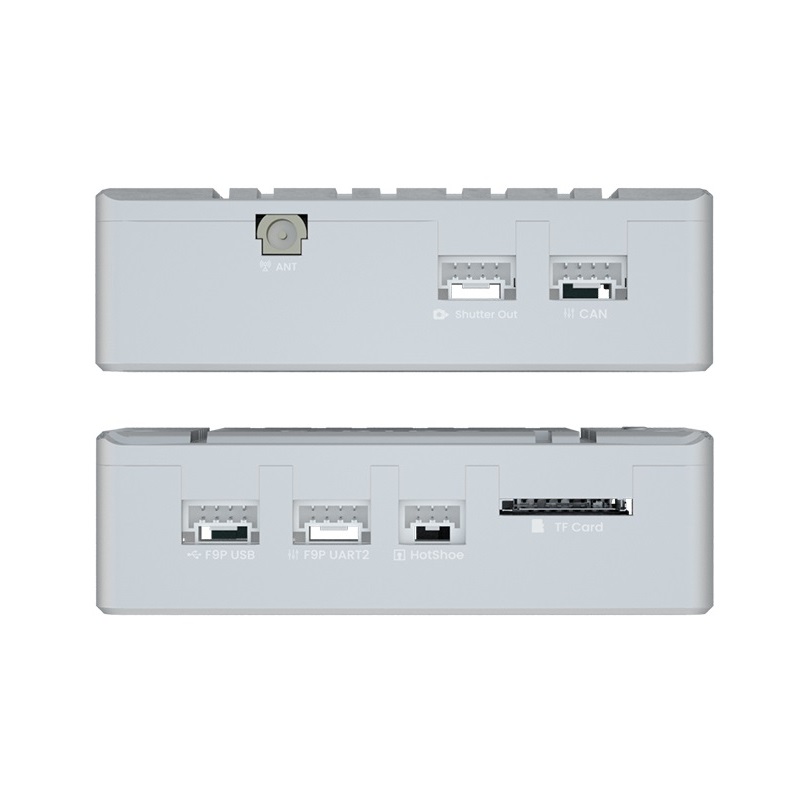

Designed for seamless integration, it communicates via UAVCAN/DroneCAN and includes dedicated ports for hotshoe and mechanical shutter triggers, enabling precise geotagging of aerial imagery. Its compact form factor (56x33mm) and low weight (39g) make it suitable for a wide range of multirotor, VTOL, and helicopter platforms without compromising payload capacity.
Additional Information
| Weight | 0.039 kg |
|---|---|
| Dimensions | 5.6 × 3.3 cm |
