Waveshare SIM7670G Cat-1/GNSS HAT for Raspberry Pi

₹4,839.00 (Inclusive of all taxes)
Out of Stock

The Waveshare SIM7670G Cat-1/GNSS HAT provides Raspberry Pi boards with reliable global multi-band LTE 4G Cat-1 connectivity and precise GNSS positioning, featuring up to 10Mbps downlink and 5Mbps uplink rates, alongside three extended USB 2.0 ports for enhanced peripheral support.

Features

  • Integrated SIM7670G module offering global multi-band LTE 4G Cat-1 connectivity.
  • Supports up to 10Mbps downlink and 5Mbps uplink data transmission rates.
  • Multi-GNSS capabilities including GPS, GLONASS, Galileo, and BeiDou for accurate positioning.
  • Standard Raspberry Pi 40PIN GPIO header ensures wide compatibility.
  • Features 3 extended USB 2.0 Type-A ports for additional host device peripherals.

Out of stock

Description

The SIM7670G LTE Cat-1/GNSS HAT is an advanced communication module designed to bring robust wireless connectivity and precise positioning to your Raspberry Pi projects. Leveraging the SIM7670G module, it supports various LTE-TDD and LTE-FDD wireless communication modes, delivering reliable data transmission with peak rates of 10Mbps downlink and 5Mbps uplink. This makes it an ideal solution for a broad spectrum of IoT applications requiring stable cellular data and location services.

Beyond its core communication capabilities, the HAT is highly versatile, supporting operating systems like Windows and Linux, and a suite of network protocols including TCP/IP, HTTP(s), MQTT(s), and FTP(s). It also facilitates RNDIS, NDIS, and ECM dial-up for flexible network integration. The module’s form factor is compatible with SIM7000/SIM7070/A7670E series, and its AT commands are largely consistent with the SIM800 series, simplifying development and migration. With integrated GNSS for GPS, GLONASS, Galileo, and BeiDou, alongside extended USB ports for host devices, this HAT significantly enhances the Raspberry Pi’s potential for remote monitoring, industrial automation, and satellite positioning applications.

Key Features

  • Standard Raspberry Pi 40PIN GPIO extension header, ensuring compatibility across Raspberry Pi series boards.
  • Supports a wide range of protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL for versatile network communication.
  • Enables RNDIS, NDIS, and ECM dial-up modes for flexible internet access.
  • Integrated GNSS module supports GPS, GLONASS, Galileo, and BeiDou for accurate global positioning.
  • Onboard USB Type-A and Type-C interfaces for convenient testing of AT Commands and network communication.
  • Extends 3x USB 2.0 Type-A ports to the host device, such as Raspberry Pi or Windows PC, for peripheral expansion.
  • Reserved control pads for UART and USB pins of the SIM7670G module, facilitating connection with other host boards.
  • Includes a SIM card slot compatible with both 1.8V and 3V SIM cards.
  • Equipped with 6x LED indicators to easily monitor module operating status and USB connection status.
  • Comes with comprehensive online development resources and a manual, including examples for Raspberry Pi, Jetson Nano, and STM32.

Applications

  • Remote information processing and data logging.
  • Advanced monitoring devices and sensor networks.
  • Industrial routers and gateways for automation.
  • Remote diagnosis and asset tracking.
  • Satellite positioning systems and navigation aids.
  • Embedded IoT solutions requiring cellular connectivity.

Technical Specifications

ModuleSIM7670G
Frequency BandLTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66; LTE-TDD: B34, B38, B39, B40, B41
Data Transmission (UL)≤5Mbps
Data Transmission (DL)≤10Mbps
GNSS SupportGPS, GLONASS, Galileo, BeiDou
Power Supply5V
Logic Level3.3V
Dimensions85 × 56.7mm

Frequently Asked Questions

What wireless communication protocols does the Waveshare SIM7670G HAT support?

The HAT supports global multi-band LTE Cat-1, offering wireless communication modes including LTE-TDD and LTE-FDD. It achieves up to 10Mbps downlink and 5Mbps uplink rates, making it suitable for IoT applications requiring reliable, moderate-speed data transfer. It also supports network protocols like TCP/IP, HTTP(s), MQTT(s), and FTP(s).

What positioning systems can the SIM7670G Cat-1/GNSS HAT utilize?

This HAT integrates a GNSS module capable of precise satellite positioning using multiple global navigation satellite systems. It supports GPS (Global Positioning System), GLONASS, Galileo, and BeiDou. This multi-system compatibility ensures robust and accurate location tracking, crucial for various mobile and IoT deployments.

Is the Waveshare SIM7670G HAT compatible with all Raspberry Pi boards?

Yes, the Waveshare SIM7670G Cat-1/GNSS HAT is designed with a standard Raspberry Pi 40PIN GPIO extension header. This ensures broad compatibility across the Raspberry Pi series boards, including models like Raspberry Pi 3B/3B+, Raspberry Pi 4, and Raspberry Pi 5, making it a versatile add-on.

How does the HAT provide extended USB functionality?

The HAT includes an onboard USB Type-A and Type-C interface, primarily for testing AT commands and network communication directly. Crucially, it extends three additional USB 2.0 Type-A ports, allowing the host device, such as a Raspberry Pi or Windows PC, to connect multiple peripherals, expanding its utility significantly.

Package Includes

  • 1 x SIM7670G Cat-1/GNSS HAT
  • 1 x USB-A to USB-C cable

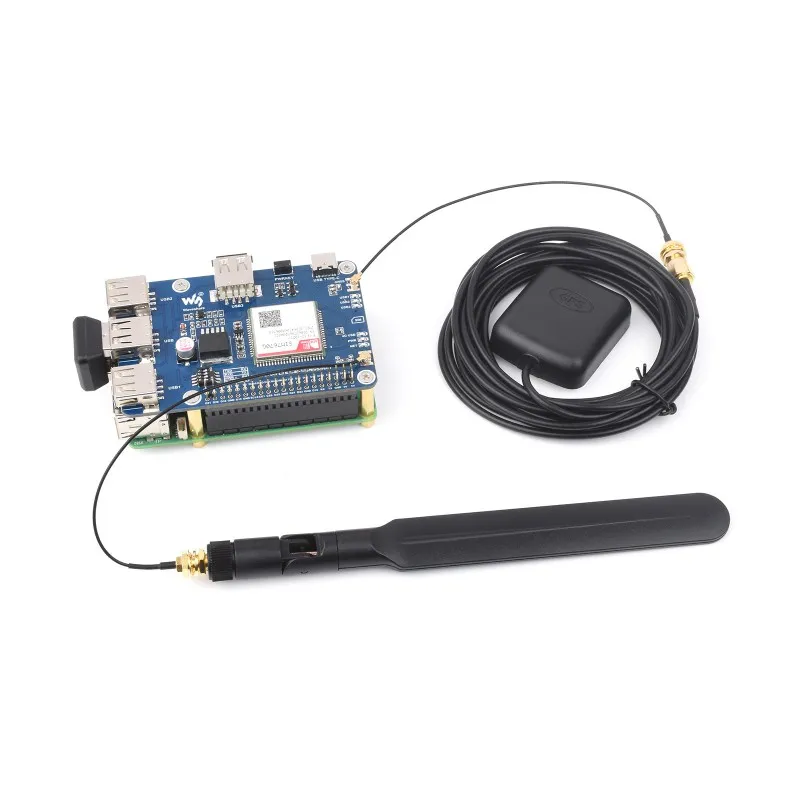

  • 1 x GPS Antenna
  • 1 x LTE Antenna
  • 1 x 2×20PIN female pinheader
  • 1 x USB 3.0 Adapter
  • 1 x USB 2.0 Adapter
  • 1 x Screws pack

Additional Information

Weight 0.225 kg
Dimensions 8.5 × 5.67 cm
