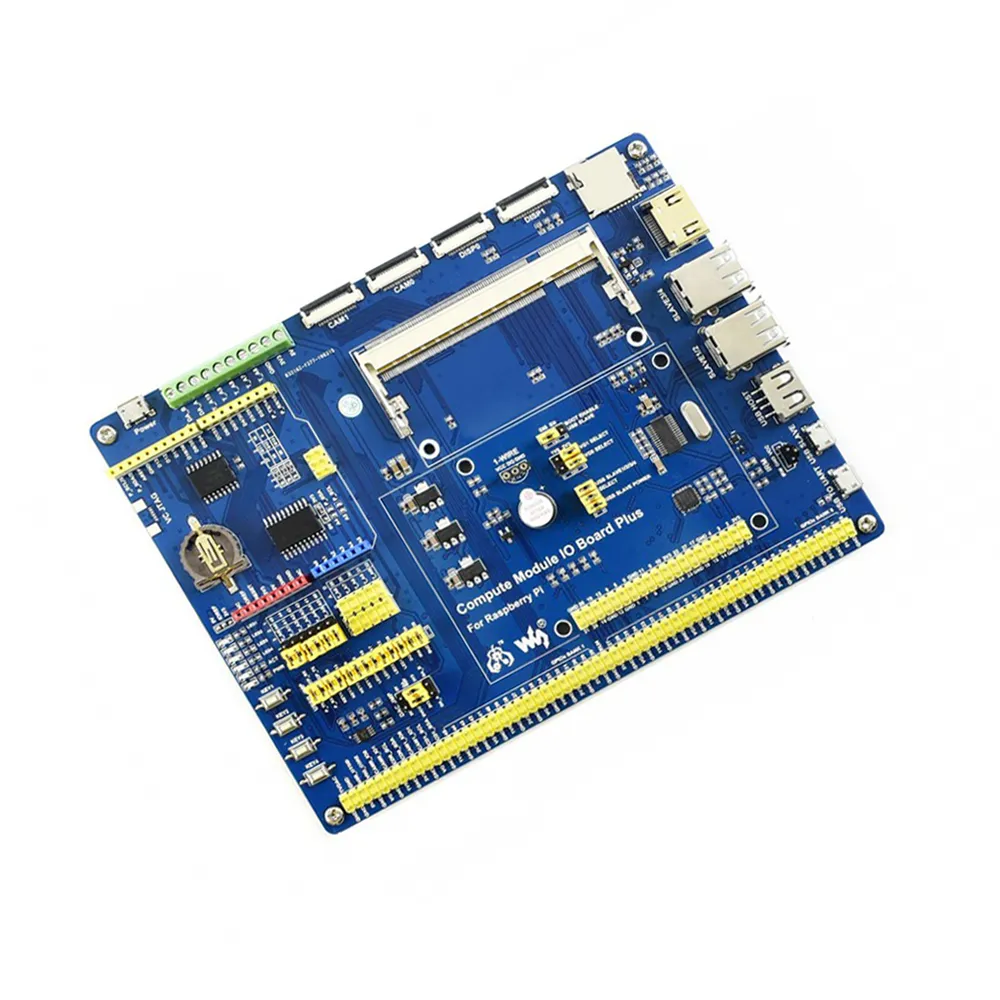

CMIO Board Plus for Raspberry Pi CM4S/CM3/CM3+/CM3L
The Waveshare Compute Module IO Board Plus is a versatile development board compatible with Raspberry Pi CM4S, CM3, CM3+, and CM3L modules, designed to expand their I/O capabilities. It features a Raspberry Pi GPIO header for HATs and Arduino connectivity for shields, alongside integrated I/O for testing and debugging.
Features
- Compatible with Raspberry Pi CMIO Board V3 and CM4S/CM3/CM3+/CM3L series.
- Features a standard Raspberry Pi GPIO header for HAT expansion.
- Provides Arduino connectivity for a wide range of shields.
- Includes onboard USB HUB, USB TO UART, and 1-WIRE interface.
- Integrates ADC, DAC, and RTC functionality for diverse projects.
Out of stock
The Compute Module IO Board Plus from Waveshare serves as a robust development platform, allowing users to flexibly utilize the resources of a Raspberry Pi Compute Module. Fully compatible with the Compute Module IO Board V3 from the Raspberry Pi, this board provides extensive expansion options for various embedded projects and prototyping.
It breaks out critical interfaces, including a Raspberry Pi GPIO header for connecting HATs and dedicated Arduino connectivity for shields, greatly enhancing peripheral support. Furthermore, it integrates essential debugging and utility features such as an onboard USB HUB, USB TO UART for serial debugging, and a 1-WIRE interface. With integrated ADC/DAC capabilities and a high-precision RTC, the board is well-suited for applications requiring sensor integration, precise analog control, and accurate timekeeping.
Additional Information
| Weight | 0.195 kg |
|---|---|
| Dimensions | 22 × 16 × 2 cm |
