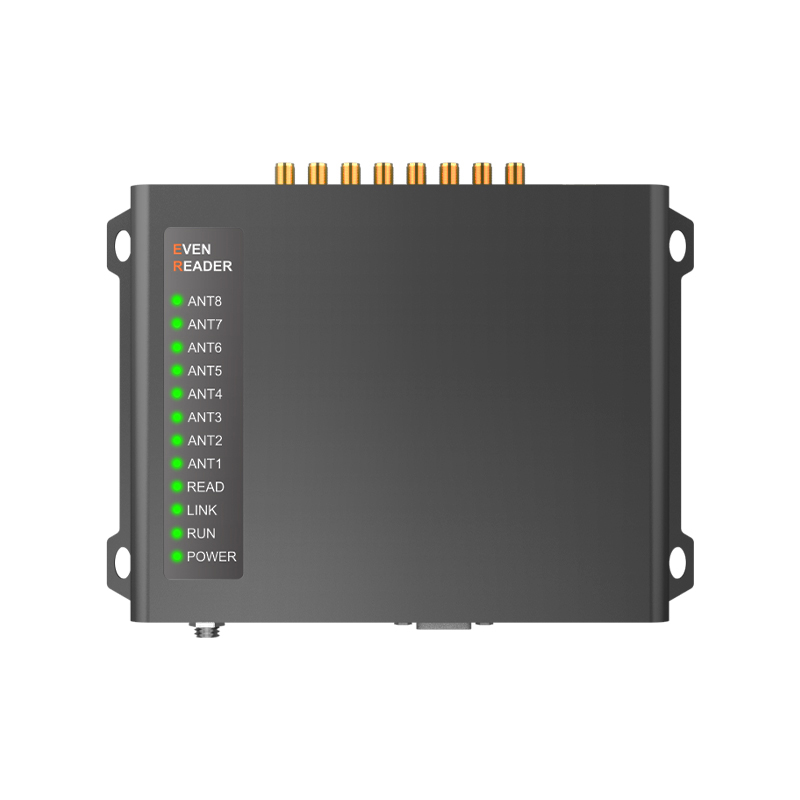

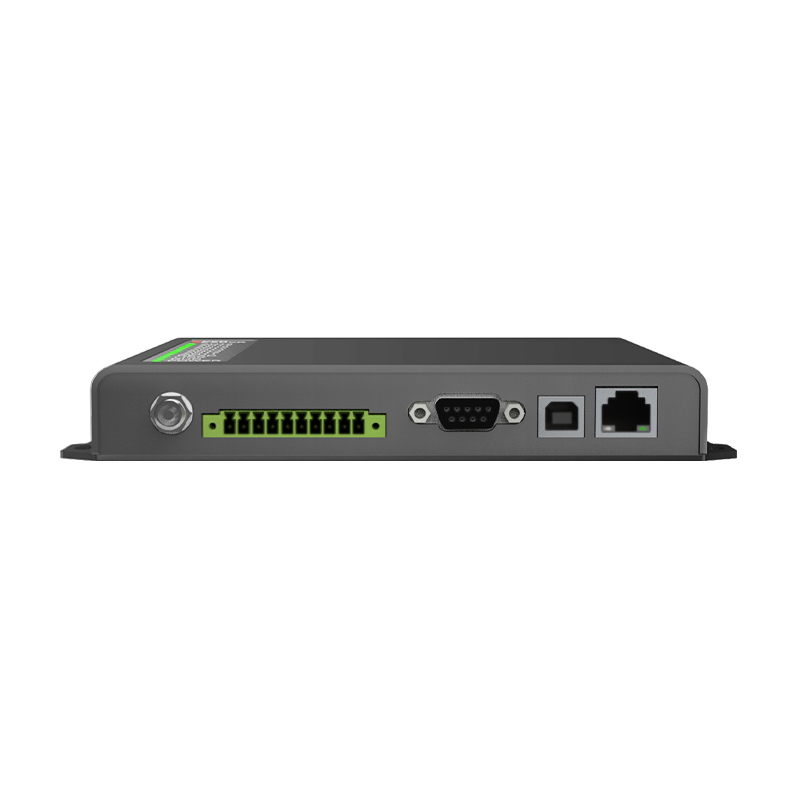

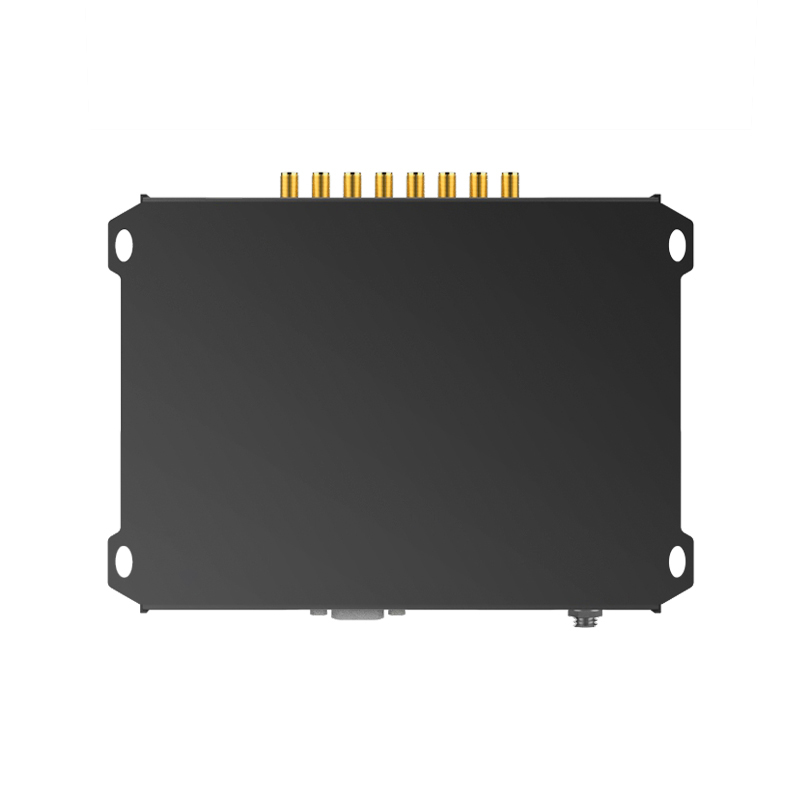

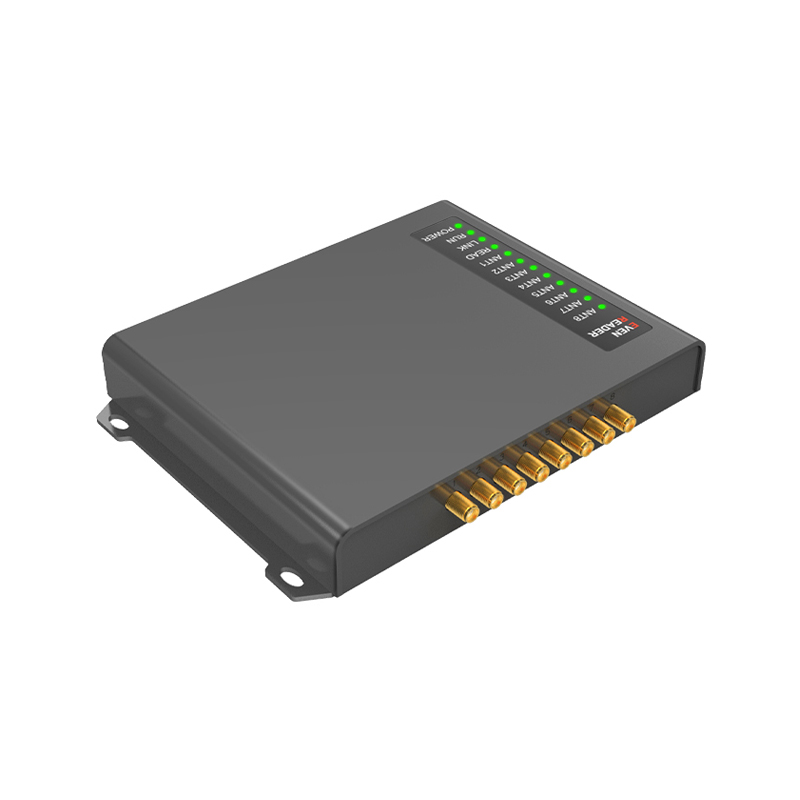

CHAFON CF811 Even UHF RFID 8-Channel Fixed Reader, 865~868 MHz, 200 Tags/s, 0~33 dBm, 8 SMA Ports, USB/RS232/RS485/TCP/IP
The CHAFON CF811 is an industrial-grade, 8-channel UHF RFID fixed reader operating at 865–868 MHz (EU) / 902–928 MHz (US), designed for high-speed asset tracking and inventory management. It interfaces via USB, RS232, RS485, and TCP/IP, supporting integration with PLCs, SCADA systems, and custom software via SDKs for C#, Java, and Python.
Features
- Ultra-fast read rate of up to 200 tags per second for high-throughput applications.
- Eight SMA antenna ports enable wide-area coverage and multi-point monitoring setups.
- Adjustable RF output power from 0 to 33 dBm for precise range control up to 15 meters.
- Multi-interface support includes USB, RS232, RS485, and TCP/IP (with optional PoE/WiFi).
- Rugged die-cast aluminum housing with IP55 rating for reliable operation in industrial environments.
Out of stock
The CHAFON CF811 fixed reader utilizes UHF RFID technology compliant with the ISO18000-6C (EPC Gen2) protocol, employing an advanced anti-collision algorithm for efficient simultaneous tag identification. Its robust signal conditioning and adjustable RF power allow for optimized performance across varying environmental conditions and tag densities.
Engineered for continuous operation, the reader features a 12V DC power supply with a current draw of 500–1200 mA and includes 2 GPI and 2 GPO ports for external device control and event triggering. The die-cast aluminum enclosure provides electromagnetic shielding and physical protection, ensuring durability in warehouses, logistics hubs, and smart inventory cabinets.
Additional Information
| Weight | 0.603 kg |
|---|---|
| Dimensions | 18.5 × 15 cm |
