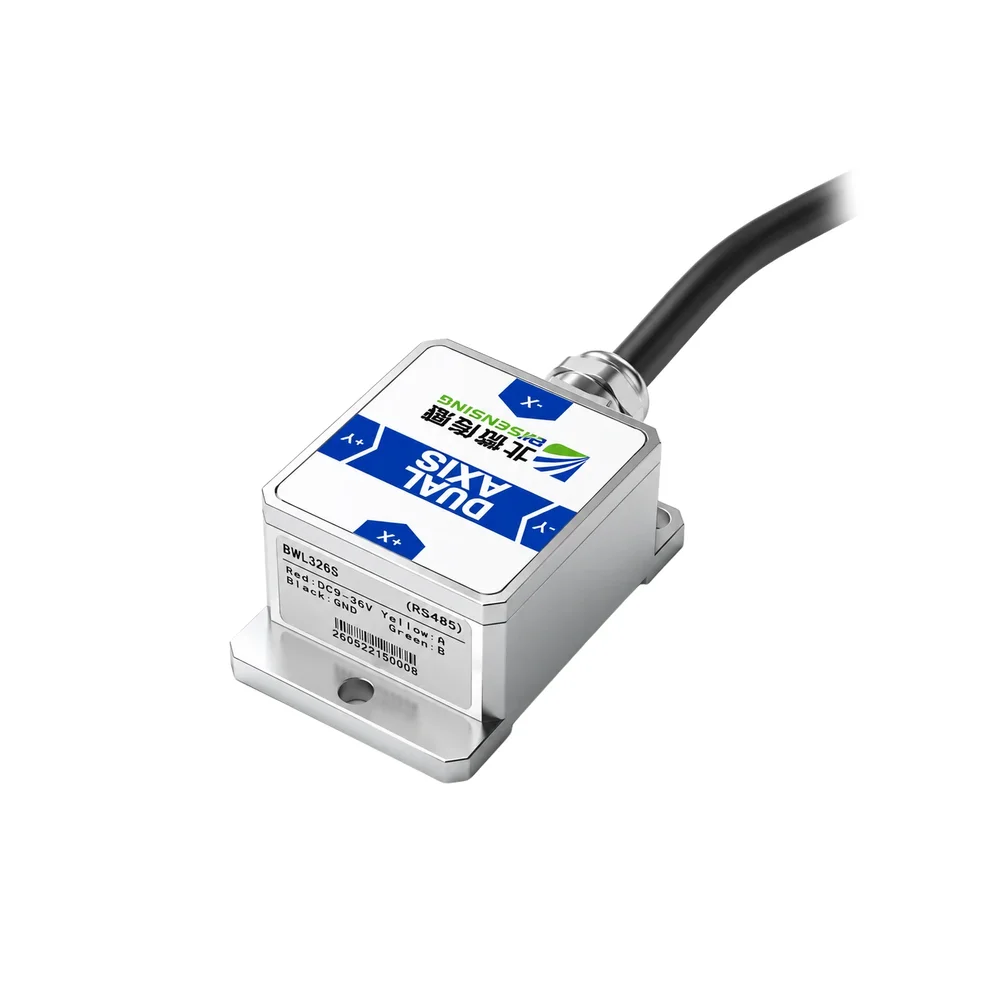

BWSENSING BWL326S Dual-Axis Inclinometer, ±90° Tilt Sensor, 0.1° Accuracy, MEMS, RS485

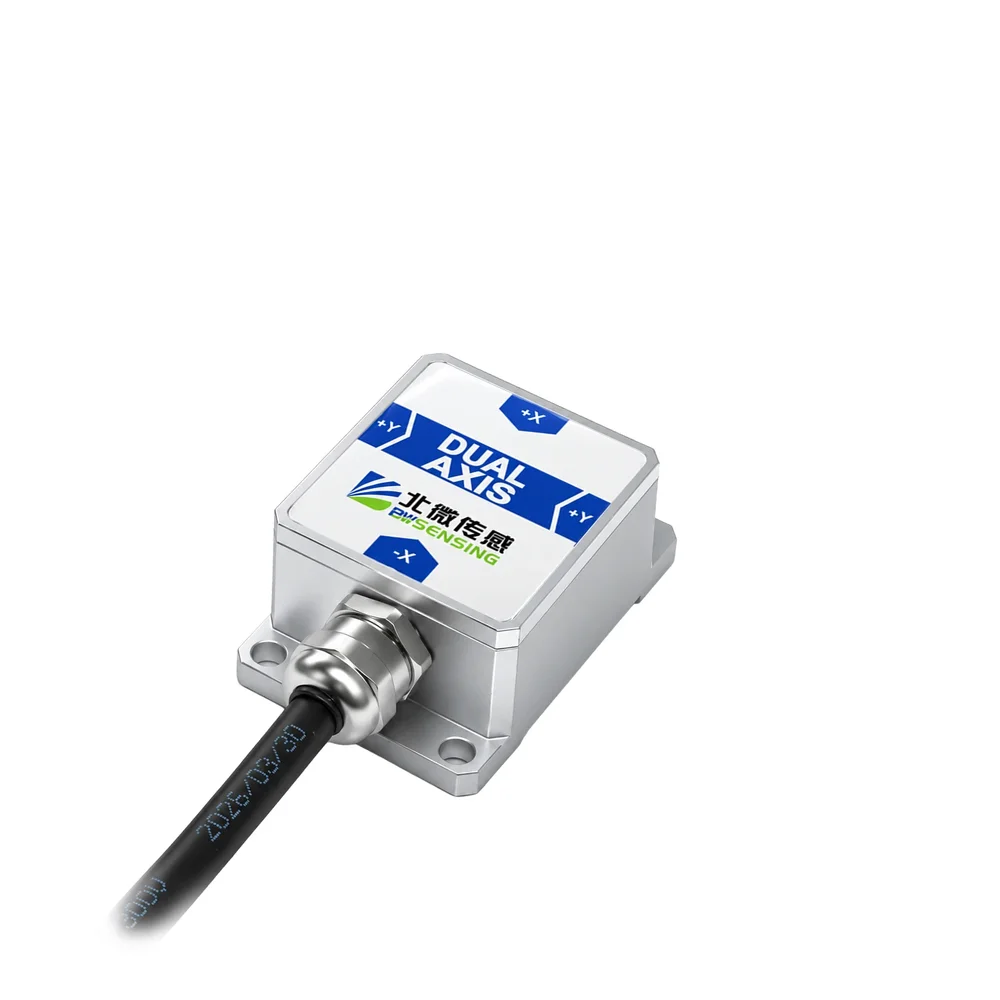

BWSENSING BWL326S Dual-Axis Inclinometer, ±90° Tilt Sensor, 0.1° Accuracy, MEMS, RS485 - Image 2

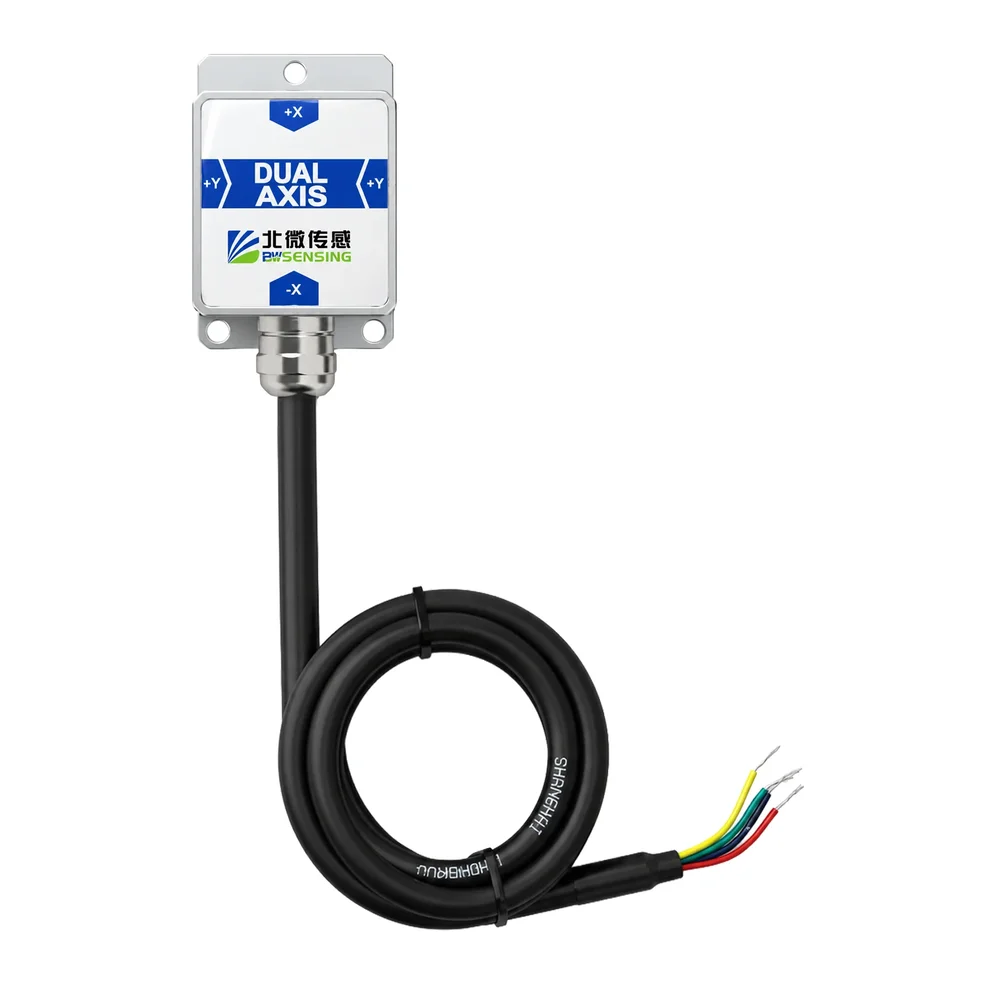

BWSENSING BWL326S Dual-Axis Inclinometer, ±90° Tilt Sensor, 0.1° Accuracy, MEMS, RS485 - Image 3
SKU: SENS-4277
📋 GST Invoice Available

BWSENSING BWL326S Dual-Axis Inclinometer, ±90° Tilt Sensor, 0.1° Accuracy, MEMS, RS485

₹9,999.00 (Inclusive of all taxes)
Out of Stock

The BWSENSING BWL326S is a MEMS-based dual-axis inclinometer providing high-precision tilt measurement with a ±90° range and 0.1° accuracy. It outputs digital data via an RS485 interface, compatible with industrial PLCs and DAQ systems, and operates from a wide 9-35V DC supply.

Features

  • Dual-axis MEMS inclinometer with ±90° measurement range.
  • High accuracy of 0.1° and a fine resolution of 0.01°.
  • Industrial-grade RS485 digital communication interface.
  • Wide operating voltage range of 9V to 35V DC.
  • IP67-rated enclosure for reliable performance in harsh environments.

Out of stock

Description

The BWSENSING BWL326S utilizes a high-stability MEMS (Micro-Electro-Mechanical System) sensing element to measure inclination angles on two orthogonal axes. This principle provides a robust and precise digital output signal, conditioned for industrial environments.

Featuring an IP67-rated compact housing, the sensor is protected against dust ingress and temporary water immersion, ensuring reliable operation in challenging conditions such as construction, heavy machinery, and outdoor installations. Its wide supply voltage compatibility simplifies integration into existing 12V or 24V DC control systems.

Key Features

  • Dual-axis (X-Y) inclination measurement for comprehensive tilt monitoring.
  • MEMS-based sensing technology ensures long-term stability and repeatability.
  • High-precision output with 0.1° accuracy and 0.01° resolution.
  • Industrial RS485 (Modbus RTU) interface enables reliable long-distance communication and multi-drop network capability.
  • Wide 9-35V DC input voltage range supports flexible power sourcing from industrial power rails.
  • IP67 protection rating guarantees performance in dusty, damp, or wet environments.
  • Compact, ruggedized housing designed for easy mounting in space-constrained applications.

Applications

  • Structural health monitoring of buildings, towers, and dams for tilt and settlement.
  • Leveling and anti-tip systems for mobile construction equipment and aerial work platforms.
  • Precision attitude control and platform stabilization in industrial automation and robotics.
  • Slope monitoring and alarm systems in geotechnical and mining operations.
  • Orientation sensing for solar panel tracking systems and antenna positioning.

Technical Specifications

ModelBWL326S
Sensor TypeDual-Axis Inclinometer
Measurement Range±90°
Accuracy0.1°
Resolution0.01°
TechnologyMEMS
Output InterfaceRS485 (Digital)
Input Voltage9V – 35V DC
Protection LevelIP67
Dimensions (L x W x H)55mm × 37mm × 24mm
Measurement AxisX-Y Axis

Frequently Asked Questions

What is the communication protocol for the RS485 interface on the BWL326S?

The BWL326S utilizes the Modbus RTU protocol over its RS485 interface. This standard industrial protocol allows for easy integration with PLCs, SCADA systems, and data loggers, and supports connecting multiple sensors on a single bus for networked monitoring applications.

What is the power supply requirement for this inclinometer?

The sensor operates from a wide 9V to 35V DC power supply. This range accommodates common industrial voltage standards like 12V and 24V DC, simplifying integration without requiring a dedicated voltage regulator. Ensure the power source is stable and properly fused.

How is the sensor mounted and what is its measurement reference?

The sensor is typically mounted via its integrated mounting holes, with its measurement reference aligned to the mechanical base of the device or structure being monitored. The X and Y axes are orthogonal to each other and parallel to the sensor's housing faces, as defined in the product datasheet.

Is the BWL326S suitable for outdoor or harsh environment use?

Yes, with its IP67 protection rating, the BWL326S is designed to withstand harsh conditions. It is dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor, industrial, and wash-down environments.

Package Includes

  • 1 x BWSENSING BWL326S Dual-Axis Inclinometer Sensor

Additional Information

Weight 0.005 kg
Dimensions 5.5 × 3.7 × 2.4 cm
