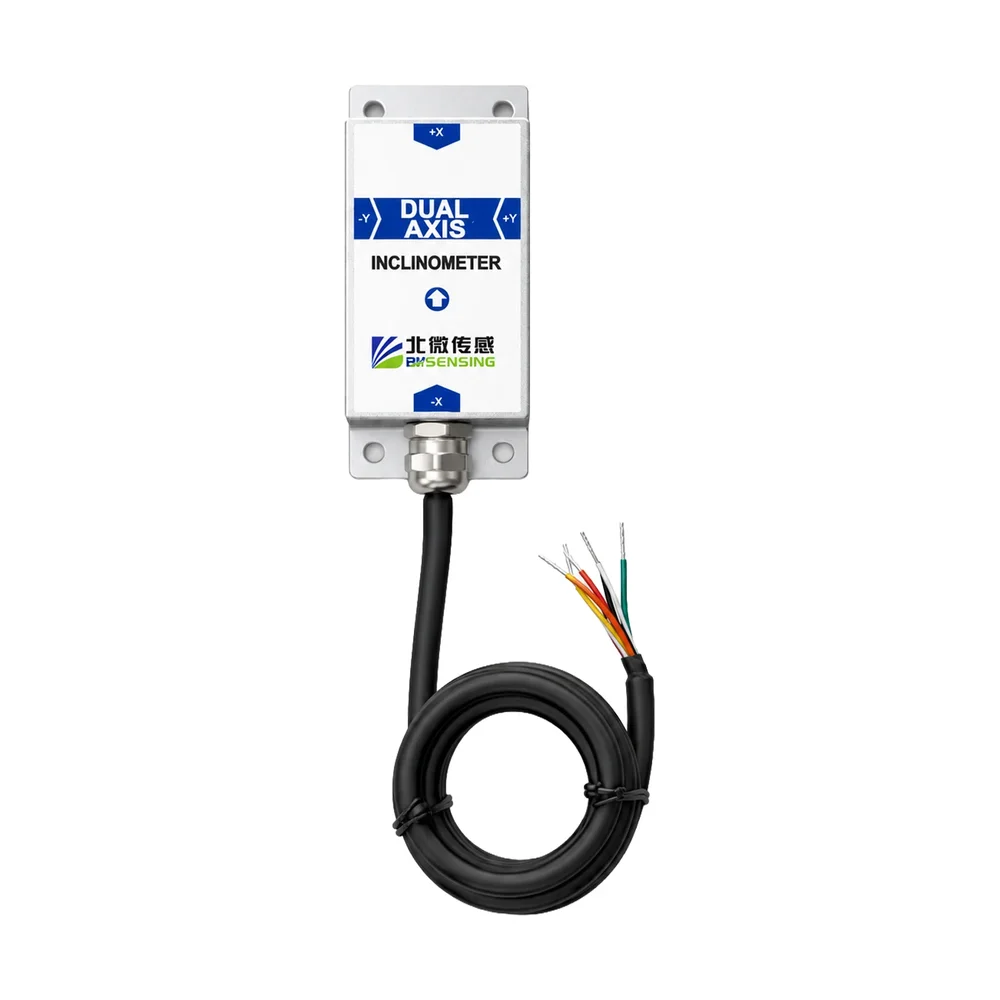

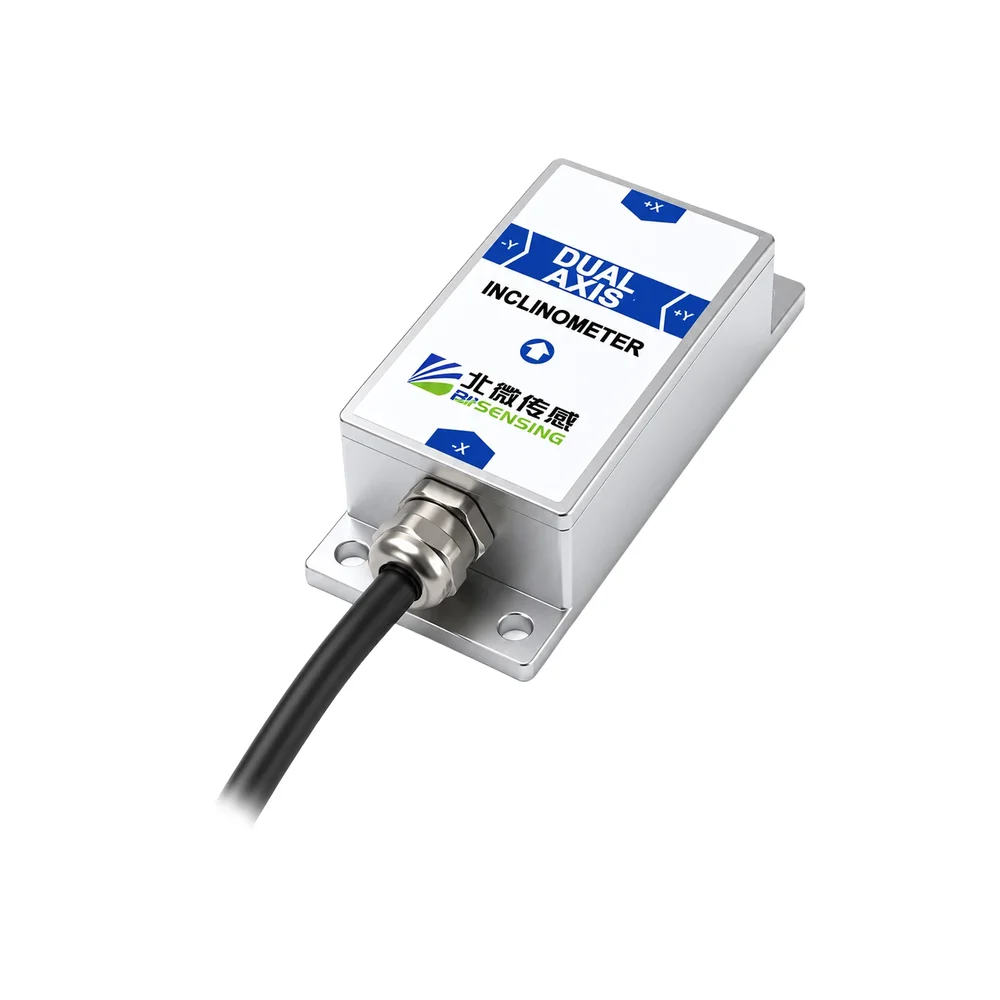

BWSENSING BWK220 Dual-Axis Inclinometer, ±90° Range, 0.2° Accuracy, MEMS, 0-10V/0-5V Analog Output
The BWSENSING BWK220 is a high-precision dual-axis MEMS inclinometer module offering a ±90° measurement range with 0.2° accuracy and 0.02° resolution. It provides configurable 0-5V or 0-10V analog output for direct integration with PLCs, industrial controllers, and data acquisition systems.
Features
- Dual-axis (X-Y) MEMS tilt sensor with ±90° measurement range.
- High accuracy of 0.2° and fine resolution of 0.02° for precise leveling.
- Configurable 0-5V or 0-10V analog voltage output for industrial PLC compatibility.
- Rugged IP67-rated enclosure for reliable operation in harsh environments.
- Wide operating temperature range from -40°C to +85°C.
Out of stock
The BWK220 utilizes a robust MEMS (Micro-Electro-Mechanical Systems) sensing element to provide stable and accurate inclination measurements across two axes. Its analog output signals are linearized and conditioned for direct connection to standard industrial control interfaces, enabling real-time monitoring of tilt and level in dynamic systems.
Engineered for durability, the sensor features an IP67-protected housing that safeguards against dust ingress and temporary water immersion. This makes it suitable for deployment in challenging conditions such as construction sites, renewable energy installations, and heavy machinery, where reliable performance is critical.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 12 × 12 × 7 cm |
