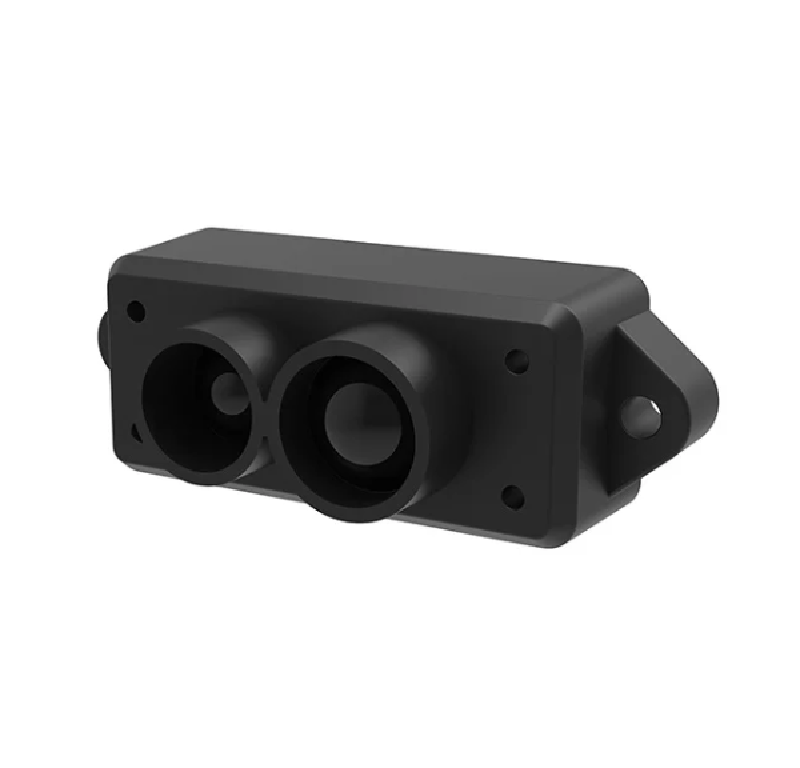

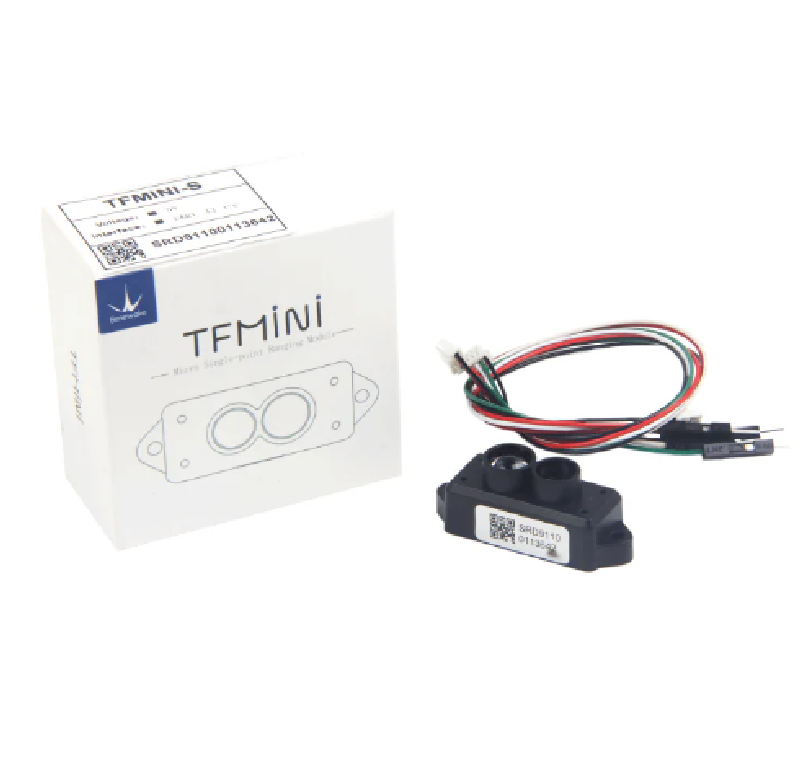

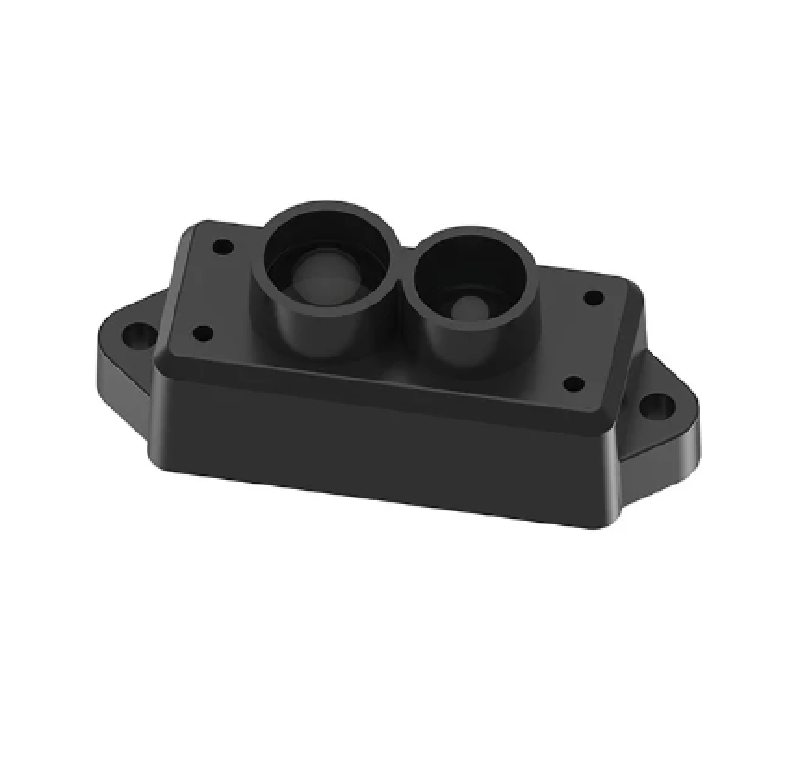

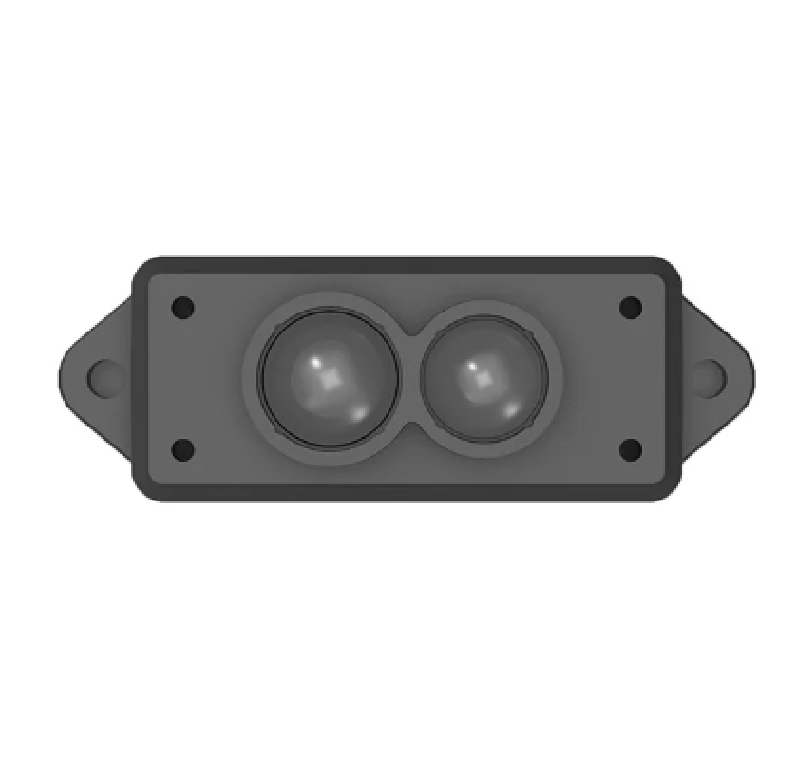

Benewake TFMini-S Micro LiDAR Distance Sensor Module, Range: 0.1-12m, I2C/UART
The Benewake TFMini-S is a compact, single-point LiDAR distance sensor module offering a 0.1 to 12-meter range with UART and I2C communication interfaces. It is designed for integration with microcontrollers like Arduino, Raspberry Pi, and ESP32, as well as drones and robotic platforms for precise ranging and obstacle avoidance.
Features
- Micro LiDAR sensor with a 0.1m to 12m measurement range and a 2° field of view.
- High-speed frame rate configurable from 1Hz to 1000Hz for dynamic applications.
- Dual communication interfaces: selectable UART (TTL) and I2C for flexible system integration.
- Class 1 laser safety (IEC60825) with 850nm wavelength, eye-safe and resistant to ambient light up to 70 Klux.
- Compact and lightweight design, ideal for drones (UAVs), robotics, and automated guided vehicles (AGVs).
Out of stock
The TFMini-S is an upgraded single-point ranging LiDAR module featuring a reduced blind zone of 10cm and improved accuracy across varying target reflectivities. Its performance remains consistent indoors and outdoors, with distance measurements largely unaffected by ambient light interference.
Based on time-of-flight (ToF) principles, the module emits a modulated infrared laser pulse and calculates distance by measuring the time for the reflection to return. This design ensures stable, accurate, and high-frequency detection suitable for real-time control systems in autonomous navigation and precision measurement scenarios.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 5 × 5 × 3 cm |
