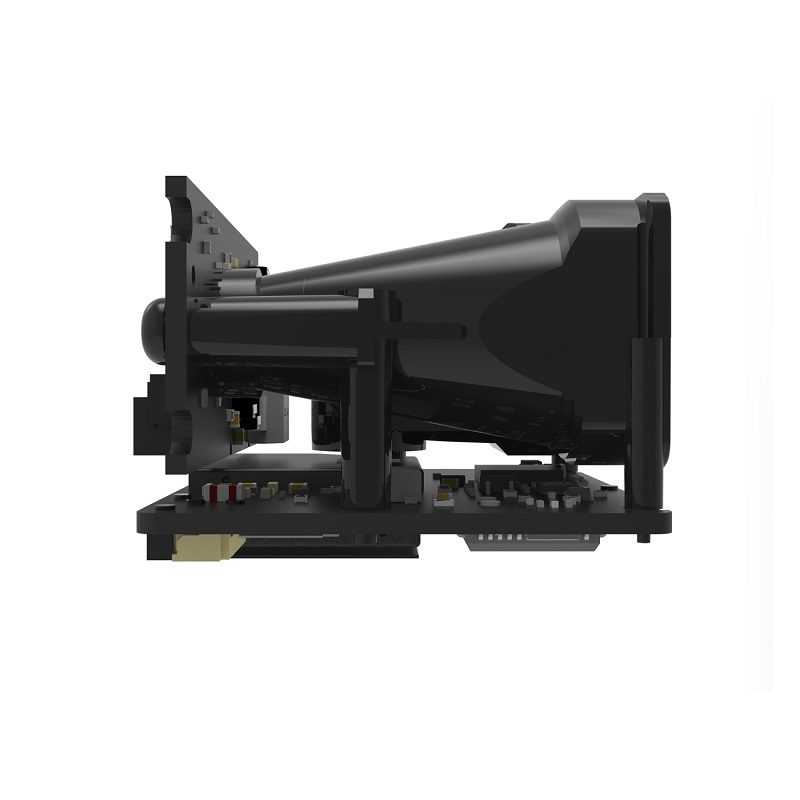

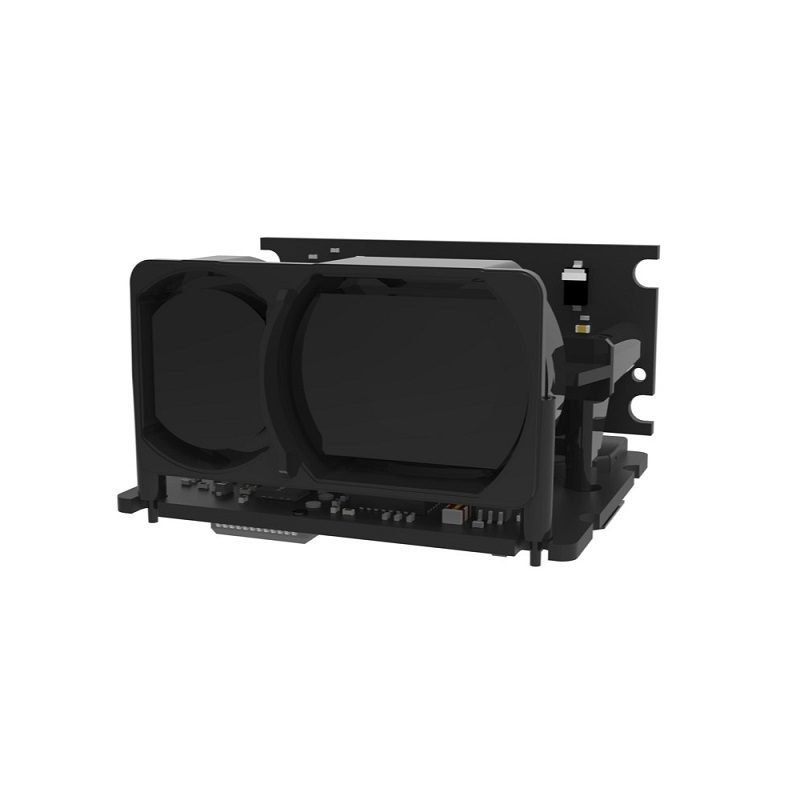

Benewake TFA300-L Ultra-High-Frequency Lightweight UAV LiDAR Sensor (Range: 0.1-290m)
The Benewake TFA300-L is an ultra-high-frequency, lightweight LiDAR sensor designed for UAV integration, offering a 0.1 to 290m range with 10,000 Hz sampling. It provides DroneCAN protocol support for plug-and-play compatibility with modern flight controllers and EO/IR gimbals, enabling precise altitude hold, obstacle avoidance, and focal distance adjustment.
Features
- Ultra-High 10,000 Hz Sampling Rate for real-time detection of fast-moving objects.
- Lightweight 10.5g Compact Design optimized for UAV SWaP-C (Size, Weight, Power, and Cost) requirements.
- High Accuracy of ±10 cm for targets under 10m and 1% for longer distances up to 290m.
- All-Weather Durability with operation from -20°C to +60°C and tolerance to 100 KLux ambient light.
- DroneCAN Protocol Integration via JST GH connectors and SDK for straightforward flight controller communication.
Out of stock
The TFA300-L employs a time-of-flight (ToF) LiDAR principle with a narrow 0.5° field of view to deliver precise, long-range distance measurements. Its ultra-high-frequency mode, adjustable from 1–1,000 Hz up to 10,000 Hz, enables rapid data collection critical for high-speed applications such as FPV racing and search-and-rescue drones. The sensor’s signal conditioning is designed for stability in challenging environmental conditions including rain, fog, and dust.
Engineered for seamless integration into unmanned aerial systems, the TFA300-L operates on a 5V DC ±10% supply with low peak current consumption. Its compact 30 x 30.2 mm footprint and minimal weight make it an ideal component for camera gimbal stabilization, precise localization, and autonomous obstacle avoidance algorithms in demanding aerial platforms.
Additional Information
| Weight | 0.0105 kg |
|---|---|
| Dimensions | 3 × 3.02 cm |
