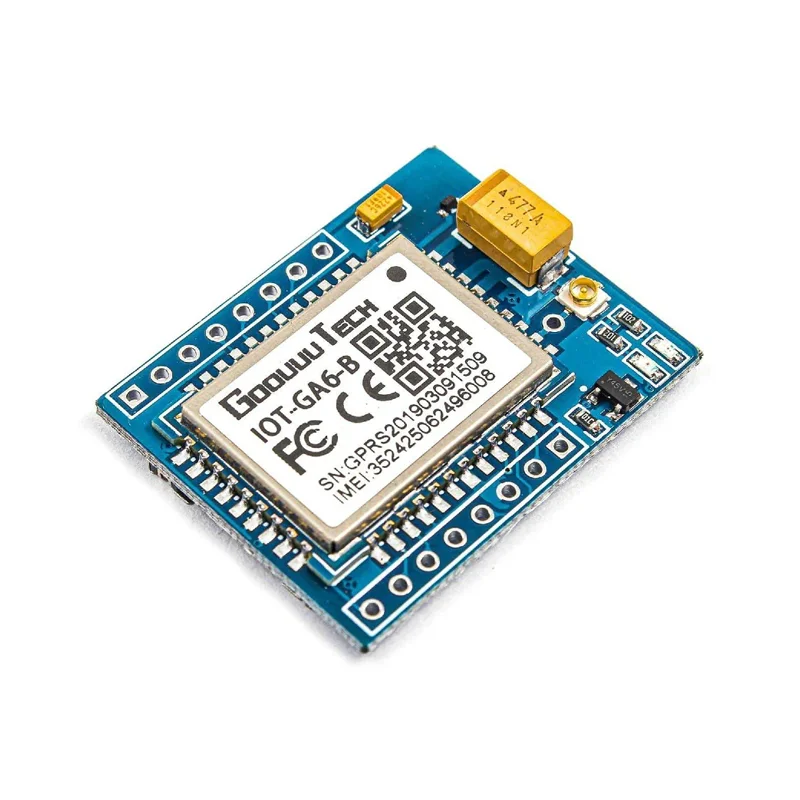

Mini A6 GSM GPRS Quad-Band SMS Audio Development Board 5V

The Mini A6 GSM Development Board requires a stable 5V DC power supply, typically sourced from a USB port or regulated bench supply. Ensure the power source can provide sufficient current during transmission bursts, as peak current draw can reach up to 2A. A clean, low-noise supply is recommended for stable RF performance and to prevent module resets during network registration or data transmission.

To send an SMS, first ensure the SIM card is inserted and the module is registered on the network (AT+CREG?). Set the SMS mode to text with AT+CMGF=1. Then, specify the recipient number using AT+CMGS="+1234567890" followed by a carriage return. Type your message and send a Ctrl+Z (ASCII 26) to transmit. The module will return a confirmation. Use a serial terminal like PuTTY or a microcontroller UART at the default baud rate (usually 115200) for command interaction.

Yes, the Mini A6 GSM board is designed as a functional and pin-compatible replacement for the SIM800L in many applications. Both operate on 5V, use similar UART-based AT commands for control, and support quad-band GSM/GPRS. However, always verify the pinout mapping and electrical characteristics, as minor differences in audio interfaces or power-on sequences may require firmware adjustments. The included Berg pins allow for direct soldering into existing SIM800L footprints on prototype boards.

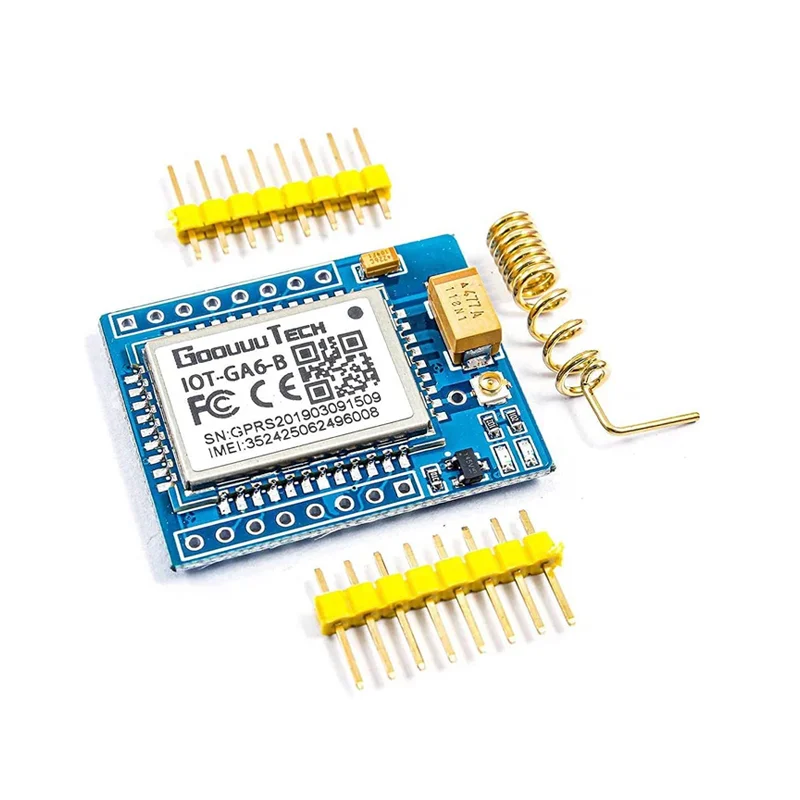

The module includes a helical 'spiral spring' antenna with a U.FL (IPEX) connector, which plugs directly into the board's U.FL port. For improved range, you can replace it with an external GSM antenna featuring a U.FL pigtail and higher gain (e.g., 3dBi). Ensure the antenna is tuned for the GSM bands (850/900/1800/1900MHz). Proper antenna connection is critical for network registration and maintaining a stable signal, especially in areas with weak cellular coverage.
