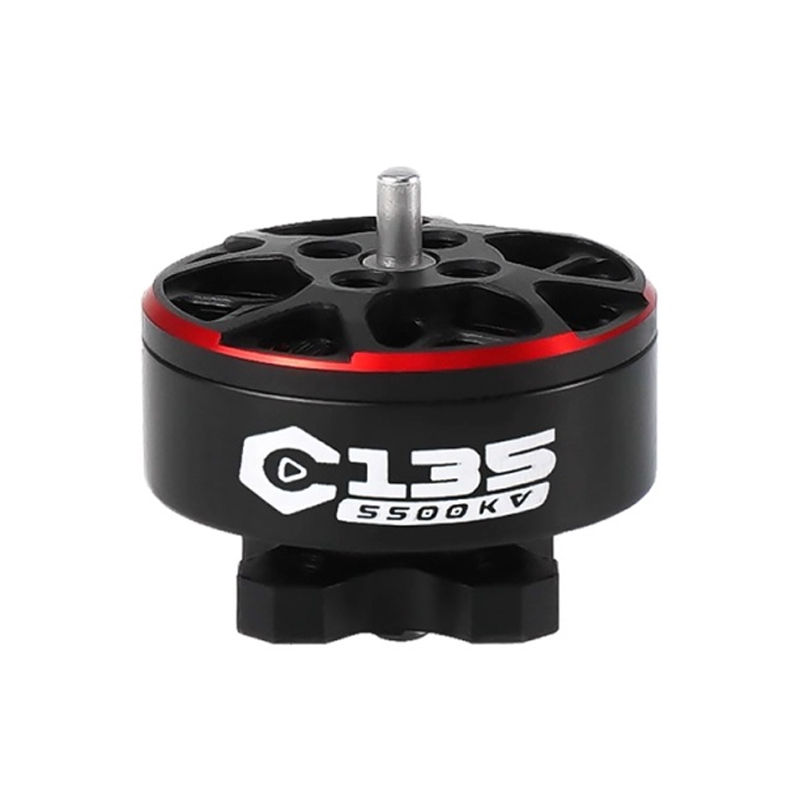

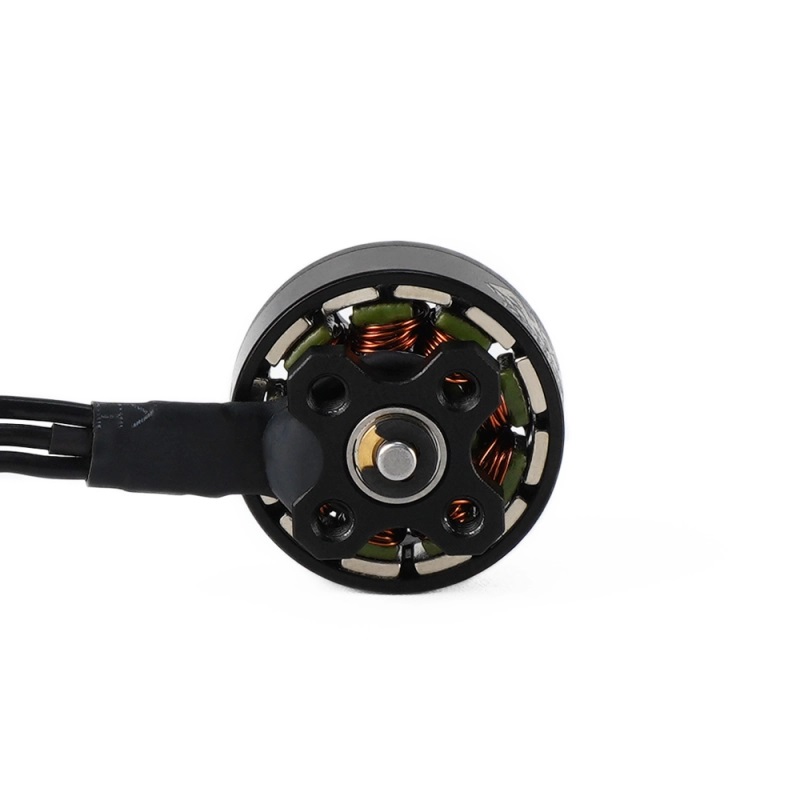

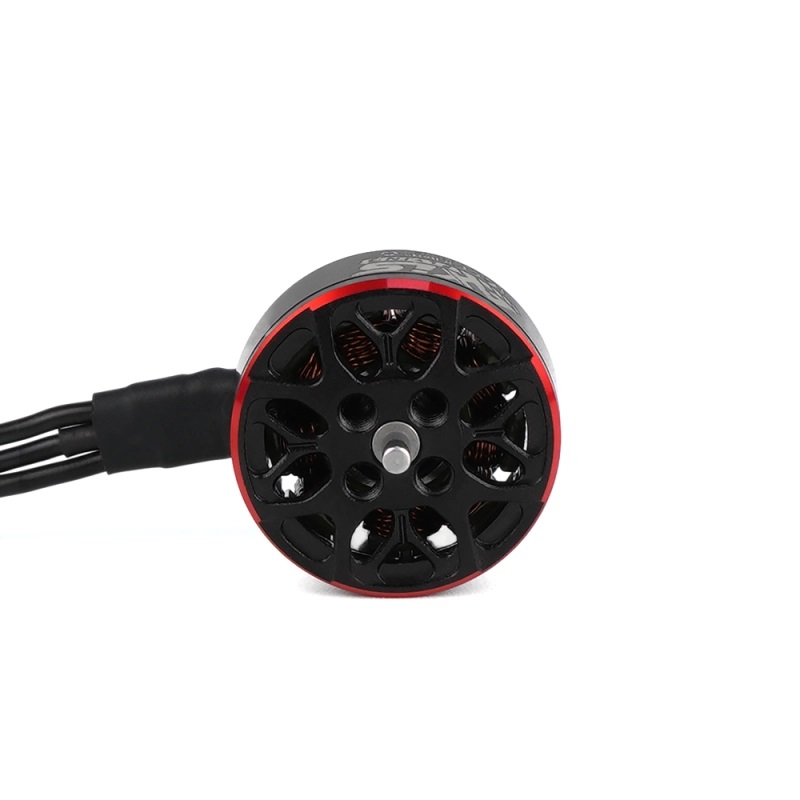

AxisFlying C135 1303.5 Brushless Motor 5500KV - 3mm Shaft, 9x9mm Mounting

Name: AxisFlying C135 1303.5 Brushless Motor 5500KV - 3mm Shaft, 9x9mm Mounting
Brand: AxisFlying
SKU: DRFC-2429
Price: 1149.00 INR
Availability: OutOfStock

₹1,149.00 (Inclusive of all taxes)

Out of Stock

The AxisFlying C135 1303.5 brushless motor is a 5500KV powerhouse engineered for 2-inch cinewhoops and compact cinematic drones, delivering high-RPM performance and smooth throttle response on 3S LiPo battery systems.

Features

5500KV rating optimized for high-RPM performance on 3S LiPo setups.
1303.5 stator size (13mm diameter x 3.5mm height) balances power and a lightweight 10g design.
3mm shaft diameter with 9x9mm mounting pattern for compatibility with standard 2-inch cinewhoop frames.
Robust construction with integrated cooling features for sustained performance and durability.
Supports up to 20A current for demanding flight maneuvers and stable cinematic footage capture.

Out of stock

Get Notified When Available

Description

The AxisFlying C135 1303.5 brushless motor is engineered for precision in compact aerial platforms. Its 5500KV rating provides the high rotational speed necessary for agile throttle response and precise control, making it ideal for navigating tight spaces and capturing smooth, cinematic footage. The motor’s lightweight 10-gram construction minimizes overall drone weight, enhancing flight time and agility without sacrificing power.

Built with premium materials and an integrated cooling design, the C135 motor maintains operational stability even during extended flight sessions. The 3mm shaft and standardized 9x9mm mounting pattern ensure straightforward integration with a wide range of 2-inch cinewhoop frames, offering builders a reliable and high-performance propulsion solution for specialized FPV applications.

Key Features

High-RPM 5500KV Design: Engineered for rapid acceleration and precise control, ideal for dynamic 2-inch cinewhoop flight profiles.
Optimized Stator Geometry: The 1303.5 stator (13x3.5mm) provides an excellent power-to-weight ratio for agile, responsive flight.
Enhanced Thermal Management: Integrated cooling features and efficient winding design help dissipate heat, prolonging motor life during intense use.
Durable Mechanical Construction: Features a robust 3mm steel shaft and high-quality bearings for reliable, long-term operation.
Standardized Mounting: 9x9mm mounting hole pattern ensures broad compatibility with popular micro and cinewhoop frame designs.
Lightweight Build: At approximately 10 grams, it minimizes overall AUW to maximize flight performance and efficiency.

Applications

2-inch Cinewhoop drones for indoor/outdoor cinematic filming and proximity flying.
Compact FPV freestyle quads requiring high KV for rapid maneuvers in tight spaces.
Lightweight micro cinematic drones designed for smooth, stabilized aerial footage capture.
FPV drone builds targeting a sub-250g AUW (All-Up Weight) for regulatory compliance.
Agility-focused micro racing drones where fast throttle response is critical.

Technical Specifications

Model	AxisFlying C135 1303.5
Motor Type	Brushless Outrunner
KV Rating	5500 KV
Stator Size	13mm x 3.5mm (1303.5)
Recommended Voltage	3S LiPo (11.1V)
Max Continuous Current	20A
Shaft Diameter	3mm
Mounting Pattern	9x9mm
Weight	10g
Propeller Compatibility	2-inch propellers

Frequently Asked Questions

What is the ideal battery setup for the AxisFlying C135 5500KV motor?

The AxisFlying C135 1303.5 motor is optimized for 3S LiPo battery systems (nominal 11.1V). This voltage range allows the 5500KV winding to achieve its designed high RPM for responsive throttle control while staying within its thermal and current limits. It is not recommended for 4S or higher voltage applications without careful prop selection and throttle limiting.

What size propellers are compatible with this 1303.5 motor?

This motor is best paired with 2-inch propellers, typical for its intended 2-inch cinewhoop and micro drone applications. Using larger props may exceed the motor's 20A continuous current rating and cause overheating. For optimal performance and efficiency, select lightweight, durable 2-inch props such as tri-blade or bi-blade designs suited for high-KV motors.

Is the 9x9mm mounting pattern standard for micro drone frames?

Yes, the 9x9mm mounting hole pattern is a common standard for many 2-inch and smaller cinewhoop and micro FPV frames. This pattern allows for direct mounting to frames designed for 11xx-13xx series motors. Always verify your frame's motor mounting hole spacing before purchase to ensure compatibility.

What is the maximum continuous current (amps) this motor can handle?

The AxisFlying C135 motor has a maximum continuous current rating of 20A. It is crucial to pair it with an Electronic Speed Controller (ESC) rated for at least this current, preferably with some headroom (e.g., a 25A ESC). Exceeding this current with overly aggressive props or excessive throttle can lead to premature motor failure.
