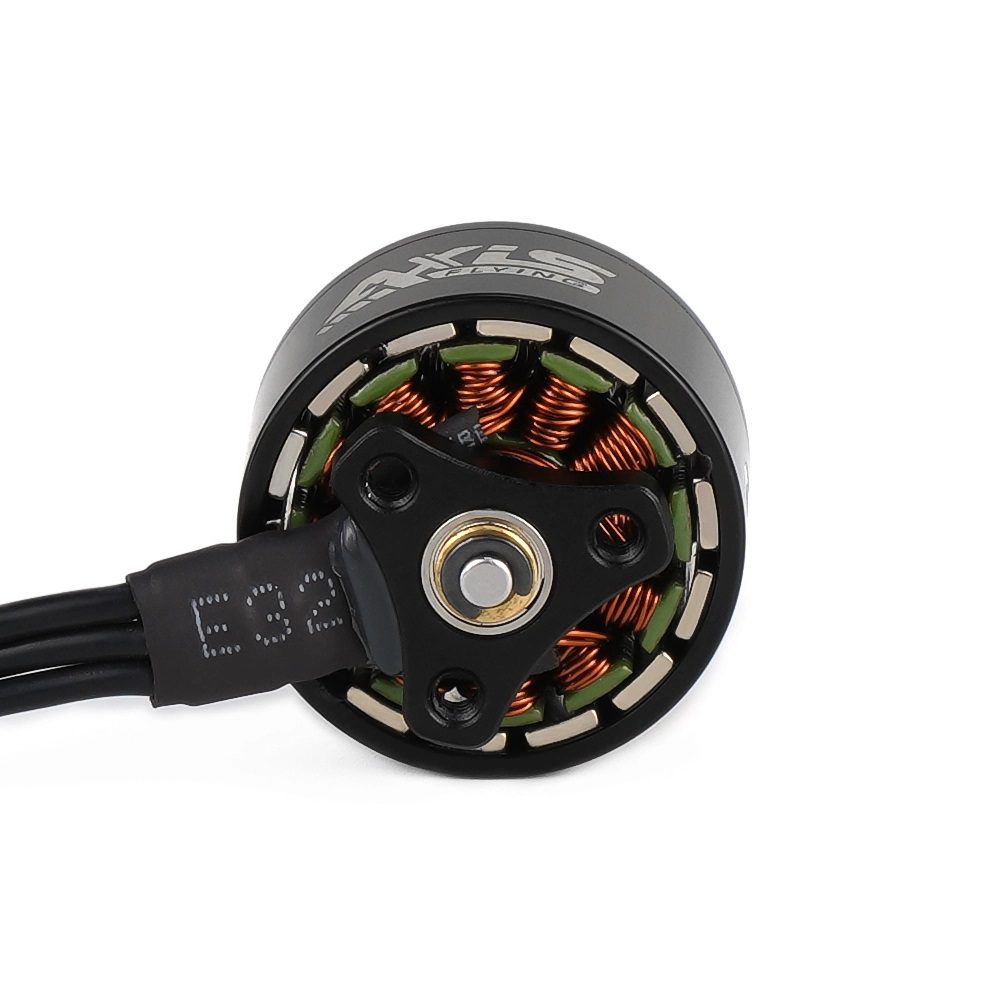

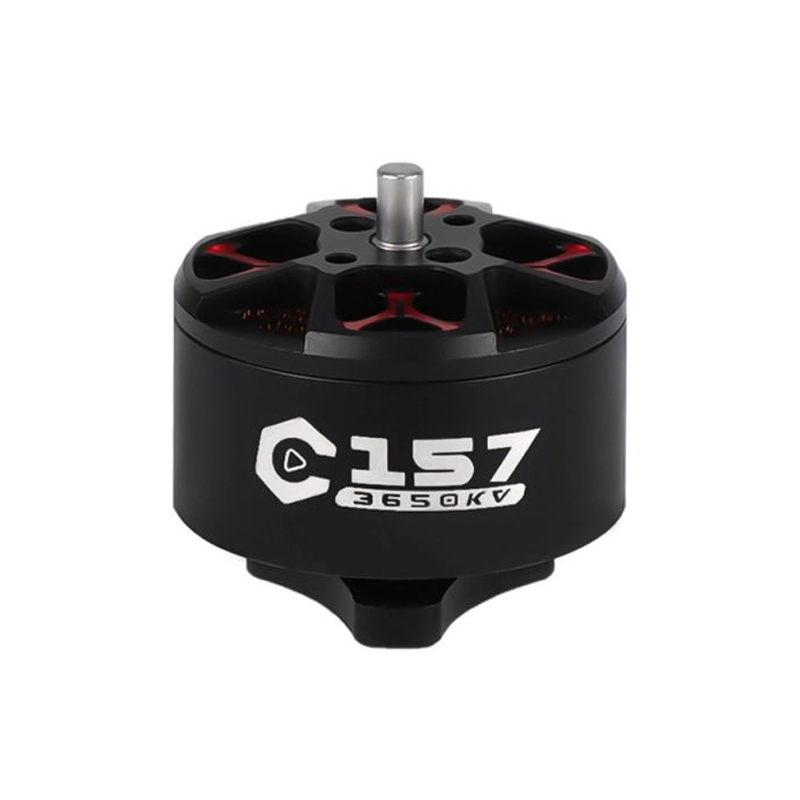

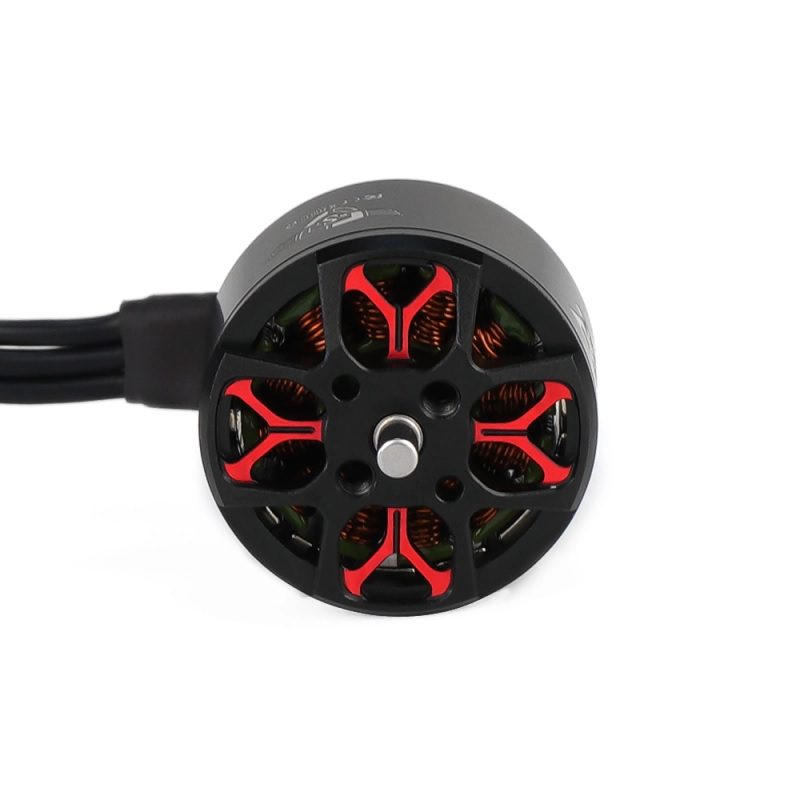

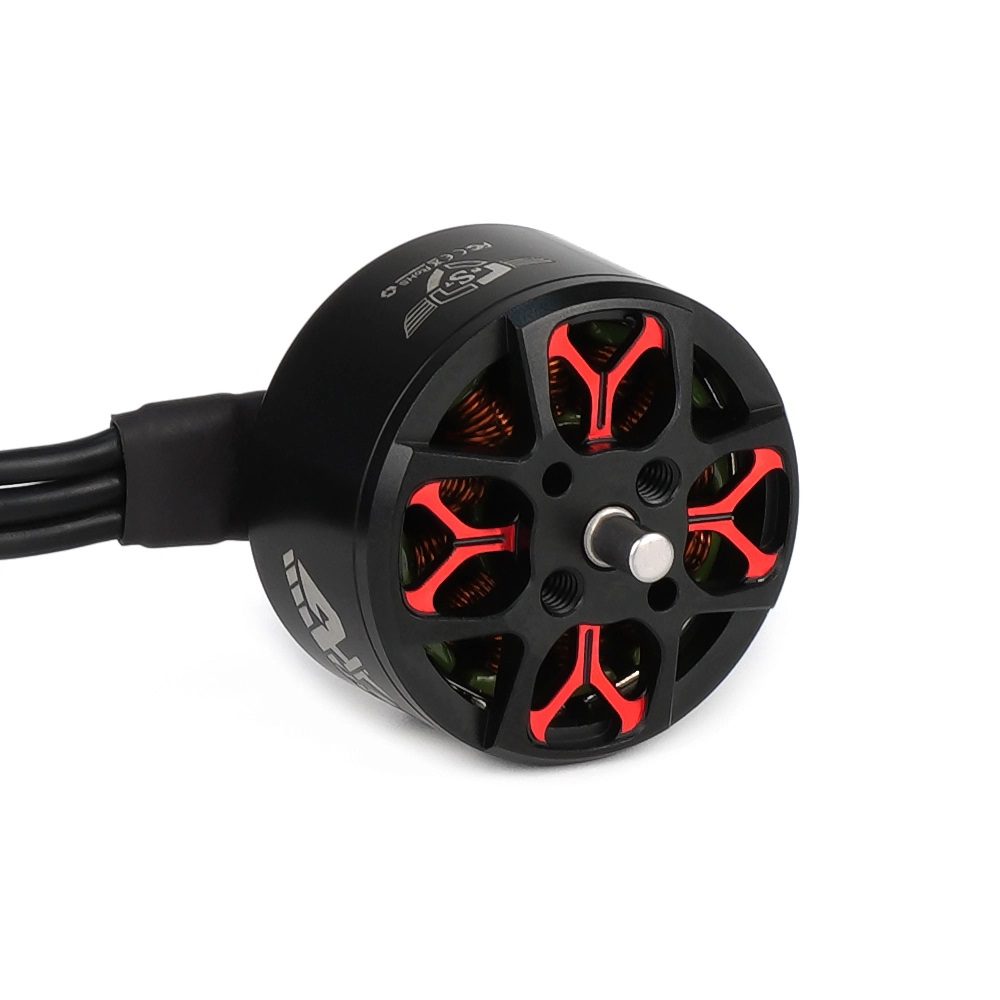

AxisFlying C157 3650KV Brushless Motor - Upgrade Kit for DJI AVATA

Name: AxisFlying C157 3650KV Brushless Motor - Upgrade Kit for DJI AVATA
Brand: AxisFlying
SKU: DRFC-2406
Price: 1719.00 INR
Availability: OutOfStock

₹1,719.00 (Inclusive of all taxes)

Out of Stock

The AxisFlying C157 is a 3650KV brushless motor engineered as a direct upgrade for the DJI AVATA, delivering enhanced throttle response, smooth control, and extended flight time for cinematic FPV pilots.

Features

Direct upgrade replacement for the original DJI AVATA motors.
3650KV rating optimized for 2S-3S LiPo power on CineWhoop platforms.
Features Bearing Shield Technology (BST) with IP53-rated dust/waterproof protection.
1507 stator size provides high torque and smooth reactivity for cinematic flight.
Includes complete mounting hardware (M2 screws) for straightforward installation.

Out of stock

Get Notified When Available

Description

Engineered specifically for cinematic FPV pilots, the AxisFlying C157 motor series prioritizes a perfect balance of smoothness, reactivity, and high torque. Its 12N14P magnetic configuration and optimized stator design deliver precise throttle control and efficient power delivery, maximizing flight time for critical filming sessions.

The motor incorporates advanced Bearing Shield Technology (BST), which seals the bearings with an IP53-rated design to protect against dust and moisture ingress. This robust construction enhances thrust efficiency and extends operational lifespan, ensuring reliable performance in varied filming environments where control and anticipation are paramount.

Key Features

DJI AVATA-Specific Upgrade: Designed as a direct mechanical and electrical replacement for the stock AVATA motors, offering plug-and-play compatibility.
Cinematic Flight Tuned: 3650KV and 1507 stator provide the ideal blend of high torque for precise control and efficiency for extended flight duration.
Bearing Shield Technology (BST): IP53-rated bearing placement protects against dust and water, maintaining smooth operation and extending motor life.
High-Quality Construction: Features a 2mm steel shaft, AWG24 high-strand count wiring, and a durable bell housing for consistent performance.
Optimized Weight: At 14.5 grams, it maintains a favorable power-to-weight ratio for the AVATA platform without compromising durability.
Complete Hardware Kit: Includes all necessary M2 screws for motor mounting and propeller locking, ensuring a secure installation.

Applications

Direct performance upgrade for the DJI AVATA CineWhoop drone.
Cinematic FPV filming platforms requiring smooth, responsive throttle control.
Compact 2-3 inch CineWhoop builds targeting enhanced flight time and stability.
FPV pilots seeking more durable and environmentally protected motors for their AVATA.

Technical Specifications

Motor KV	3650 KV
Motor Type	Brushless Outrunner
Stator Size	1507 (15mm stator diameter, 7mm stator height)
Shaft Diameter	2 mm
Configuration	12N14P (12 stator slots, 14 magnet poles)
Mounting Hole Pattern	3x M2 holes
Cable Type	AWG 24
Dimensions (Dia. x H)	Φ19 x 18.9 mm
Weight	14.5 g

Frequently Asked Questions

Is the AxisFlying C157 motor a direct replacement for the stock DJI AVATA motor?

Yes, the C157 is engineered as a direct mechanical and electrical upgrade for the original DJI AVATA motors. It uses the same 3x M2 mounting pattern, 2mm shaft diameter, and connector compatibility for a straightforward swap that enhances performance and durability.

What is Bearing Shield Technology (BST) and how does it benefit the motor?

Bearing Shield Technology (BST) is an IP53-rated sealing system that protects the motor's internal bearings from dust and water ingress. This design helps maintain bearing smoothness over time, reduces the risk of premature failure from environmental debris, and contributes to more consistent thrust efficiency and a longer motor lifespan.

What battery voltage (LiPo cell count) is the C157 3650KV motor designed for?

The C157 with a 3650KV rating is optimally paired with 2S or 3S LiPo batteries, which is the standard voltage range for the DJI AVATA and similar compact CineWhoop platforms. This KV provides a balance of torque and RPM suitable for smooth, controlled cinematic flight on these power systems.
