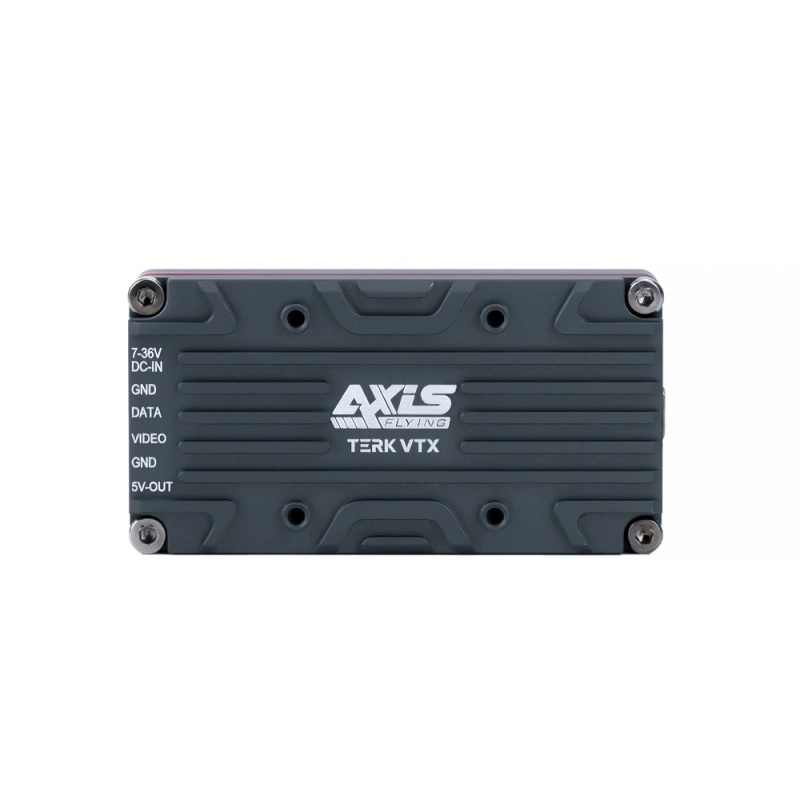

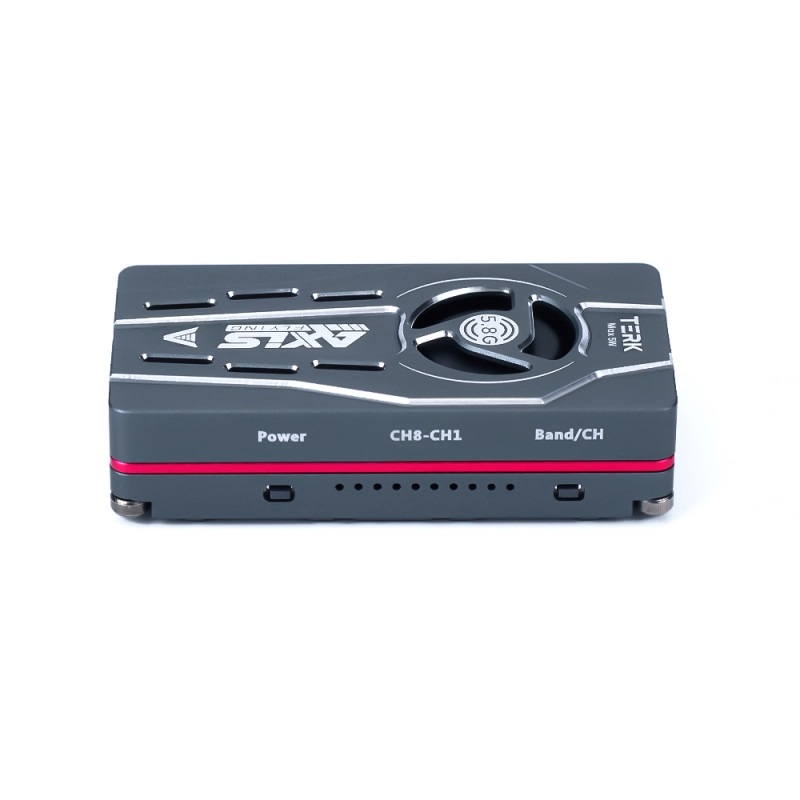

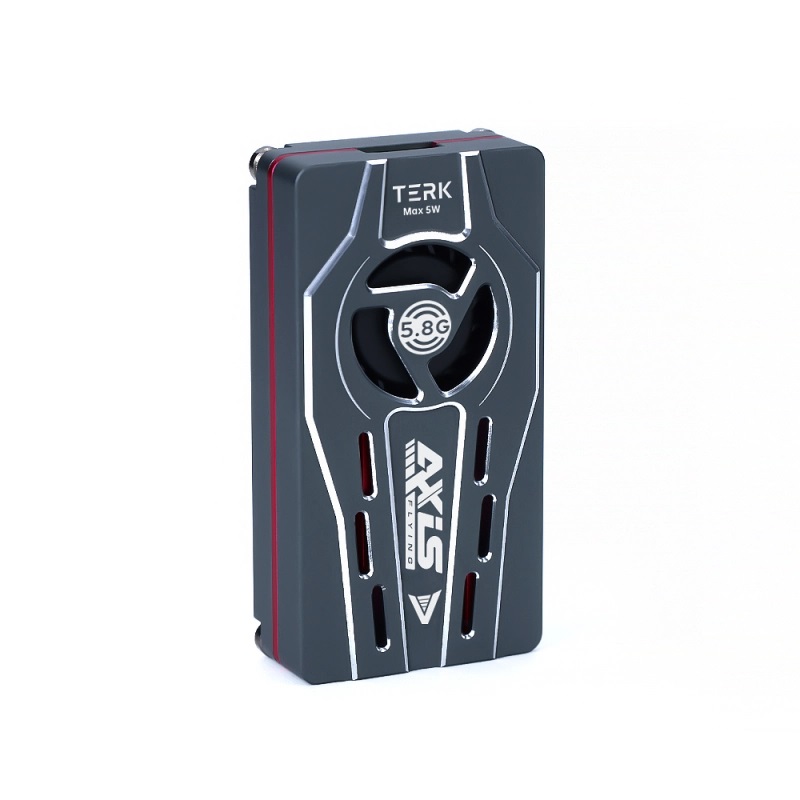

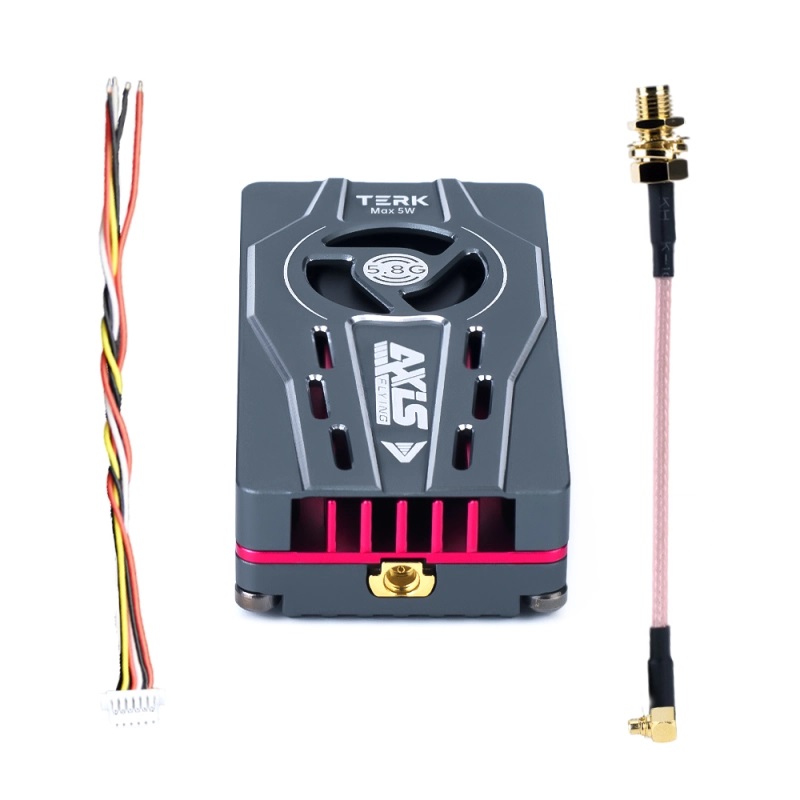

AxisFlying 5.8G 5W Analog VTX - SMA/RP-SMA
The AxisFlying 5.8G 5W Analog Video Transmitter (VTX) delivers high-power, long-range FPV video transmission for drone pilots. Compatible with standard NTSC/PAL cameras and supporting a wide 7-36V DC input range, it is designed for integration into 2S to 6S LiPo-powered FPV racing and freestyle drone builds.
Features
- High-Power 5W (5000mW) output for extended range and penetration.
- Wide 7-36V DC input voltage range supports 2S to 6S LiPo battery systems.
- Compact, lightweight design (27.5g) with integrated heat sink for thermal management.
- Multiple adjustable power output levels to comply with local regulations.
- Standard SMA or RP-SMA antenna connector for flexible antenna pairing.
Out of stock
The AxisFlying 5.8G 5W VTX is engineered for pilots who demand reliable, high-power analog video transmission. Its robust 5-watt output ensures a strong, clear video signal over long distances and in RF-dense environments, making it suitable for long-range exploration and competitive racing. The unit features an integrated heat sink and efficient power management to maintain stable operation across its full voltage range.
Designed for straightforward integration, this VTX supports standard NTSC/PAL video input and offers multiple power level settings, allowing pilots to tailor output to specific flying zones and regulatory requirements. Its compact footprint and low weight minimize impact on drone flight dynamics, preserving agility and flight time.
Additional Information
| Weight | 0.0275 kg |
|---|---|
| Dimensions | 5.379 × 2.78 cm |
