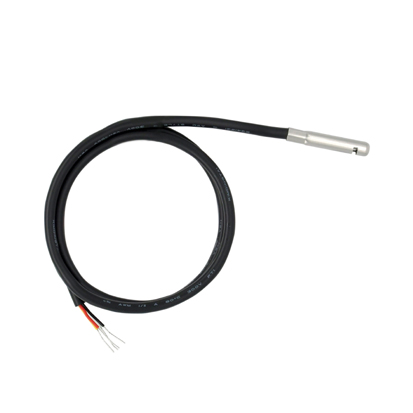

Asair AHT2415C Temperature and Humidity Probe - 304 Stainless Steel Shell, I2C Interface
The Asair AHT2415C is a fully integrated digital temperature and humidity probe featuring a 304 stainless steel shell and a standard I2C interface for direct connection to microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32. It provides calibrated, high-accuracy measurements for demanding environmental monitoring applications.
Features
- Integrated digital sensor with I2C output for simplified system integration
- 304 stainless steel housing for excellent chemical, heat, and impact resistance
- Factory calibrated for high accuracy (±0.5°C, ±3% RH)
- Wide operating voltage range (2.2V to 5.5V DC) compatible with 3.3V and 5V logic
- Includes protective filter membrane against water vapor and dust ingress
Out of stock
The AHT2415C probe integrates a MEMS-based capacitive humidity sensing element and a band-gap temperature sensor into a single chip, delivering fully calibrated digital readings via a standard I2C bus. This design eliminates the need for external signal conditioning, providing a stable and reliable measurement solution.

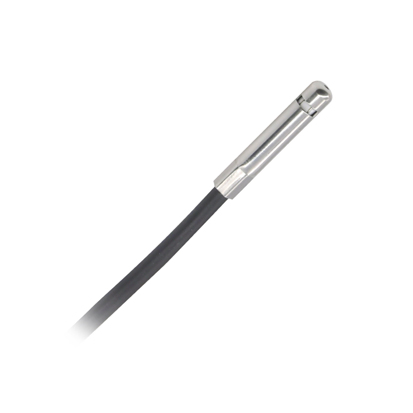

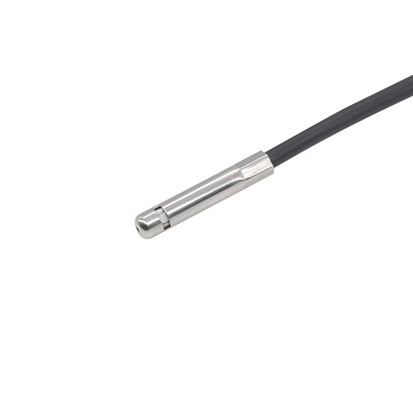

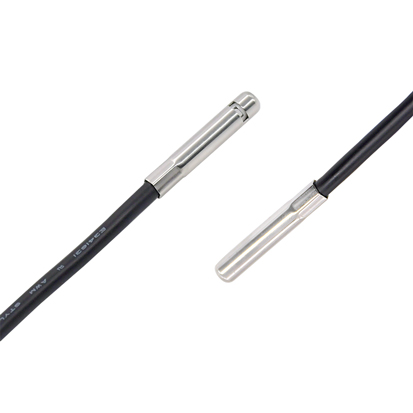

Housed in a durable SUS-304 stainless steel shell, the probe is engineered for harsh environments, offering superior resistance to corrosion, high temperatures, and mechanical stress. The integrated filter membrane protects the sensing element from contaminants like dust and condensing water vapor, ensuring long-term stability and accuracy in industrial, HVAC, and agricultural monitoring systems.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 8 × 8 × 1 cm |
