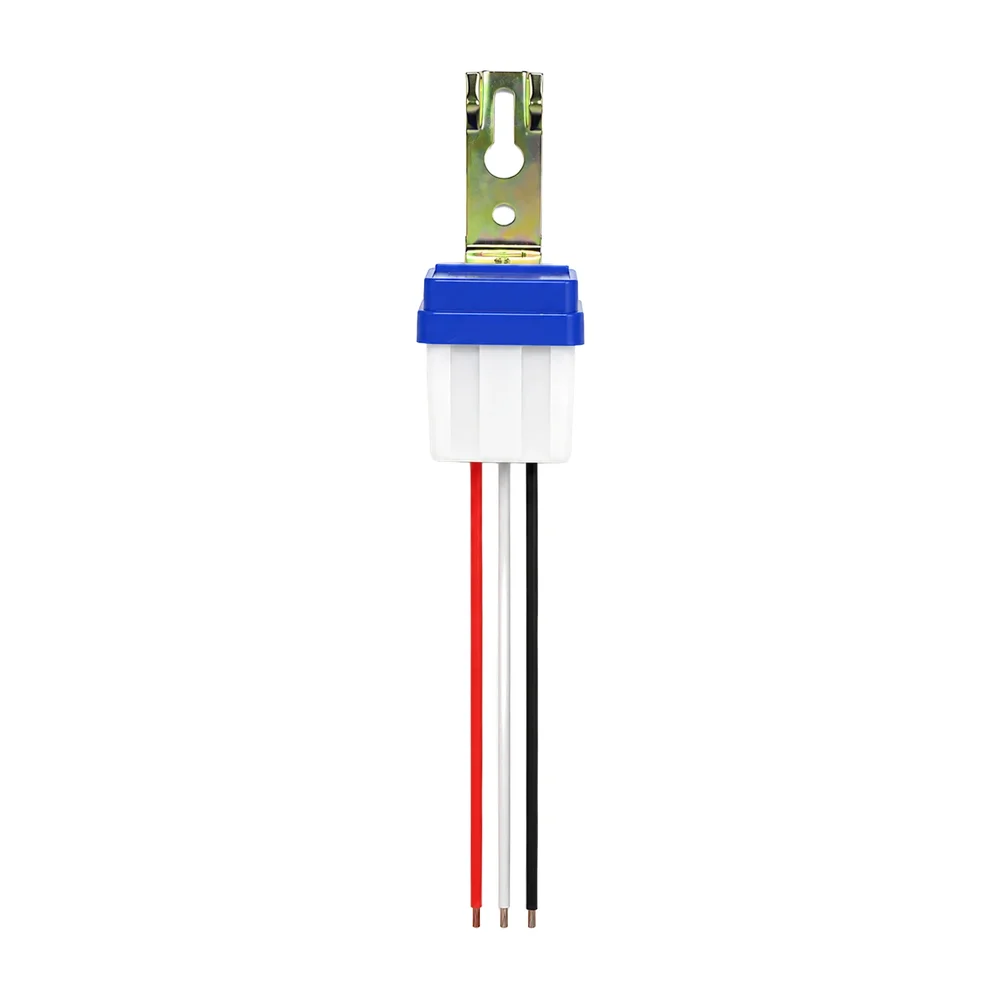

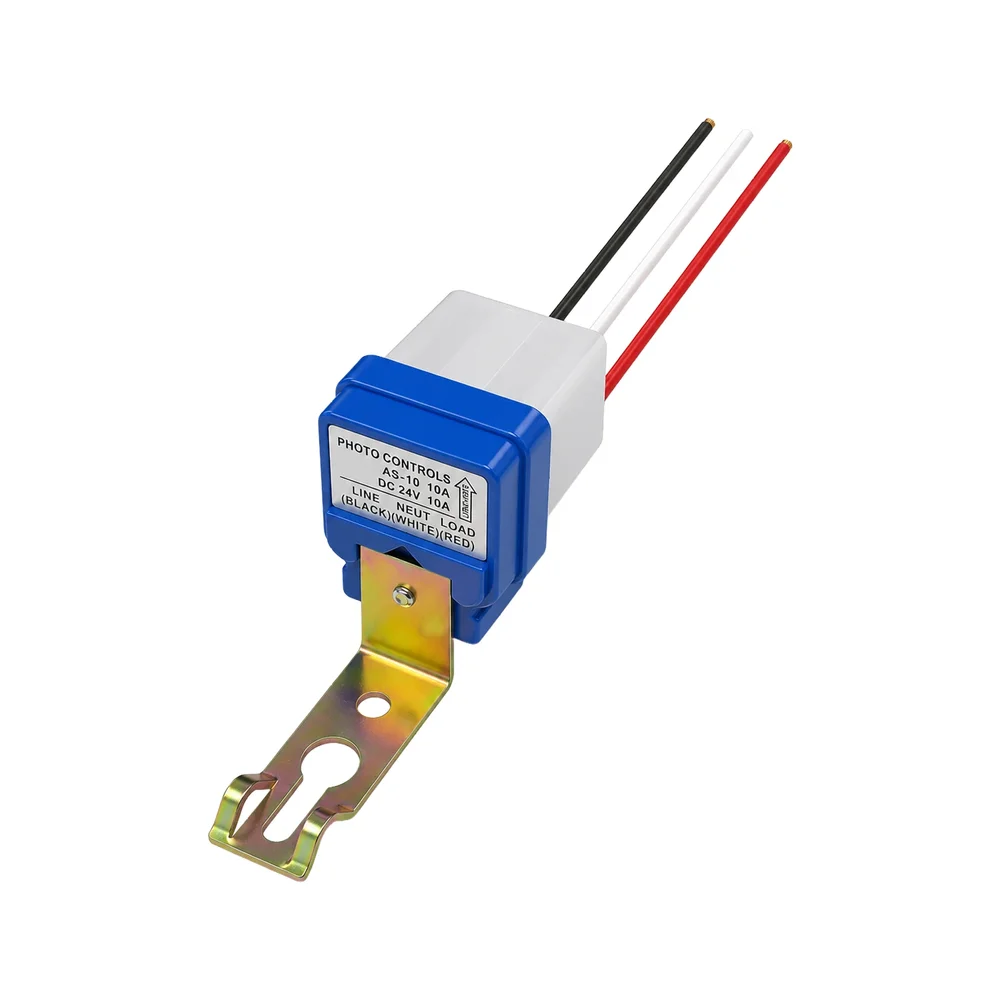

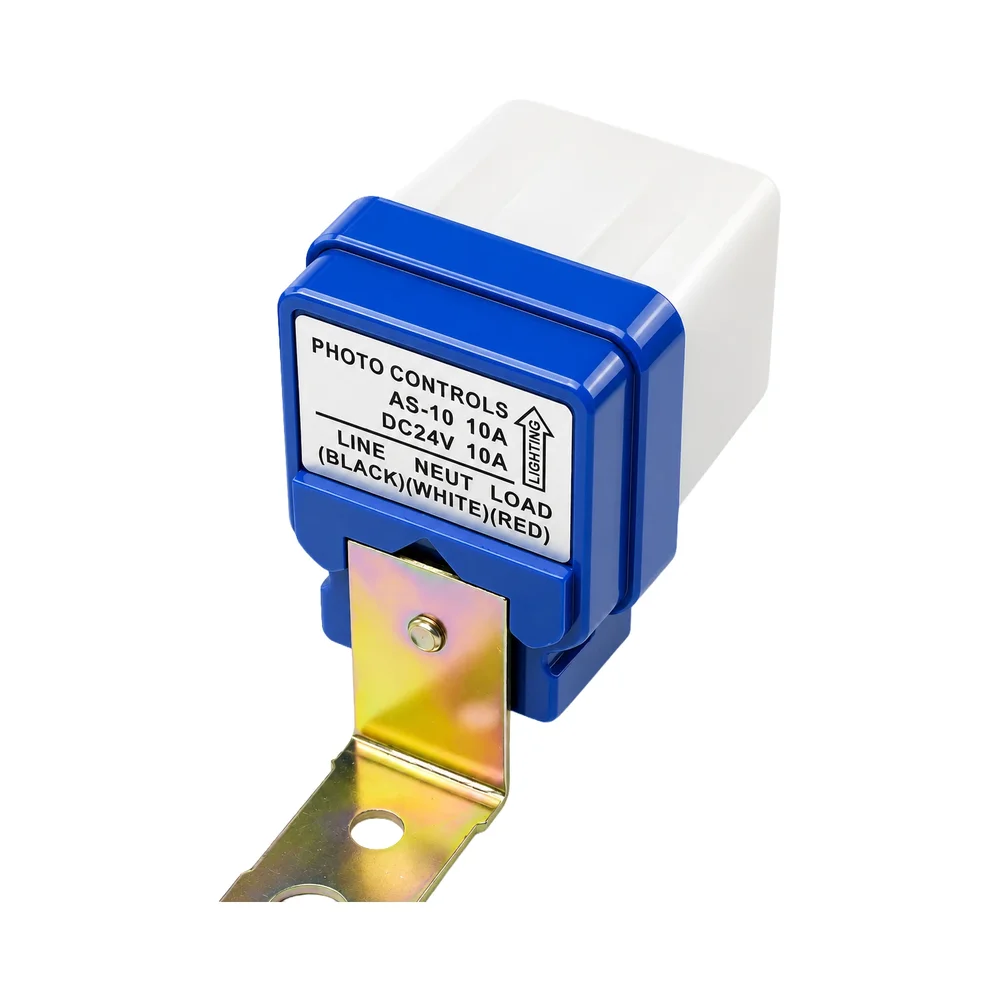

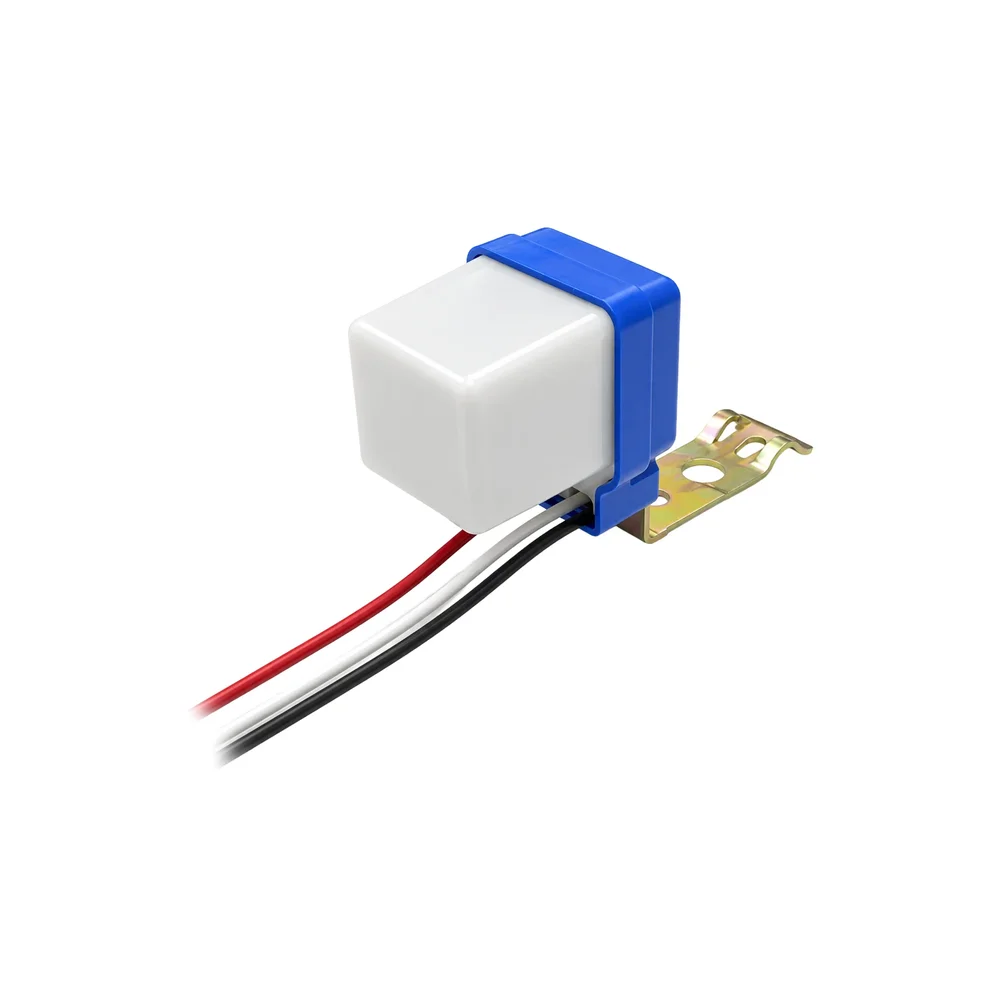

AS-10 Automatic Light Sensor Controller - 24V, 10A Load, Weatherproof
The AS-10 Automatic Light Sensor Controller is a 24V photocontrol switch designed for outdoor lighting automation. It uses a sealed CDS photoresistor to detect ambient light levels, automatically switching connected lights on at dusk and off at dawn, and is compatible with standard AC lighting circuits.
Features
- Automates lighting based on ambient light levels with a 0.1s delay to prevent false triggering.
- Handles high-power loads up to 2200W (10A) for streetlights and area lighting.
- Features a weather-resistant housing suitable for permanent outdoor installation.
- Operates on a wide AC voltage range centered on 24V at 50/60Hz.
- Compact design (90mm x 53mm) for easy mounting on poles and structures.
Out of stock
The AS-10 controller employs a sealed cadmium sulfide (CDS) photoresistor and integrated control circuitry to provide reliable dusk-to-dawn lighting automation. Its core function is to monitor natural illumination, activating the connected load when light levels fall below a preset threshold and deactivating it at dawn. This photoelectric switching principle ensures energy savings by eliminating unnecessary operation during daylight hours.
Built for harsh outdoor environments, the unit’s housing provides protection against weather elements. The integrated 0.1-second delay circuit is critical for stability, preventing rapid on/off cycling caused by transient light changes such as passing car headlights or lightning. This makes it a dependable, low-maintenance solution for automating municipal, commercial, and residential outdoor lighting systems without manual intervention.
Additional Information
| Weight | 0.046 kg |
|---|---|
| Dimensions | 9 × 5.3 cm |
