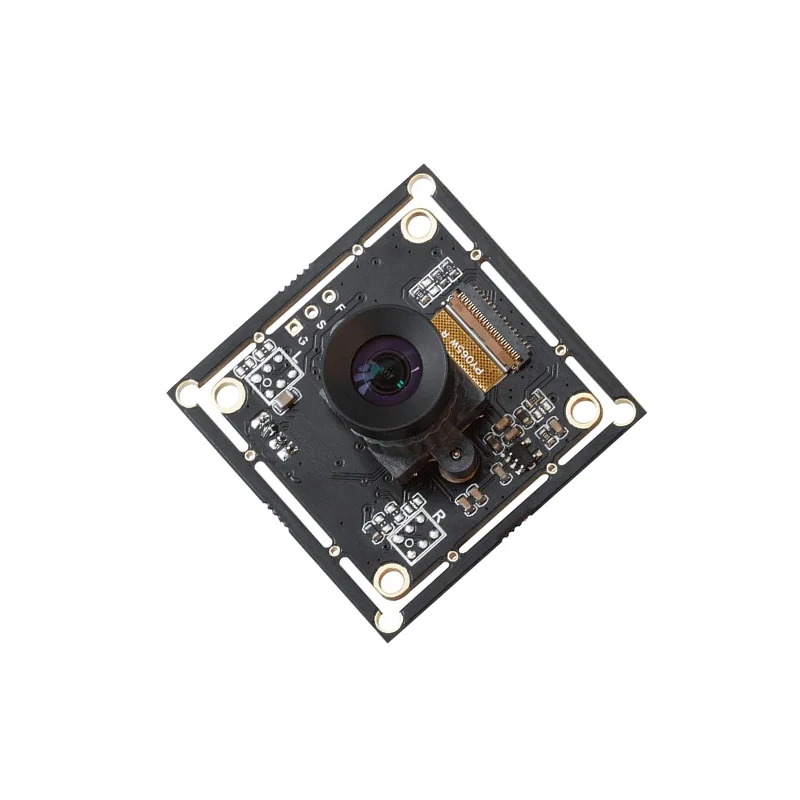

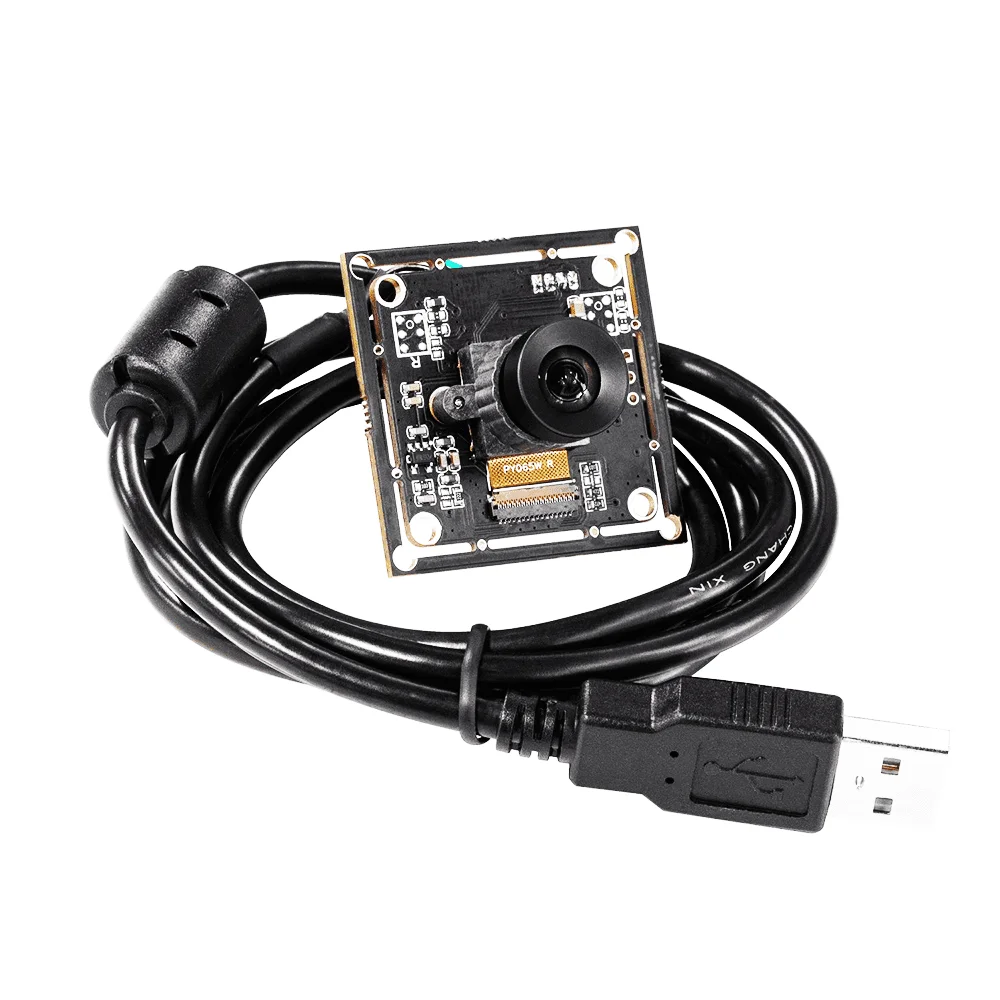

Arducam OV9281 1MP Global Shutter USB Camera Module w/ M12 Lens

The module is fully UVC (USB Video Class) compliant, making it plug-and-play compatible with any system that supports the standard UVC driver. This includes Windows 7/8/10/11, Linux distributions (like Ubuntu), macOS, and even Android devices and Raspberry Pi OS. No additional drivers or software installation is required; simply connect the USB cable and the device will be recognized as a standard video source.

The board has reserved GPIO pins for an external trigger input. To use it, you need to solder wires to these pads (typically labeled). You then supply a TTL-level signal pulse to this input. The rising or falling edge of this signal will initiate a single frame capture, allowing for precise synchronization with external events like a strobe light or another sensor. Consult the Arducam pinout documentation for the specific trigger pin assignment and signal voltage requirements.

Yes, the module features a standard M12 (S-mount) lens thread. You can unscrew the included 70° FOV lens and replace it with any other M12-mount lens to achieve different fields of view (wider or narrower) or focal lengths. Ensure the new lens is designed for a 1/4-inch sensor format to avoid vignetting. This flexibility is useful for applications requiring specific working distances or detailed close-up imaging.

A global shutter exposes all pixels of the sensor simultaneously for the entire frame duration. This eliminates the skew, wobble, and partial exposure artifacts seen in rolling shutter sensors when capturing fast-moving objects or when the camera is in motion. The result is a crisp, distortion-free image critical for accurate machine vision measurements, optical tracking, and high-speed analysis, where temporal integrity of the scene is paramount.
