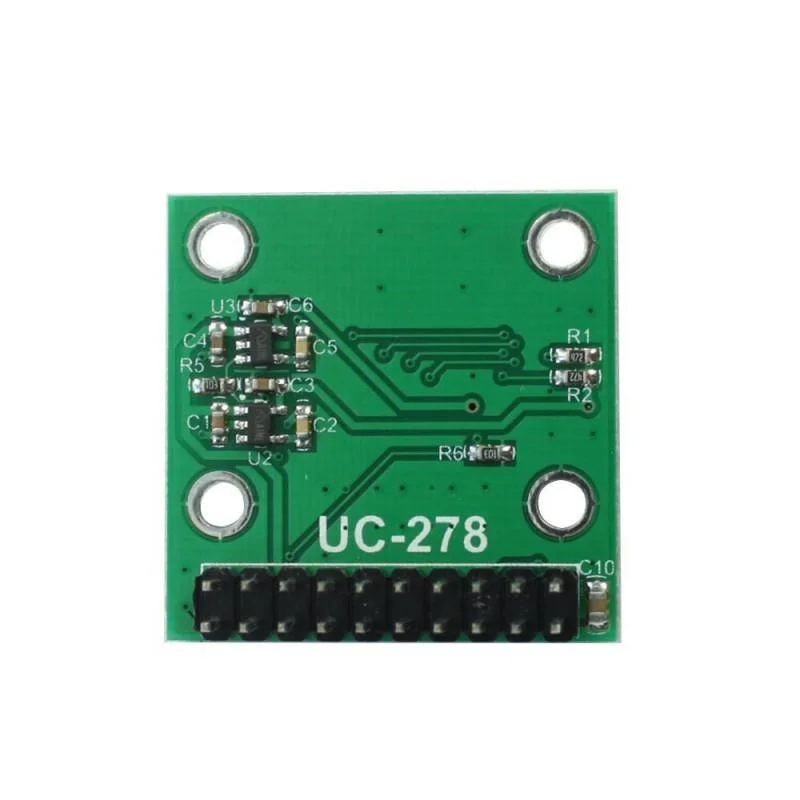

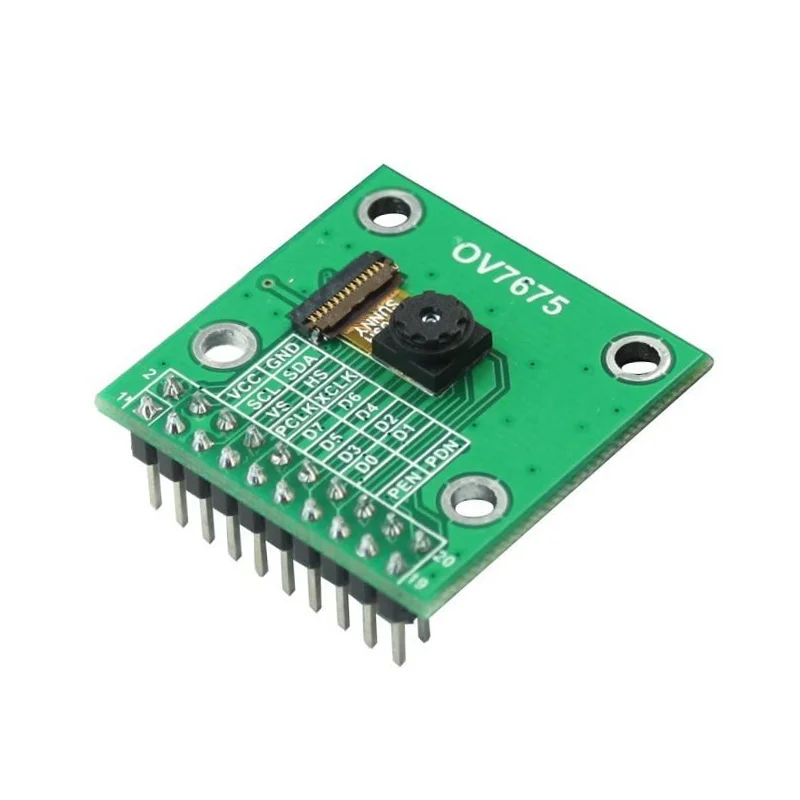

Arducam OV7675 0.3MP Camera Breakout Board w/ M12 6mm Lens
The Arducam OV7675 Breakout Board is a 0.3MP camera module with a fixed M12 6mm lens, designed for easy integration via its 8-bit parallel interface. It’s ideal for developers building vision applications with microcontrollers or USB shields, supporting a maximum frame rate of 30 FPS.
Features
- 0.3MP OV7675 Sensor: Features a 1/9″ optical format sensor with 2.5µm pixels for basic image capture in embedded systems.
- 8-Bit Parallel Interface: Provides a straightforward, high-speed data bus for easy connection to microcontrollers, USB shields, and development boards.
- Integrated M12 Lens: Comes pre-attached with a fixed-focus 6mm M12 mount lens, ready for deployment without additional assembly.
- 30 FPS Frame Rate: Supports video capture at up to 30 frames per second, suitable for real-time monitoring and basic motion detection.
- Rolling Shutter: Utilizes a rolling shutter mechanism, making it cost-effective for standard imaging applications.
Out of stock
The Arducam OV7675 Camera Breakout Board is a compact vision solution centered on the OmniVision OV7675 VGA sensor. Its primary design advantage is the direct 8-bit parallel data output, which simplifies the interface logic compared to serial protocols, enabling faster data transfer for frame-by-frame capture. The module includes a permanently attached 6mm M12 lens, providing a fixed focal length suitable for general-purpose imaging.
Engineered for embedded integration, this breakout board is a practical choice for adding low-resolution computer vision to microcontroller-based projects, educational kits, or USB-interfaced systems. The rolling shutter sensor balances performance and cost, making it applicable for scenarios where ultra-high-speed global shutter capture is not required. Its small form factor and pre-configured lens mount allow for quick prototyping and deployment in space-constrained designs.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 5 × 6 × 3 cm |
