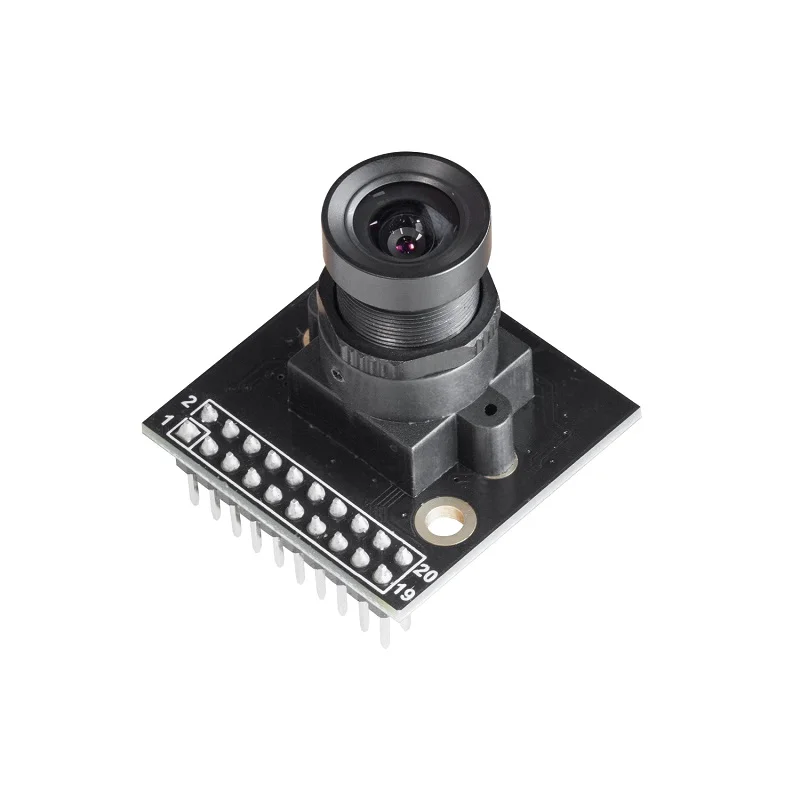

Arducam OV5642 5MP Camera Module w/ M12 Lens
The Arducam OV5642 is a 5-megapixel camera module featuring a 1/4-inch CMOS sensor for high-resolution image capture. It outputs JPEG, YUV, and RGB data formats directly, making it ideal for integration with Raspberry Pi, Arduino, and other embedded platforms requiring a compact vision solution.
Features
- 5MP High-Resolution Sensor: Features a 2592 x 1944 pixel active array for capturing detailed still images and 1080P video.
- On-Chip Image Processing: Integrated ISP handles AEC, AGC, and AWB, simplifying firmware development and reducing MCU load.
- Flexible Output Formats: Supports direct JPEG, YUV, RGB565, and RAW data output for versatile application integration.
- Standardized Interface: Utilizes a 2.54mm (0.1-inch) pin header for easy connection to development boards and microcontrollers.

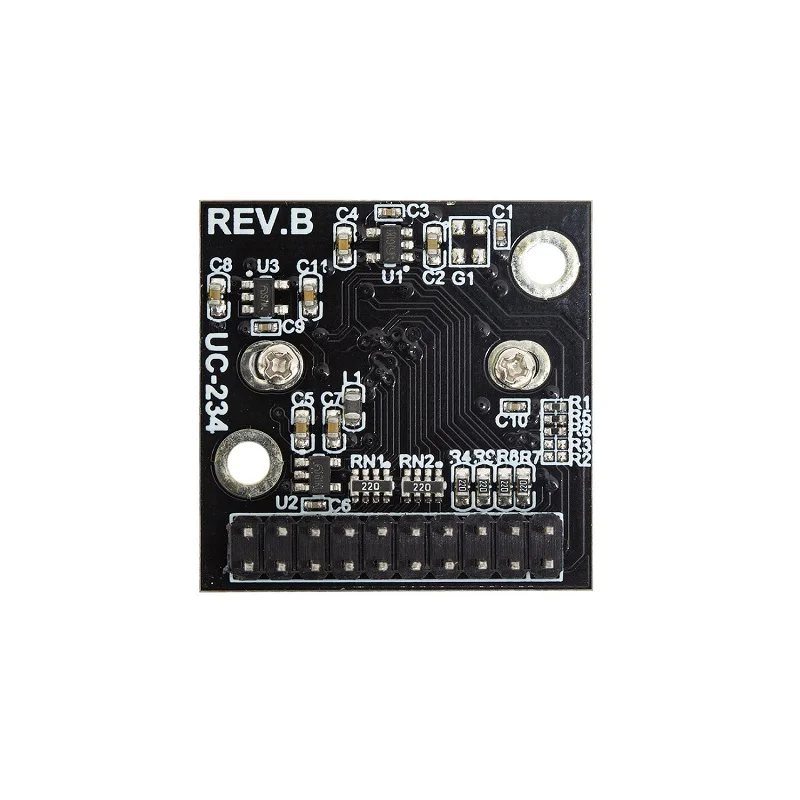

- Integrated Power Regulation: Onboard LDOs accept a single 3.3V input, generating the required 2.8V and 1.8V rails internally.
Out of stock
The Arducam OV5642 camera module integrates the Omnivision OV5642 1/4-inch CMOS sensor, providing a complete, ready-to-use imaging solution for embedded systems. Its system-on-a-chip (SOC) architecture includes an on-chip Image Signal Processor (ISP) that manages automatic exposure, gain, and white balance, offloading these tasks from the host microcontroller.

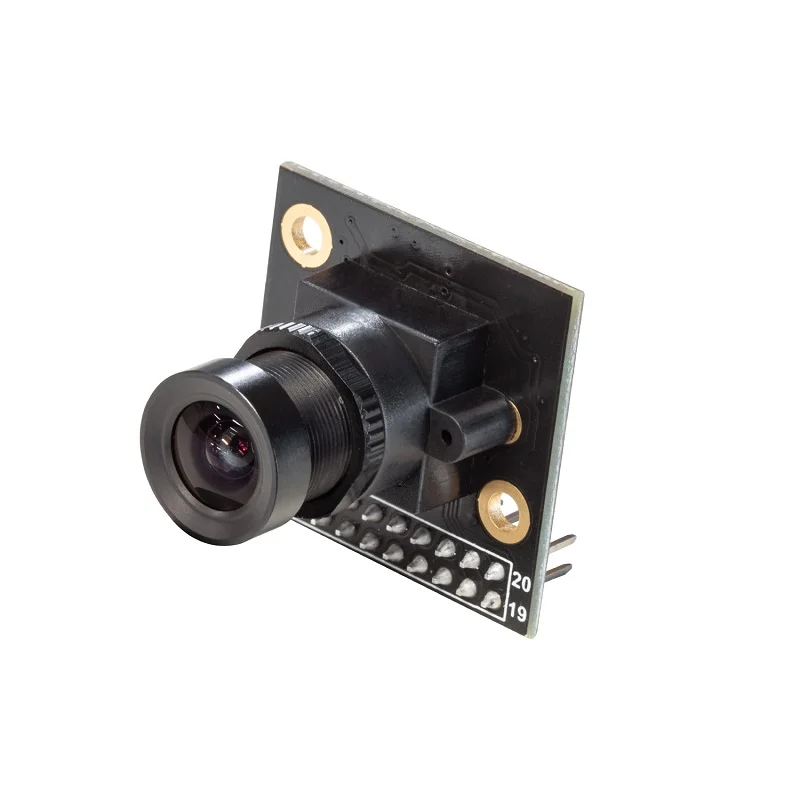

Designed for low-power embedded applications, the module operates from a single 3.3V supply and includes all necessary power regulation. The standard M12x0.5 lens mount allows for lens interchangeability, enabling focal length adjustments for different field-of-view requirements. Its progressive scan and rolling shutter are suited for a wide range of machine vision and remote monitoring scenarios.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
