Arducam B0570 GMSL2 8MP Camera Kit for Jetson Orin Nano/NX

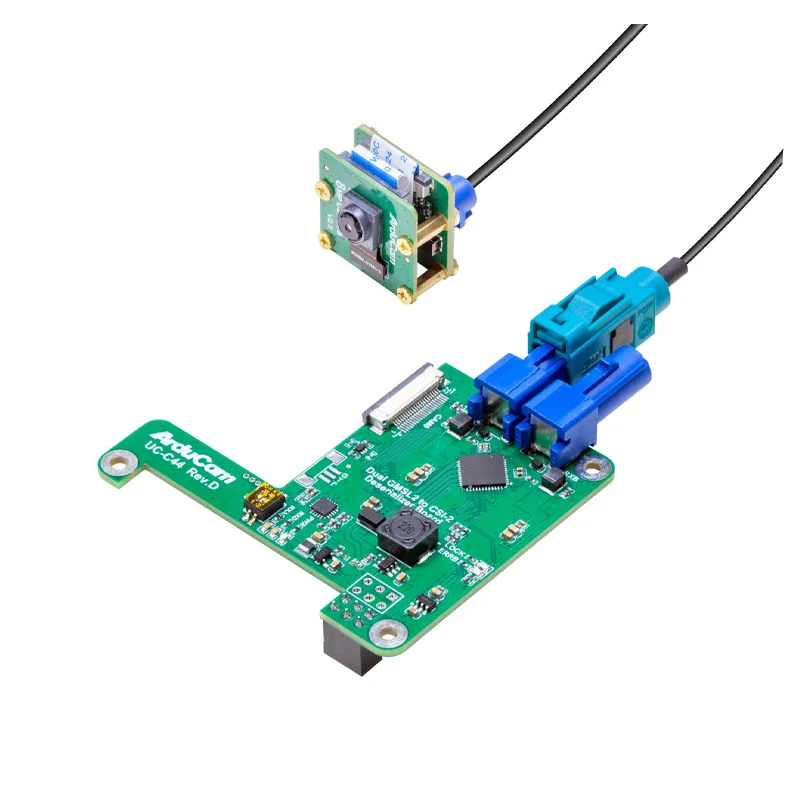

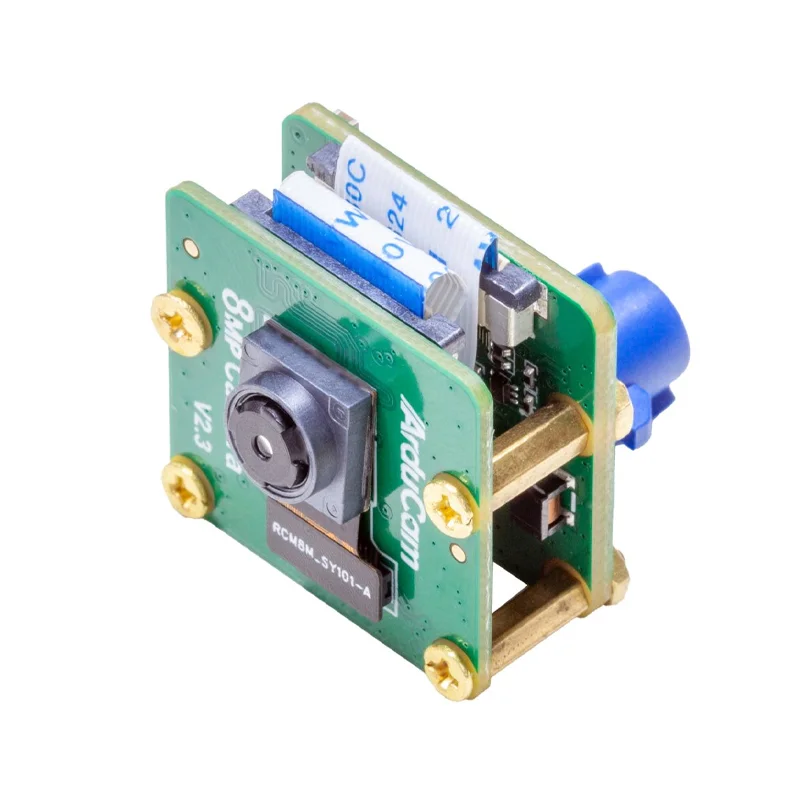

The Arducam B0570 GMSL2 Camera Extension Kit delivers high-resolution 8MP video over a 15-meter coaxial cable to NVIDIA Jetson Orin Nano/NX platforms, featuring a Sony IMX219 sensor and simplified Power-over-Coax (PoC) for streamlined AI vision deployments.
Features

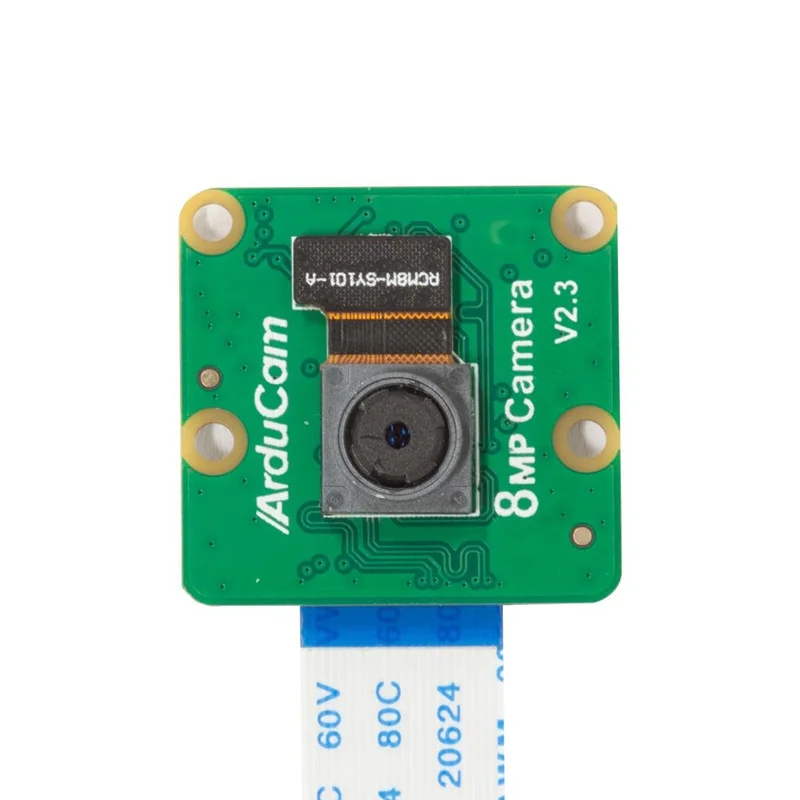

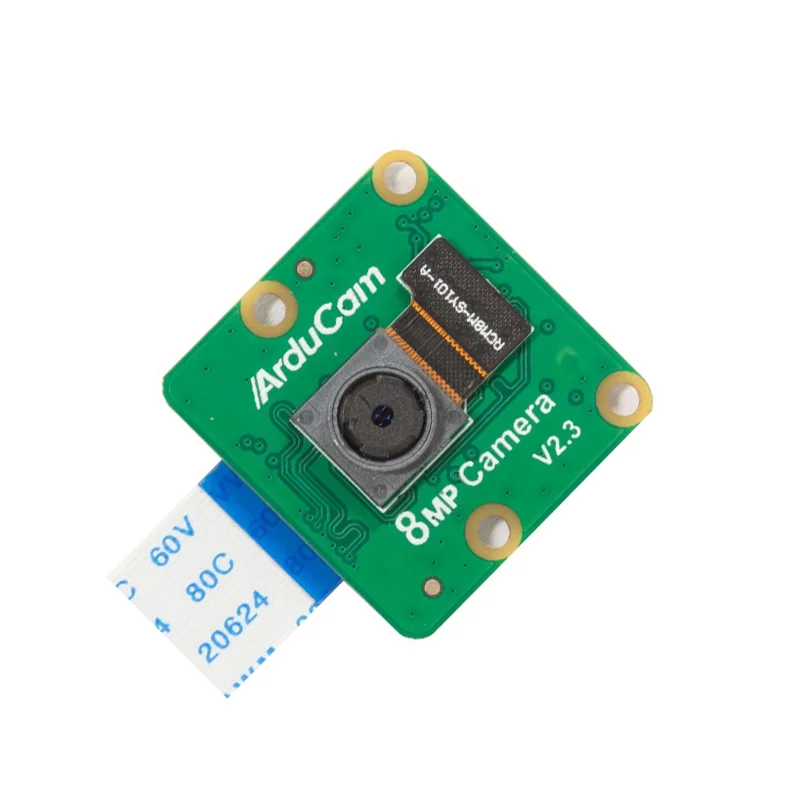

- 8MP Sony IMX219 sensor captures detailed 3280×2464 resolution images and video with an 80° diagonal field of view.
- GMSL2 (Gigabit Multimedia Serial Link) technology enables ultra-low latency video transmission up to 15 meters via a single coaxial cable.
- Integrated Power-over-Coax (PoC) simplifies installation by delivering both power and data, eliminating separate wiring.
- Specifically optimized for NVIDIA Jetson Orin Nano and Orin NX developer kits, ensuring plug-and-play compatibility.
- Backward compatible with GMSL1 serializers, providing a scalable upgrade path for existing embedded vision systems.
Out of stock
The Arducam B0570 GMSL2 8MP Camera Extension Kit is engineered for demanding embedded vision applications requiring reliable, long-distance video capture. It leverages Analog Devices’ SerDes technology within the GMSL2 protocol to maintain signal integrity and high bandwidth over extended cable runs, making it ideal for robotics, industrial inspection, and surveillance systems where cameras must be positioned remotely from the main processing unit.
Built around the proven Sony IMX219 rolling shutter sensor, the kit provides vibrant image quality suitable for computer vision, object detection, and AI inference tasks on the powerful NVIDIA Jetson Orin platform. The single-cable Power-over-Coax design drastically reduces system complexity and installation time, offering a robust and scalable imaging solution for professional and industrial edge AI deployments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.5 × 2.5 cm |
