Upside Down Labs Muscle BioAmp Shield v0.3 (Assembled) - EMG Shield for Arduino UNO

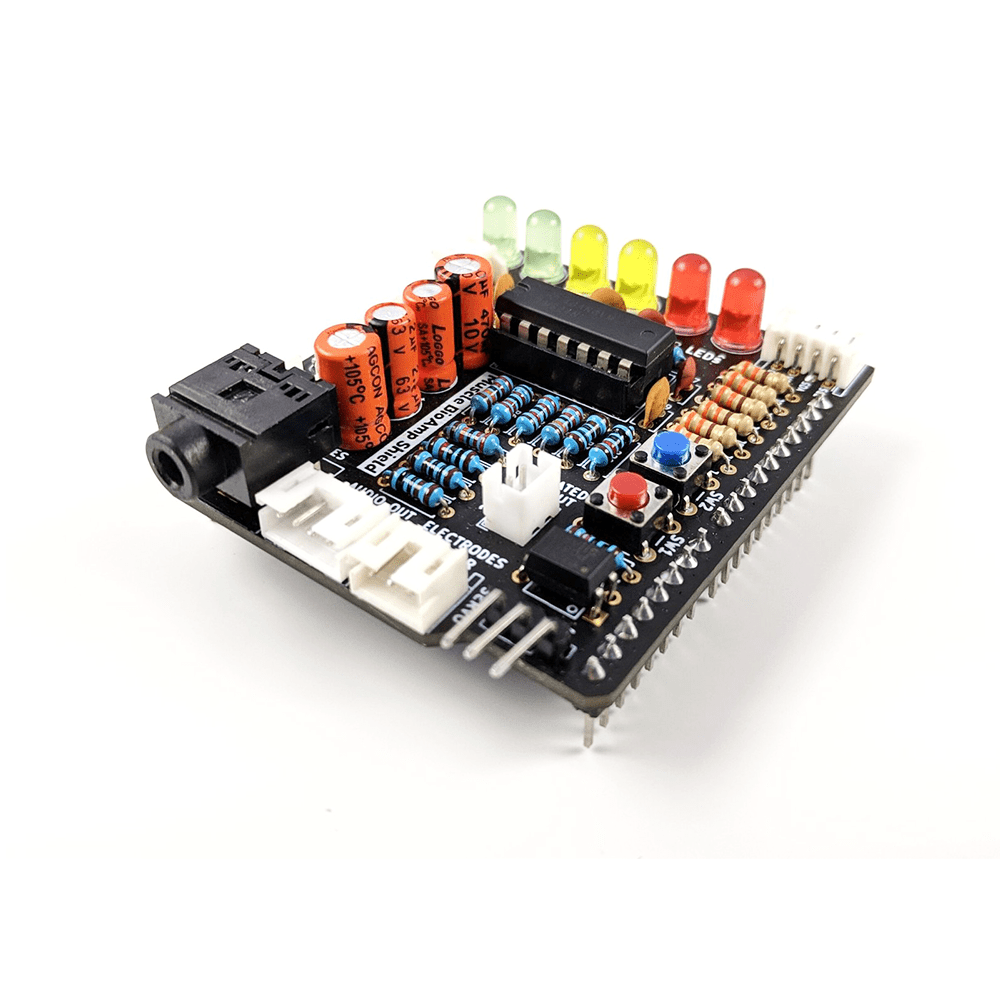

The Muscle BioAmp Shield v0.3 is an assembled, stackable Arduino UNO shield designed for single-channel Electromyography (EMG) signal acquisition. It features a high-input impedance amplifier, fixed gain, and a bandpass filter for clear muscle signal capture, making it ideal for neuroscience education and human-computer interface projects.
Features
- Single-channel EMG acquisition with 10^11 Ω input impedance for minimal signal loading.
- Fixed x2420 gain and 72-720 Hz bandpass filter for optimized muscle signal conditioning.
- Directly stacks onto Arduino UNO for easy integration and prototyping.

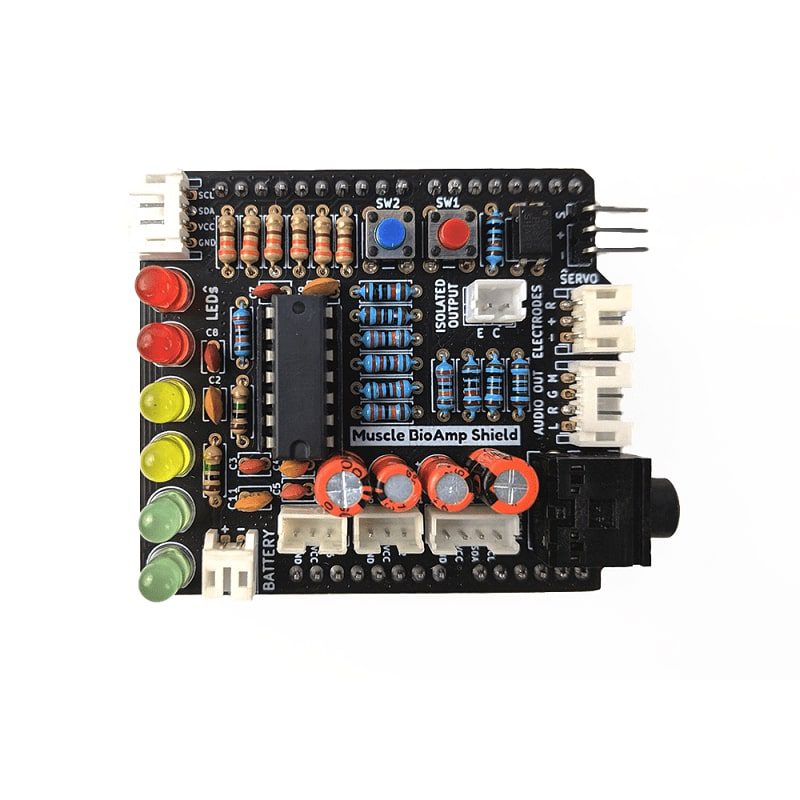

- Includes onboard user interface: hobby servo output, buttons, LED bar, and audio output.
- Open-source hardware and software for full customization and educational use.
Out of stock
The Muscle BioAmp Shield v0.3 is a dedicated biopotential amplifier engineered for capturing surface Electromyography (EMG) signals. Its circuit design provides a high input impedance to safely interface with standard adhesive gel electrodes, while the fixed gain and bandpass filter isolate the characteristic frequency range of muscle activity, rejecting common noise and DC offsets.
This assembled shield simplifies system integration by plugging directly into an Arduino UNO, providing immediate access to amplified, filtered analog signals for recording, visualization, and auditory feedback. The inclusion of auxiliary outputs and inputs supports the creation of interactive projects in neuroscience, prosthetics research, and biofeedback applications.
Additional Information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 18 × 12 × 6 cm |
