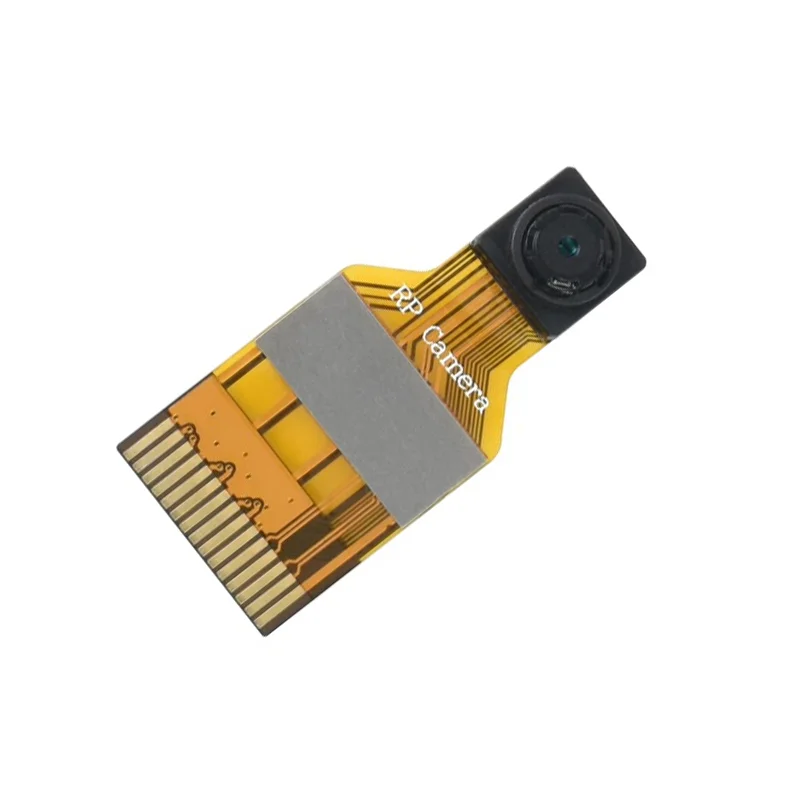

Waveshare Raspberry Pi FPC Camera (B) for Raspberry Pi, OV5647 5MP

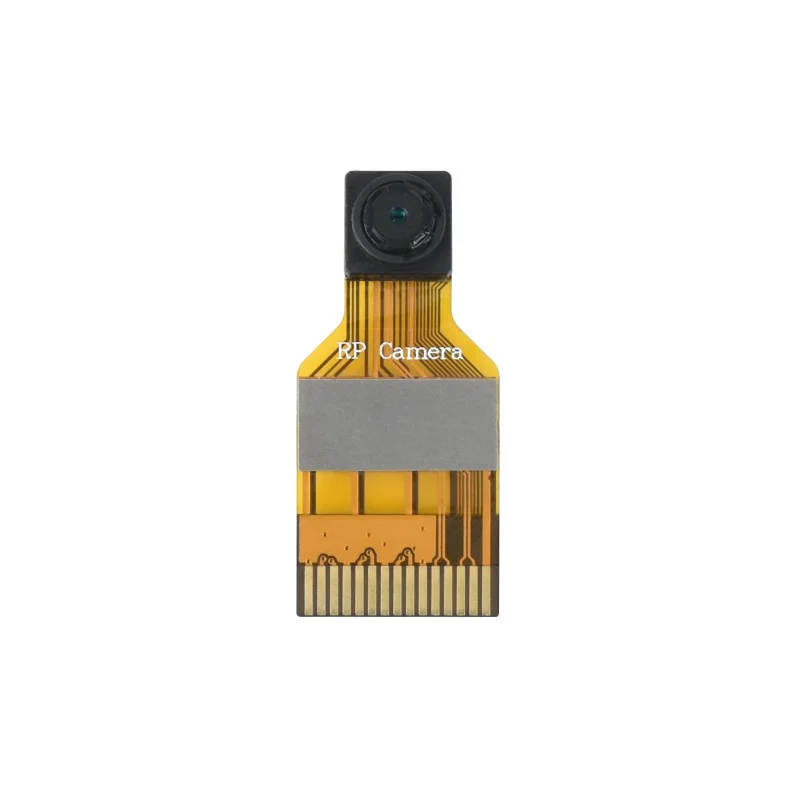

Waveshare Raspberry Pi FPC Camera (B) for Raspberry Pi, OV5647 5MP - Image 2

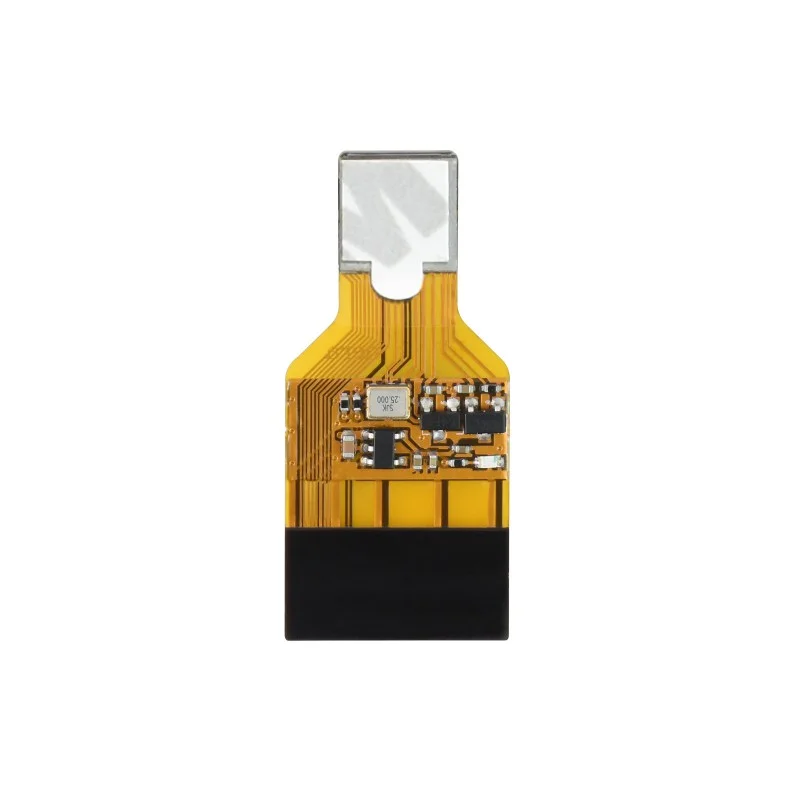

Waveshare Raspberry Pi FPC Camera (B) for Raspberry Pi, OV5647 5MP - Image 3

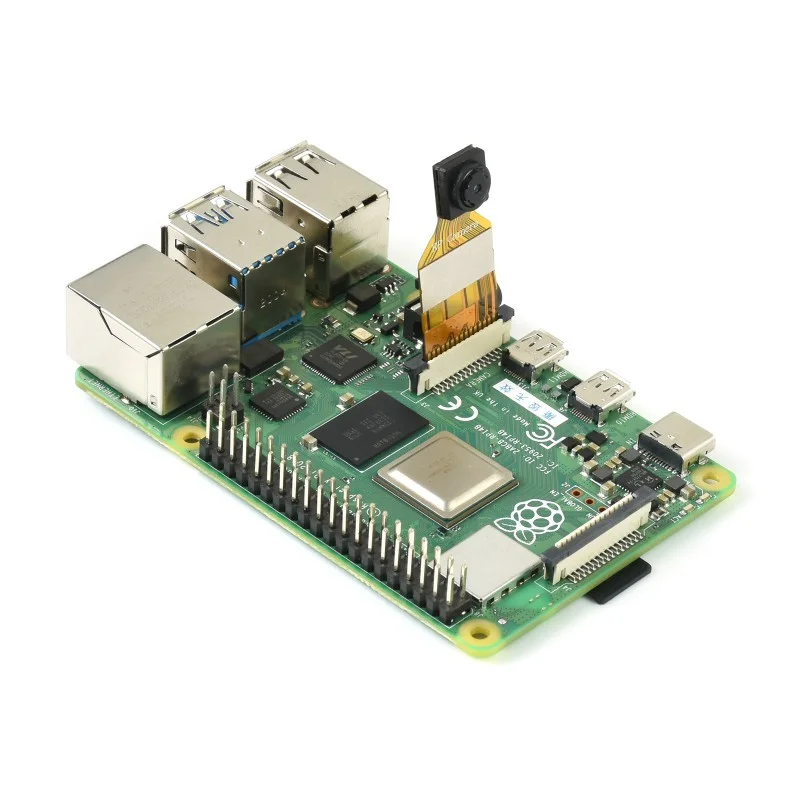

Waveshare Raspberry Pi FPC Camera (B) for Raspberry Pi, OV5647 5MP - Image 4
SKU: IOWC-0518
📋 GST Invoice Available

Waveshare Raspberry Pi FPC Camera (B) for Raspberry Pi, OV5647 5MP

₹2,119.00 (Inclusive of all taxes)
Out of Stock

The Waveshare Raspberry Pi FPC Camera (B) is a compact 5MP OV5647 sensor module designed for Raspberry Pi SBCs, offering 1080p HD video capture and a 72.9° field of view for embedded vision projects.

Features

  • 5MP OV5647 Sensor: Captures still images at 2592 x 1944 resolution and supports 1080p video at 30fps for clear, detailed visuals.
  • Compact FPC Design: Miniature form factor with a flexible flat cable (FPC) connector for easy integration into space-constrained Raspberry Pi projects.
  • Wide 72.9° Field of View: Fixed-focus lens with a 3.89mm focal length provides a broad perspective suitable for monitoring and computer vision applications.
  • Raspberry Pi Compatible: Interfaces directly with Raspberry Pi GPIO camera headers, supporting both the legacy Raspicam and newer libcamera software stacks.
  • Low-Power 3.3V Operation: Simple 3.3V power requirement makes it ideal for portable, battery-powered IoT camera nodes and embedded systems.

Out of stock

Description

The Waveshare Raspberry Pi FPC Camera (B) integrates a 5-megapixel OmniVision OV5647 CMOS sensor into a miniaturized module connected via a flexible flat cable (FPC). This design provides a reliable, low-profile vision solution for Raspberry Pi single-board computers, enabling high-definition image capture and video streaming for DIY electronics, robotics, and IoT monitoring systems.

Featuring a fixed-focus lens with an F2.4 aperture and a 72.9-degree horizontal field of view, the module delivers sharp imagery from 20cm to infinity. It outputs video streams at multiple resolutions, including 1080p at 30 fps and 720p at 60 fps, making it suitable for real-time applications. The camera is powered directly from the Raspberry Pi’s 3.3V GPIO rail, ensuring seamless integration without external power supplies.

Key Features

  • High-resolution 5-megapixel (2592 x 1944) image sensor for detailed still captures.
  • Supports 1080p Full HD video recording at 30 frames per second.
  • Compact, lightweight design with a flexible flat cable for versatile mounting.
  • Fixed-focus lens with a wide 72.9° field of view and minimal distortion (<1.5%).
  • Direct plug-and-play compatibility with Raspberry Pi camera serial interface (CSI).
  • Low operating voltage (3.3V) for energy-efficient operation in portable projects.
  • Compatible with both legacy Raspicam and modern libcamera software stacks.

Applications

  • Raspberry Pi-based security and surveillance systems.
  • DIY robotics and machine vision projects.
  • IoT environmental monitoring and time-lapse photography.
  • Educational tools for computer vision and image processing.
  • Compact video streaming devices for telepresence or broadcasting.

Technical Specifications

Sensor ModelOV5647
Resolution5MP (2592 x 1944)
Video Modes1920x1080 @30fps, 1280x720 @60fps, 640x480 @60/90fps
Lens ApertureF2.4
Focal Length3.89mm
Field of View72.9°
Operating Voltage3.3V
Sensor Size1/4 inch
Depth of Field20cm to ∞
Distortion< 1.5%

Frequently Asked Questions

How do I connect and enable this camera on my Raspberry Pi?

First, ensure the Raspberry Pi is powered off. Connect the camera's flexible flat cable (FPC) to the CSI port on the Raspberry Pi board, ensuring the connector's teeth are facing the correct orientation. Enable the camera interface by running 'sudo raspi-config', navigating to 'Interface Options', selecting 'Camera', and choosing 'Yes' to enable it. Reboot the Pi. For Bullseye OS or later, you may need to use the libcamera-stack commands like 'libcamera-hello' to test, or optionally install the legacy Raspicam libraries for compatibility with older scripts.

What software and commands are used to capture images or video?

For systems using the legacy Raspicam driver, use commands like 'raspistill -o image.webp' for stills or 'raspivid -o video.h264' for video. On newer Raspberry Pi OS Bullseye versions with libcamera, use 'libcamera-jpeg -o test.webp' for JPEG capture or 'libcamera-vid -t 10000 -o test.h264' for a 10-second video recording. You may need to adjust parameters like resolution, framerate, or exposure within these commands. Python scripts can utilize the Picamera2 library for libcamera-based programming or the older picamera library for Raspicam.

What is the power requirement and how is the camera powered?

The camera module operates at 3.3V DC and draws power directly from the Raspberry Pi's GPIO header via the CSI interface cable. No external power supply is needed. Ensure your Raspberry Pi's 3.3V rail can provide sufficient current, though the OV5647 sensor is low-power. For portable projects, consider the total current draw of your Pi and peripherals. The camera does not have active cooling or internal lighting, keeping its power consumption minimal during both idle and active capture states.

Package Includes

  • 1 x Raspberry Pi FPC Camera (B) Module
  • 2 x Foam Gaskets

Additional Information

Weight 0.01 kg
Dimensions 11 × 5 × 2 cm
