Arducam Multi Camera Adapter Module V2.2 for Raspberry Pi IMX708/OV5647/IMX219/IMX477
The Arducam Multi Camera Adapter Module V2.2 enables multi-camera setups on Raspberry Pi boards, supporting up to four compatible camera modules (IMX708, OV5647, IMX219, IMX477) via a single CSI port for sequential still image capture and low-frame-rate video applications.
Features
- Multi-Camera Interface: Connect up to 4 Raspberry Pi camera modules to a single Raspberry Pi board using one CSI port.
- Broad Sensor Compatibility: Supports 12MP IMX708 (Pi Camera V3), 5MP OV5647, 8MP IMX219, and 12MP IMX477 (HQ) camera modules.
- Sequential Operation: Cameras operate sequentially, ideal for high-resolution still photography and low-frame-rate surveillance demos.
- Raspberry Pi Platform Support: Compatible with Raspberry Pi Model A/B/B+, Pi 2, Pi 3, 3B+, and Pi 4B.
- Simple GPIO Control: Requires only 3 GPIO pins for multiplexing camera selection and control.
Out of stock

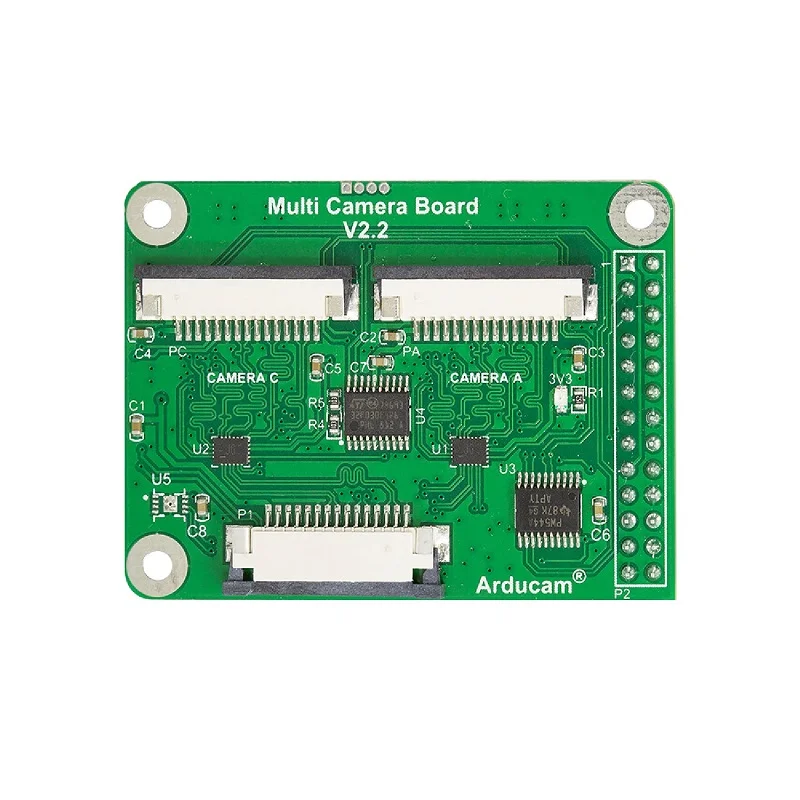

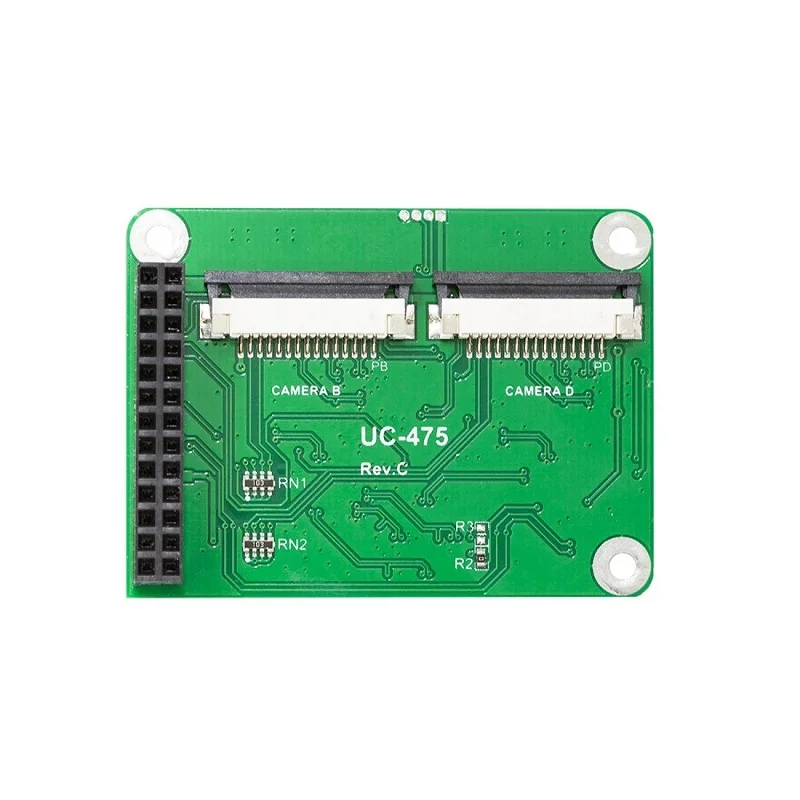

The Arducam Multi Camera Adapter Module V2.2 is a specialized MIPI CSI-2 multiplexer designed to expand the camera connectivity of Raspberry Pi single-board computers. It allows developers and system integrators to interface up to four distinct camera sensors onto a single Raspberry Pi board, facilitating complex vision applications without requiring multiple host boards.
This adapter sequentially switches between connected cameras, enabling high-resolution still image capture from each sensor. It is engineered for applications where simultaneous video streaming is not required, making it suitable for sequential photography, 3D scanning, robotic vision, and multi-angle surveillance systems. The V2.2 revision includes firmware updates while maintaining hardware compatibility with its predecessor.
Additional Information
| Weight | 0.014 kg |
|---|---|
| Dimensions | 5 × 4.1 cm |
