Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi
Arducam’s 2MP IMX462 camera module features a Sony STARVIS sensor for exceptional ultra-low-light and near-infrared imaging, delivering Full HD 1080p video at up to 50fps via a CSI-2 interface to Raspberry Pi 4/3/Zero/CM3/CM4 boards.
Features
- STARVIS IMX462 Sensor: 1/2.8-inch CMOS sensor with 2.9µm large pixels for high sensitivity and extremely low noise performance in near 0 lux conditions.
- Motorized IR-CUT Filter: Automatically switches between visible light and infrared (IR) imaging for 24/7 day-night surveillance capability.
- High-Speed CSI-2 Output: Supports up to 1920×1080 @ 50fps (Full HD) with 2-lane RAW10/RAW12 data output for minimal motion blur.
- M12 Lens Mount: Standard threaded mount for easy interchangeability with a wide range of M12 lenses to adjust field of view and focus.

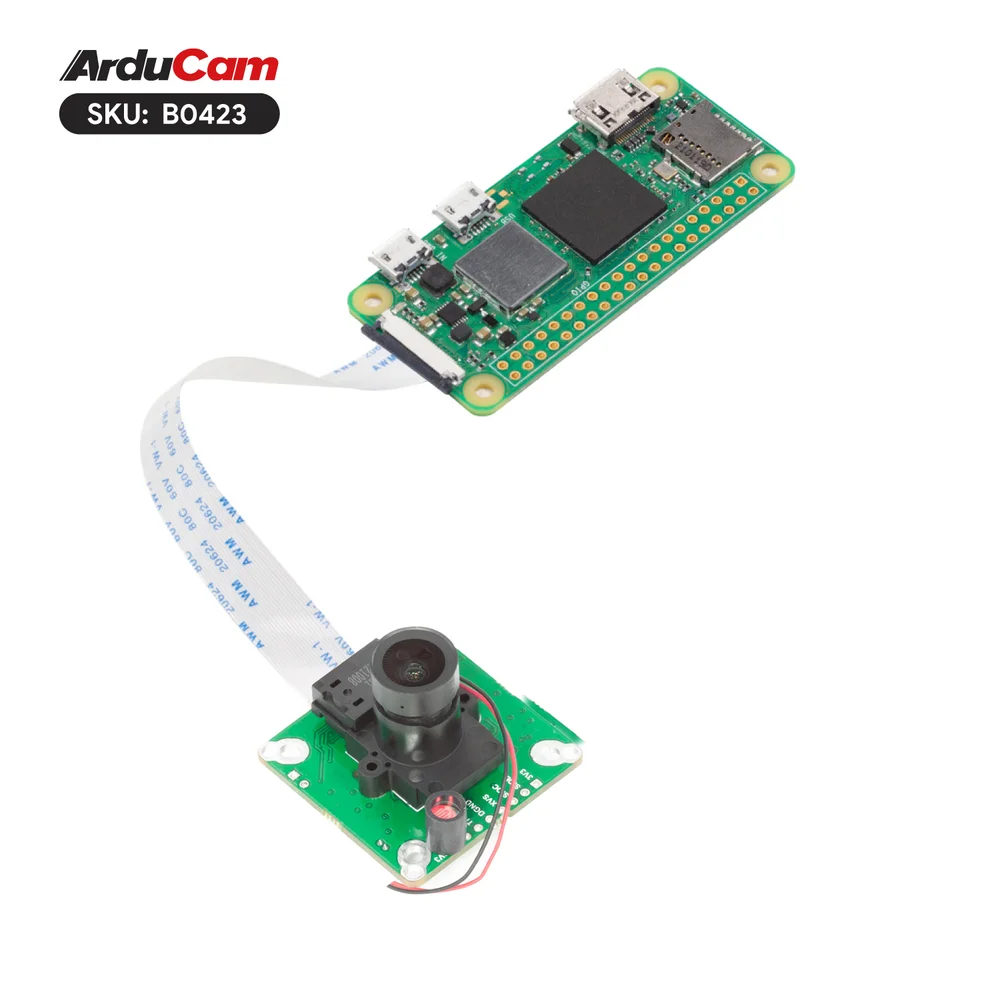

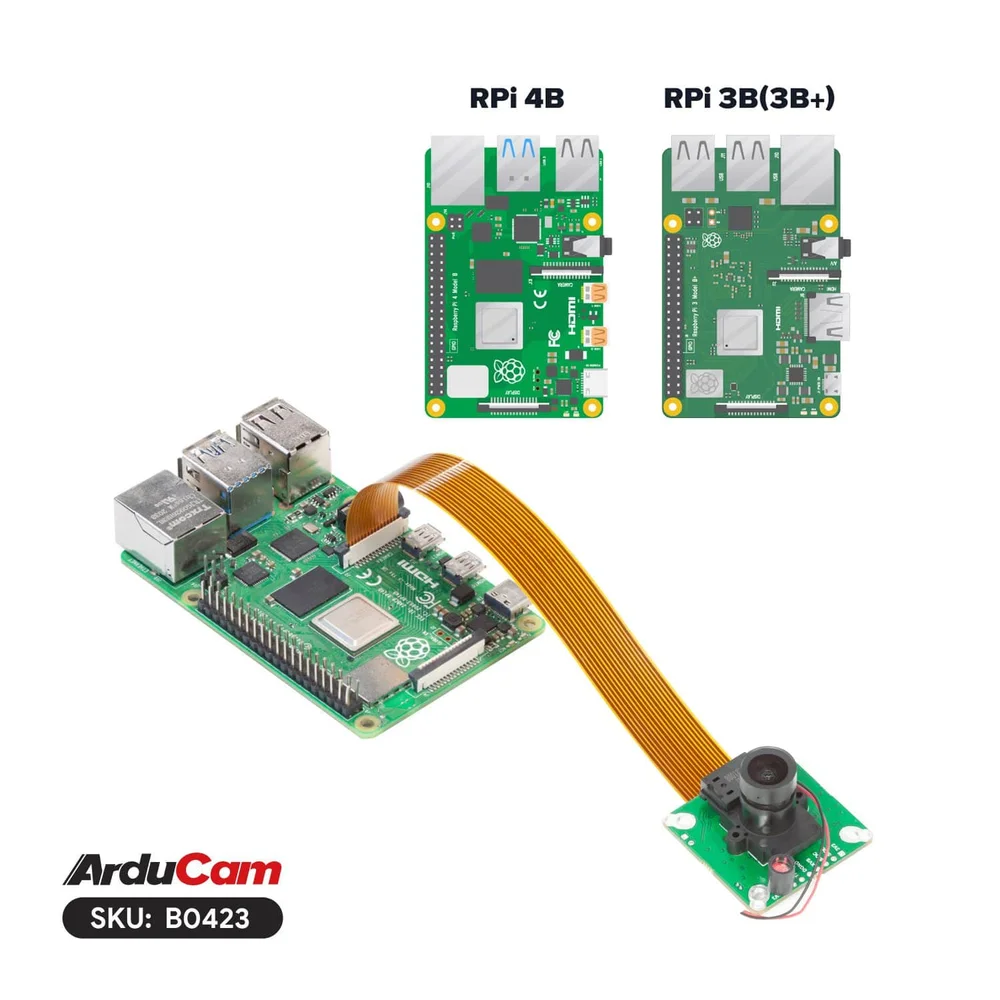

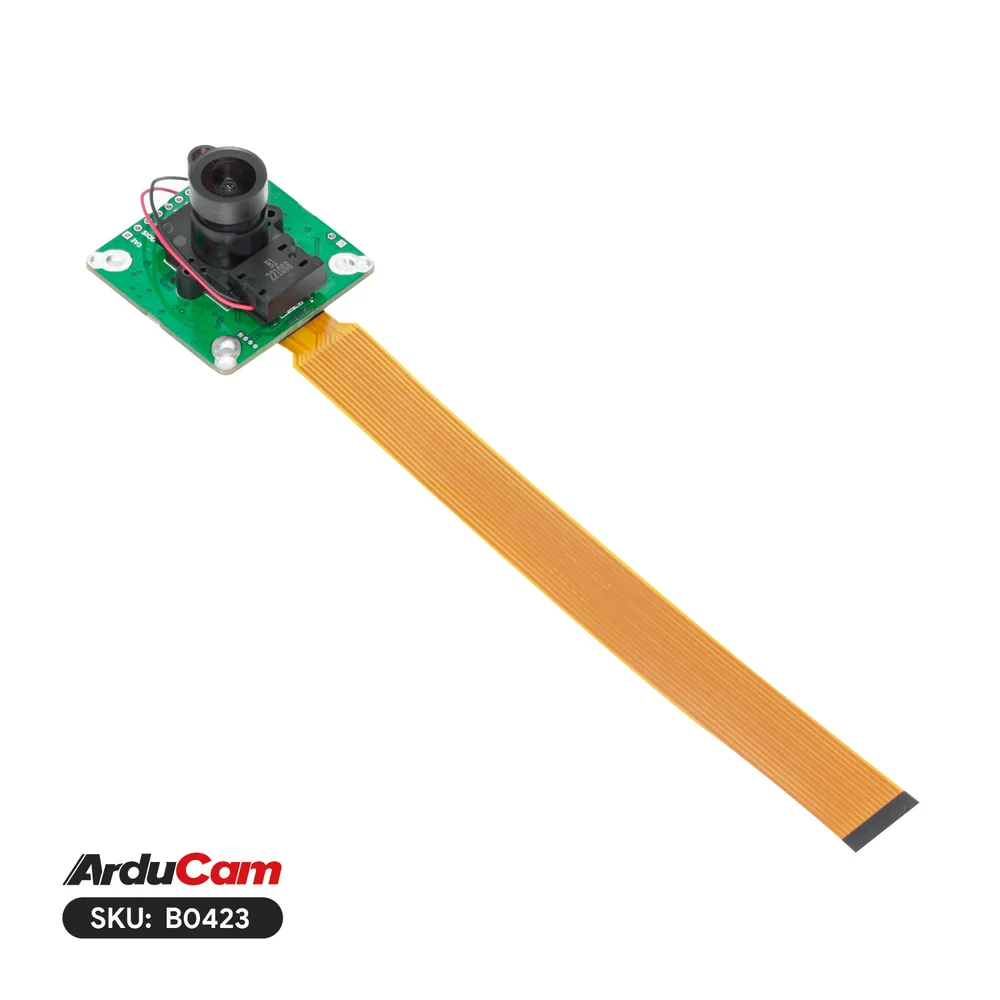

- Raspberry Pi Compatible: Connects directly to Raspberry Pi 4, 3, Zero, CM3, and CM4 via the included 15-pin to 22-pin flex cable.
Out of stock
The Arducam IMX462 camera module integrates a premium Sony STARVIS CMOS sensor engineered for machine vision and surveillance applications demanding high performance in challenging lighting. Its 2.07-megapixel sensor with 2.9µm pixel pitch provides superior light-gathering capability, resulting in high sensitivity, low dark current, and minimal smear. The integrated motorized IR-CUT filter mechanically engages for accurate color reproduction in daylight and retracts for maximum IR sensitivity in total darkness, enabling reliable 24/7 operation.

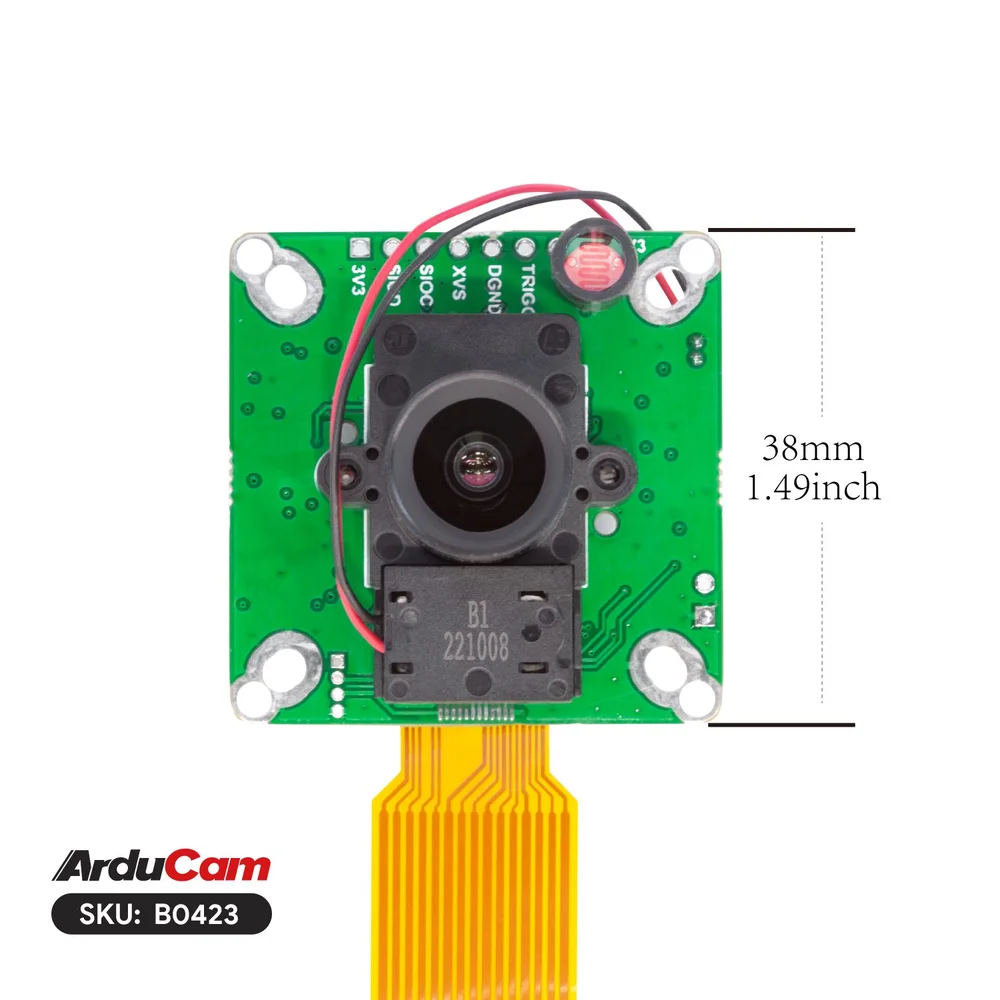

Communication is handled via a high-speed 2-lane MIPI CSI-2 serial interface, supporting uncompressed RAW10/RAW12 data output at frame rates up to 50 fps at full 1080p resolution. This ensures minimal inter-frame distortion for capturing fast-moving objects. The module is supplied with a manual-focus M12 lens offering an 80° horizontal field of view and an F/1.6 aperture, paired with a compact 38mm x 38mm PCB for easy integration into robotics, industrial inspection systems, and autonomous platforms.
Additional Information
| Weight | 0.019 kg |
|---|---|
| Dimensions | 4 × 4 × 4 cm |
