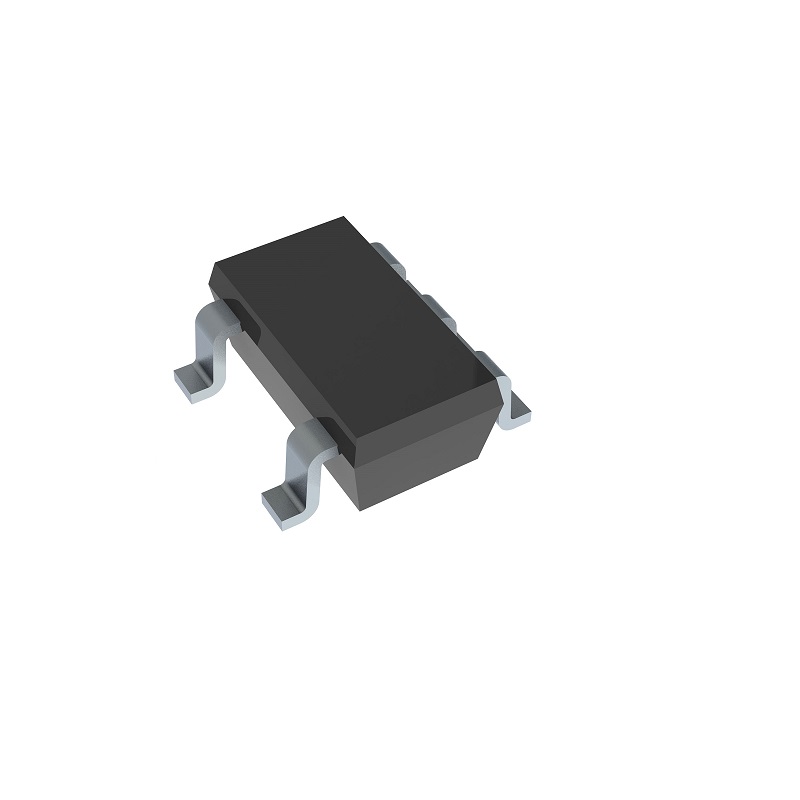

Analog Devices MAX6501UKP045+T Temperature Sensor IC, Micropower, Open Drain, ±0.5°C, SOT-23-5
The Analog Devices MAX6501UKP045+T is a micropower, factory-trimmed temperature switch IC in a SOT-23-5 package. It provides an open-drain, active-low output that triggers when the die temperature exceeds its preset +45°C threshold, making it ideal for overtemperature protection in 3.3V or 5V systems.
Features
- Factory-programmed +45°C (±0.5°C) switching threshold
- Micropower consumption for battery-sensitive applications
- Open-drain, active-low output (active when hot)
- Wide -55°C to +125°C operating temperature range
- Compact SOT-23-5 surface-mount package
Out of stock
The MAX6501UKP045+T is a precision, low-power temperature switch designed for system monitoring and protection. It integrates a temperature-sensing element, a precision comparator, and an open-drain output stage. The device is factory-calibrated to trigger its output when the die temperature rises above +45°C, with a high accuracy of ±0.5°C at the setpoint.
Its micropower operation and simple digital output make it suitable for integration into space-constrained designs requiring reliable thermal management, such as in power supplies, embedded computing modules, and battery packs. The wide operating range ensures functionality in harsh industrial environments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
