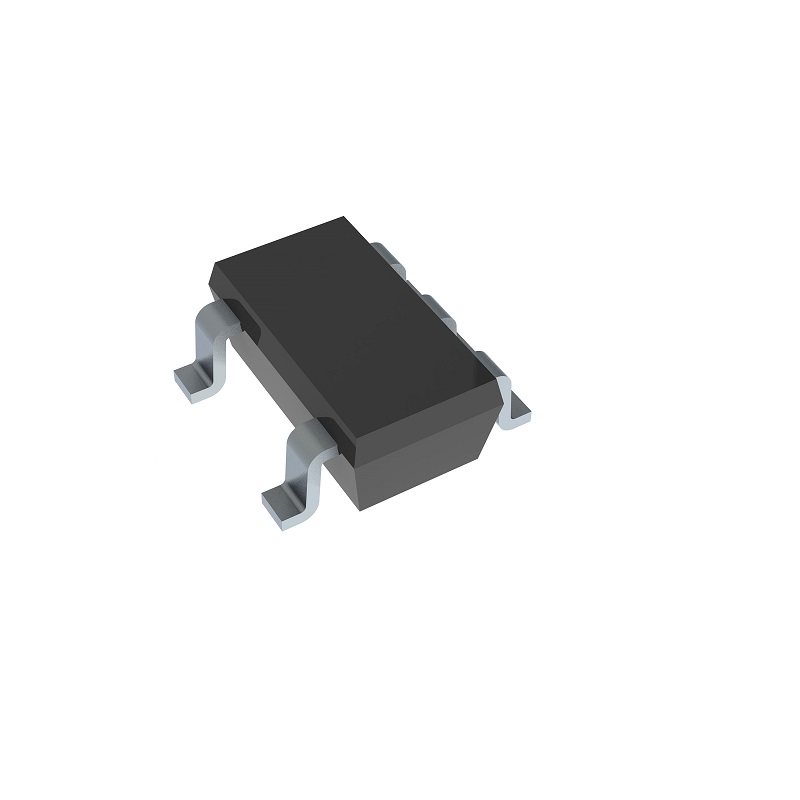

Analog Devices MAX6509HAUK+T Temperature Sensor IC, Programmable, Open Drain, ±0.5°C, SOT-23-5
The Analog Devices MAX6509HAUK+T is a high-accuracy, programmable digital temperature sensor IC in a compact SOT-23-5 package. Featuring an open-drain output, it provides a ±0.5°C accurate temperature trip signal, making it ideal for system monitoring and thermal protection in 2.7V to 5.5V embedded designs.
Features
- High-Accuracy Digital Temperature Sensor with ±0.5°C Sensing Accuracy
- Programmable Temperature Trip Point with Open-Drain Output
- Wide Operating Voltage Range from 2.7V to 5.5V
- Compact SOT-23-5 Surface-Mount Package
- Extended Operating Temperature Range from -40°C to +125°C
Out of stock
The MAX6509HAUK+T from Analog Devices is a precision digital temperature switch designed for system-level thermal management. It integrates a temperature-sensing element, ADC, and a user-programmable comparator with an open-drain output. The device triggers its output when the measured temperature exceeds a factory-set or user-programmed threshold, providing a simple, reliable signal for fan control, system shutdown, or overtemperature alarms.
Operating from a 2.7V to 5.5V supply, this sensor is compatible with a wide range of logic levels and is suitable for battery-powered and industrial applications. Its SOT-23-5 package offers a minimal footprint for space-constrained PCB designs, while its -40°C to +125°C operational range ensures reliability in harsh environments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 0.7 × 0.5 × 0.3 cm |
