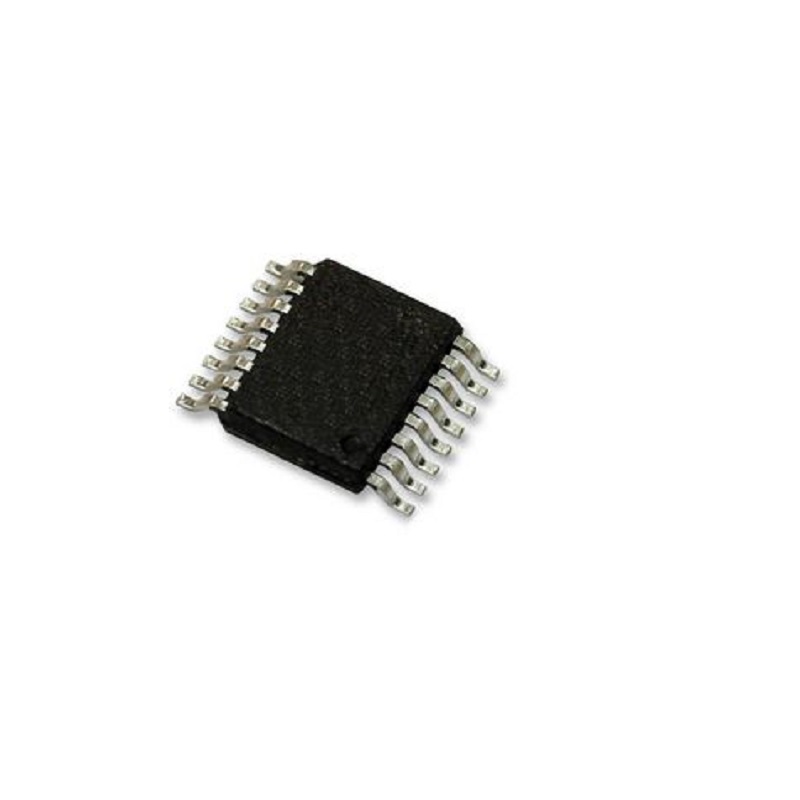

Analog Devices AD7417ARUZ Temperature Sensor IC, Open Drain, ±2°C, TSSOP-16
The Analog Devices AD7417ARUZ is a high-precision digital temperature sensor IC with an integrated 10-bit ADC and I2C interface, designed for system monitoring and thermal management in applications ranging from -40°C to +125°C. Its open-drain output and 5-channel analog input capability make it suitable for multi-point temperature sensing in industrial, computing, and embedded systems.
Features
- High-Accuracy Digital Temperature Sensor with ±2°C Accuracy
- I2C Digital Interface for Direct Microcontroller Integration (Arduino, Raspberry Pi, ESP32)
- Wide Operating Range from -40°C to +125°C
- Integrated 10-bit ADC with 5-Channel Analog Input Multiplexer
- Supports 2.7V to 5.5V Supply Voltage for Flexible Power Design
Out of stock
The AD7417ARUZ from Analog Devices is a monolithic digital temperature sensor that combines a precision sensing element with a 10-bit analog-to-digital converter (ADC) and a serial I2C interface. It provides local and remote temperature monitoring with an accuracy of ±2°C across its full operating range. The integrated ADC features a 5-channel multiplexer, allowing it to measure the temperature of its own junction plus up to four external sensor inputs, making it ideal for comprehensive system thermal management.
Housed in a compact TSSOP-16 package, this sensor is designed for space-constrained applications requiring reliable temperature data. Its open-drain overtemperature alert output can be configured to trigger system shutdowns or fan control. The device operates from a 2.7V to 5.5V supply, ensuring compatibility with both 3.3V and 5V logic systems commonly found in industrial PLCs, embedded computers, and communication equipment.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
