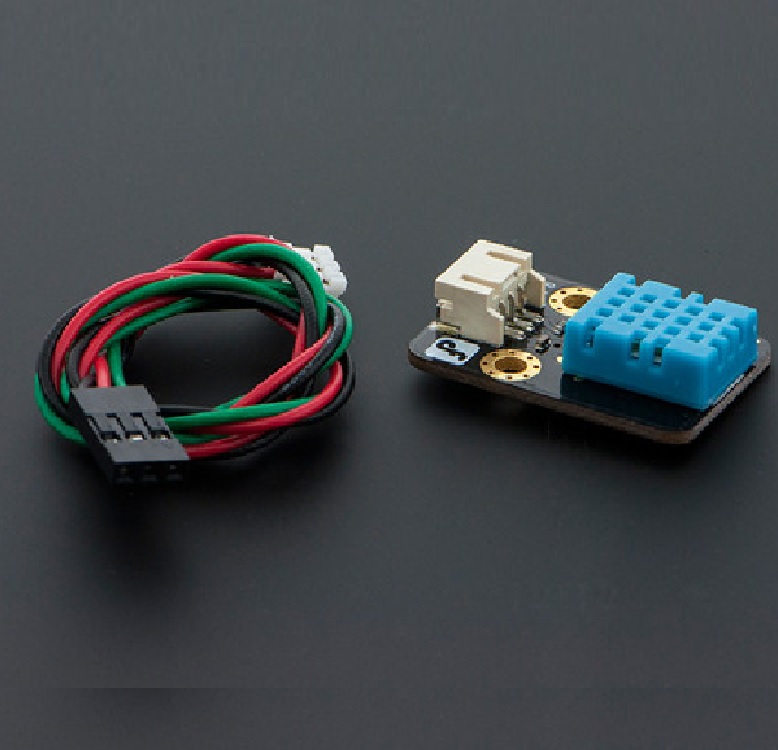

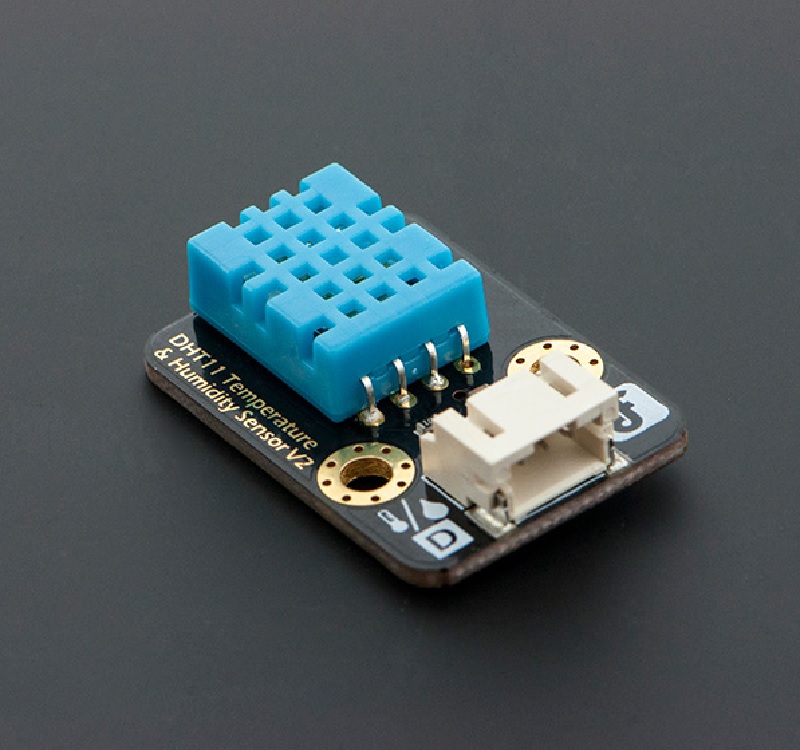

DFRobot Gravity DHT11 Temperature & Humidity Sensor for Arduino & Raspberry Pi
The DFRobot Gravity DHT11 is a digital temperature and humidity sensor module featuring a calibrated digital signal output, full-range temperature compensation, and a plug-and-play Gravity connector for seamless integration with Arduino, Raspberry Pi, and other 3.3V/5V microcontroller platforms.
Features
- Integrated digital DHT11 sensor with calibrated output for temperature and humidity.
- Gravity 3-pin interface (VCC, GND, SIG) for plug-and-play connectivity.
- Wide operating voltage range from 3.3V to 5V DC.
- Features full-range temperature compensation and long-term stability.
- Standard mounting holes (3mm) spaced at 5cm intervals for easy installation.
Out of stock
The DFRobot Gravity DHT11 module integrates a calibrated digital DHT11 sensor, which combines a resistive humidity sensing element and an NTC thermistor. An onboard 8-bit microcontroller processes the analog signals, applies stored calibration coefficients from OTP memory, and outputs a calibrated digital signal, ensuring measurement accuracy and stability. The module includes signal conditioning circuitry for reliable communication.
Designed for ease of use, the module features a standardized Gravity 3-pin connector (VCC, GND, SIG), eliminating complex wiring for quick prototyping with DFRobot expansion shields, Arduino boards, Raspberry Pi, and other 3.3V/5V logic systems. Its low power consumption and digital interface make it suitable for portable and battery-powered environmental monitoring applications.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 9 × 7 × 3 cm |
