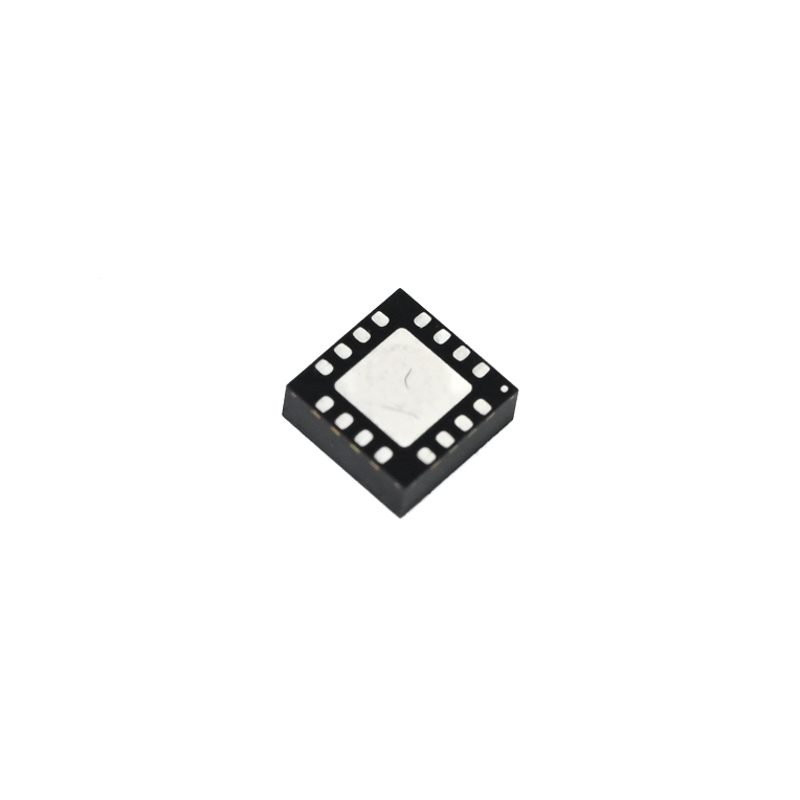

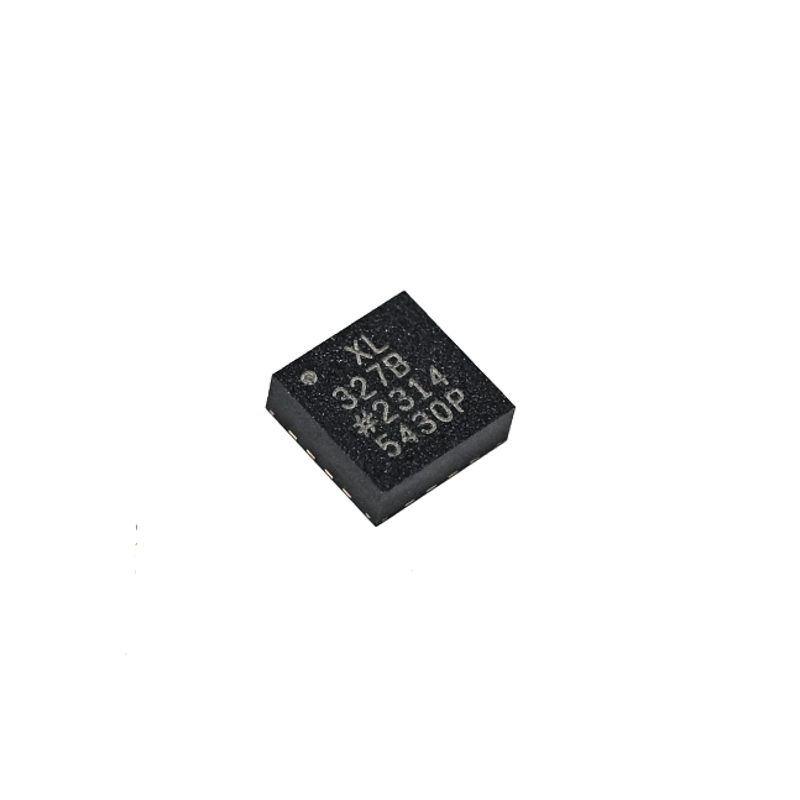

Analog Devices ADXL327BCPZ-RL7 LFCSP-16 3-Axis Analog Accelerometer
The Analog Devices ADXL327BCPZ-RL7 is a low-power, 3-axis analog accelerometer providing signal-conditioned voltage outputs for tilt, motion, shock, and vibration sensing, compatible with standard 3.3V/5V microcontroller ADCs for industrial and embedded applications.
Features
- Complete 3-axis analog accelerometer with ±2 g full-scale range.
- User-selectable bandwidth per axis (0.5 Hz to 1600 Hz X/Y, 0.5 Hz to 550 Hz Z).
- Wide operating temperature range from -40°C to +125°C.
- Ultra-compact LFCSP-16 package (4 mm x 4 mm x 1.45 mm).
- Features power-saving standby mode with fast recovery.
Out of stock
The ADXL327BCPZ-RL7 from Analog Devices is a precision MEMS-based 3-axis accelerometer that outputs analog voltage signals proportional to acceleration. It is designed for low-power operation and integrates all necessary signal conditioning, making it ideal for direct interface with microcontroller analog-to-digital converters (ADCs). The device can measure both static acceleration (for tilt sensing) and dynamic acceleration (from motion, shock, or vibration).
Critical performance parameters, such as bandwidth, are set externally by simple capacitors on the CX, CY, and CZ pins, allowing engineers to tailor the sensor’s response from sub-Hz to over 1 kHz to match specific application requirements. The sensor’s architecture ensures excellent temperature stability and includes an over-range sensing feature for robust operation in demanding environments.
Additional Information
| Weight | 0.035 kg |
|---|
