Amotech Labs PIC18F/16F Mini Development Board
The Amotech Labs PIC18F/16F Mini Development Board is a compact prototyping platform for 40-pin DIP PIC microcontrollers, powered via USB-C and featuring a PICkit 3/3.5 programming interface for streamlined firmware development and debugging.
Features
- Supports a wide range of 40-pin DIP PIC16F and PIC18F microcontrollers for flexible project design.
- Integrated PICkit 3/3.5 programming connector enables easy code upload and in-circuit debugging.
- USB-C power input provides a stable +5V supply, simplifying setup and eliminating external power adapters.
- Onboard analog input, digital I/O (LED, pushbuttons), and accessible MCU ports accelerate prototyping.

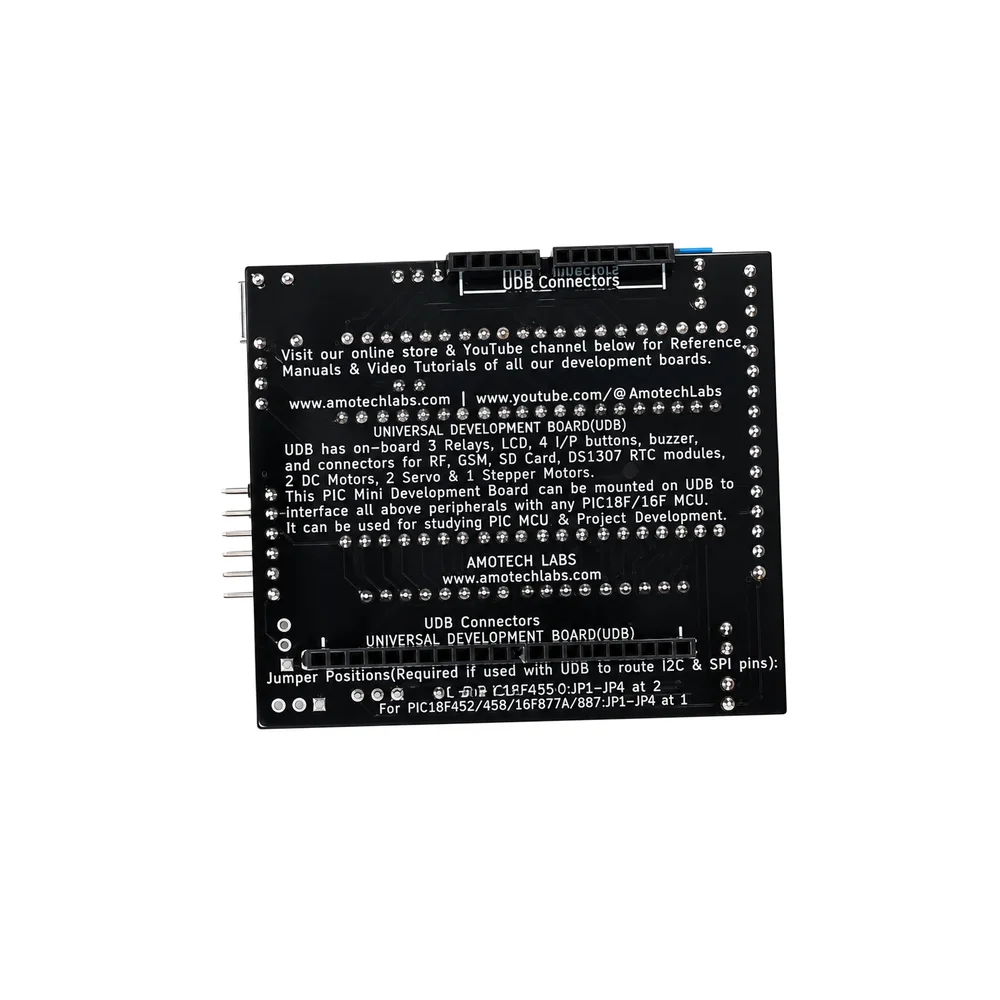

- UDB expansion connector and configurable SPI/I²C jumpers allow seamless interfacing with sensors and modules.
Out of stock

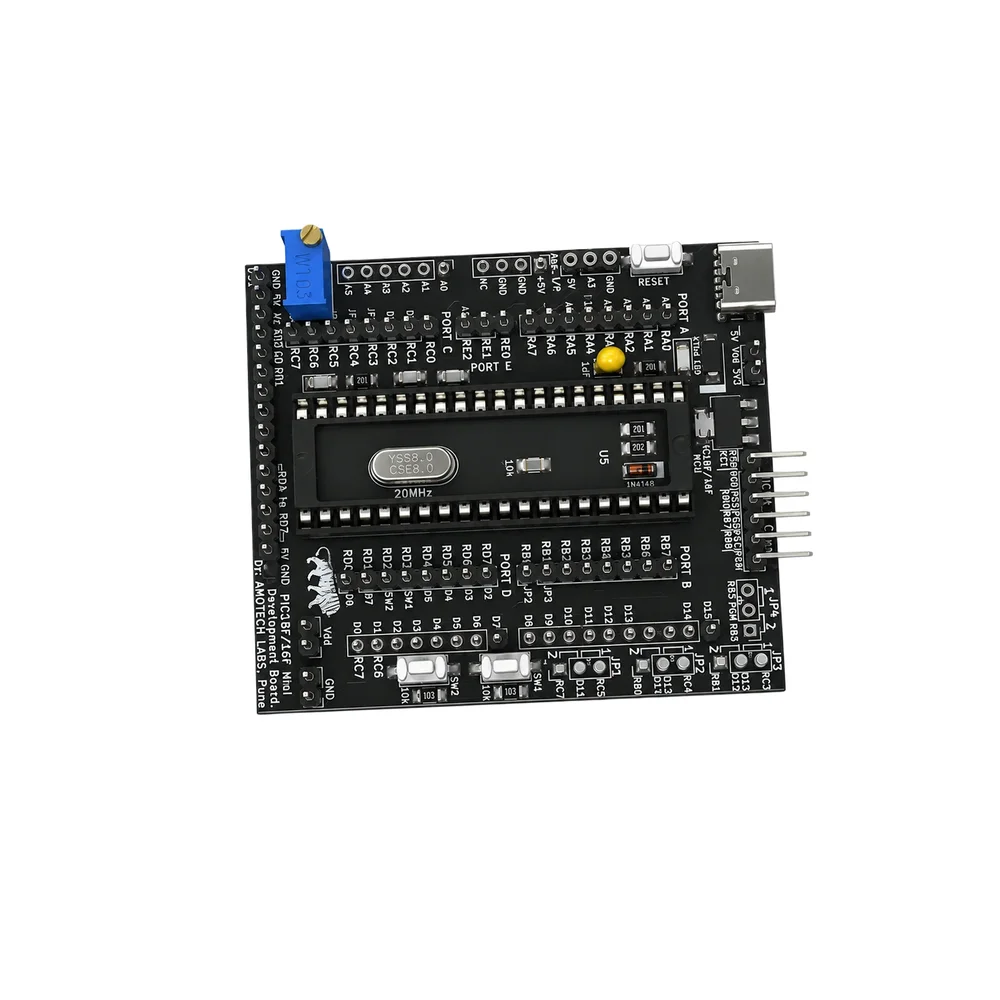

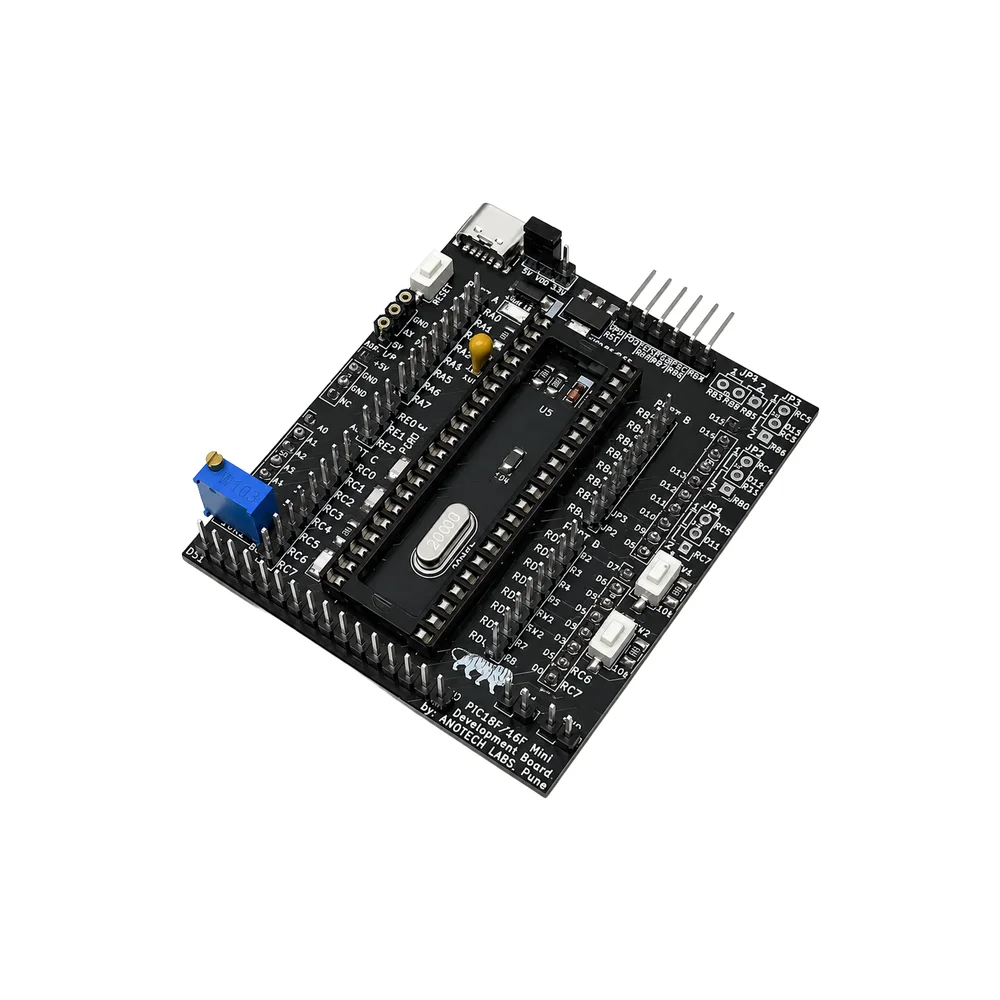

The Amotech Labs PIC18F/16F Mini Development Board is a dedicated platform for embedded developers and students working with Microchip Technology’s PIC microcontroller family. Its core design centers on a 40-pin DIP socket, providing broad compatibility with numerous PIC16F and PIC18F chips, which facilitates rapid MCU swapping and testing without soldering.
Power management is handled via a modern USB-C port, delivering a clean +5V rail to the board and connected peripherals. The integrated PICkit programming header streamlines the development workflow, allowing direct connection to common debuggers for flashing and real-time code execution control. Accessible port pins, an analog input channel, and basic digital I/O components like LEDs and tactile switches provide immediate feedback and input capabilities for initial circuit validation and functional testing.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 12 × 8 × 3 cm |
