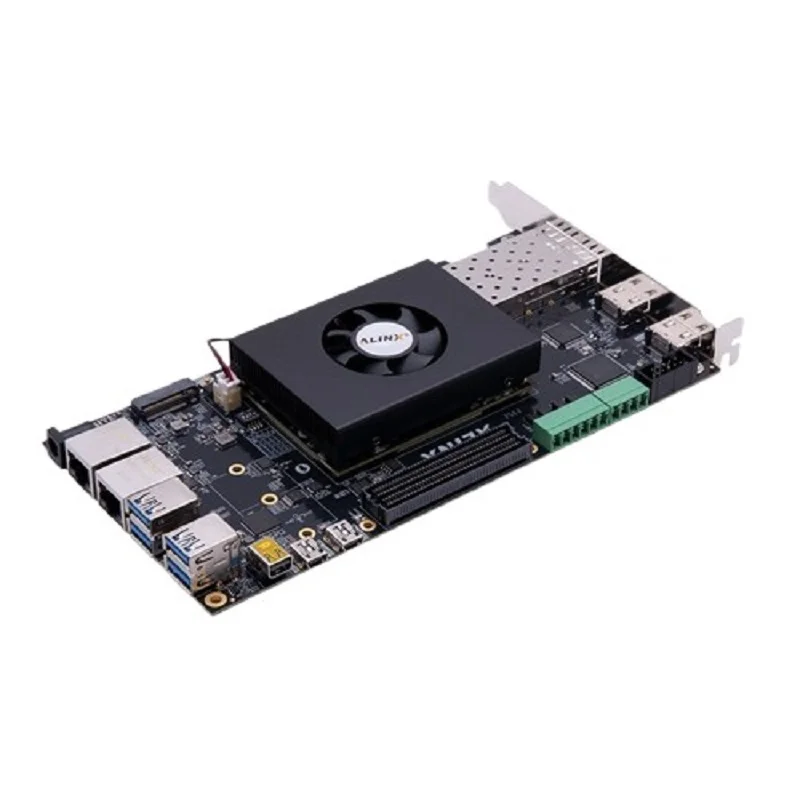

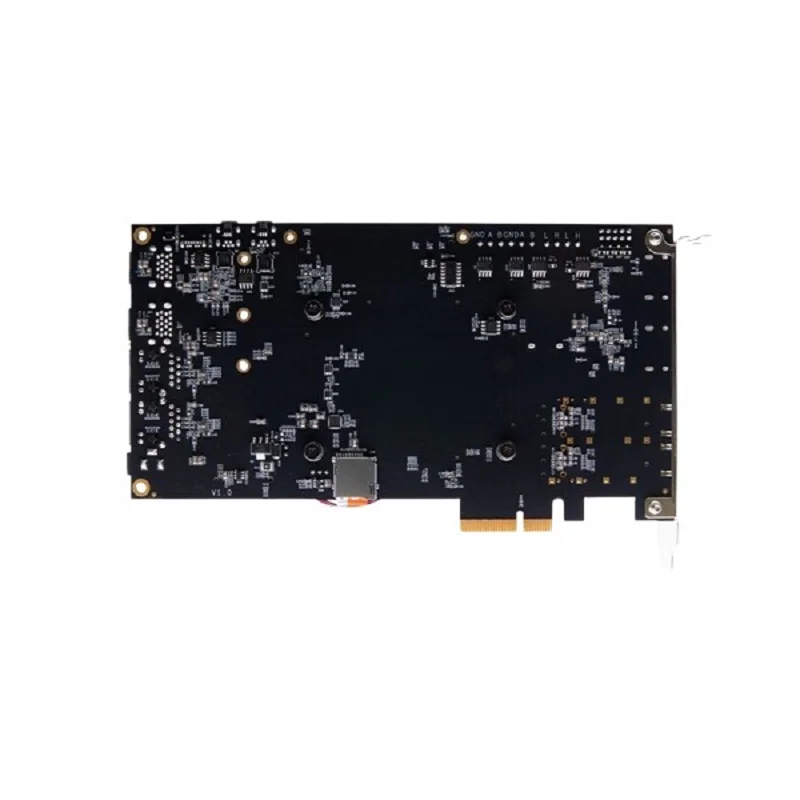

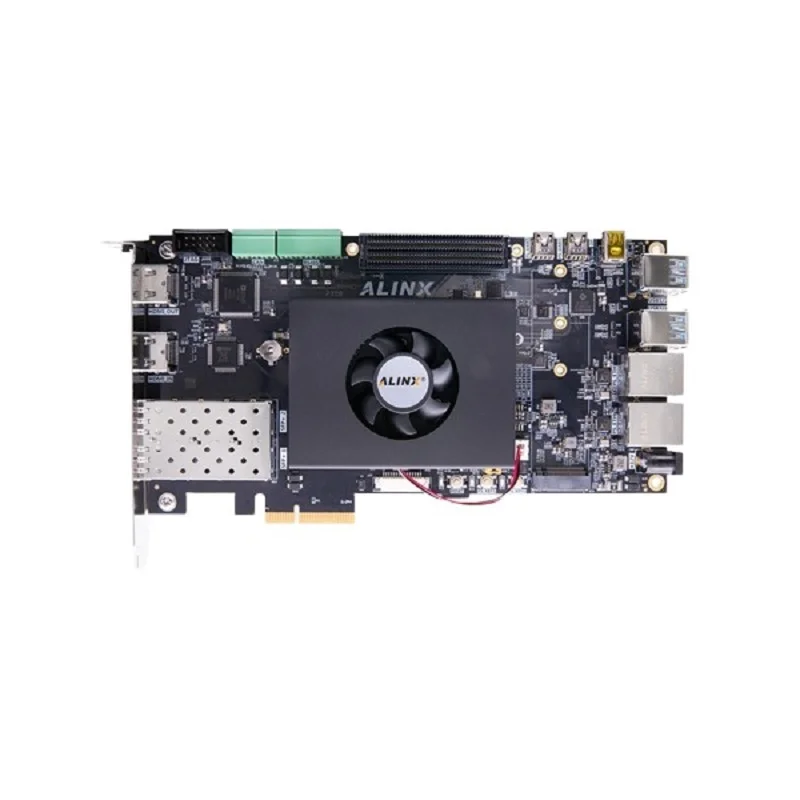

Alinx AXU5EVB-P Dev Board Kit AMD Zynq US+ MPSoC ZU5EV

The board is fully compatible with AMD/Xilinx Vitis and Vivado design suites for hardware acceleration and FPGA logic development. For the processing system, you can run Linux distributions like PetaLinux or Ubuntu, or a real-time OS on the Cortex-R5 cores. Development typically involves configuring the hardware platform in Vivado, building the boot images (FSBL, U-Boot), and deploying the application software via SD card or eMMC.

The board requires a single 12V DC power supply, provided with the kit. Connect the included 12V adapter to the DC jack on the base board. Ensure proper heatsink attachment as the Zynq UltraScale+ MPSoC can generate significant heat under load. The board includes comprehensive power monitoring and sequencing circuitry, managing the various voltage domains required by the SoC, DDR4, and peripheral interfaces automatically.

Yes, the board provides direct camera connectivity through a 2-lane MIPI CSI interface on the programmable logic (PL) and an HDMI input port. You can connect compatible MIPI camera modules for raw sensor data capture. For processing, you can leverage the Mali GPU for encoding/decoding or implement custom image pipelines in the FPGA fabric using Vivado HLS or Vitis Vision libraries, making it ideal for computer vision and AI inference.

The FMC LPC (FPGA Mezzanine Card Low Pin Count) connector provides a standardized expansion interface to the programmable logic. You can attach various FMC daughter cards for analog I/O, high-speed ADCs/DACs, additional memory, or specific sensor interfaces. It offers 36 LVDS I/O pairs (1.8V), enabling high-bandwidth data transfer between the PL and external hardware, which is crucial for software-defined radio, high-speed data acquisition, or custom protocol implementation.
