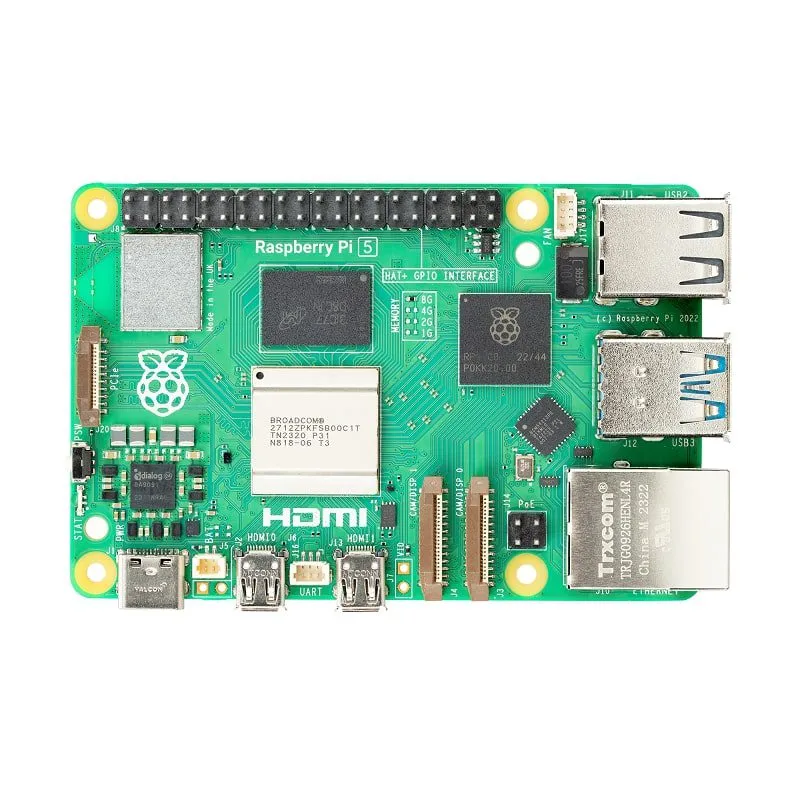

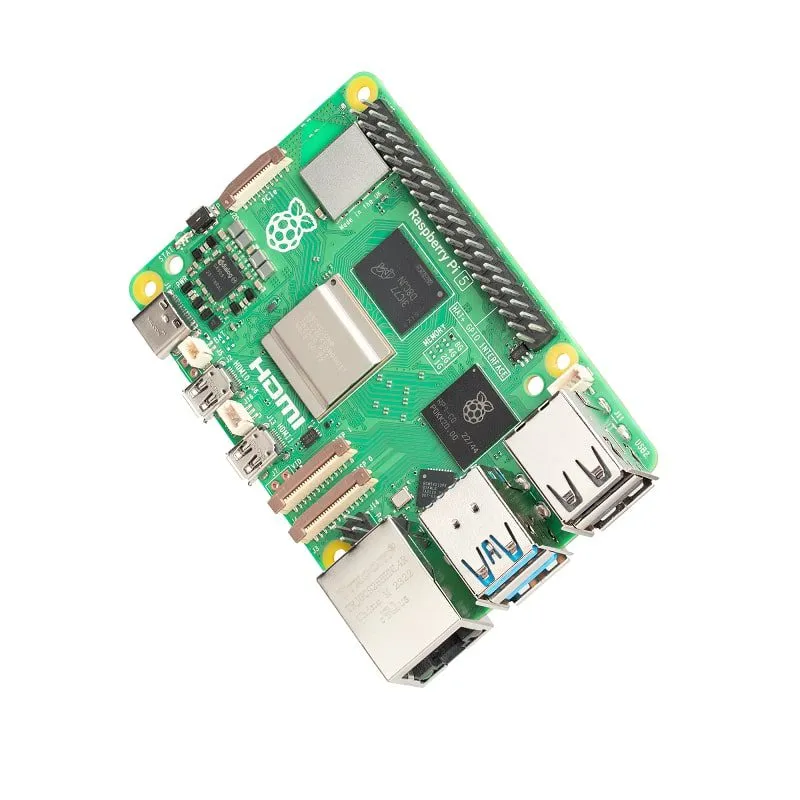

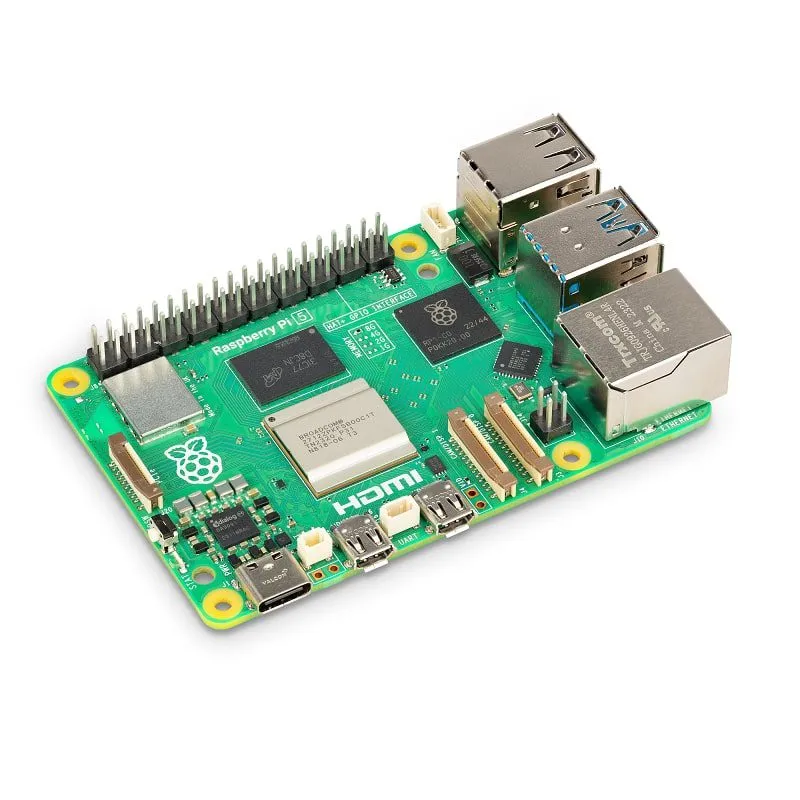

Raspberry Pi 5 - 8GB RAM
The Raspberry Pi 5 Model 8GB RAM is the latest generation single-board computer, powered by a 2.4GHz quad-core Arm Cortex-A76 processor and 8GB LPDDR4X SDRAM. It delivers a 2-3x CPU performance increase and enhanced graphics, ideal for both advanced desktop computing and demanding embedded applications.
Features
- 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU with 2MB shared L3 cache
- 8GB LPDDR4X-4267 SDRAM for high-speed multitasking
- Dual 4Kp60 micro HDMI output with 800MHz VideoCore VII GPU
- Integrated dual-band 802.11ac Wi-Fi and Bluetooth 5.0/BLE
- PCIe 2.0 x1 interface and dual USB 3.0 ports for rapid peripheral connectivity
Out of stock
The Raspberry Pi 5 Model 8GB RAM represents a significant leap forward in single-board computing, building upon the legacy of its predecessors with substantial hardware and software enhancements. At its core, it features a powerful 64-bit quad-core Arm Cortex-A76 processor clocked at 2.4GHz, complemented by a sophisticated VideoCore VII GPU running at 800MHz. This combination enables a remarkable 2–3x increase in CPU performance and significantly boosted graphics capabilities compared to the Raspberry Pi 4. The board is equipped with 8GB of high-speed LPDDR4X-4267 SDRAM, ensuring smooth multitasking and efficient handling of data-intensive tasks.
Designed for versatility, the Raspberry Pi 5 supports dual 4Kp60 display output via its micro HDMI ports, making it suitable for multimedia, signage, and multi-monitor setups. Its reimagined Raspberry Pi Image Signal Processor (ISP) delivers state-of-the-art camera performance, opening new possibilities for vision-based projects. Connectivity is robust, with dual-band 802.11ac Wi-Fi and Bluetooth 5.0/Bluetooth Low Energy (BLE) for seamless wireless communication. For high-speed peripherals, it includes two USB 3.0 ports supporting simultaneous 5Gbps operation, two USB 2.0 ports, and a Gigabit Ethernet port with optional PoE+ support. A new PCIe 2.0 x1 interface further expands its capabilities for connecting high-bandwidth devices.
The board integrates a Real-Time Clock (RTC) powered by an external battery, ensuring accurate timekeeping even when unpowered. Power delivery is handled by a 5V/5A DC (PD enabled) USB-C port, providing ample power for the board and connected peripherals. The standard Raspberry Pi 40-pin GPIO header remains, ensuring compatibility with a vast ecosystem of HATs and expansion boards. The addition of an on-board power button enhances user convenience, making the Raspberry Pi 5 a compelling platform for developers, educators, and hobbyists alike, pushing the boundaries of what is possible with a compact, affordable computer.
Additional Information
| Weight | 0.105 kg |
|---|---|
| Dimensions | 8.5 × 5.6 cm |
