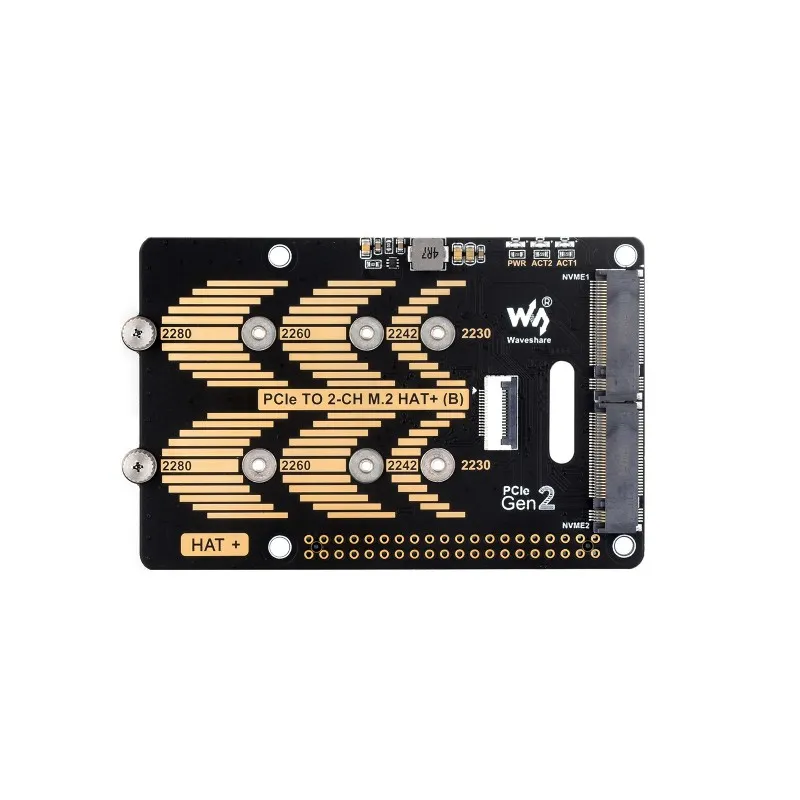

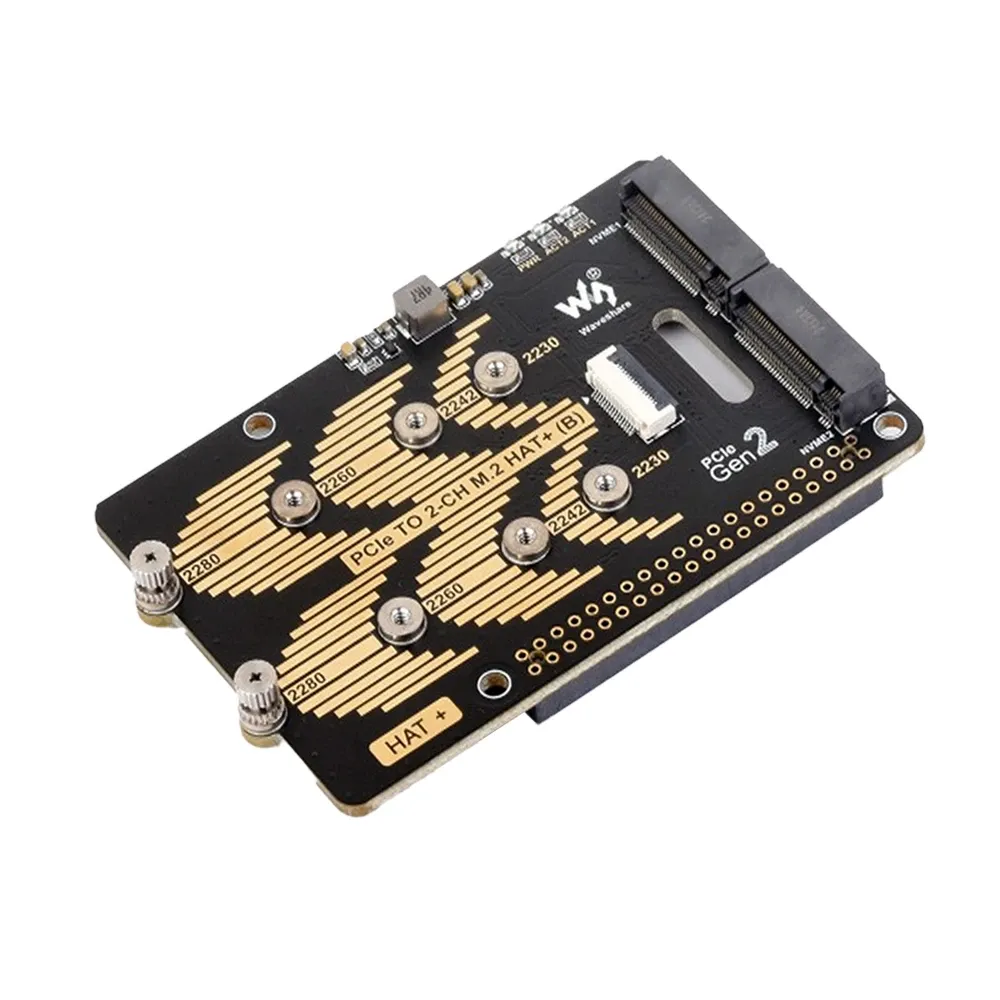

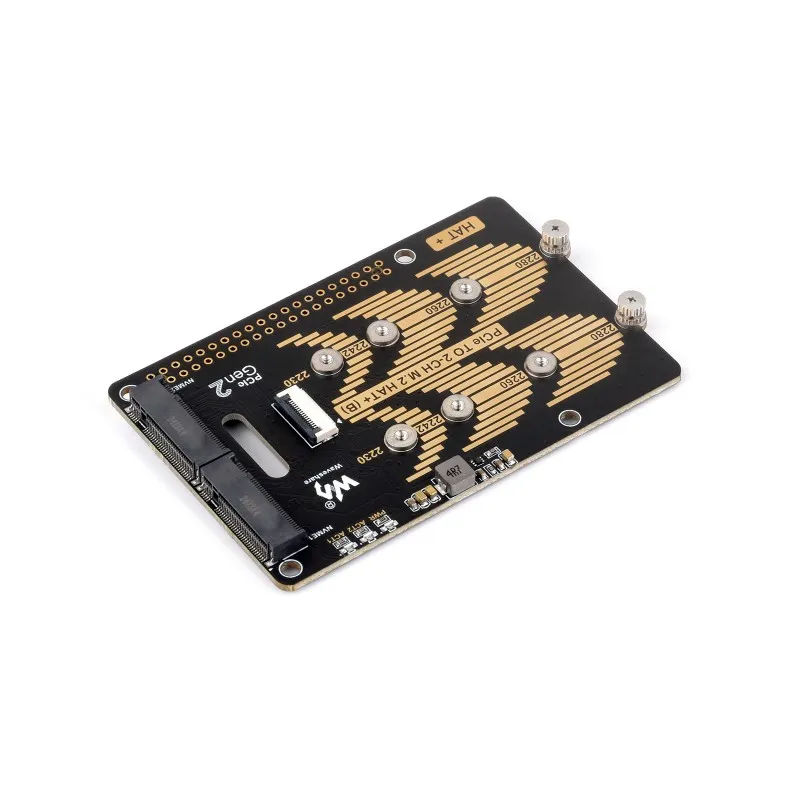

Waveshare PCIe to Dual M.2 NVMe HAT for Raspberry Pi 5
The Waveshare PCIe to Dual M.2 NVMe HAT is an advanced expansion board specifically designed for the Raspberry Pi 5, enabling users to connect and utilize two NVMe M.2 SSDs simultaneously. It leverages the PCIe interface for high-speed storage, supporting various M.2 SSD sizes from 2230 to 2280 to significantly boost data throughput and capacity.
Features
- Dual M.2 NVMe slots for high-speed storage expansion on Raspberry Pi 5.
- Leverages Raspberry Pi 5’s PCIe interface for up to Gen2 x1 data transfer rates.
- Compatible with 2230, 2242, 2260, and 2280 NVMe M.2 SSD form factors.
- HAT+ design with onboard EEPROM and power monitoring for reliable operation.
- Supports booting the Raspberry Pi 5 directly from an attached NVMe SSD.
Out of stock
The Waveshare PCIe to 2-Ch M.2 Adapter Type B is an advanced expansion board specifically engineered for the Raspberry Pi 5. It enables users to simultaneously connect and utilize two NVMe M.2 SSDs, leveraging the dedicated PCIe interface of the Raspberry Pi 5 to deliver substantial high-speed storage capabilities.
This adapter is an optimal solution for applications demanding increased data throughput and expanded storage capacity, such as building robust network-attached storage (NAS) systems, high-performance servers, or advanced edge computing devices. Its design ensures seamless integration and reliable operation within the Raspberry Pi 5 ecosystem, enhancing overall system performance and flexibility.
Additional Information
| Weight | 0.057 kg |
|---|---|
| Dimensions | 10 × 5 × 1.5 cm |
