Seeed Studio Studio Dual M.2 PCIe HAT for Raspberry Pi 5 NVMe/AI
The Seeed Studio Studio Dual M.2 PCIe HAT for Raspberry Pi 5 maximizes expansion possibilities, integrating two M.2 M-Key slots via a PCIe 2.0 switch chip. This HAT enables high-speed NVMe SSD storage and supports powerful AI accelerators like Hailo-8/8L for advanced edge computing applications.
Features
- Features dual M.2 M-Key slots for simultaneous NVMe SSD and AI accelerator expansion.
- Utilizes a PCIe Gen 2.0 switch chip (ASM1182E) to expand the Raspberry Pi 5’s PCIe interface.
- Back-mounted design ensures full access to the 40-pin GPIO and official cooling solutions.

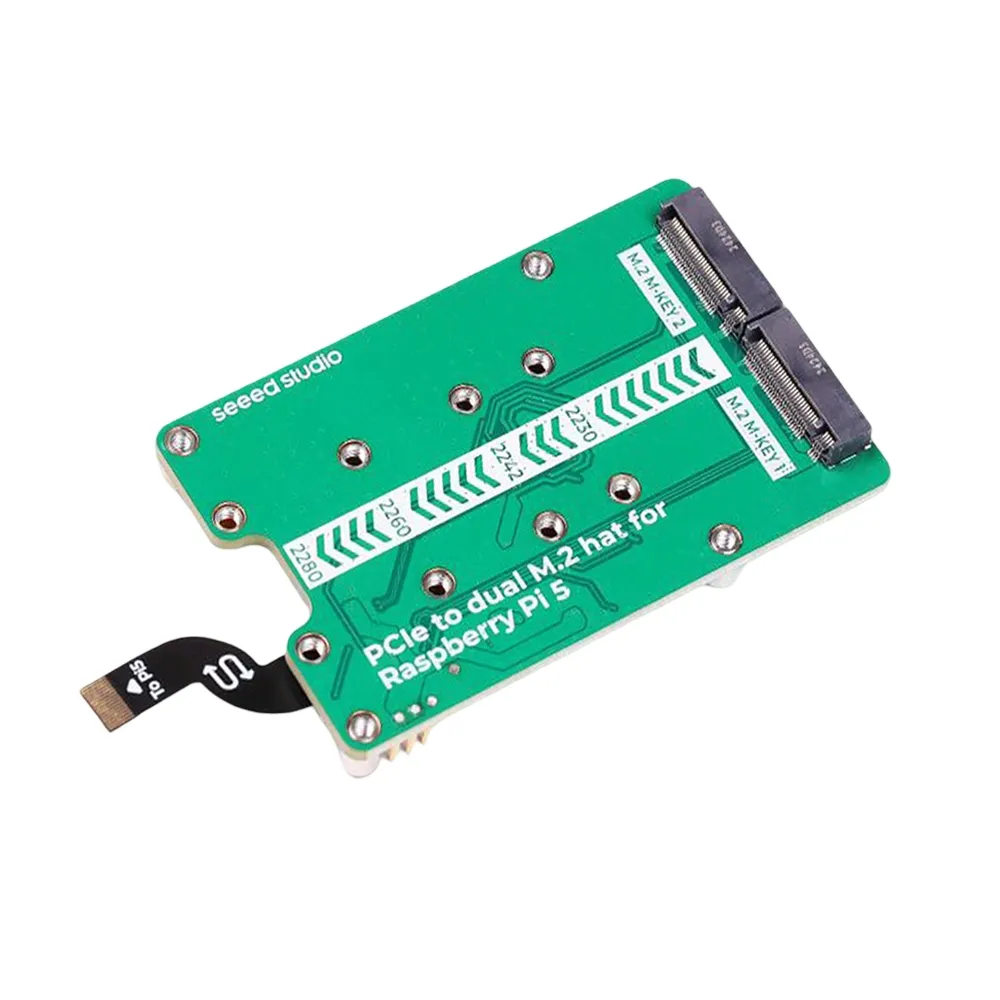

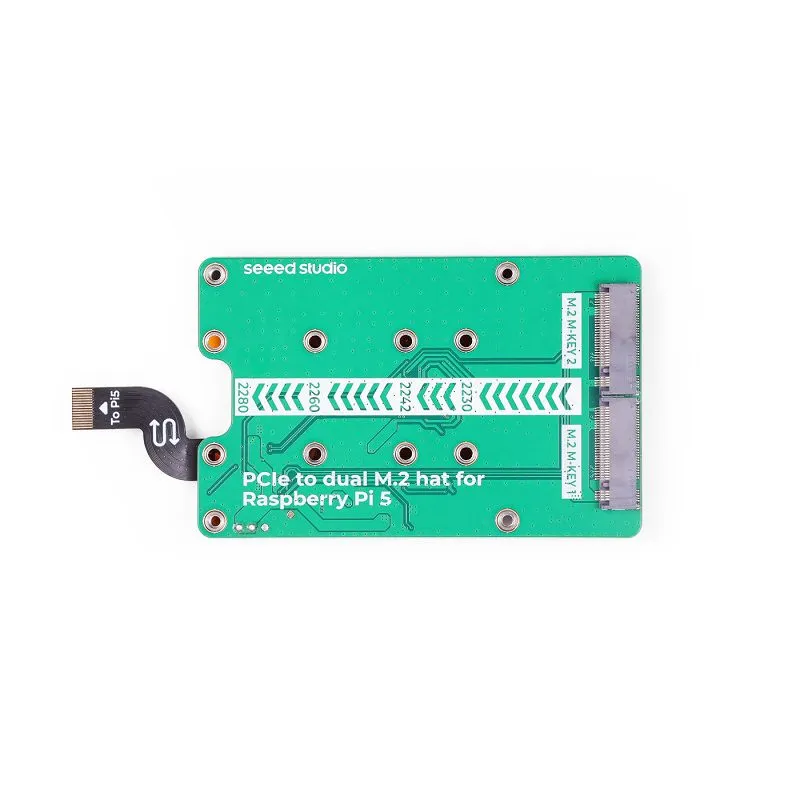

- Compatible with multiple M.2 form factors, including 2230, 2242, 2260, and 2280.
- Utilizes additional pogo pins for stable power delivery to connected M.2 devices.
Out of stock

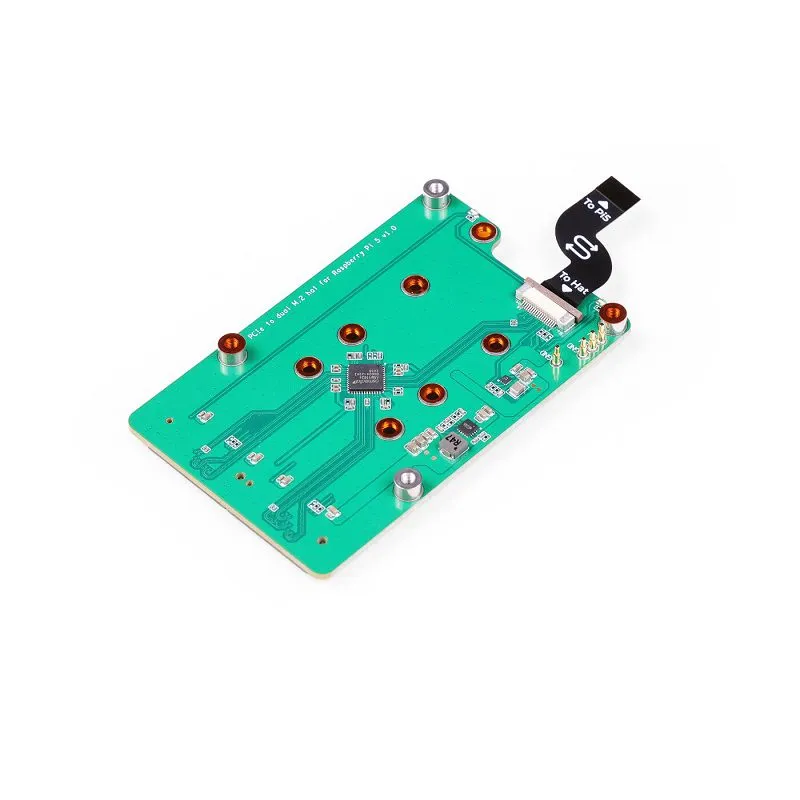

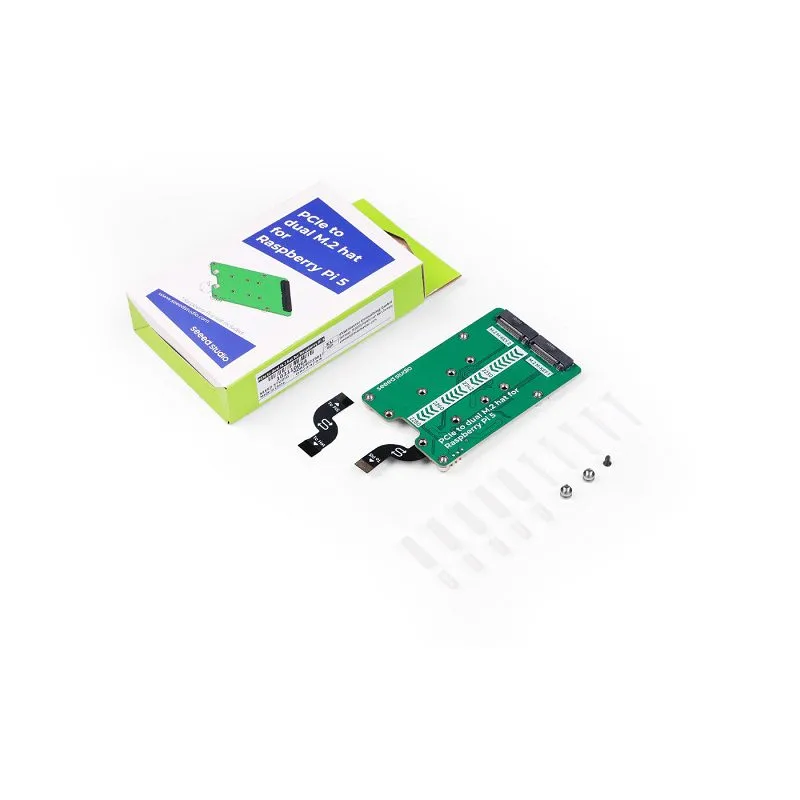

Designed specifically for the Raspberry Pi 5, the Seeed Studio Studio Dual M.2 PCIe HAT unlocks the full potential of its PCIe interface by providing two M.2 M-Key expansion slots. At its core, this HAT integrates a PCIe Gen 2.0 switch chip (ASM1182E) which efficiently splits the single PCIe lane from the Raspberry Pi 5 (which is Gen 3.0 capable) into two independent M.2 interfaces. This architecture allows for versatile configurations, supporting either two high-speed NVMe SSDs for massive storage capacity or a combination of an NVMe SSD and an AI accelerator, such as the Hailo-8 or Hailo-8L NPU.
This expansion board is engineered for stable, high-performance operation, featuring additional pogo pins to ensure robust power delivery to connected M.2 devices. Its innovative back-mounted design preserves access to the Raspberry Pi 5’s crucial 40-pin GPIO header and ensures compatibility with official heatsinks and active coolers, maintaining optimal thermal management. Furthermore, the user-friendly S-shaped FPC cable design ensures the microSD card slot remains unobstructed, providing a practical and powerful solution for integrating fast storage and AI capabilities into edge computing, machine learning, and data-intensive projects.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 8.7 × 5.5 cm |
