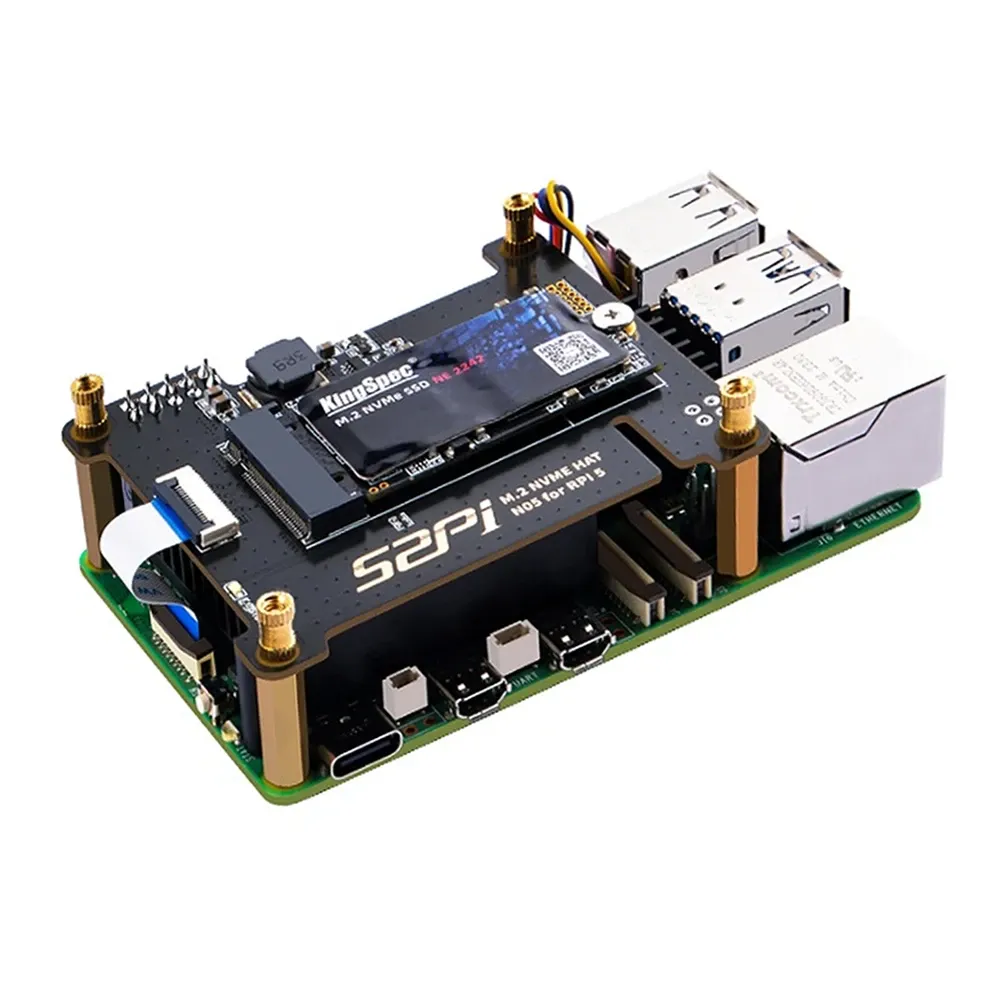

52Pi N05 M.2 NVMe PCIe Top Adapter for Raspberry Pi 5
The 52Pi N05 is an M.2 2242 PCIe to NVMe adapter board engineered for the Raspberry Pi 5, enabling high-speed NVMe SSD expansion for ultra-fast booting and data transfers. It supports both 2230 and 2242 M.2 NVMe SSDs, leveraging the Pi 5’s new PCIe interface.
Features
- M.2 NVMe SSD expansion for Raspberry Pi 5 via PCIe interface.
- Supports M.2 2230 and 2242 NVMe (M-key) SSDs.
- PCIe x1 interface compatible with Gen2 & Gen3 standards.
- Integrated 3.3V power regulator, M.2 standard compliant up to 3A.
- Hollow design ensures optimal ventilation and cooling performance.
Out of stock

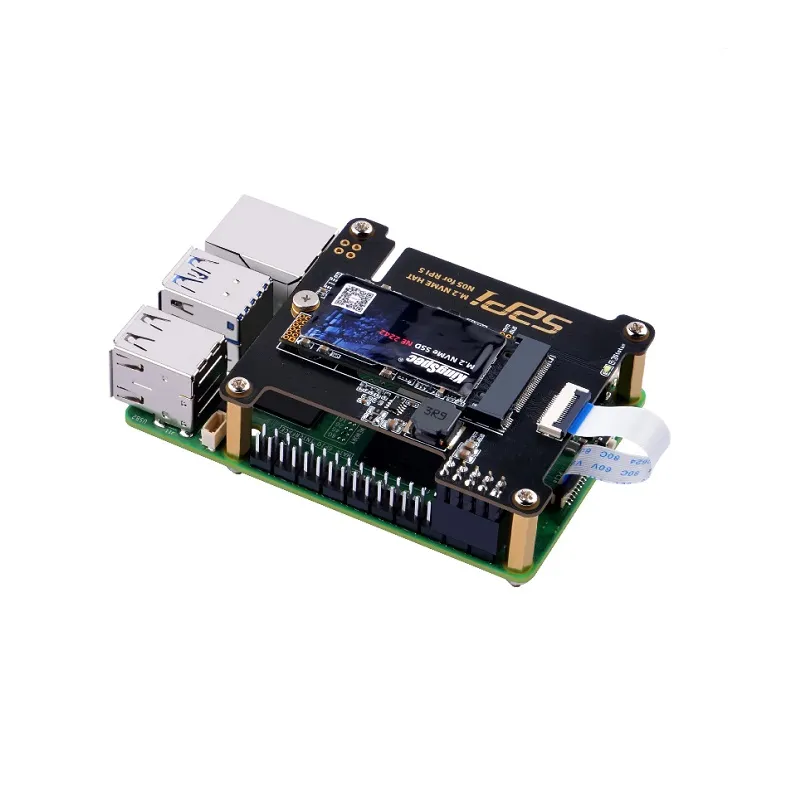

The 52Pi N05 acts as a PCIe Peripheral Board (PIP) specifically designed for the Raspberry Pi 5, allowing users to unlock high-speed storage capabilities. By utilizing the Pi 5’s advanced PCIe interface, this adapter facilitates the integration of M.2 NVMe SSDs (2230, 2242 GEN 3), significantly boosting data transfer rates and enabling ultra-fast operating system boot times.

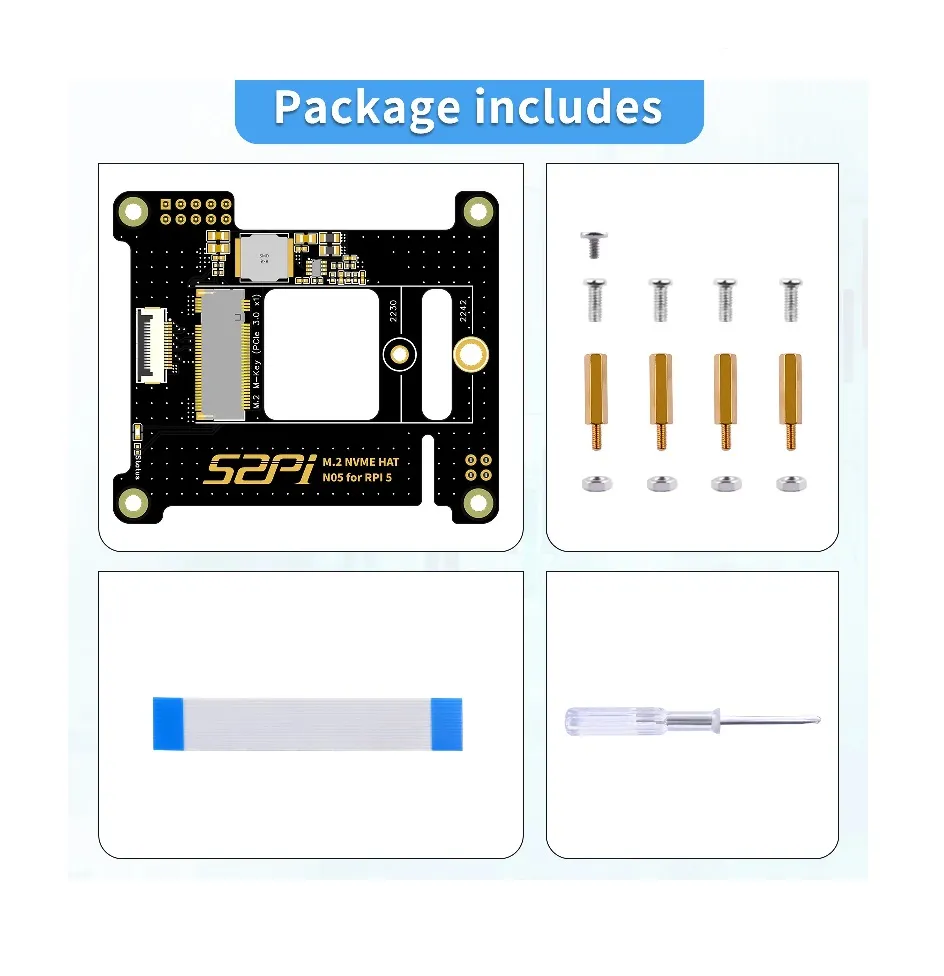

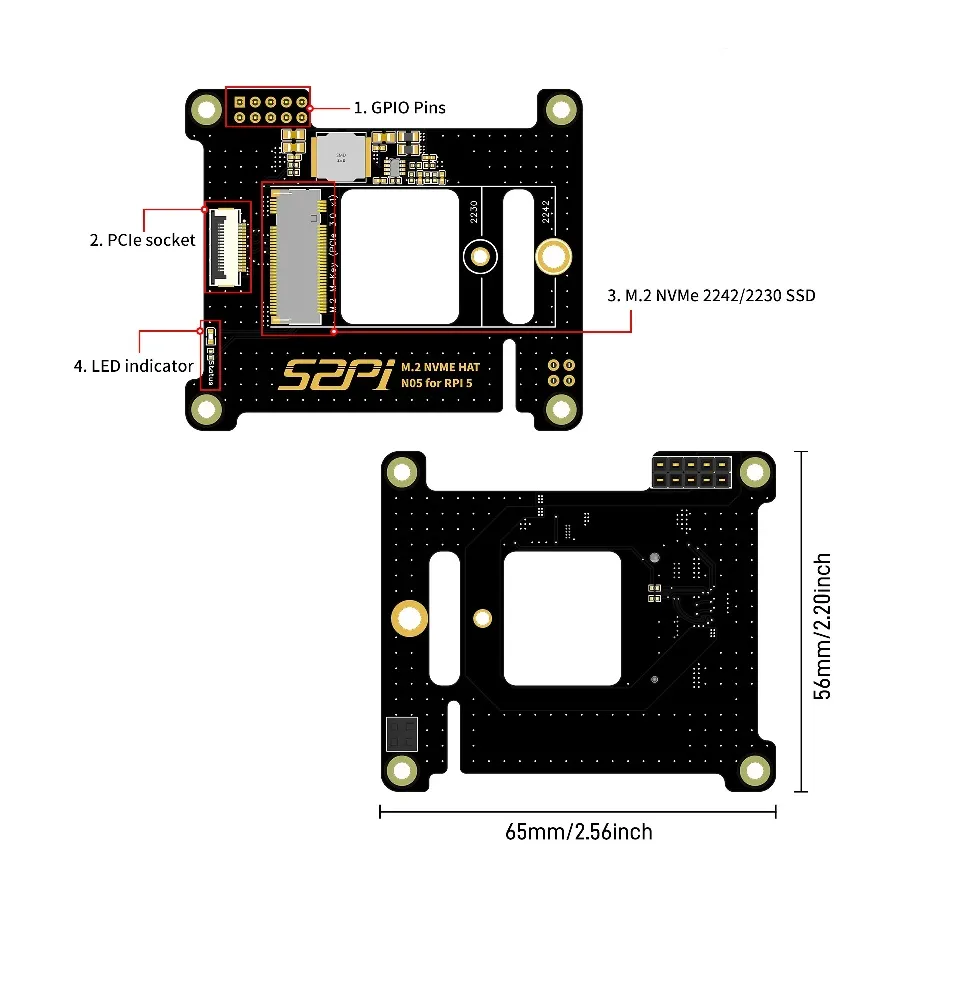

Its form factor is compatible with the standard Raspberry Pi HAT dimensions, ensuring seamless integration into existing setups. The design supports two common NVMe SSD sizes, 2230 and 2242, with included SSD mounting screws for easy interchangeability without requiring soldering. Furthermore, the board features a hollow design for enhanced airflow, a gold-plated PCB for superior electrical performance, and ultra-short PCIe signal lines to guarantee reliable, high-speed data integrity compliant with PCIe 3.0 requirements.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 6.5 × 5.5 cm |
