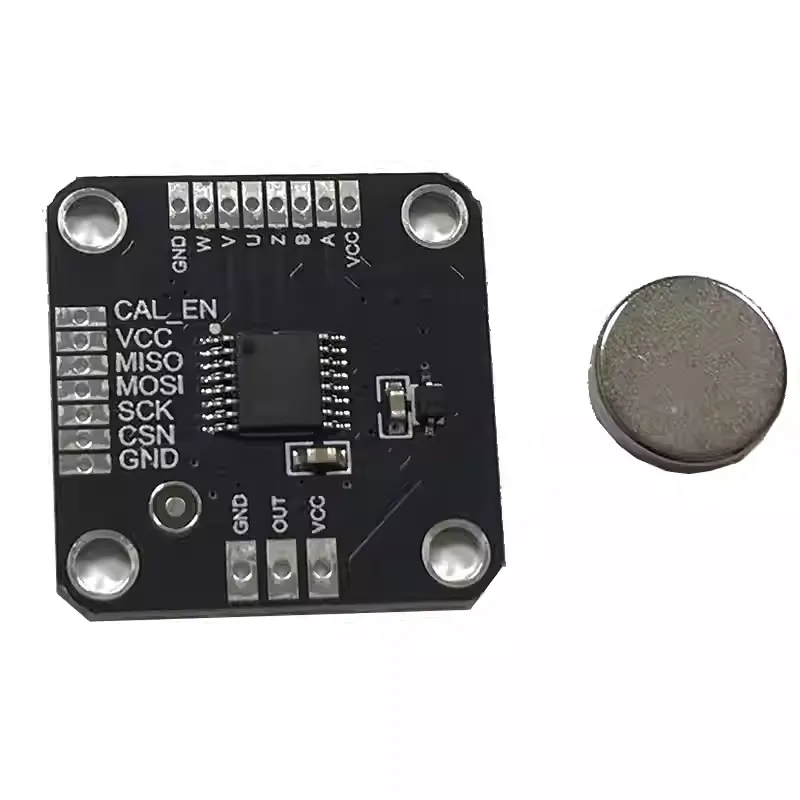

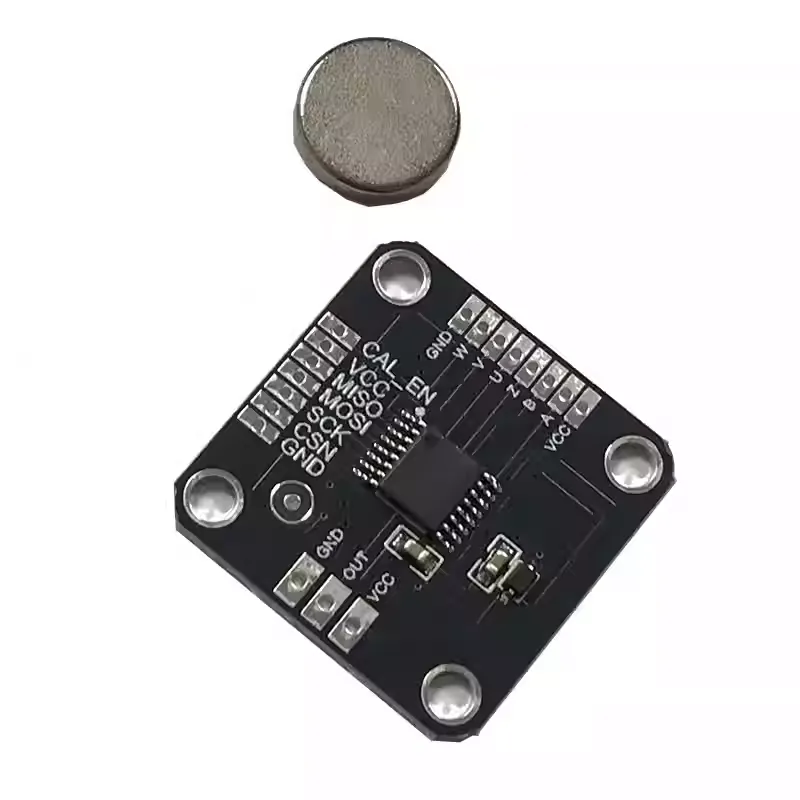

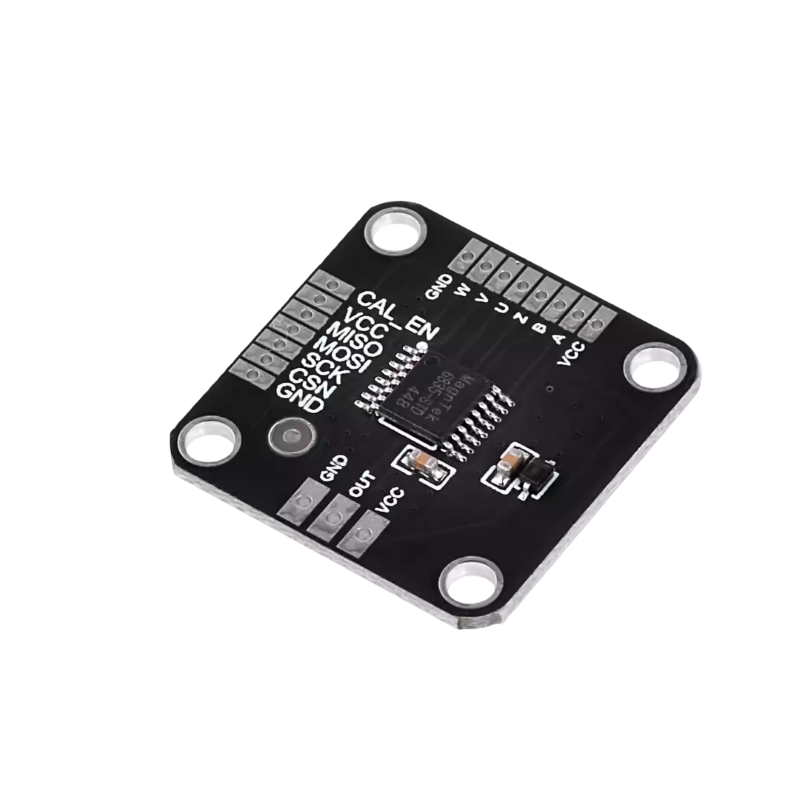

MagnTek MT6835 Magnetic Encoder Module - 21BIT Absolute AMR Encoder with SPI/PWM/ABZ/UVW Outputs
The MagnTek MT6835 is a high-speed 21-bit absolute magnetic encoder module utilizing AMR technology, providing precise 360° angle detection for brushless motor control and robotics. It interfaces via SPI, PWM, ABZ, and UVW outputs and operates from a 3.3V to 5V DC supply, making it compatible with industrial PLCs, servo drives, and microcontroller platforms like Arduino and STM32.
Features
- 21-bit absolute angle resolution via SPI interface (18-bit core AMR sensor).
- Supports multiple output modes: SPI, PWM, incremental ABZ (1-16384 PPR), and UVW (1-16 pole pairs).
- High-speed operation up to 120,000 RPM with ultra-low system latency.
- Industrial-grade operating temperature range from -40°C to +125°C.
- Compact TSSOP-16 package with a wide 3.3V to 5.0V supply voltage range.
Out of stock
The MT6835 magnetic encoder module employs Anisotropic Magneto-Resistive (AMR) technology to deliver non-contact, absolute 360° angular position sensing. This principle ensures high accuracy and reliability with minimal wear, even in high-vibration environments. The module outputs raw data via a high-speed SPI interface and provides configurable PWM, ABZ quadrature, and UVW commutation signals for direct motor control.
Designed for seamless integration into servo systems, CNC machinery, and robotics, the encoder features a robust industrial temperature rating and operates across a standard logic voltage range. Its design and pinout make it a functional replacement for AS5048-series encoders, offering enhanced resolution and speed performance for precision motion control applications.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.7 × 2.7 cm |
