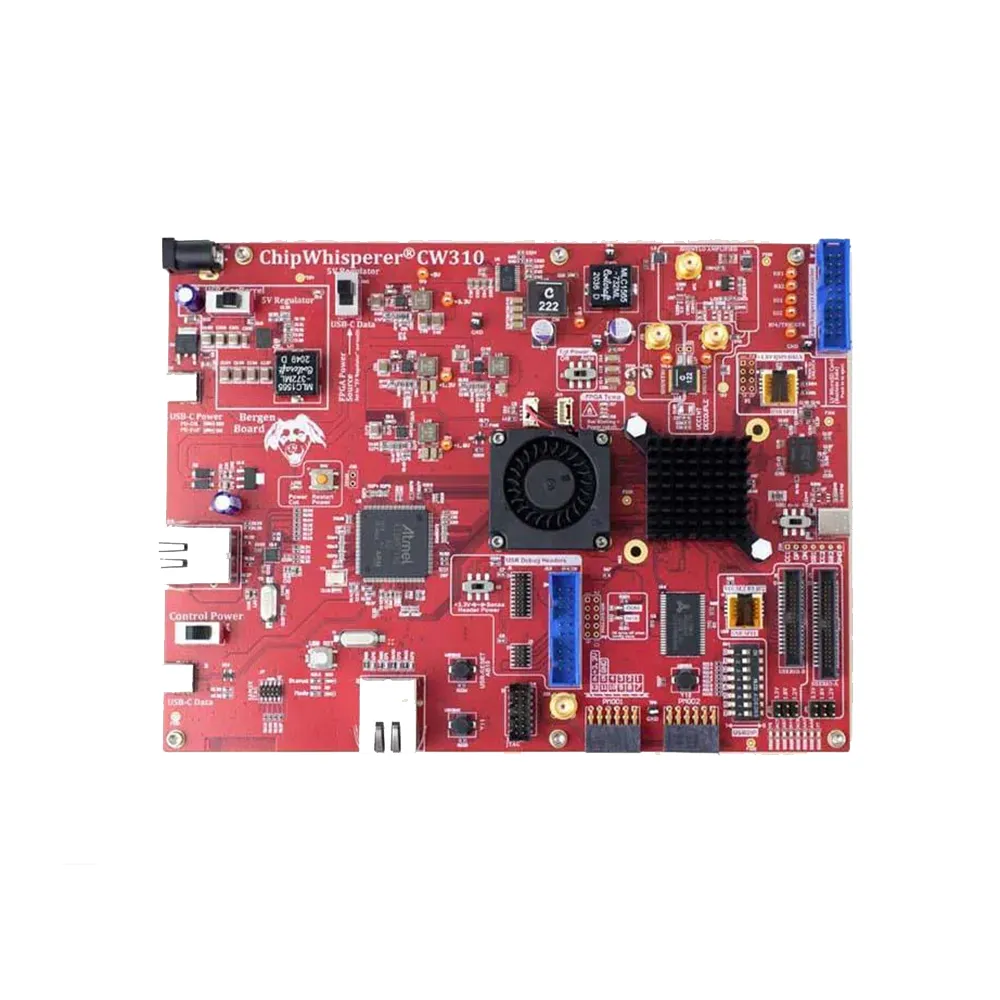

NewAE CW310 Bergen FPGA Board - Kintex K410T SCA
The NewAE CW310 Bergen Board is a powerful FPGA development platform featuring a Kintex K410T FPGA, integrated SRAM, and DDR3 memory. Optimized as an SCA variant, it provides precise power measurement capabilities for advanced side-channel analysis research.
Features
- Kintex K410T FPGA for high-performance, large-scale digital designs.
- SCA variant specifically designed for accurate side-channel analysis by excluding VCC-INT decoupling capacitors.
- On-board SRAM and DDR3 memory for complex data processing and storage.
- SAM3X MCU facilitates rapid FPGA configuration via USB.
- Integrated Ethernet MAC, USB Host PHY, and JTAG for versatile connectivity.
Out of stock
The NewAE CW310 Bergen Board stands as a robust FPGA development platform engineered for sophisticated embedded security research and extensive digital system designs. Centered around the Kintex K410T FPGA, this board effectively supports intricate implementations such as OpenTitan, custom System-on-Chips (SoCs), and various hardware accelerators, providing a solid foundation for innovation.
This specific SCA (Side-Channel Analysis) variant is meticulously optimized for precise power measurements, achieved by intentionally omitting decoupling capacitors on the VCC-INT rail. This modification enables highly accurate analysis critical for security evaluations. The CW310 also offers flexible connectivity through additional interfaces including an Ethernet MAC, USB host PHY, and JTAG. Ensuring sustained, reliable operation, the board incorporates a built-in low-noise amplifier, active cross-flow cooling fans, and comprehensive temperature monitoring, safeguarding performance during extended experimental sessions.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 10 × 10 cm |
