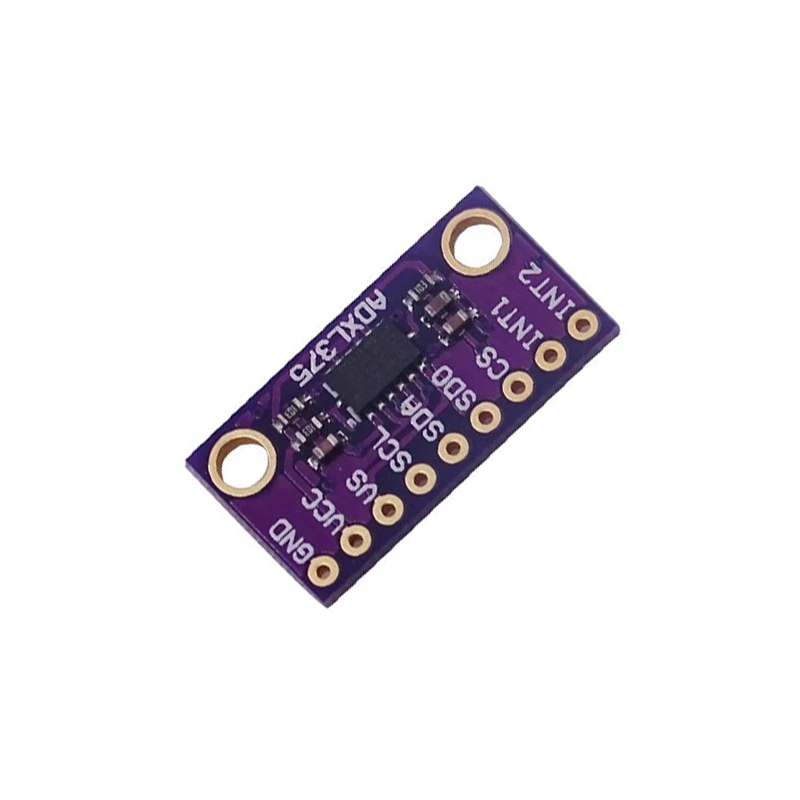

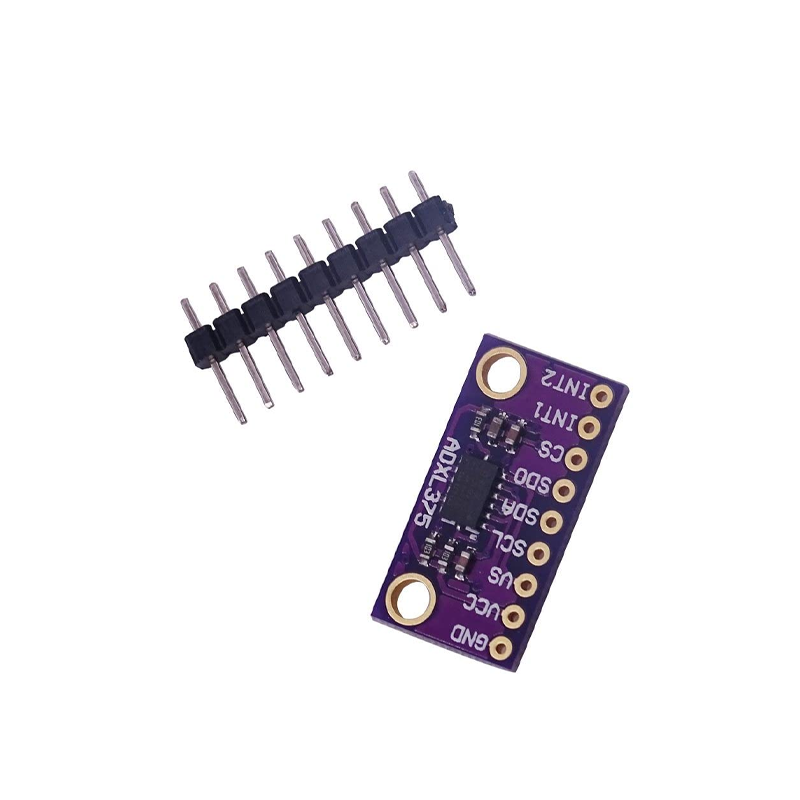

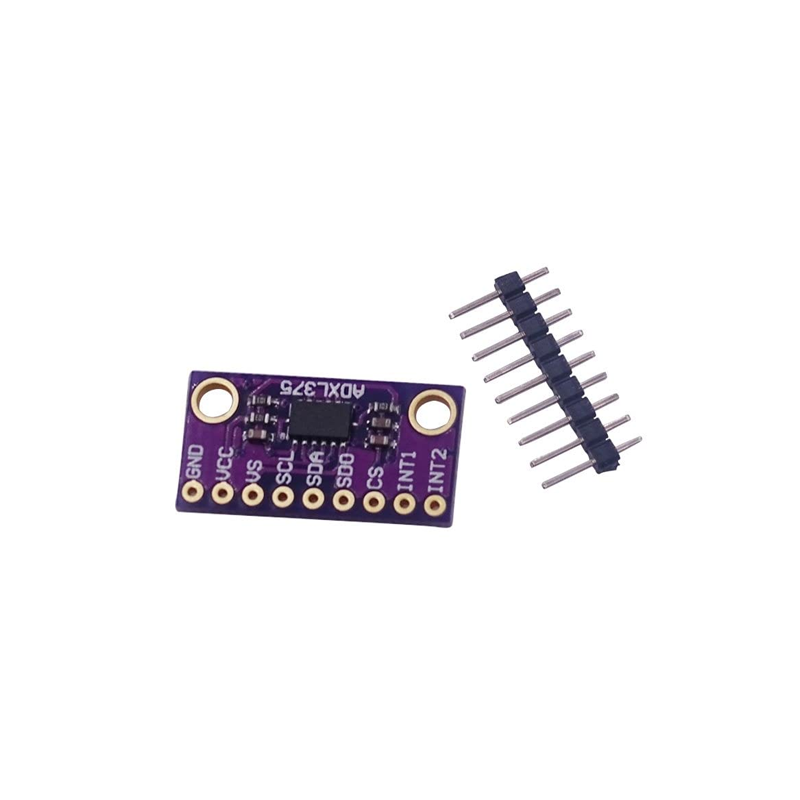

ADXL375 3-Axis Digital Accelerometer Module - ±200g Range, SPI/I2C Interface
The ADXL375 is a high-g, 3-axis digital accelerometer module with a ±200g measurement range and 10,000g shock survivability. It provides 16-bit digital output via SPI or I2C interfaces, making it compatible with microcontrollers like Arduino, Raspberry Pi, ESP32, and industrial PLCs for impact detection and vibration monitoring.
Features
- Ultra-wide ±200g measurement range for high-shock applications
- Exceptional 10,000g impact resistance for rugged environments
- Ultra-low power consumption: 35 µA in measurement mode, 0.1 µA standby
- Digital output via selectable SPI (3-wire/4-wire) or I2C interface
- Integrated 32-level FIFO buffer reduces host processor load
Out of stock
The ADXL375 3-Axis Acceleration Module is a MEMS-based digital sensor engineered for precise measurement of high-g forces, impacts, and vibrations. Its capacitive sensing principle delivers a 16-bit digital output, ensuring accurate data capture across its full ±200g dynamic range. The module includes built-in signal conditioning and temperature compensation for stable performance from –40°C to +85°C.
Designed for system efficiency, it features a 32-sample FIFO buffer and programmable data rates up to 1 kHz bandwidth, minimizing communication overhead. The selectable SPI and I2C digital interfaces allow seamless integration into embedded control systems, data loggers, and condition monitoring platforms, providing reliable motion data in demanding industrial and automotive environments.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.4 × 1.3 cm |
