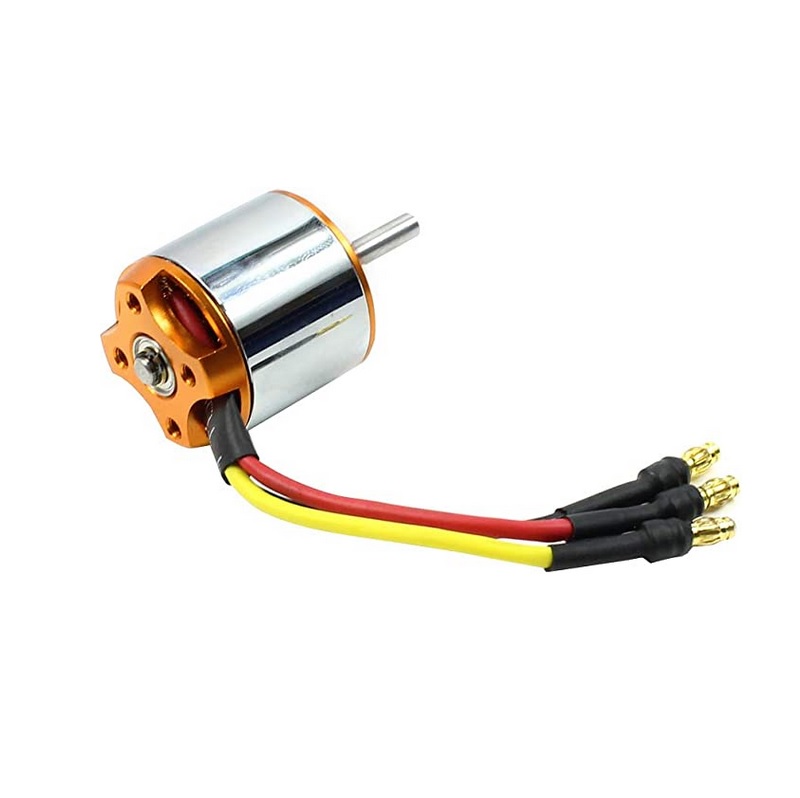

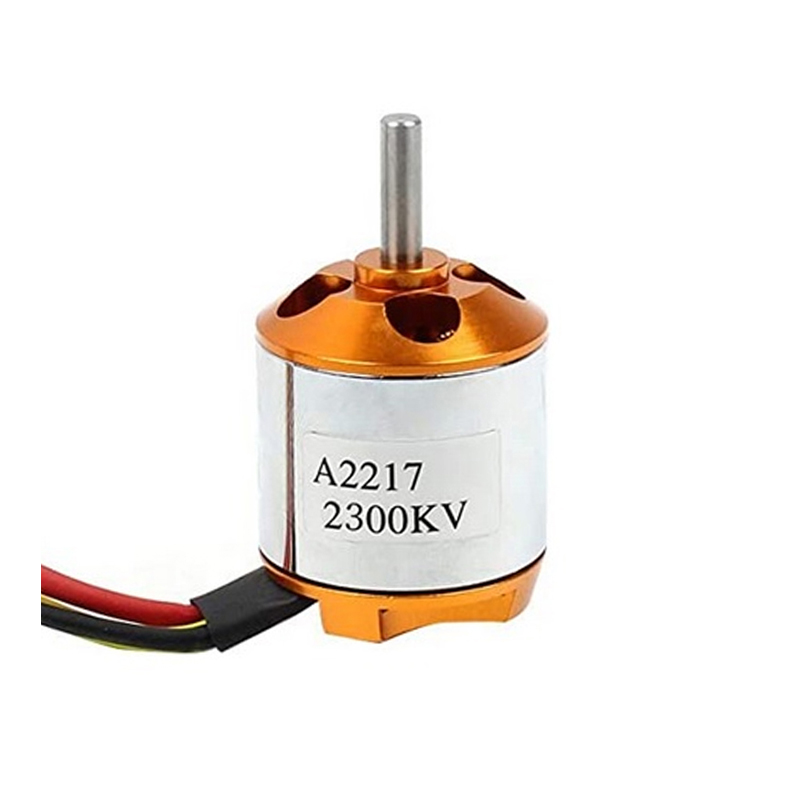

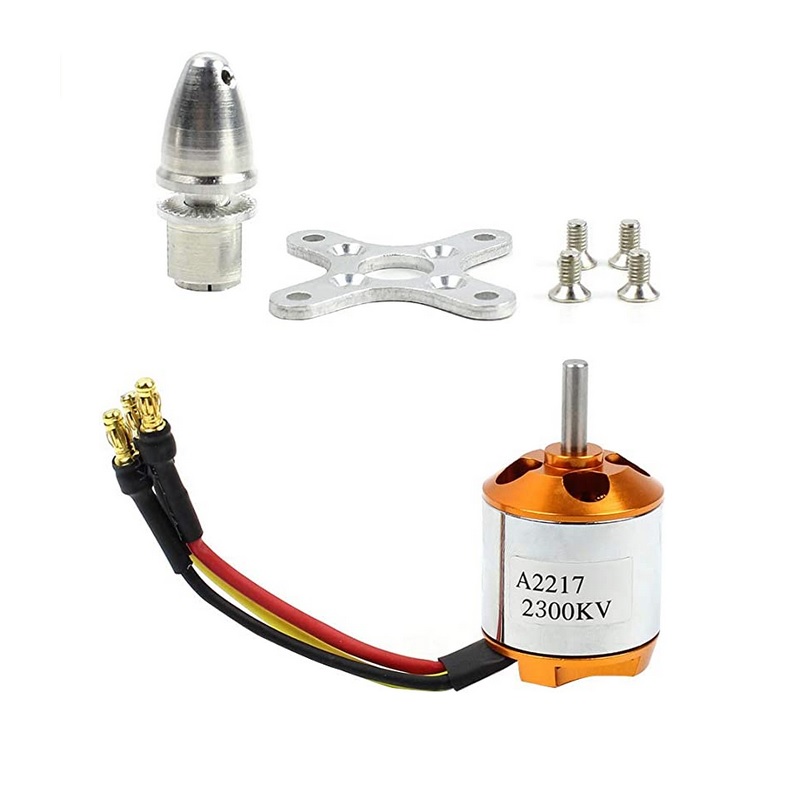

A2217 2300KV Brushless Out-runner Motor with Welded Banana Connector (Male)
The A2217 2300KV brushless out-runner motor is engineered for medium-sized multirotor platforms, delivering high thrust for quadcopter and hexacopter builds. It features a pre-soldered 3mm male banana connector for direct, solder-free ESC integration.
Features
- 2300KV rating optimized for 3S-4S LiPo batteries and 6-inch propellers.
- Generates up to 960g of thrust per motor with a 3S LiPo and 6040 propeller.
- Pre-soldered 3mm male banana connectors for direct ESC connection.
- Robust steel construction with a 4mm shaft for durability in demanding flight conditions.
- Rated for continuous 30A current with a peak rating of 60A for short bursts.
Out of stock
The A2217 2300KV brushless motor utilizes an out-runner design to provide high torque and efficient power delivery for medium-scale multirotor applications. Its construction prioritizes a balance between structural integrity and weight, making it suitable for a variety of frame sizes.
With an efficiency rating of 78% and a no-load current of 1.7A at 10V, this motor is engineered for responsive throttle control and extended flight times. The integrated 3mm banana connector simplifies the wiring process, reducing build time and potential soldering errors.
Additional Information
| Weight | 0.086 kg |
|---|---|
| Dimensions | 11 × 6 × 4 cm |
